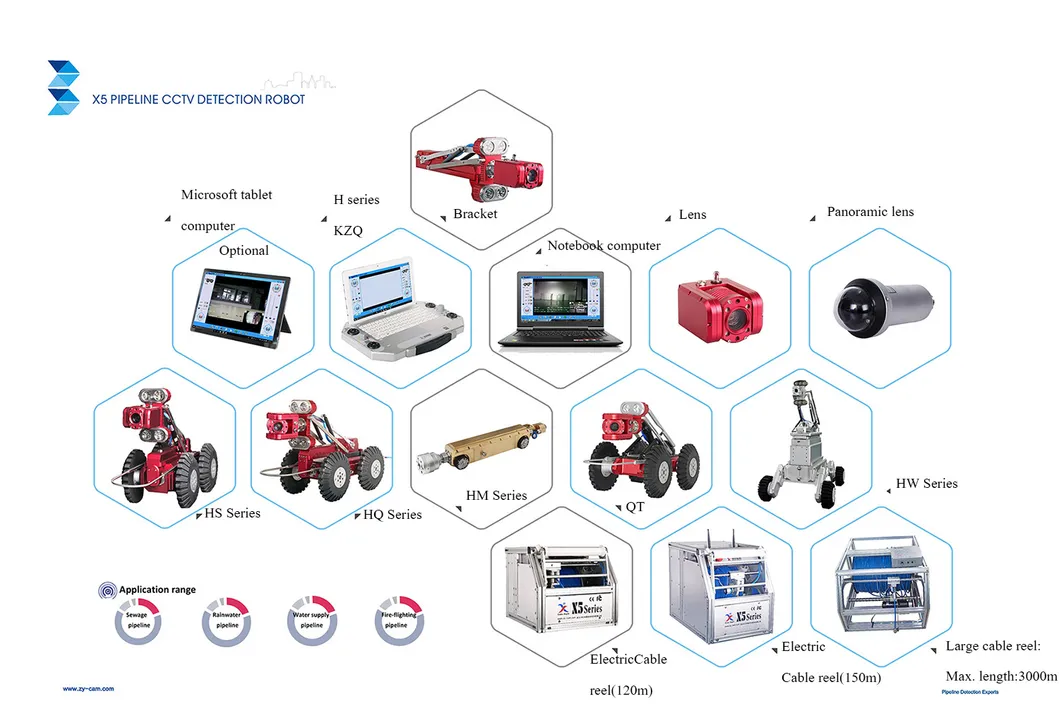

Series of X5 Product:
Product Description:
X5-HT pipeline CCTV Inspection robot is designed on the basis of industrial personal computer (IPC) system, using a laptop instead of the traditional controller. During the testing, defect pictures are acquired; afterward, a testing report can be obtained immediately. In addition, a pipeline gradient curve can be obtained in time during the testing to determine the sediment condition inside pipeline. Fish-eye lens is used, integrating video analysis software to generate the panorama image of inner wall.

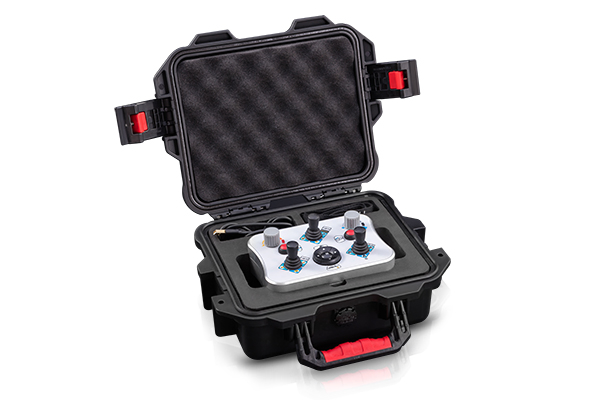

| Main controller | Available in any notebook computer; Wireless control; Real-time display date, time, distance, and crawling attitude info. |
| Electric cable reel | Standard length 120M; Two-core cable; Automatic retractable cord. |

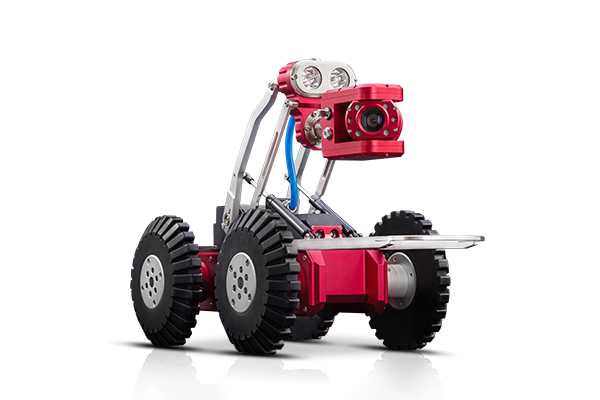

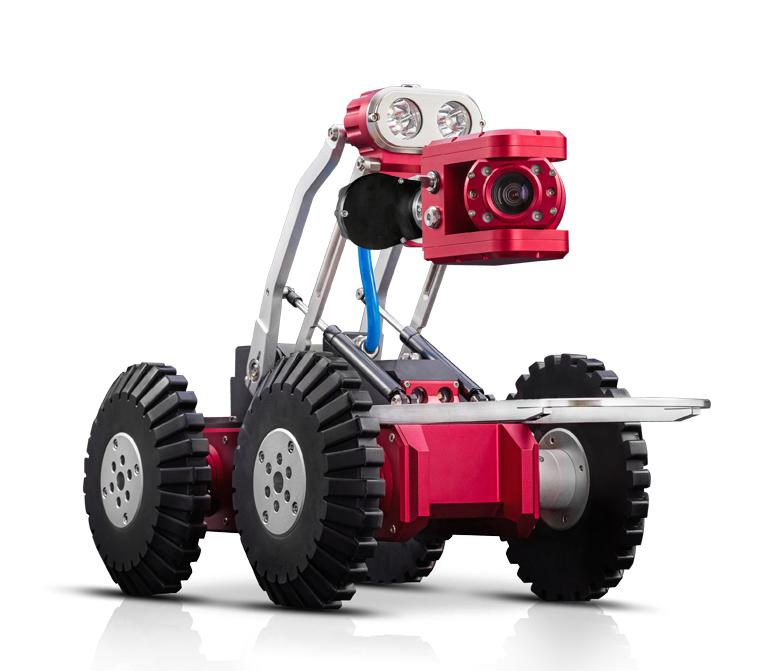

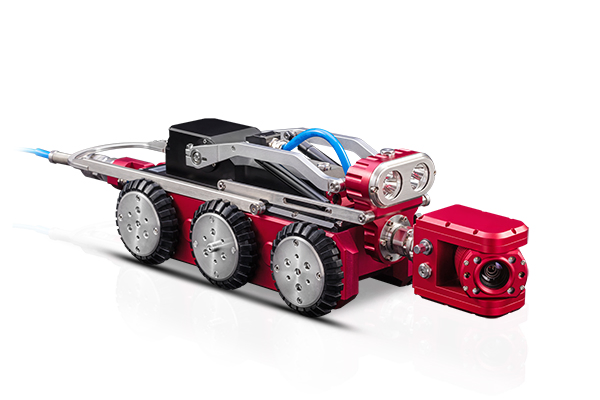

| Crawler | IP68 (10m depth); DN250mm--DN650mm; Material: brass, stainless steel, aluminum alloy; Electric lift frame. |
| Camera | Resolution 2592*1520; 360° radial limitless rotation; Sensitivity 0.1Lux; Four LED lights. |
