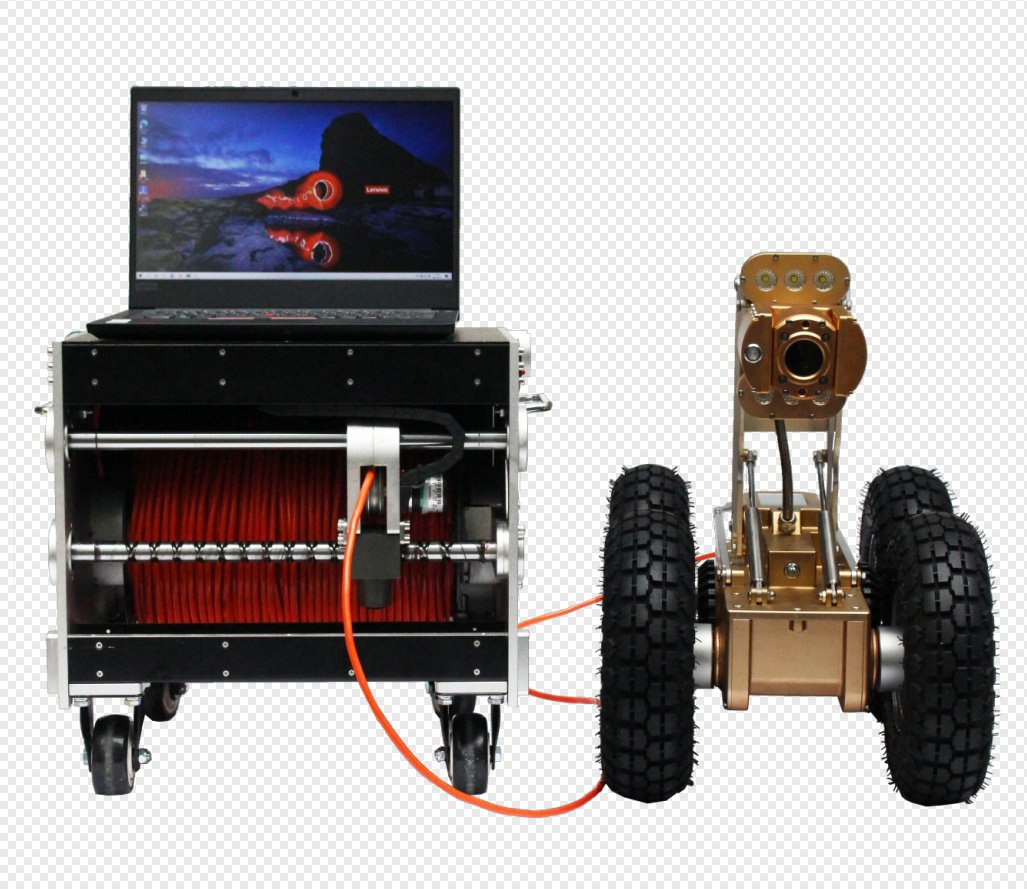

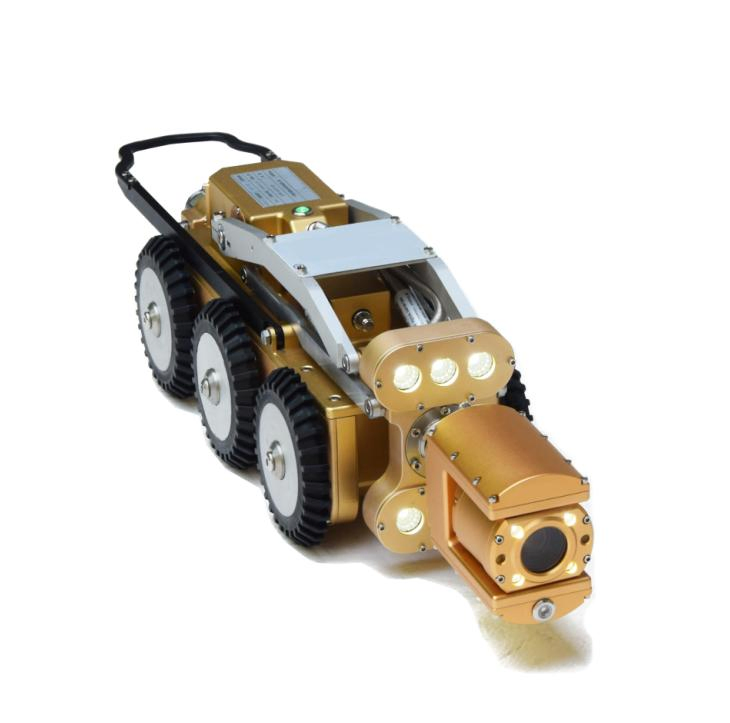

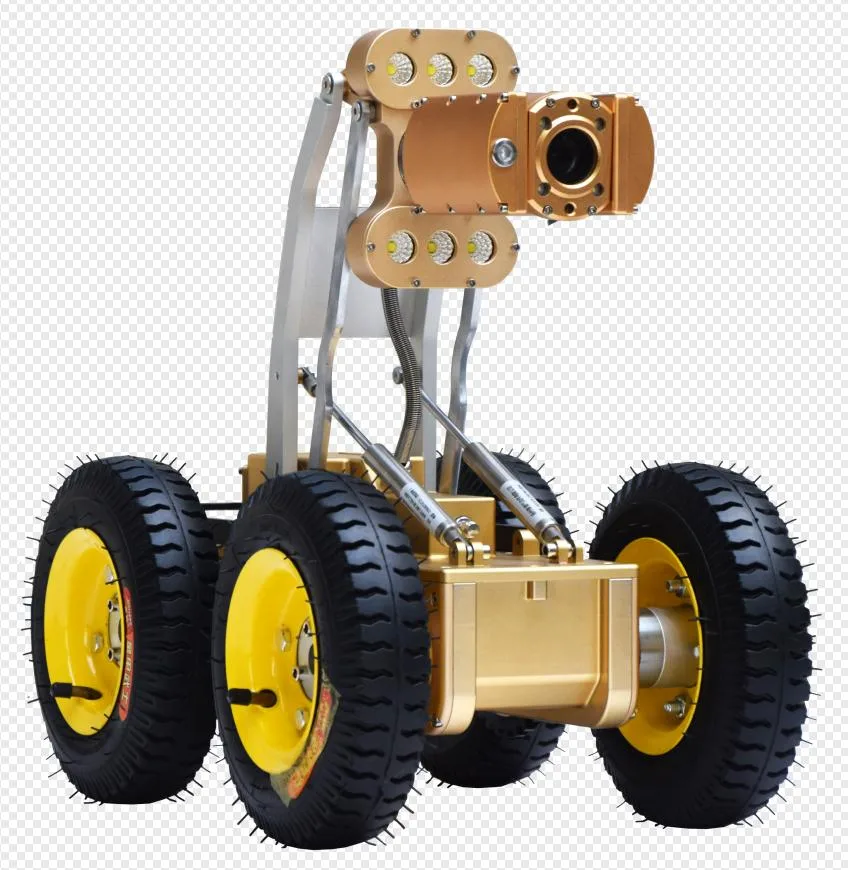

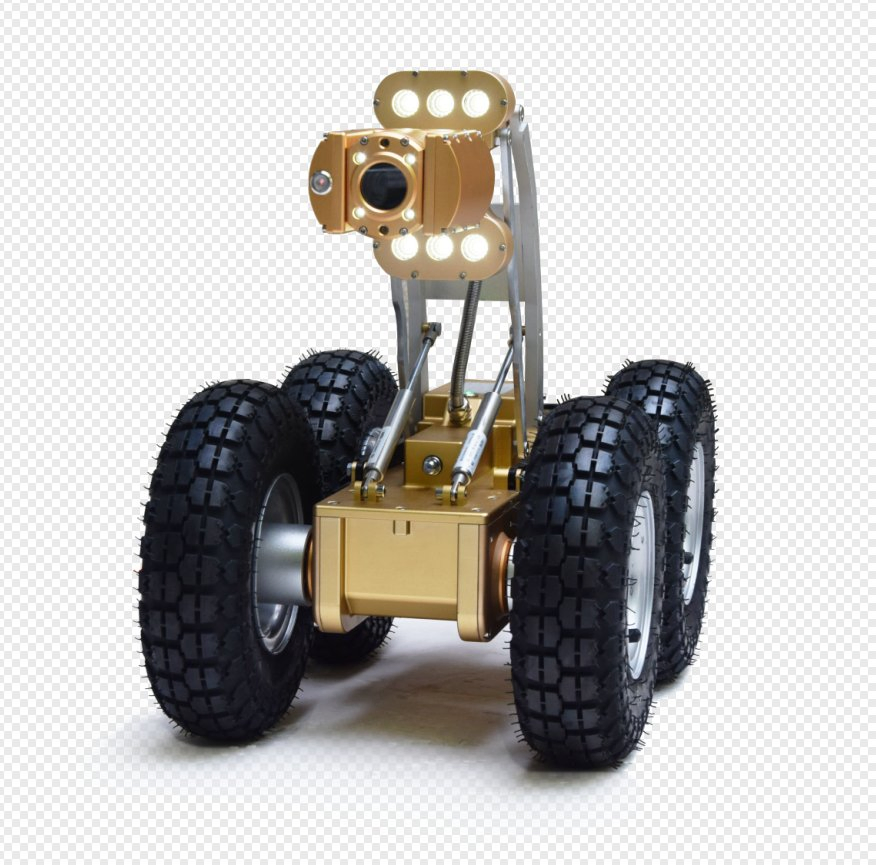

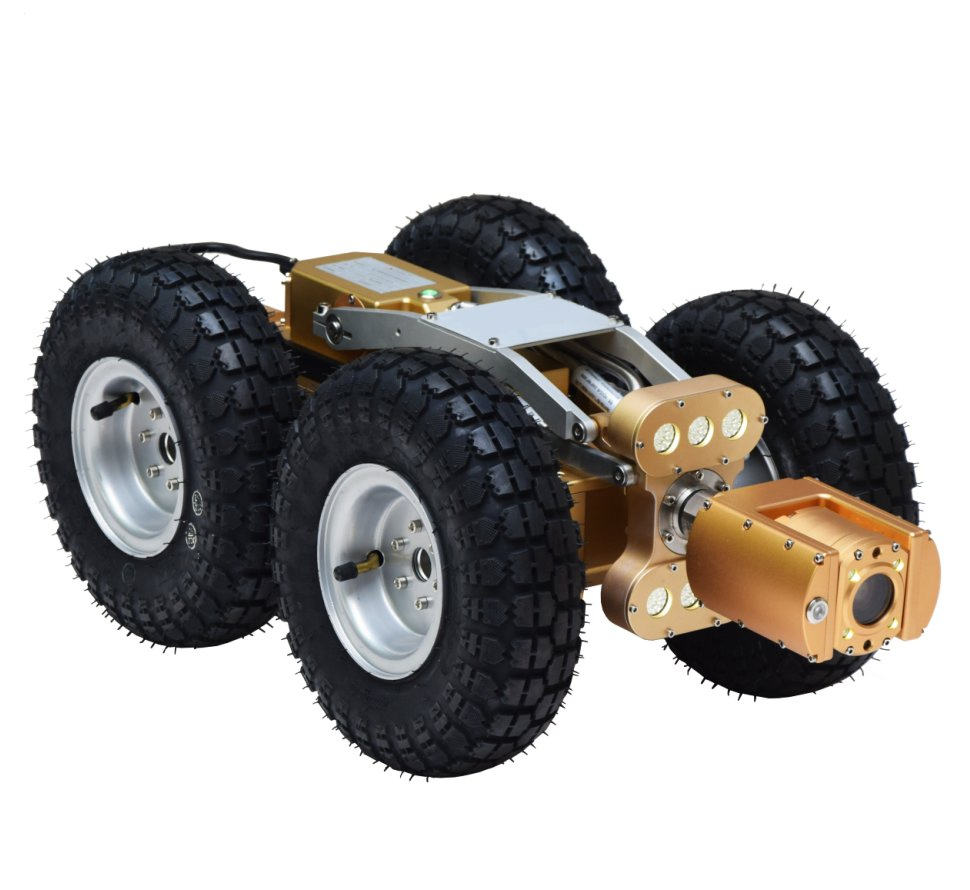

Waterproof Pipe Sewer Inspection Crawler Robot with 11 Inch Monitor, Pan Tilt Camera for Large Pipe Inspection
Technical Specifications:
✔Applicable Pipe diameter: Φ230mm~Φ3000mm
✔Wheel configure: 5", 8", 10" optional
✔Air tightness: Internal pressure retention 1.2 to 2.0 atmospheres
✔Wading depth: Able to wade to a depth of 10 meters
✔Protection grade: IP68
✔Zoom multiple: 36x optical, 12x electronic
✔Rotate Function: Radial 360° rotation, 2x110° pitch
✔Drive ability: High power DC motor, six wheel drive
✔Cable length: 120 meters (Configuration optional up to 1000 meters)
✔Climb ability: Climbing slope > 55°, obstacle crossing can reach 90°
✔Display: 11 inch true color Bright LCD display
✔Crawl speed: Stepless speed change 0-32m/min adjustable
What is the range of pipe diameters this crawler can inspect?
The system is designed to inspect pipes ranging from Φ230mm to Φ3000mm.
How deep can the crawler go underwater?
It has a protection grade of IP68 and can wade to a depth of up to 10 meters.
What kind of camera zoom capabilities does it have?
The camera features 36x optical zoom and 12x electronic zoom for detailed inspections.
Is the cable length customizable?
The standard cable length is 120 meters, but optional configurations can extend up to 1000 meters.
Can it handle steep slopes or obstacles?
Yes, it has a climbing slope capability of over 55° and can cross obstacles up to 90°.
What are the camera rotation limits?
The PTZ camera supports 360° radial rotation and 2x110° pitch movement.
