🥇 Product Overview: The X5-HW is engineered for large-scale pipelines (800mm to 4000mm) with an extraordinary detection distance of up to 2000 meters. It is the ultimate solution for long-distance drainage pipeline monitoring where traditional robots fall short.
| Main Controller | Laptop-based host with built-in analysis software. Controls crawler travel, lifting, lens rotation, and cable reel. Real-time display of front/rear video, slope curves, and crawler attitude. |
| Electric Cable Reel | High precision encoder (± 0.01m). Motor-driven automatic take-up. IP63 protection. Standard cable length: 2050m. Maximum speed: 30m/min. |

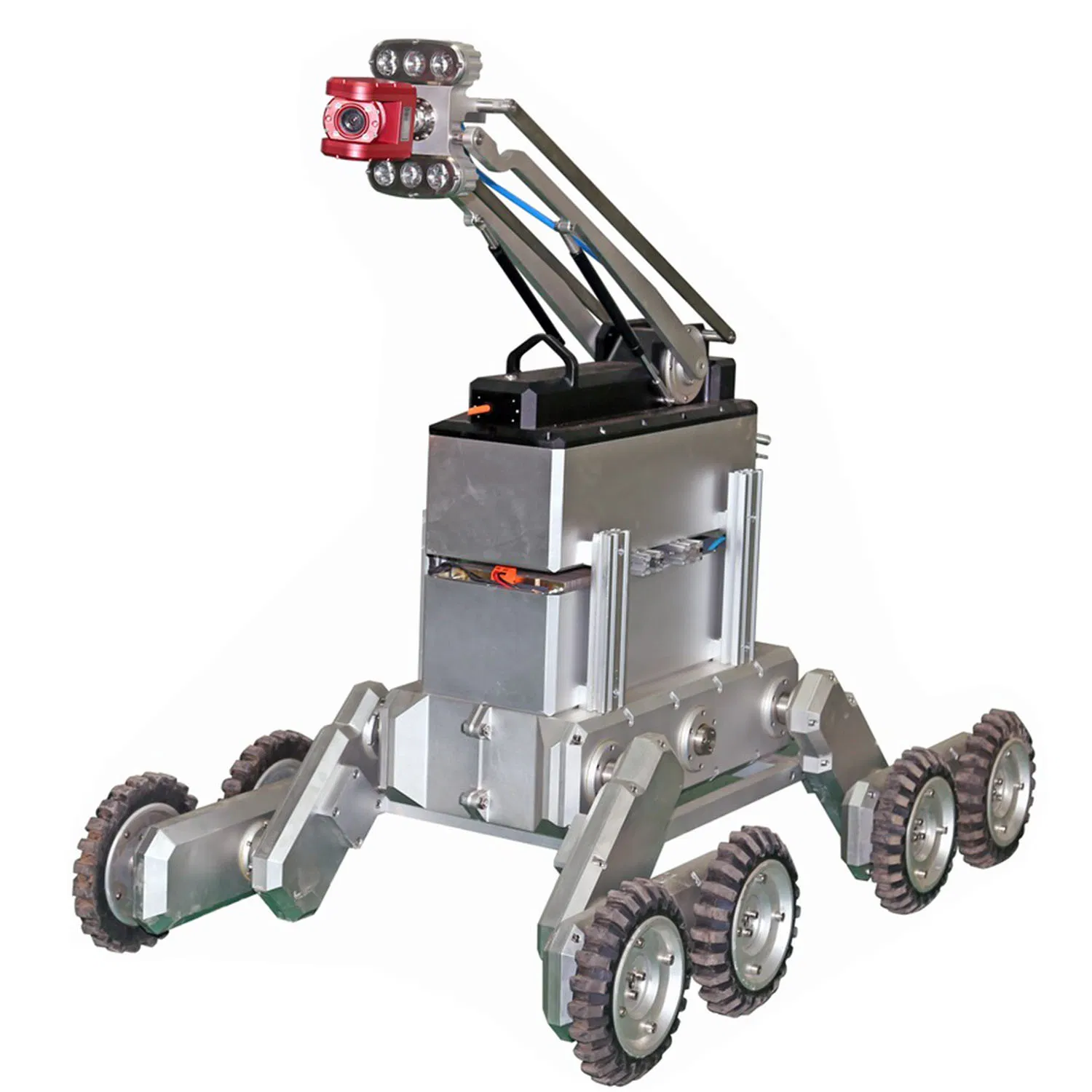

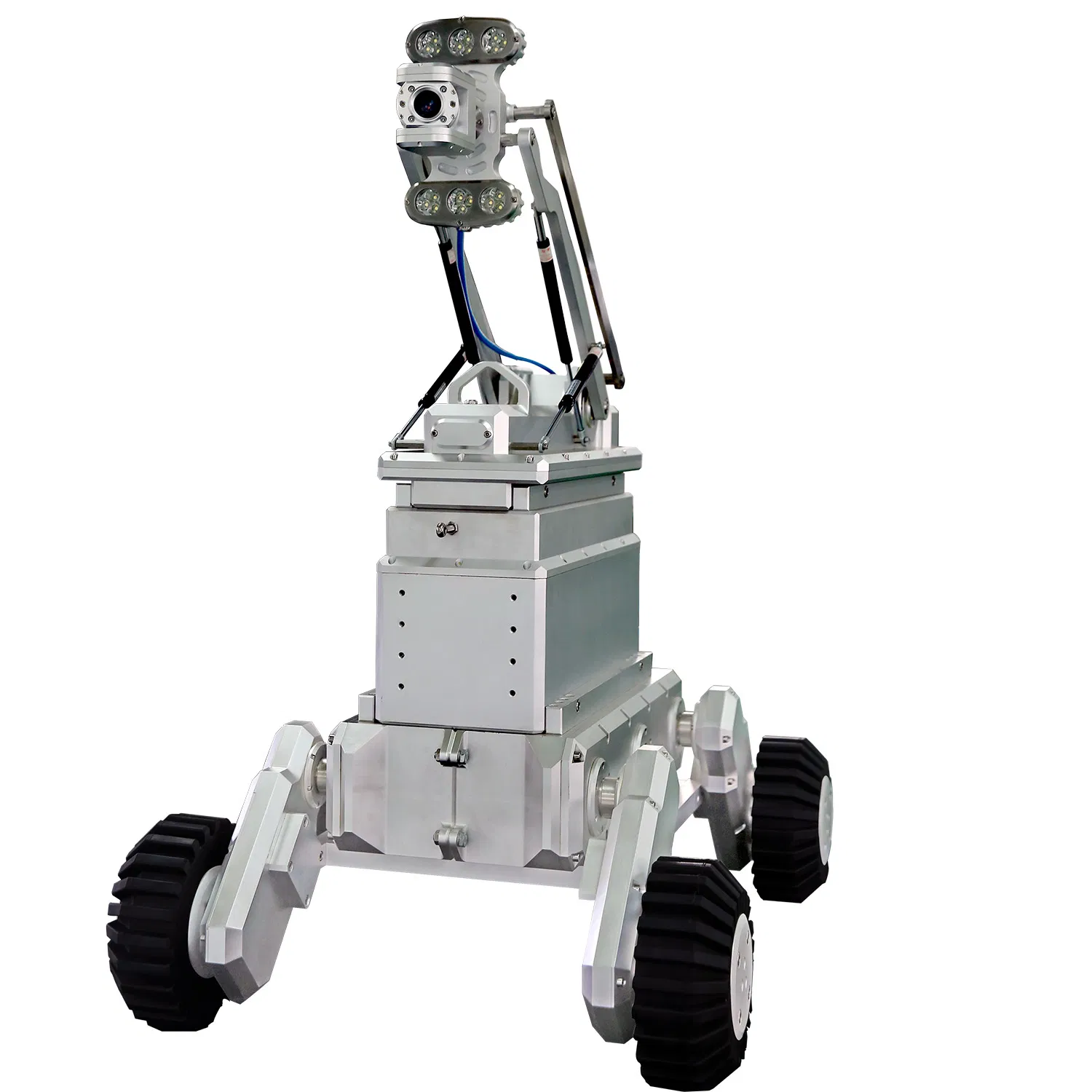

| Crawler Unit | IP68 waterproof (10m depth). Dual 250W motors, 8-wheel drive. Speed up to 12m/min. Electric lift frame gap up to 380mm. Includes rear-view lens (720P) and adjustable highlight LED lamps. |
| HD Camera | 2.13 Million Pixels (1920*1080P). 10x optical zoom with auto focus. 360° infinite radial rotation and ±90° pitch. 1/3" CMOS imaging system. |

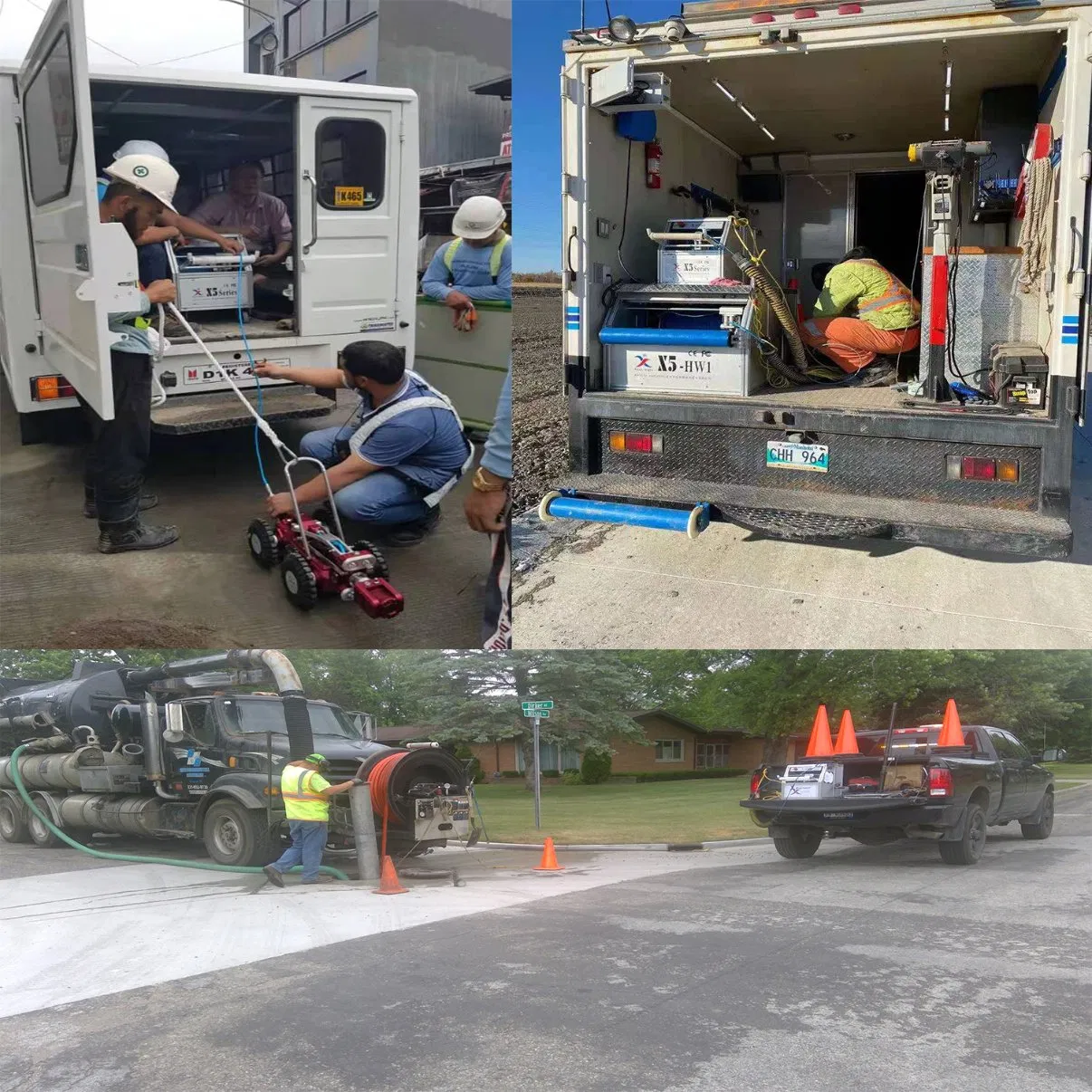

Lightweight master control and crawler. Quick assembly on-site with wireless data transmission options.

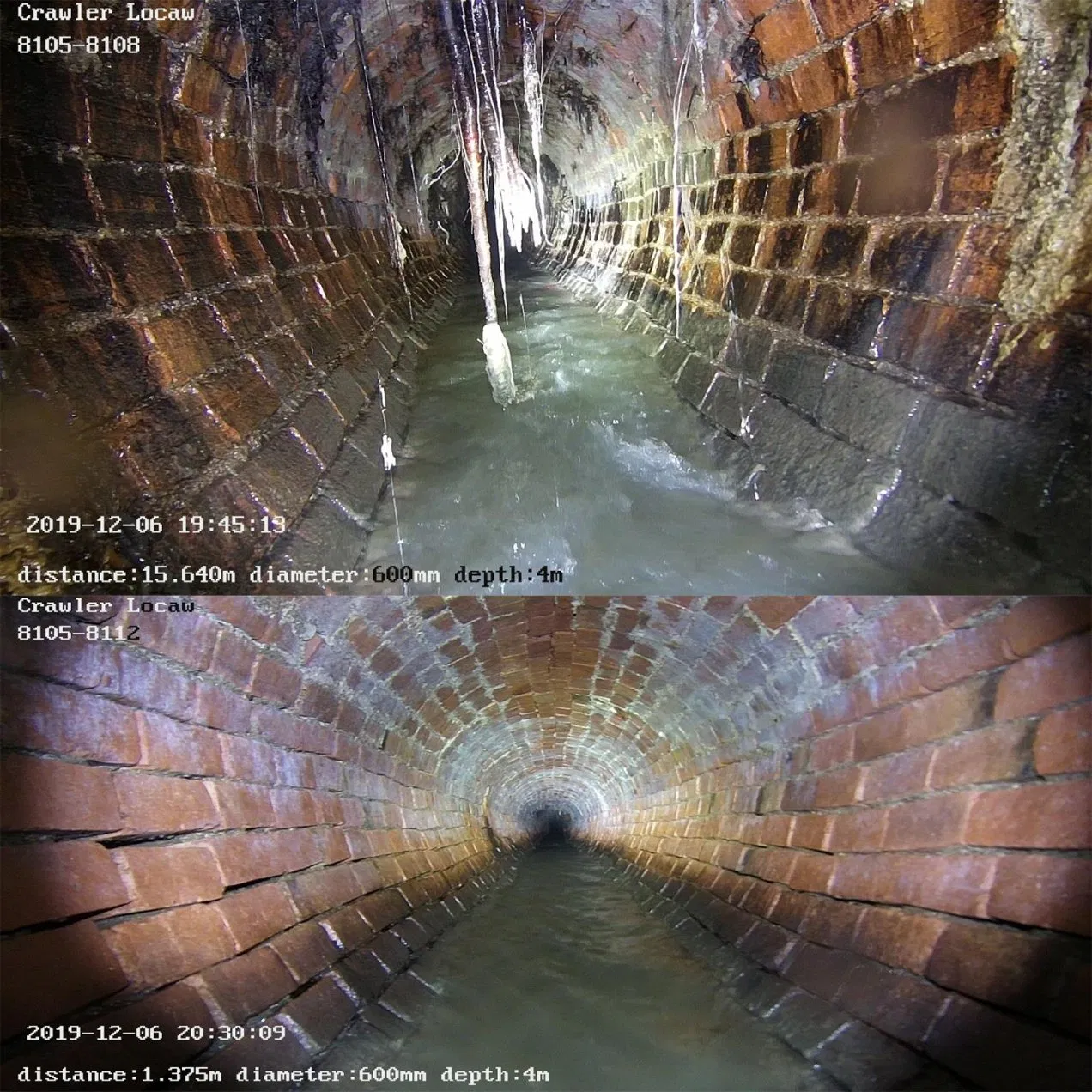

1080P HD camera combined with highlight spotlight LED lamps for crystal clear underwater visuals.
IP68 waterproof and explosion-proof design. Built-in pressure sensors and rollover alarms for safety.
✅ Warranty: 12 months with lifelong maintenance support.
✅ Quality Control: Every machine is strictly tested before packaging to ensure perfect operation.
✅ Technical Training: Detailed English manuals, training CDs, and factory-based training available.
✅ OEM Support: Professional brand customization services available free of charge.
We use standard plywood craft cases. The machine is wrapped in a thickened plastic bag for waterproofing and shielded by foam to prevent vibration damage during transit.
Main components are pre-installed before shipping. For setup, we provide detailed training videos and English manuals. Most users find it intuitive and easy to learn.
Our packaging considers all potential damage factors. Combined with experienced shipping agents, we ensure your parcel reaches you in good condition.
Contact our support team immediately. We respond within 24 hours. Do not attempt unauthorized repairs to avoid warranty complications.
Yes, we provide lifelong services and supply all necessary spare parts at competitive prices for all equipment sold.
This specific model is designed for large-diameter pipelines ranging from 800mm to 4000mm.
