📊 Basic Information
Model NO.B2
Degrees of Freedom4-axis
Drive ModeElectric
Payload Capacity120kg
Operating Temperature-20ºC~55ºC
Smart Battery8000mAh
Max Jump Distance> 1.6m
InterfaceEthernet, USB3.0, 12V/5V/24V
Specification150cm * 60cm * 80cm
HS Code8428909090
🤖 Product Description

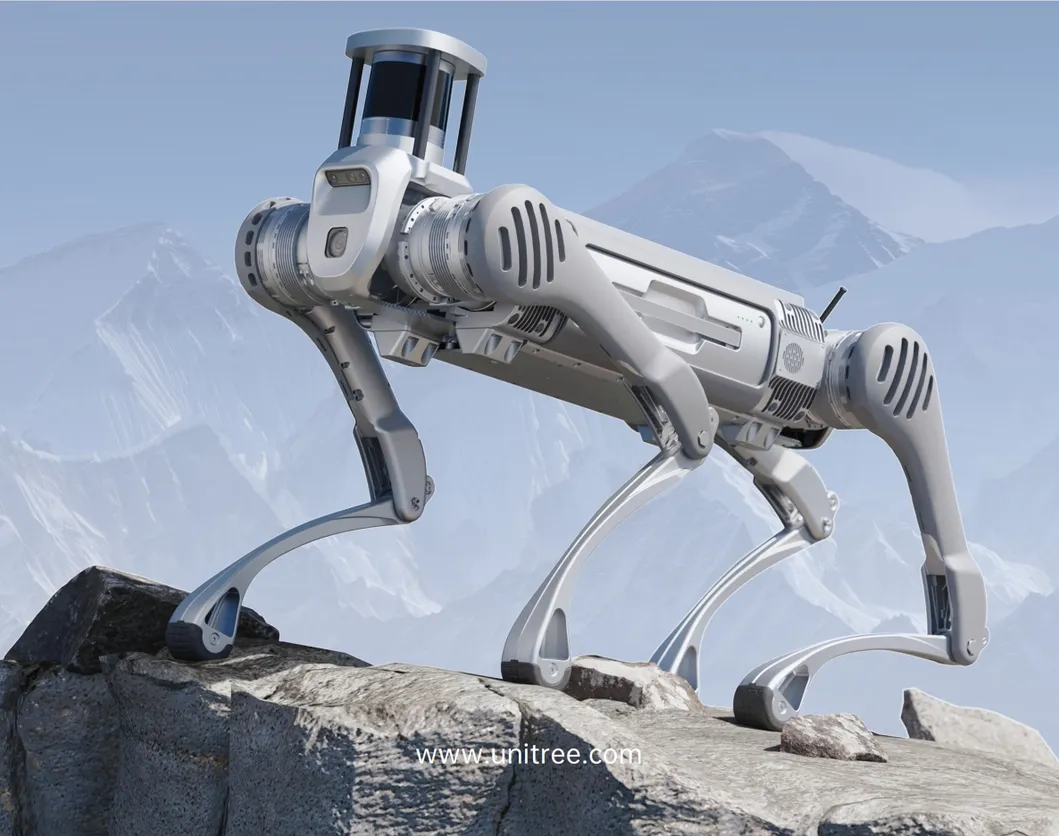

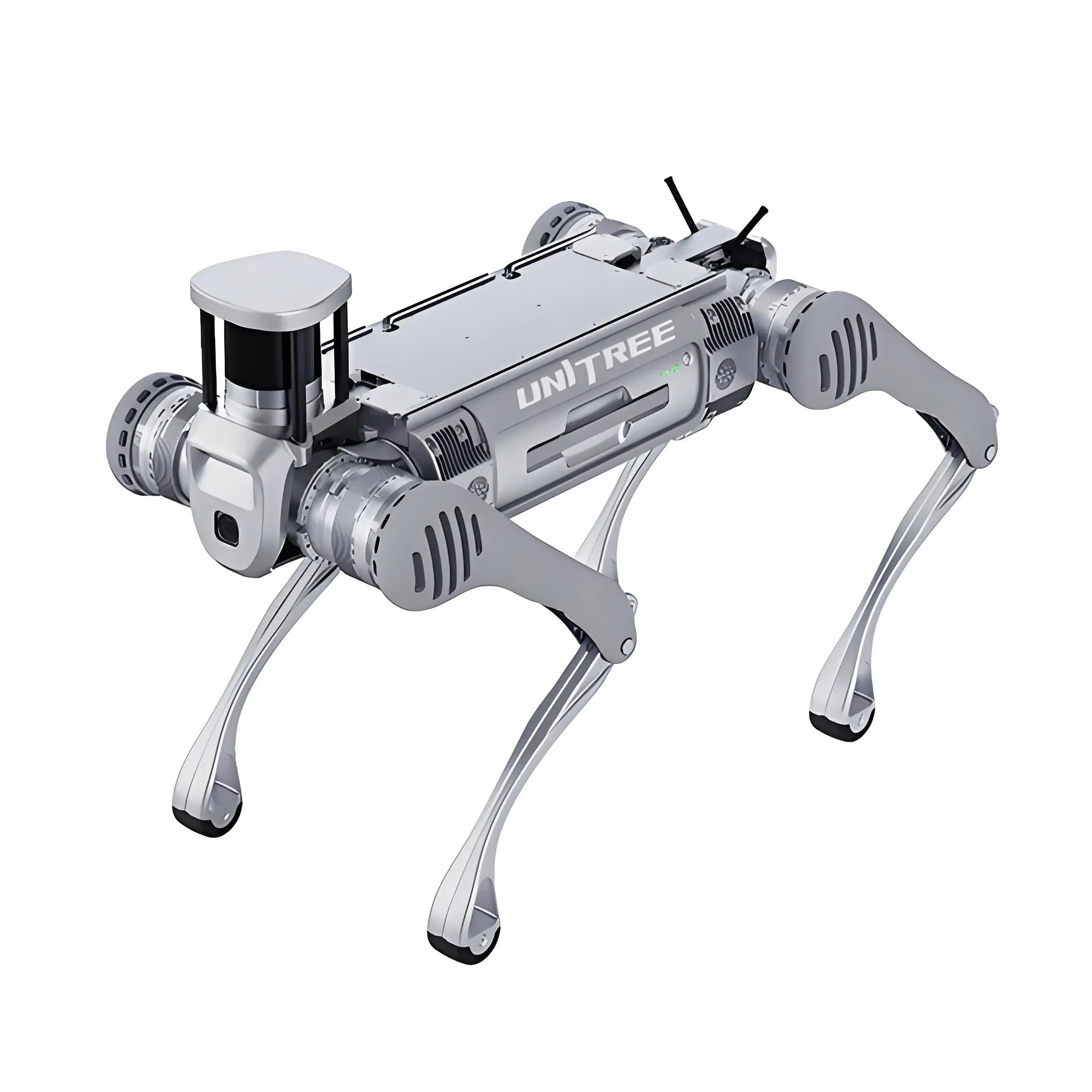

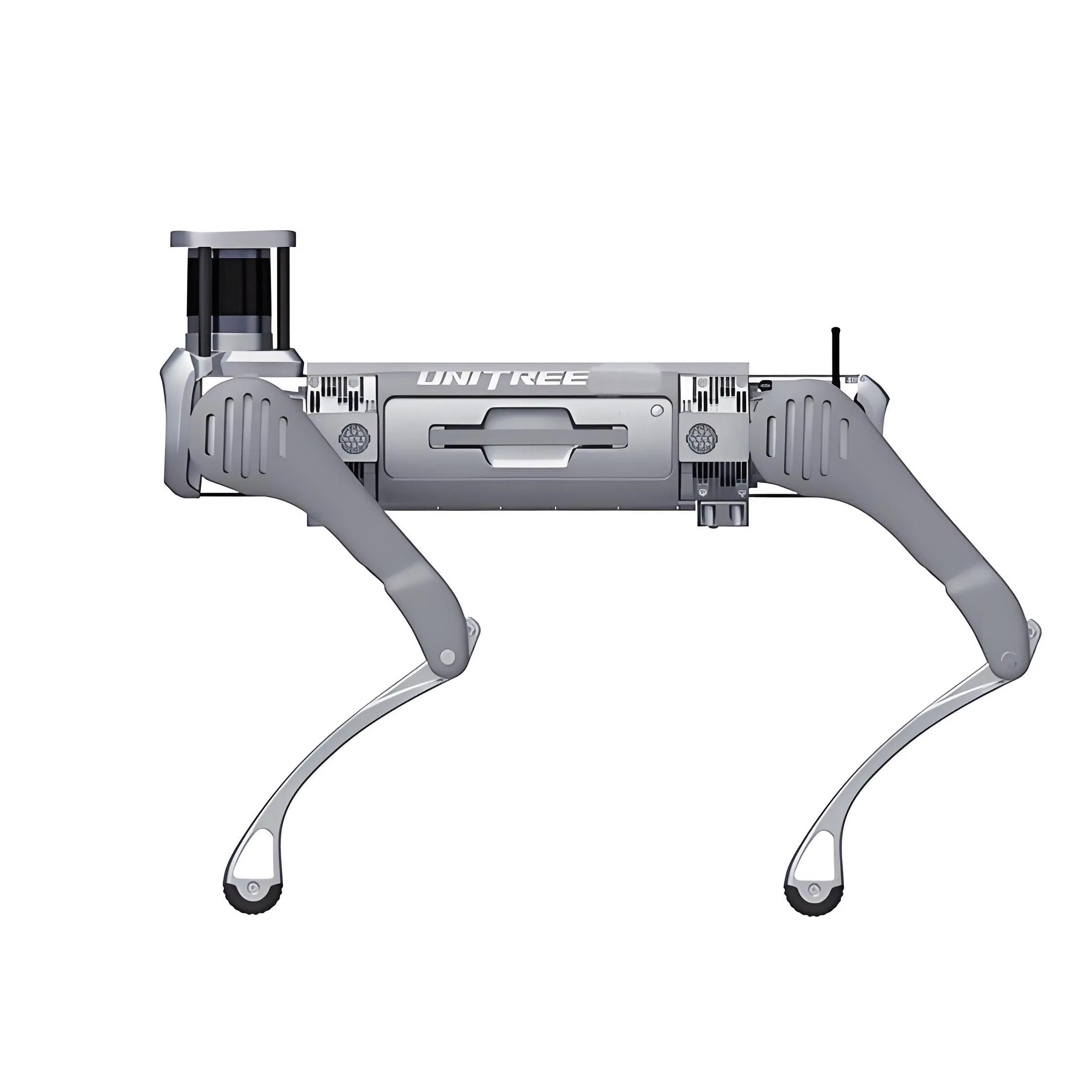

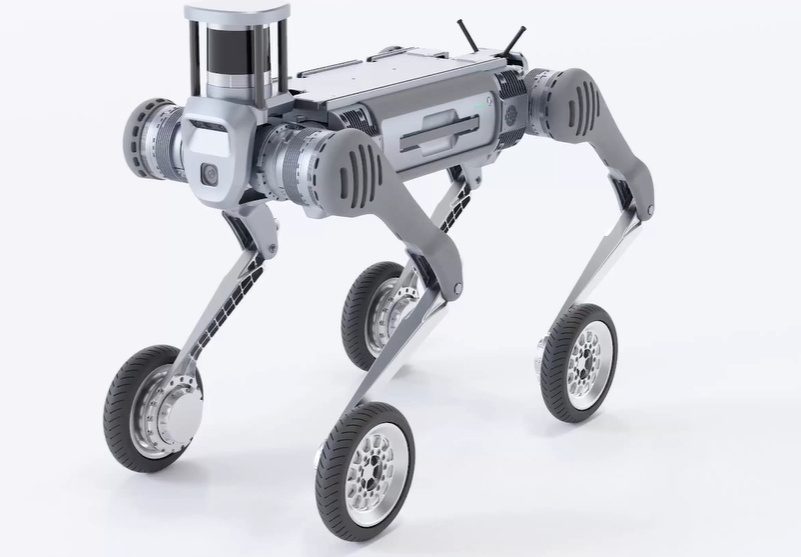

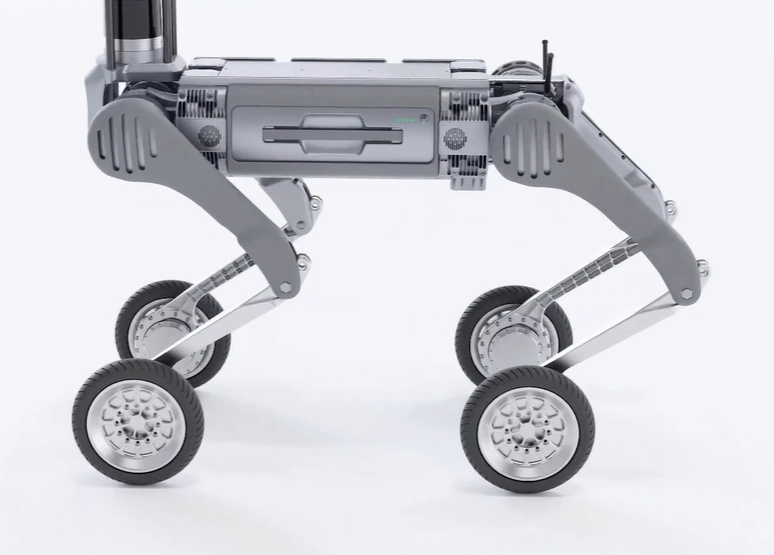

Industrial Wheeled-Legged Robot Dog

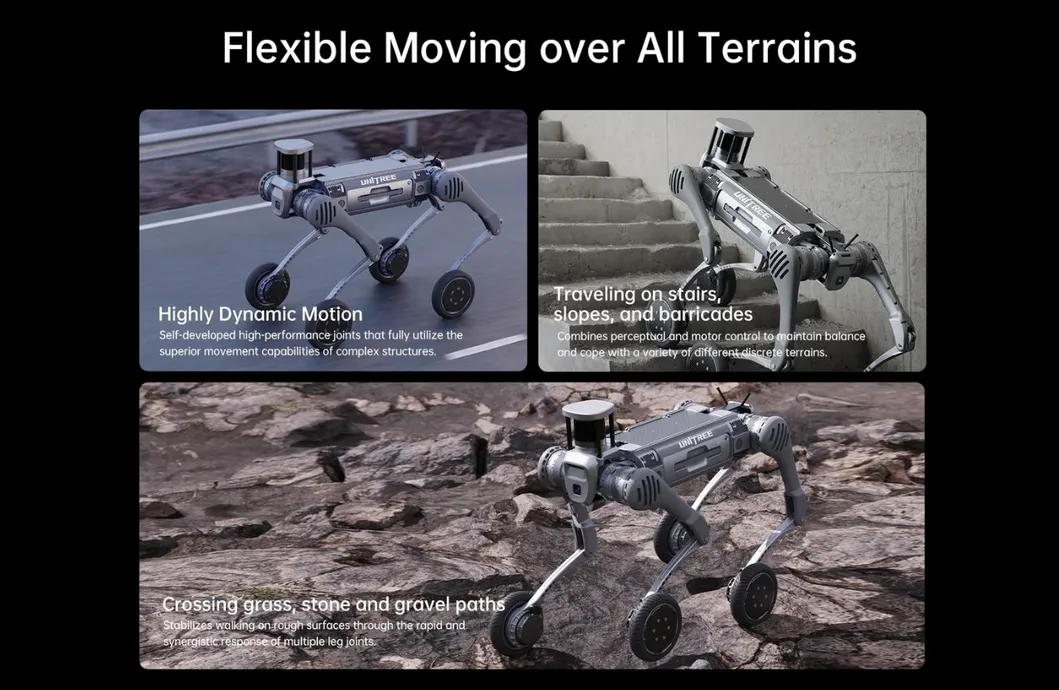

The B2 redefines the capabilities of industrial quadruped robots with its heavy load capacity, long endurance, and all-terrain adaptability. Its modular design and open computing platform offer flexible intelligent solutions for power, rescue, inspection, and logistics applications.
🚀 Application Scenarios
- 📍 Power Inspection: Replaces manual inspections in substations and high-voltage power lines using infrared cameras.

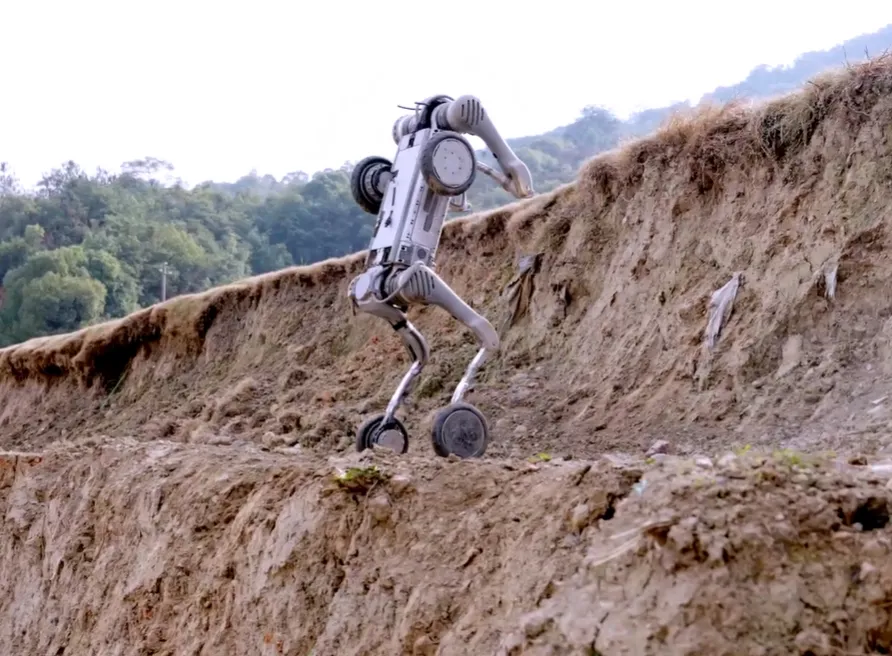

- 📍 Emergency Rescue: All-terrain search, rescue, and material transport in disaster scenarios.
- 📍 Industrial Inspection: Performs 3D modeling and data collection in complex factory environments.
- 📍 Logistics: High load capacity supports automated cargo transport in warehouses.
⚙️ Technical Specifications
| Feature |
B2 (Legged) |

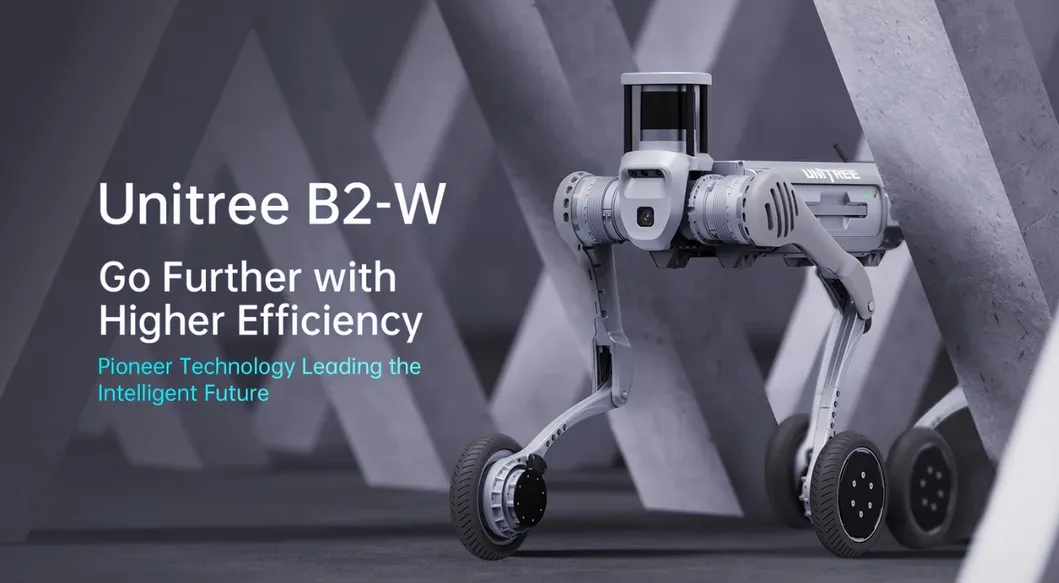

B2-W (Wheeled-Legged) |
| Total Weight (inc. battery) | 60kg | 75kg |
| Max Running Speed | 5 m/s | 6 m/s |
| Load Capacity (Standing) | Max. 120kg |
| Load Capacity (Walking) | > 40kg |
| Climbing Angle | > 45° |
| Battery Life | 4-6h (No load > 5h, 20kg load > 4h) |
| Protection Level | IP67 |
💡 Intelligent Functions
Voice Interaction: Features ASR, TTS, and NLP for intelligent multilingual dialogue and visitor assistance.
Visual Recognition: Face recognition for personalized interaction and pedestrian detection for safety.
Autonomous Navigation: Path planning, obstacle avoidance, and task scheduling for automated night patrols.
❓ Frequently Asked Questions
When will you ship my order?
In-stock items ship within 1-5 working days after payment confirmation. Out-of-stock items typically have a lead time of around one month.
What's your payment method?
We accept T/T and Global Pay for all transactions.
Do you support drop shipping?
Yes, drop shipping services are available upon request.
How about the warranty?
We provide a six-month warranty. Our technical team is available 24/7 to support any technical issues.
Can the robot navigate on all floors?
It performs best on flat, non-slip surfaces. Carpets are ideal; marble floors may pose a slight slipping risk during high-speed maneuvers.
Is technical deployment required for navigation?
For autonomous navigation, our technical personnel typically assist with on-site deployment to ensure optimal path planning.
