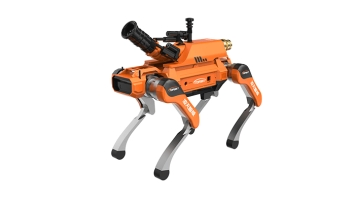

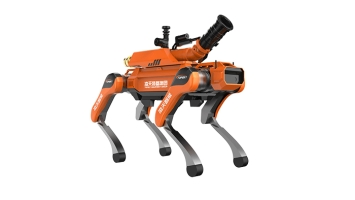

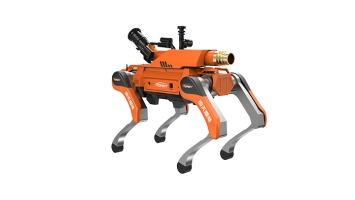

Diversified Mounted Modules and Expandable Interfaces Assistive Firefighting Quadruped Robot Dog

Customization: Available
Protection Rating: IP67
Operating Temperature: -20°~55°

Product Description

Basic Specifications

Model NO.
RXR-M40Q
Chassis Dimensions
1083mm×525mm×720mm
Weight
75kg
Max Endurance
5.5h
Max Speed
6.5m/S
Max Crossing Height
40cm
Transport Package
Protection Packing
Production Capacity
1000 Units/Year

Product Overview

The Fire-Fighting Quadruped Robot Dog is an advanced rescue equipment integrating bionics and intelligent technology, specifically designed for complex and high-risk fire-fighting scenarios. It boasts stronger terrain adaptability and plays a unique role in rescue and disaster response.
Equipped with functional modules such as toxic gas detection, environmental sensing, two-way intercom, and water cannons. With an IP67 waterproof and dustproof rating, it operates stably in extreme temperatures from -20ºC to 55ºC, performing unmanned reconnaissance in harsh environments including heavy smoke and fire conditions.

Application Scope

  • Fire rescue in large-scale petroleum and chemical enterprises
  • Rescue and fire-extinguishing in collapse-prone areas like tunnels and subways
  • Environments with flammable gas/liquid leaks and high explosion risks
  • Missions in heavy smoke, toxic, and harmful gas environments
  • Close-range operations that pose high casualty risks for personnel

Key Features

  • High Flexibility: Capable of performing tasks in diverse and complex terrains.
  • IP67 Protection: High waterproof and dustproof rating for extreme conditions.
  • Long-Range Control: Supports remote control and video transmission up to 1110m in open areas.
  • Water Hose System: Remote-controlled quick detachment system for high-load return efficiency.
  • Integrated Terminal: Handheld control for robot movement, water cannon, and real-time sensor data.
  • Cloud Integration: 4G/5G connectivity for real-time status monitoring via PC or mobile terminals.

Technical Indicators

Performance Parameters

  • Protection Rating: IP67
  • Operating Temperature: -20°C to 55°C
  • Standing Dimensions: 1083mm × 525mm × 955mm
  • Battery Performance: Charging <2h; Replacement ≤10s
  • Max Movement Speed: 6.5m/s
  • Maximum Standing Load: >135kg
  • Continuous Walking Load: >40kg
  • Climbing Capacity: 45° slope; 20cm step height
  • Fire Extinguishing: Spray distance ≥62m; Max flow rate ≥40L/s
  • Gas Detection: Oxygen, Chlorine, CO, CO2, Methane, H2S, etc.

Product Configuration

  • 1 set of Quadruped Robot Dog
  • 1 Remote control terminal
  • 1 Set of high-speed charger
  • 1 Instruction manual
  • 1 Professional outer packing box

Frequently Asked Questions

Do you offer discounts for bulk purchases?
Yes, we provide significant discounts for large quantity orders. Please contact our sales department for a detailed quote.
What is the typical delivery time?
Standard products within 50 units generally take 10-15 days, depending on the specific configuration and order quantity.
Do you support OEM and custom branding?
Yes, we provide OEM services and can integrate your logo based on a licensing agreement.
What are your manufacturing credentials?
We are a specialized manufacturer with over 18 years of experience in high-end safety and emergency rescue equipment.
What transport methods do you use?
We ship via express services such as TNT, FedEx, DHL, and UPS, or through specialized logistics providers based on your preference.
How can we initiate a partnership?
Simply contact our business representatives, and they will guide you through the entire procurement and collaboration process.
