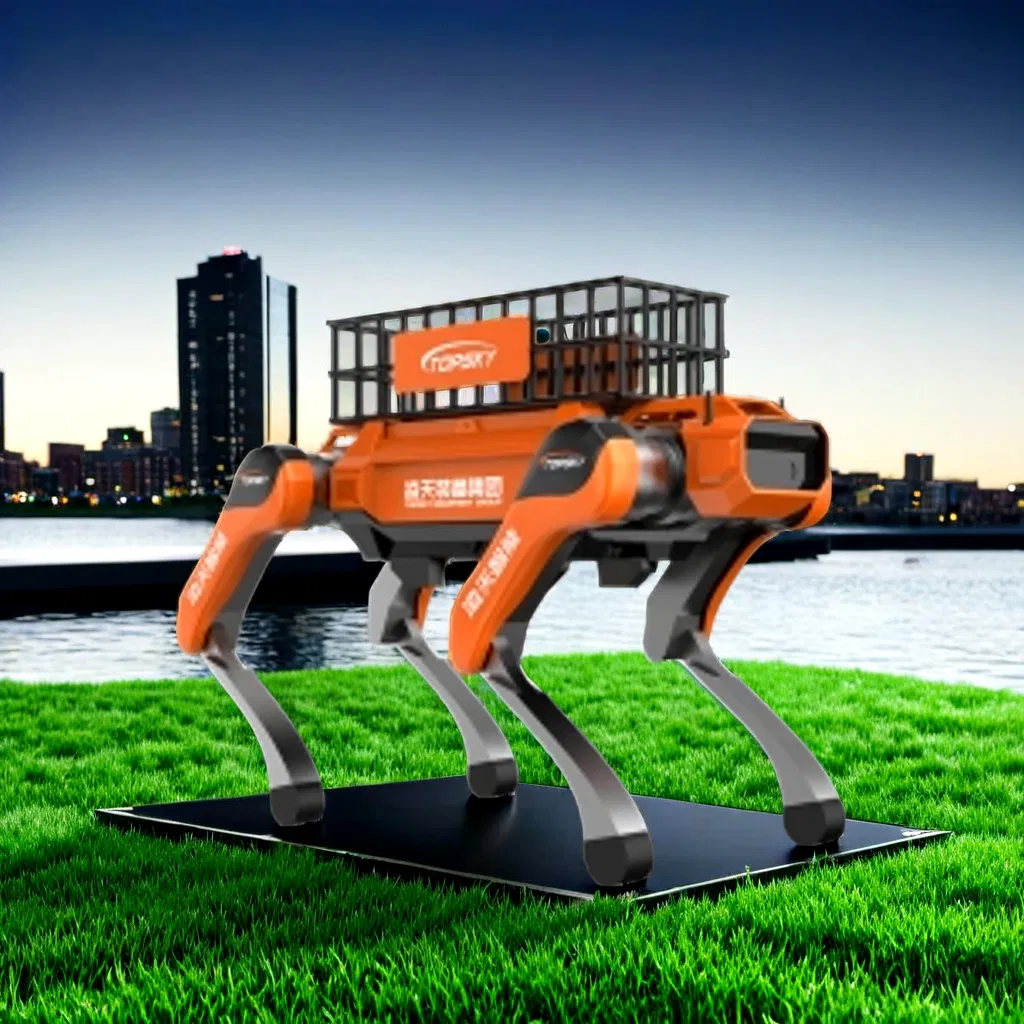

Quadrobotx Accessible to Robot Cloud Platform with IP67 Protection

Customization: Available
Protection Rating: IP67
Operating Temperature: -20°~55°

Product Description

📋 Basic Information
Model NO.
RXR-Q40Q
Dimensions
1083mm×525mm×720mm
Weight
75kg
Standing Load
135kg
Max Speed
6.5m/S
Crossing Height
40cm
Trademark
Topsky
Capacity
1000
🤖 I. Product Overview
The Auxiliary Transport Quadruped Robot Dog is a highly flexible robot integrating bionic movement, intelligent navigation, and multi-scenario transportation functions. Designed based on a quadruped bionic structure, it combines artificial intelligence, environmental perception, and high-precision control technologies. Tailored for material transportation needs in complex terrains, it can be widely used in industrial inspection, emergency rescue, warehousing and logistics, outdoor exploration, and medical distribution. It breaks through the spatial limitations of traditional wheeled/caterpillar equipment to achieve "full-terrain coverage".
📍 II. Application Scope
  • Disaster rescue in large-scale petroleum and chemical enterprises
  • Collapse-prone areas such as tunnels and subways
  • Environments with flammable gas or liquid leaks and high explosion risks
  • Environments with heavy smoke, toxic and harmful gases
  • Delivering first-aid supplies or communication equipment in disaster sites such as earthquakes and fires
  • Transporting toolkits or testing equipment in hazardous areas like factory areas and substations
III. Product Features
  • High flexibility and adaptability for various environments.
  • Strong load capacity and IP67 protection rating.
  • Supports long-distance remote control and audio-video transmission (1110m in open areas).
  • Diversified mounted modules and expandable interfaces.
  • Quick-plug Lithium battery structure for easy replacement.
  • Networked cloud platform access via 4G/5G for real-time status and data monitoring.
⚙️ IV. Main Technical Indicators
4.1 Overall Performance Parameters
  • Protection Rating: IP67 | Operating Temp: -20°~55°
  • Overall Standing Dimensions: 1083 mm×525mm×955mm±100mm
  • Overall Weight: < 75kg (including battery)
  • Maximum Movement Speed: 6.5m/s
  • Endurance: >5.5h (no load) / >4.5h (20kg load)
  • Maximum Standing Load: >135Kg | Continuous Walking Load: >40Kg
  • Max Climbing: 45° | Max Step Height: 20cm | Max Crossing Height: 40cm
  • Sensing System: Combined front/rear depth cameras and solid-state lidar.
  • External Interfaces: DC46V port, Gigabit Ethernet, 24V/12V power ports.
  • Cargo Frame: Carbon fiber/aerospace aluminum material, IP54 rated.
  • Lidar Navigation: Four-fusion solid-state LiDAR for 360° blind-spot-free perception.
  • Positioning: High-precision GPS/Beidou dual-mode module.
  • MESH Networking: Explosion-proof ad hoc network (Exia C T4 Ga / Exia C T200 130ºC Da).
  • Companion Function: UWB technology for operator following (recognition ≤3 m).
📦 V. Product Configuration
  • 1 set of Auxiliary Transport Quadruped Robot Dog
  • 1 remote control terminal
  • 1 set of charger
  • 1 instruction manual
  • 1 outer packing box
FAQ
What is the delivery time for standard orders?
Generally 10-15 days for normal standard products within 50pcs, depending on order specifications.
Is the robot suitable for hazardous environments?
Yes, it features an IP67 rating and explosion-proof MESH networking (Exia C T4 Ga), making it ideal for chemical and toxic gas environments.
Can the robot carry heavy equipment?
It has a maximum standing load of over 135kg and can continuously walk with a load of over 40kg.
Does it support remote monitoring?
Yes, status info (position, battery, video) can be transmitted via 4G/5G to cloud platforms for PC and mobile viewing.
How does the "Companion Function" work?
Using UWB technology, the robot dog can automatically follow an operator wearing a specific bracelet within a 1-3m range.
What are the main transport methods supported?
We support major express services like TNT, Fedex, DHL, UPS, or specified logistics indicators.
