Precision Short-Range 3D Sensor Metasense 605/605g for Embedded Ai, Lab Automation & Micro-Assembly Robots
Precision Short-Range 3D Sensor Metasense 605/605g for Embedded Ai, Lab Automation & Micro-Assembly Robots
Precision Short-Range 3D Sensor Metasense 605/605g for Embedded Ai, Lab Automation & Micro-Assembly Robots
Precision Short-Range 3D Sensor Metasense 605/605g for Embedded Ai, Lab Automation & Micro-Assembly Robots
Precision Short-Range 3D Sensor Metasense 605/605g for Embedded Ai, Lab Automation & Micro-Assembly Robots
1 / 5
Precision Short-Range 3D Sensor Metasense 605/605g for Embedded Ai, Lab Automation & Micro-Assembly Robots
Precision Short-Range 3D Sensor Metasense 605/605g for Embedded Ai, Lab Automation & Micro-Assembly Robots
Precision Short-Range 3D Sensor Metasense 605/605g for Embedded Ai, Lab Automation & Micro-Assembly Robots
Precision Short-Range 3D Sensor Metasense 605/605g for Embedded Ai, Lab Automation & Micro-Assembly Robots
Precision Short-Range 3D Sensor Metasense 605/605g for Embedded Ai, Lab Automation & Micro-Assembly Robots

Precision Short-Range 3D Sensor Metasense 605/605g for Embedded Ai, Lab Automation & Micro-Assembly Robots

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.Metasense605
HDMI Format1080P
ApplicationComputer
Depth TechnologyStructured Light
Dimensions40.0*24.0*24.7mm
Weight50g
SensorCMOS Global Shutter
Frame RateUp to 180fps
CertificationCE, FCC, RoHS
In-gress ProtectionIP65
Technical Deep Dive
MetaSense 605 / 605g Laser Speckle Depth Camera
Laser Wavelength940 nm (Class 1, Eye-Safe)
Depth Accuracy≤1% @ 30 cm
Depth Range7 cm - 50 cm (Close-range optimized)
Depth FOV68° (H) × 52° (V)
Operating Temp-25°C to +70°C
InterfacesUSB 3.0 Type-C / GMSL2 over FAKRA-Z
IMUIntegrated 6-DoF with hardware timestamping
Key Application Scenarios
  • In-hand 3D perception for robotic grippers
  • Precision manipulation in assembly & lab automation
  • Confined-space inspection (pipes, machinery interiors)
  • Mobile manipulators on AMRs or quadruped robots
  • High-speed 3D scanning of small objects
  • Embodied AI research requiring low-latency depth feedback
Product Gallery

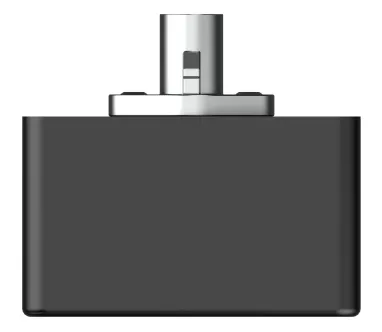

Metasense 605 Picture 1

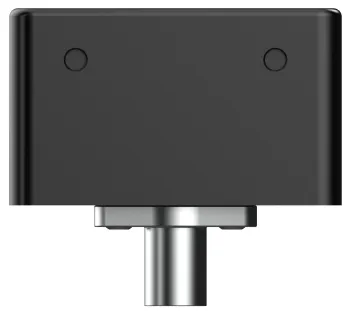

Metasense 605 Picture 2

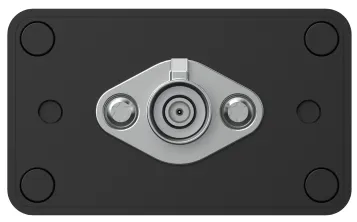

Metasense 605 Picture 3
Metasense 605 Picture 4
Metasense 605 Picture 5

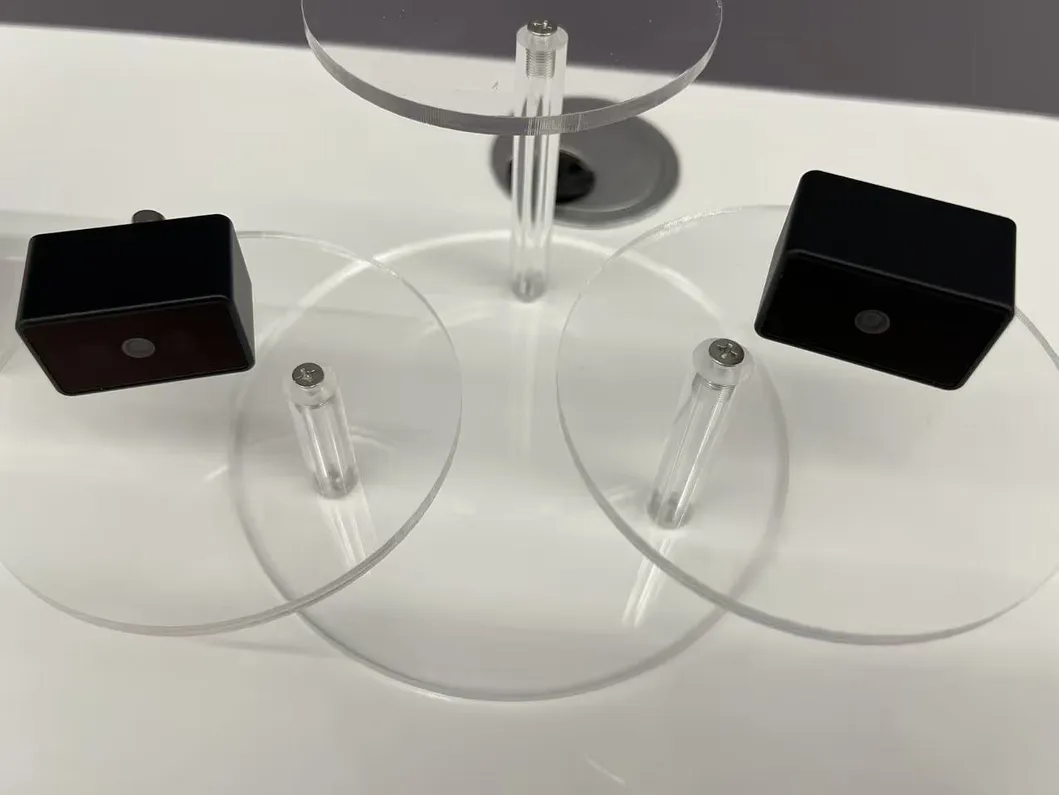

Metasense 605 Picture 6
Applications & Industrial Use

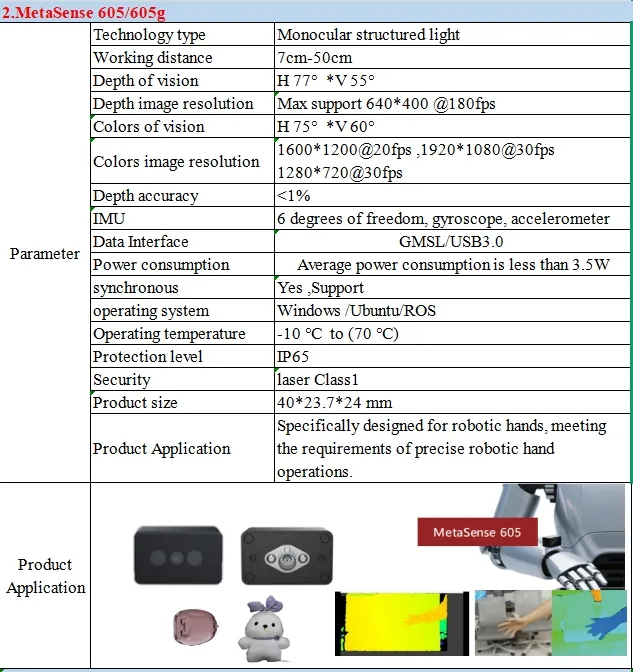

Appliance 1

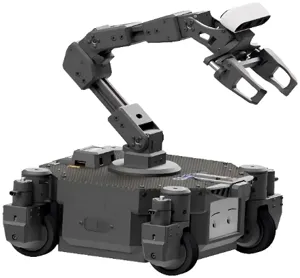

Appliance 2
Appliance 3

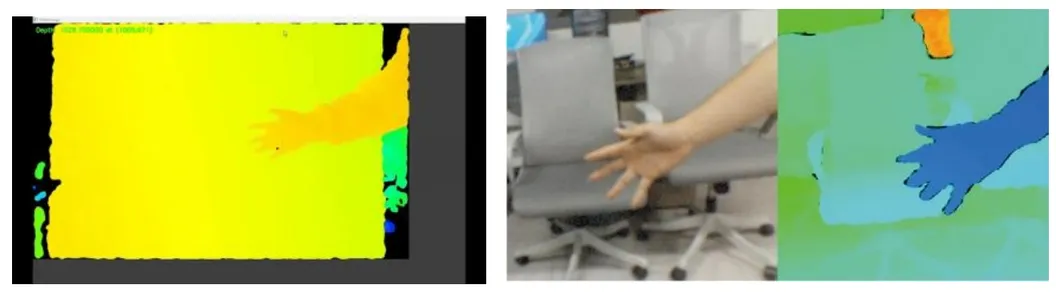

Tech Banner 1
Tech Banner 2
Frequently Asked Questions
What is the working distance of the MetaSense 605?
The camera is optimized for short-range tasks, specifically calibrated for a depth working range of 7cm to 50cm.
Does the camera support integration with ROS?
Yes, it provides full SDK support for C++ and Python APIs, and includes native drivers for ROS and ROS 2.
Is it suitable for industrial environments?
Absolutely. With an IP65 ingress protection rating and an operating temperature range of -25°C to +70°C, it is designed for rugged use.
What are the main differences between 605 and 605g?

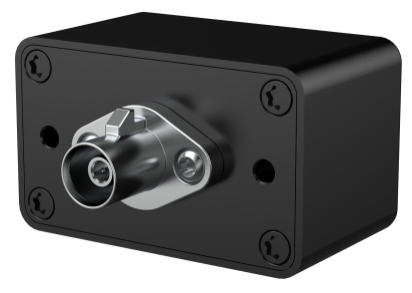

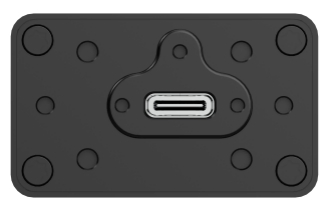

The MetaSense 605 uses a standard USB 3.0 Type-C interface, while the 605g uses GMSL2 over FAKRA-Z for long-distance cable support up to 15 meters.
What type of depth technology does it utilize?
It employs High-Precision Laser Speckle Structured Light technology and a 940nm Class 1 eye-safe laser.
Can it be used for multi-camera setups?
Yes, the camera includes hardware GPIO synchronization support to facilitate seamless multi-camera integration.
