Excitech Robot
1 / 4

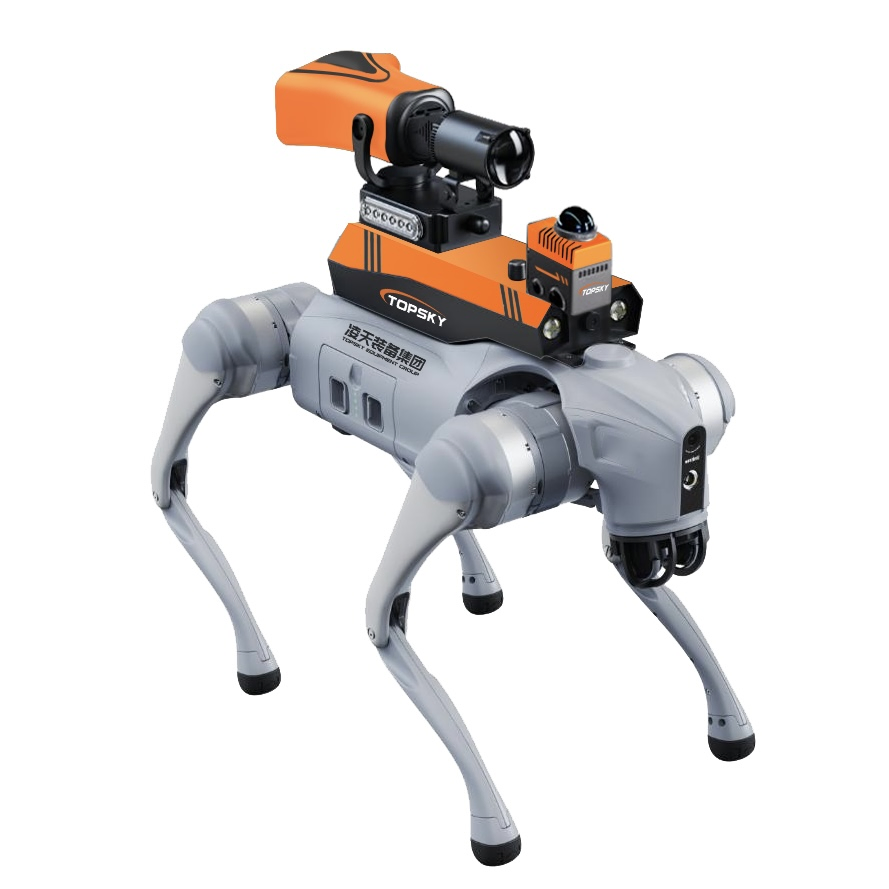

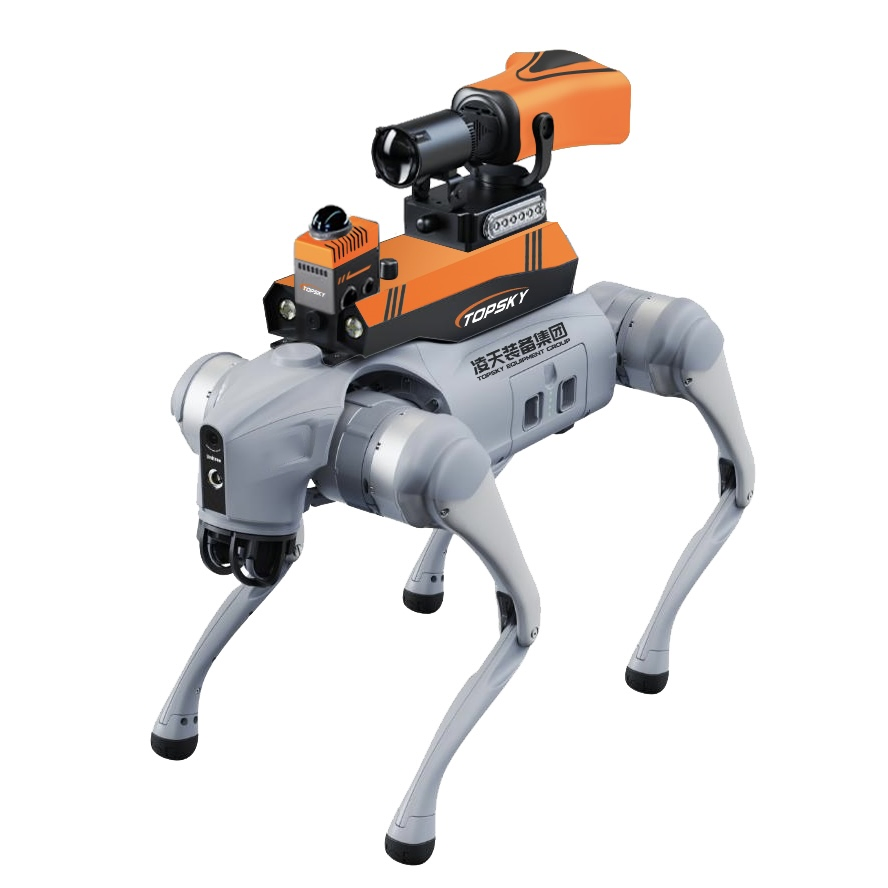

The RXZ-C7Q rescue and inspection quadruped robot is an intelligent robot designed specifically for complex environments. It plays an important role in fields such as fire rescue and disaster detection. The entire machine adopts a lightweight design, which can achieve flexible movement under large work loads while being lightweight. The quadruped gait is suitable for walking in harsh terrain.

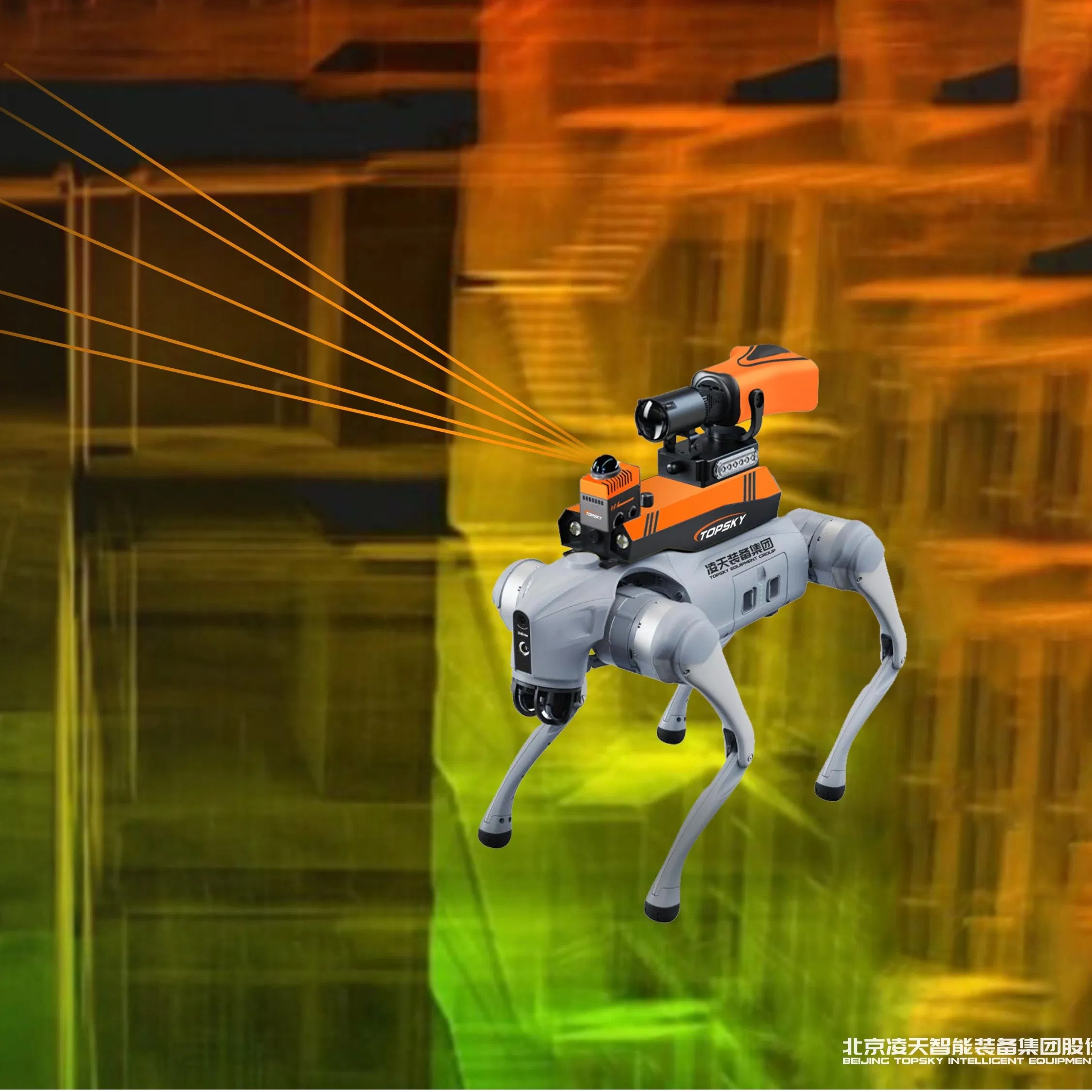

Equipped with 3D modeling radar, 4D LiDAR, and 360°×90° hemispherical ultra-wide angle perception capability. It features ultra-low blind spots and can perform various gestures such as jumping, stretching, and sitting down.
Equipped with 3D modeling, HD cameras, thermal imaging, loudspeakers, gas detection, and lighting. Suitable for highways, mountains, rocky slopes, and riverbanks.
| Parameter Category | Detailed Specifications |
|---|---|
| Host Parameters | Weight ≤ 15 kg; Speed 3.7-5 m/s; Max Load 15kg; Protection IP65; Size 70×31×40cm. |
| Lidar System | 4D Laser Enhancement; Wavelength 830nm; Range 0.5-20m; 360°x90° FOV; Blind spot 0.05m. |
| 3D Modeling | 40 Lines; Relative Accuracy 1.2cm; Point cloud 200,000 pts/s; 4 Cameras; 2h Operation. |
