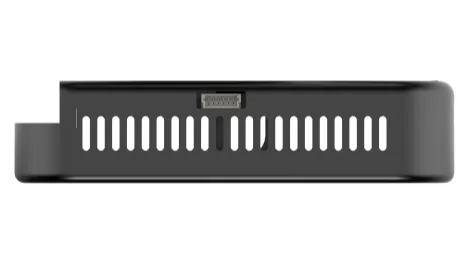

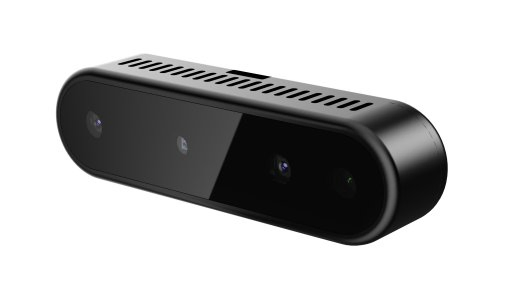

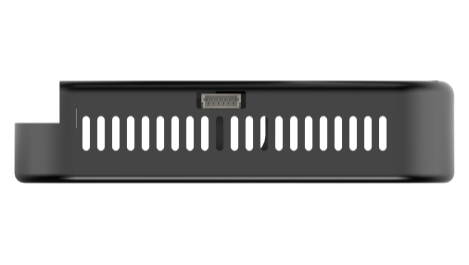

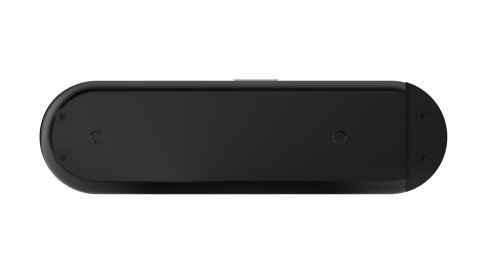

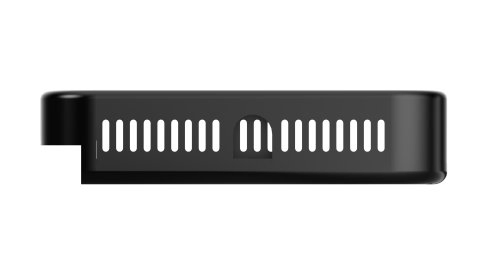

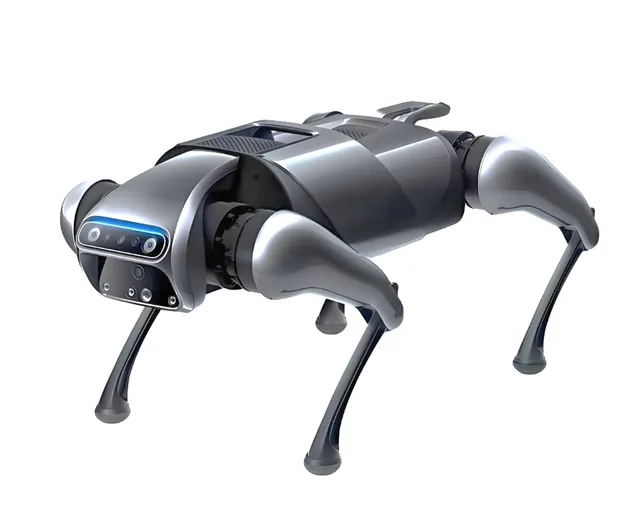

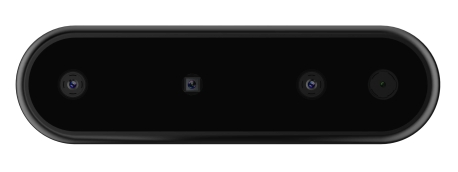

MetaSense 435 Compact Depth Camera – A high-performance, small form factor RGB-D sensor specifically engineered for Quadruped & Legged Robots. It features an integrated binocular laser speckle depth system with built-in SOC for real-time 3D processing and VSLAM acceleration.
| Feature | Details |
|---|---|
| Model NO. | Metasense435 |
| Laser Camera | 940nm |
| DFOV / CFOV | H 80°x V 55° / H 65°x V 51° |
| Resolution (Depth) | 640x400 @ 30fps |
| Resolution (RGB) | 1280x720 @ 30fps |
| Working Distance | 0.19m — 10m |
| Depth Accuracy | ≤1% @ 1m, ≤2% @ 2m |
| Interface | USB 2.0 Type-C |
| Power Consumption | Avg 1W (Peak 5.45W) |
| Operating Temp | -25°C to 70°C |

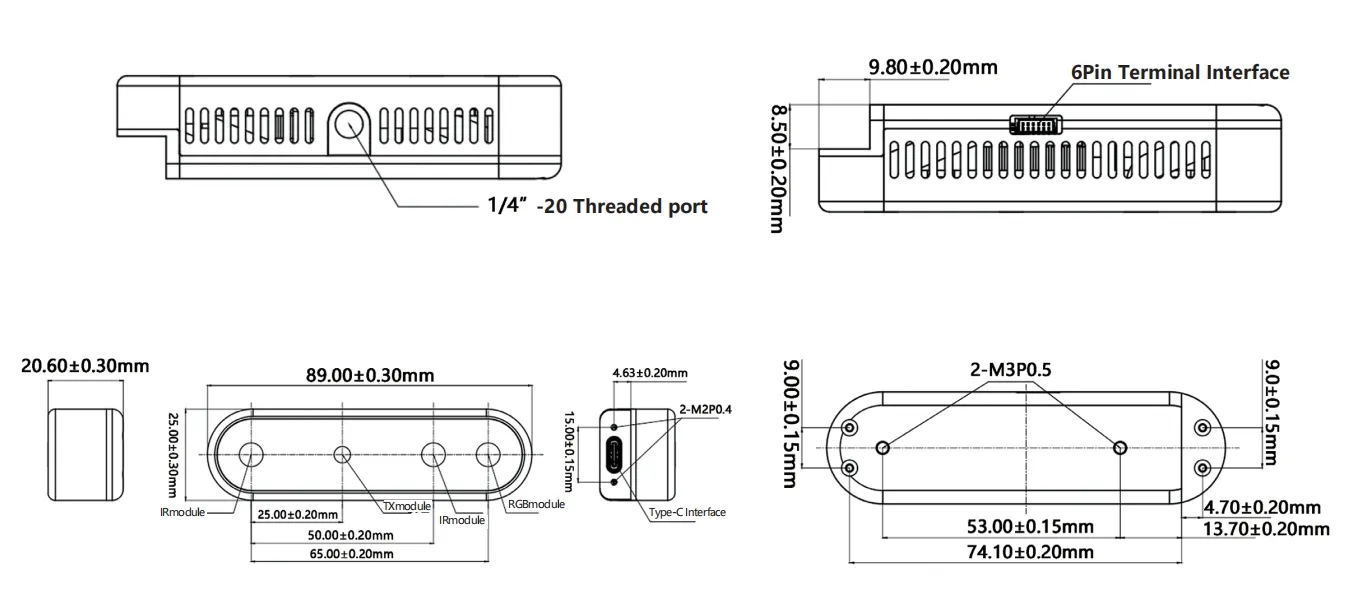

| Dimensions | 89 x 25 x 20.6 mm |
| Supported OS | Windows / Linux / ROS |

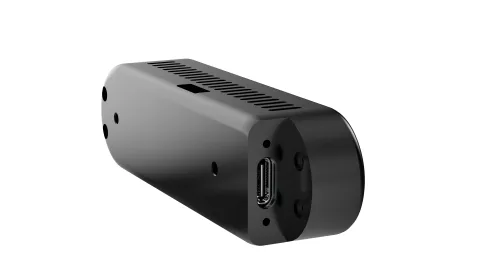

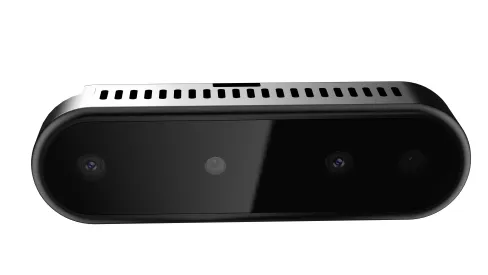

Laser transmitter, dual infrared cameras, color camera, and SOC motherboard. Features built-in NPU and HDR support for advanced edge computing.
1× Camera Set
1× Waterproof Protective Package
18-month warranty against manufacturing defects.
Certified: Laser Class 1, CE, FCC, RoHS, CCC, ISO9001
