📋 Basic Information
Application:
Security Check
Type:
Industrial High-Definition X-ray Detector
Size:
1600mm X 1000mm X 1600mm
🤖 Product Description
IWILDT™-2325 X-ray machine vision EOD robot
Intelligent robot explosion-proof series - multi-function explosive removal solution.

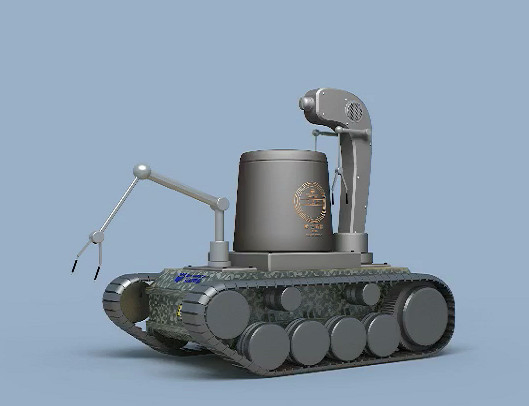

The IWILDT™-2325 is composed of a mechanical vision system, X-ray scanning system, motion control system, and simulation robot hand induction system. It can accurately locate and grasp targets automatically. The robot hand operates via induction gloves, with joints driven by DC motors and controlled by position closed-loop servos. Four cameras provide a wide field of vision, using triangle ranging principles for precise coordinate positioning.
This multi-functional robot is designed for sudden explosion-related and risk-related events. It can transport or destroy suspected explosives instead of personnel, conduct field investigations in complex environments like muddy roads, grasslands, and building roadways, and perform autonomous patrols in schools, parking lots, and hospitals.
⚙️ Technical Parameters
Radio Source
- Ray power: 100kV; Radiation direction: ceiling type
- Heat dissipation mode: oil immersed
- Control mode: 232 network port communication
Detection System
- Camera: Four 2560 × 1440 pixel CCD cameras, 0.005lux
- Functions: Face recognition, temperature measurement, radar tracking
- Path scanning: Laser and radar ranging
Image Processing
- Screen: 24 inch IPS LCD System
- Software: Edge enhancement, image inversion, real-time video
- Navigation: GPS / BeiDou high-precision map location system
Equipment Performance
- Holding capacity: Maximum 8kg
- Mobility: Crawler chassis, climbing capacity ≤ 20°, Obstacle height 300mm
- Battery: 195ah lithium battery (48V)
- Waterproof grade: IP65

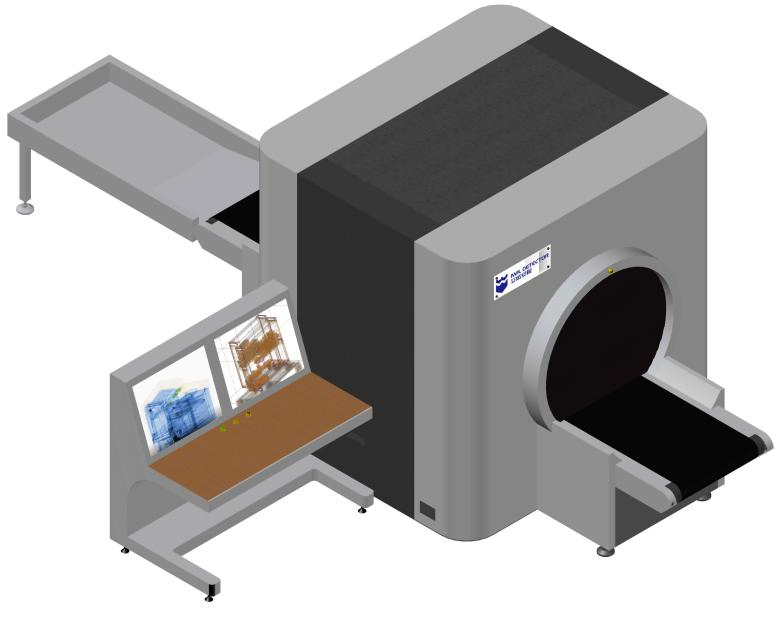

🖼️ Product Gallery
🛠️ Expert Service & Support
Pre-sales Service: Custom report planning, process analysis, and function customization based on specific needs.
After-sales Service:
- Free installation, debugging, and on-site training (up to 3 days).
- 12 months free warranty with effective technical support.
- 10-hour rapid response for fault reports.
- Long-term technical consulting services for 5 years post-warranty.
❓ Frequently Asked Questions
What is the main application of the IWILDT-2325?
It is primarily used for security checks, EOD (Explosive Ordnance Disposal) tasks, and autonomous patrolling in high-risk or complex environments.
What kind of terrain can this robot handle?
The crawler chassis allows it to navigate cement, mud, grassland, and stairs with an obstacle crossing height of up to 300mm.
How is the quality of the product controlled?
Production processes strictly follow ISO9001, ISO14001, and CE certifications, ensuring radiation safety and equipment reliability.
What is the remote control range and endurance?
The robot has an endurance of approximately 10km and supports non-sight distance remote control for safe operation.
Is technical training provided?
Yes, free on-site training including at least 1 day of theory and 3 days of practical operation is provided during installation.
What is the lead time for orders?
The typical lead time is 3-7 working days after payment is received.
