📋 Basic Specification
Application
Security Check
Type
Industrial High-Definition X-ray Detector
🤖 Product Overview

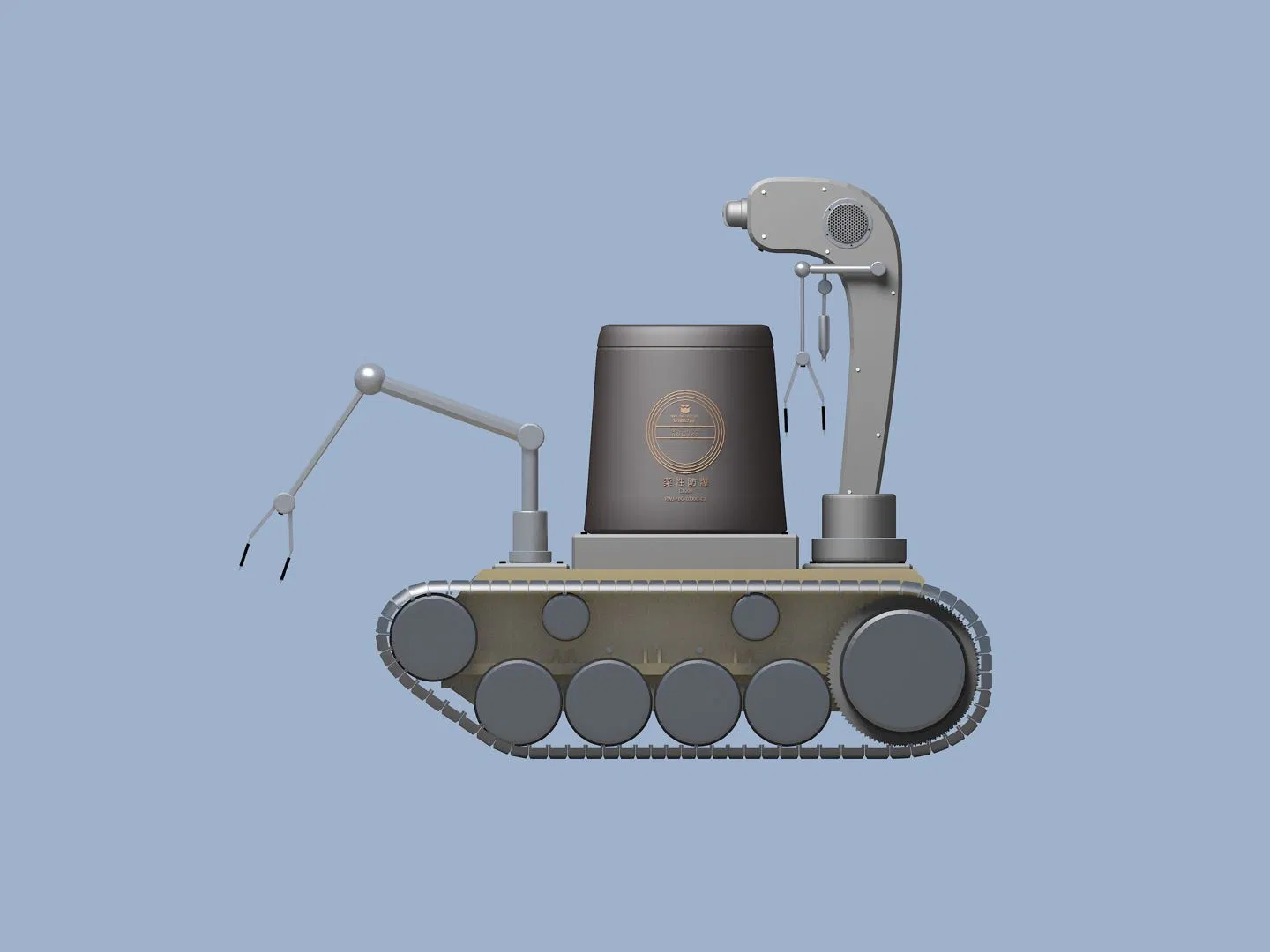

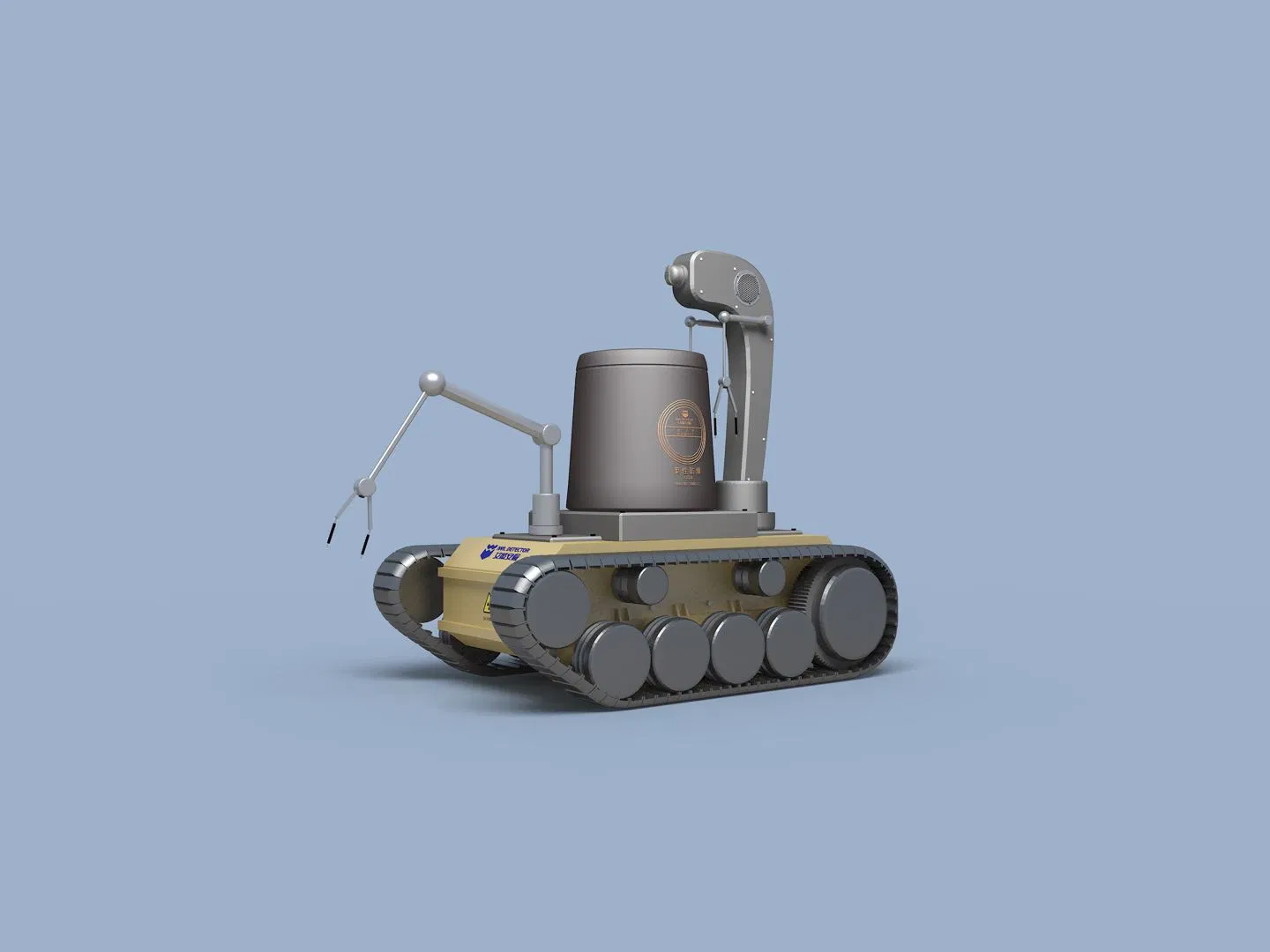

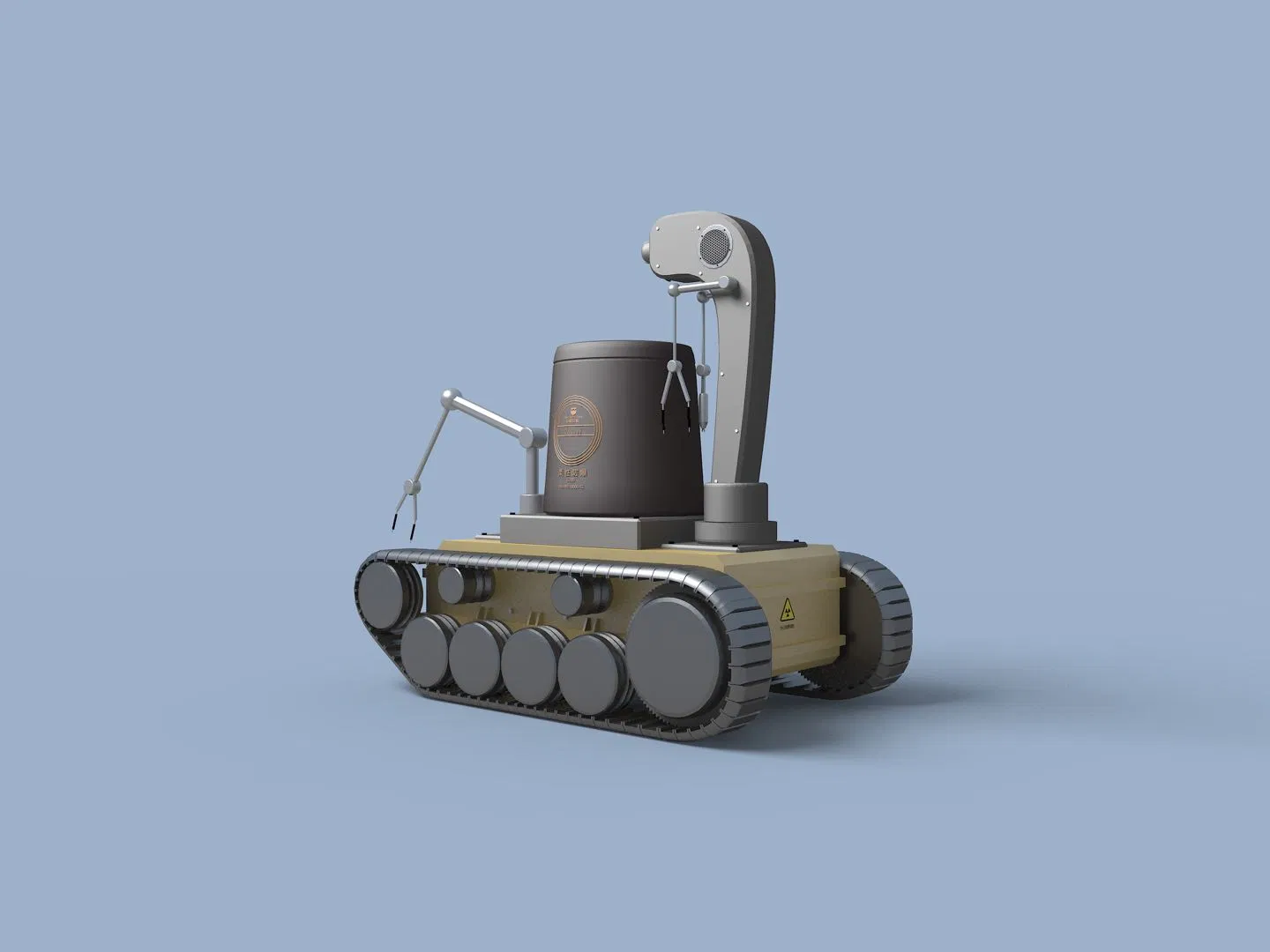

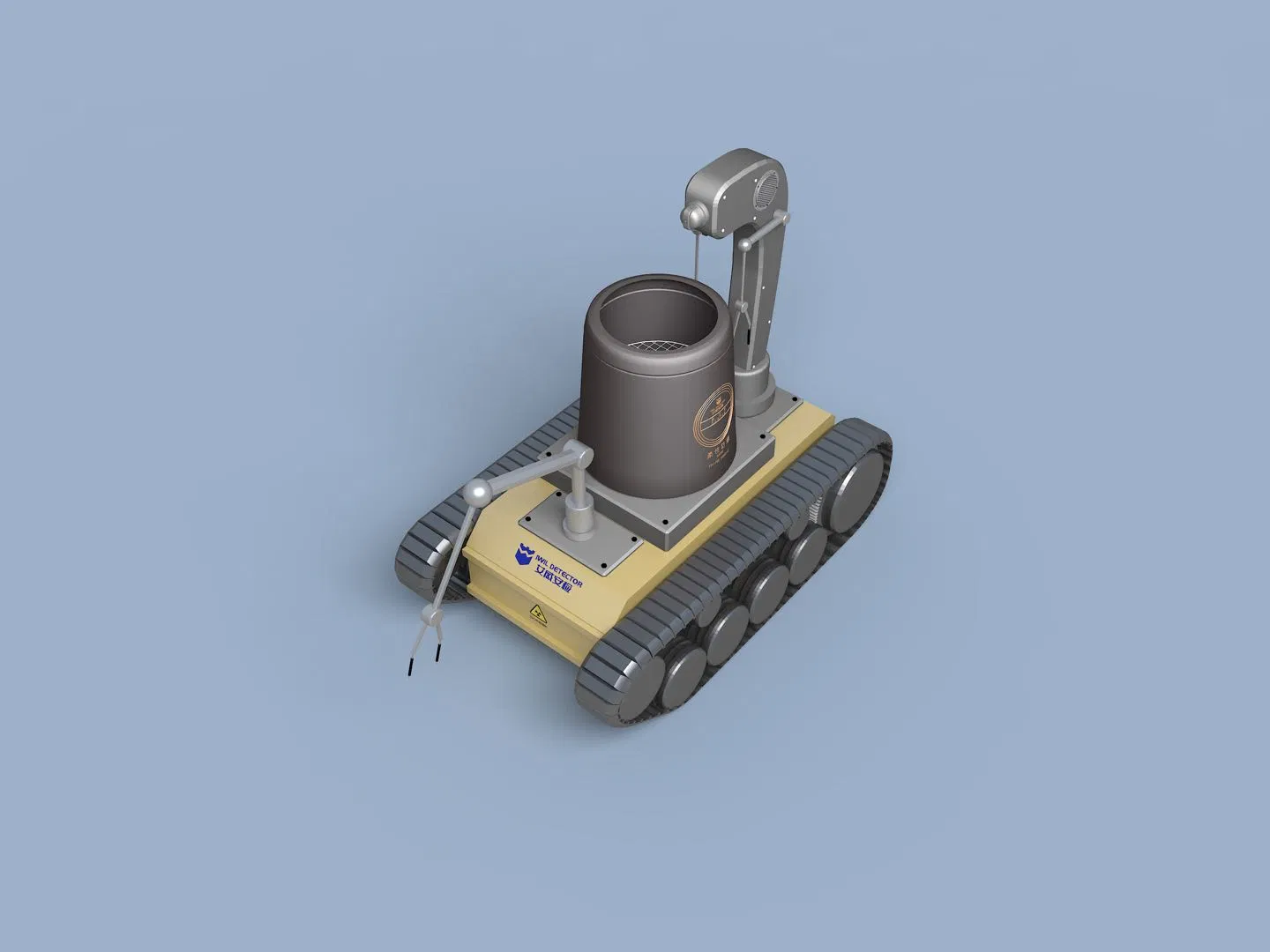

IWILDT™-2315 X-ray machine vision eOD robot belongs to the Intelligent robot explosion-proof series. It is an advanced system composed of mechanical vision, X-ray scanning, motion control, and analog robot hand induction systems. This technology allows for accurate target localization and automatic capture functions.
The robot hand can be operated via induction gloves, corresponding to elbow, wrist, and claw transposable joints. Each joint is driven by a DC motor and controlled by a closed-loop position servo control.
This machine vision explosive ordnance disposal robot is designed to handle various explosive and dangerous incidents, facilitating faster deployment in emergencies. It replaces EOD personnel to discharge, transport, move, and destroy suspected explosives. It can navigate complex environments such as muddy roads, grasslands, and building roadways.
⚙️ Technical Parameters
Gamma Ray Source
- Ray power: 100KV
- Radiation direction: overhead radiation
- Penetrating object: 30mm thick
- Heat dissipation: oil-immersed
- Control mode: 232 Network port communication code control
Detection System
- Appearance size: 1600mm X 1000mm X 1600mm
- Camera: Four maximum pixel size 2560×1440, minimum illumination 0.005Lux
- Function: Face recognition, temperature measurement, license plate recognition
- Path scanning: Laser, radar ranging
Equipment Performance
- Remote control: Induction gloves for main and auxiliary manipulator control
- Explosion-proof: Non-metallic flexible materials, reduces noise and flame
- Chassis: Crawler chassis with good shock absorption and climbing ability (≤20°)
- Endurance: 10km; Speed: 10 km/h
- Waterproof rating: IP65
🏢 Professional Capability
❓ Frequently Asked Questions
Q1: What is the main application of this robot?
It is primarily used for security checks, EOD (Explosive Ordnance Disposal) tasks, and patrolling public places like hospitals, scenic spots, and transportation hubs.
Q2: Can it operate in harsh weather conditions?
Yes, it has an IP65 waterproof rating and operates in temperatures ranging from -20°C to +43°C.
Q3: How is the quality control managed?
Production processes follow ISO9001, ISO14001, ISO18001, and CE certifications to ensure high standards.
Q4: What is the warranty period for the equipment?
We provide a 12-month free warranty with effective technical support and adjustments after the machine is accepted.
Q5: Is training provided for the operators?
Yes, free on-site training is provided, including at least 1 day of theoretical and 3 days of practical operation training.
Q6: What are the delivery lead times?
Lead times are typically between 3-7 working days after payment is received.
