■ Basic Info & Overview
Cleaning Process
Dry Cleaning / Water Washing
Principle
Physical Cleaning
Battery Capacity
38.4V / 15ah
■ Product Description

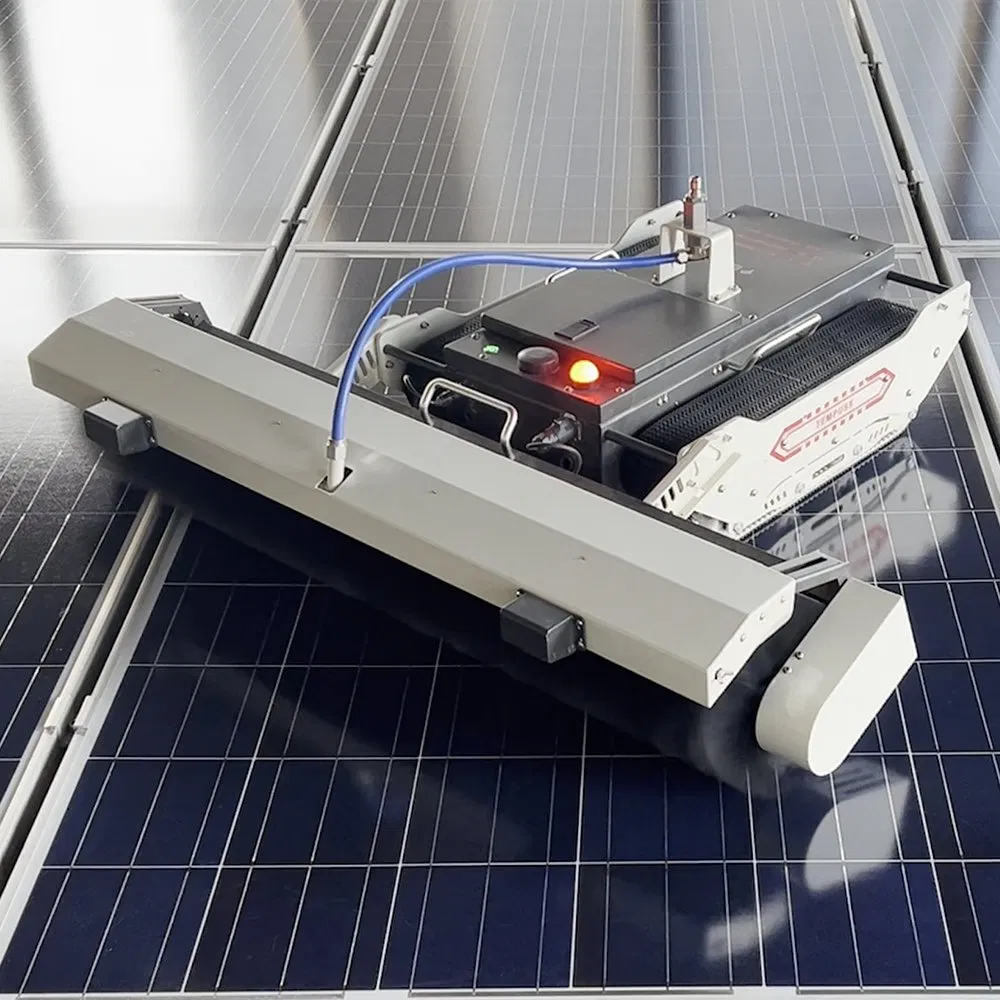

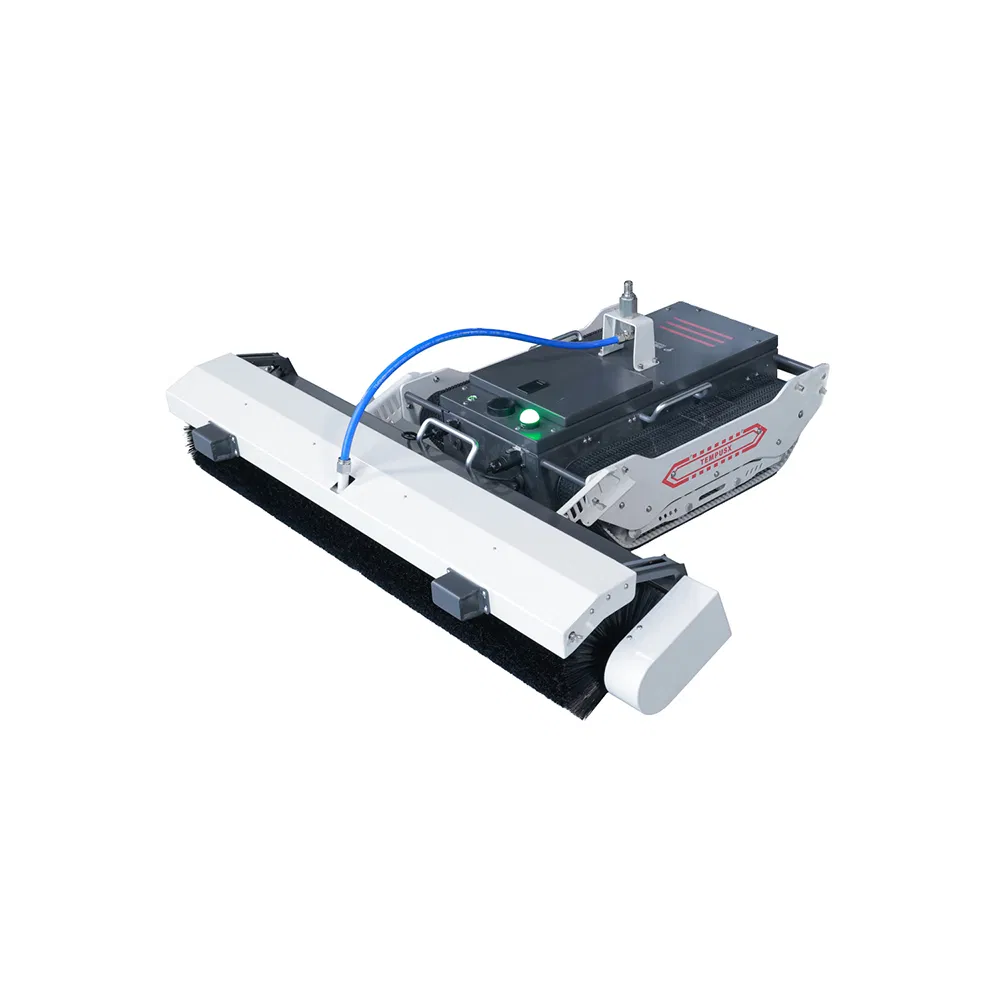

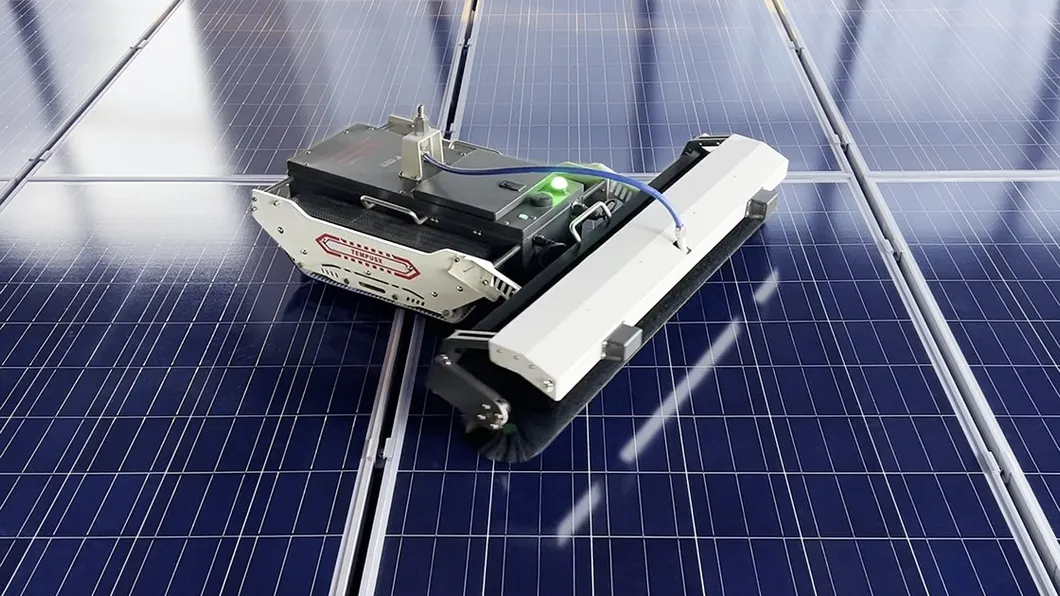

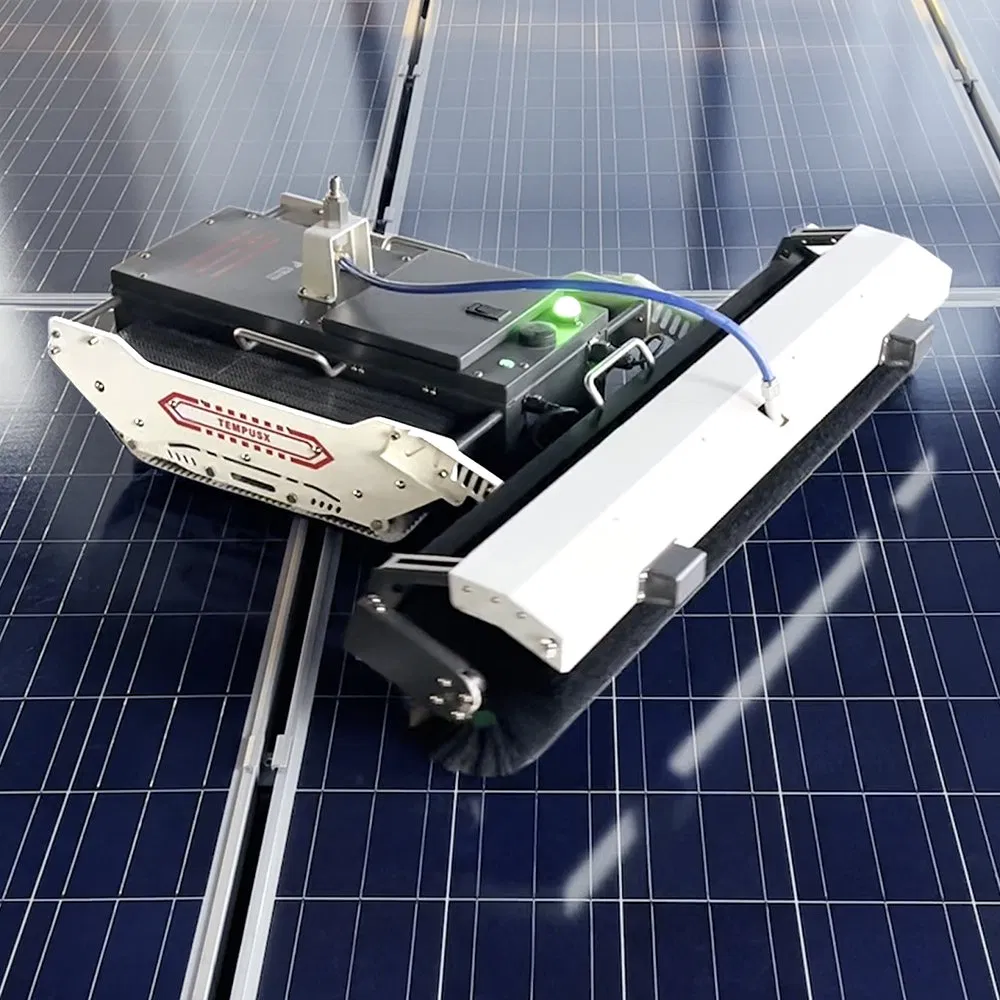

F-D1000 Track-Type Remote Control Solar Photovoltaic Panel Cleaning Robot is designed for efficient operation and maintenance of industrial and commercial photovoltaic roofs, with a multi model matrix that flexibly adapts to various industrial and commercial roof scenarios and needs.

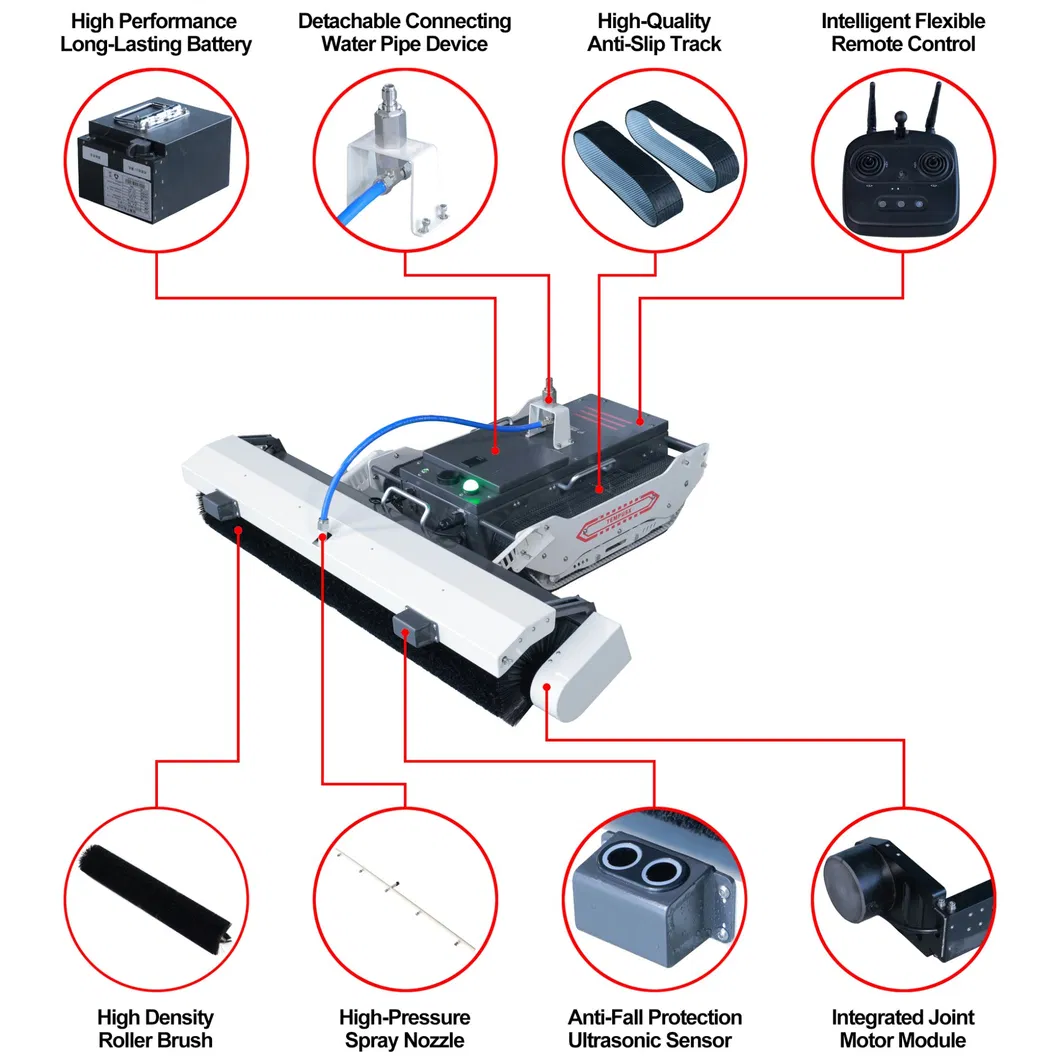

🚀 1. High Quality Battery
Our battery uses the high-quality cell, with a capacity of 38.4V / 15Ah, it can be charged and discharged up to 3000 times. One battery can be used for 6 hours, and it takes only 2 hours to fully charge.
⚡ 2. High Performance Motor
Our machine adopts an integrated joint motor module, which includes a motor, driver, reducer, and encoder. The maximum running speed of the chassis can reach 1000mm/s, and the maximum rotation speed of the roller brush can reach 330rpm.
💎 3. High Efficiency Cleaning

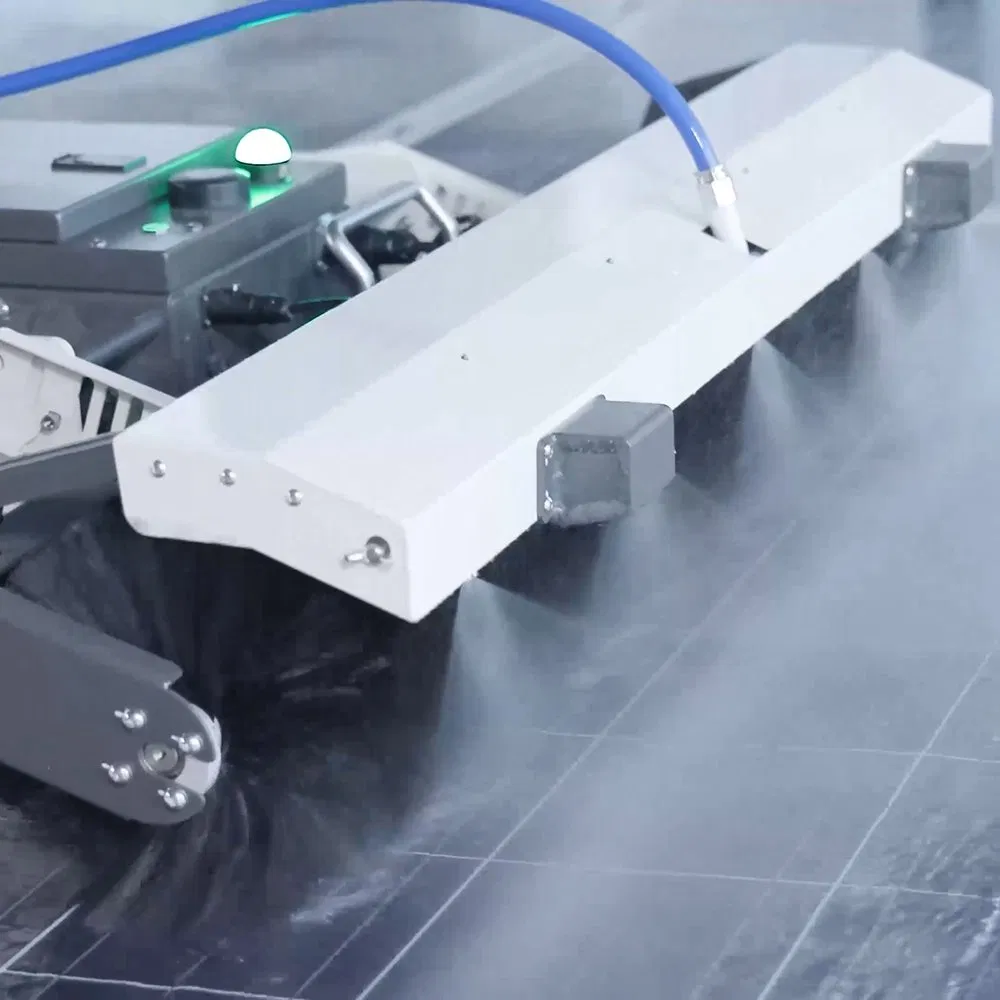

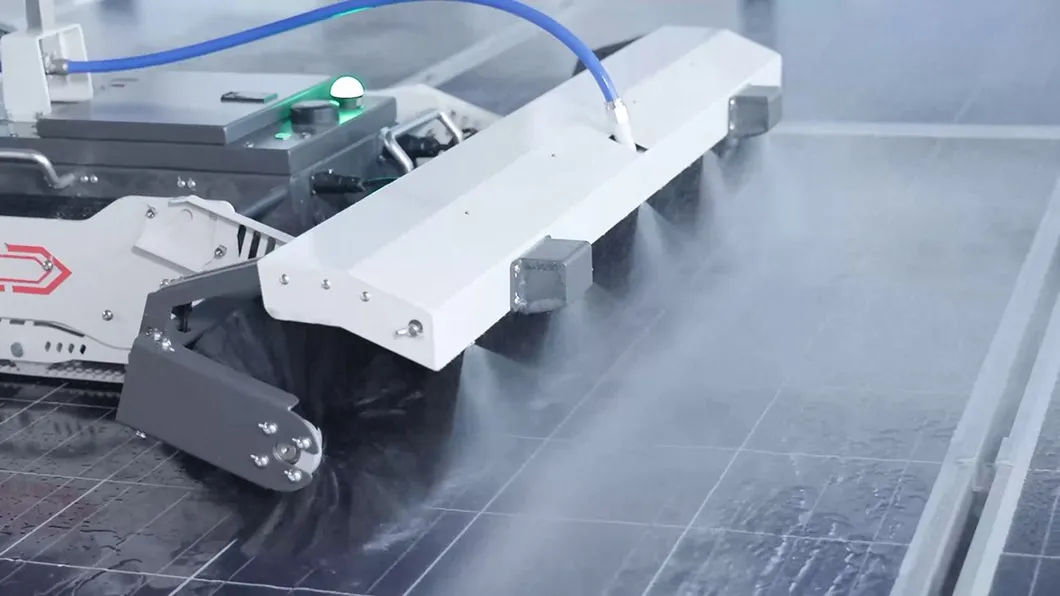

Equipped with a front roller brush and nozzle component. While the machine sweeps by rolling brush, it also washes by high-pressure atomized water spraying from the nozzle. Daily capacity can reach 1~2 MW.
🛡️ 4. Intelligent and Safety
Remote control distance up to 200m. Equipped with edge anti-fall protection function, making operations more intelligent and safety.
■ Technical Diagrams

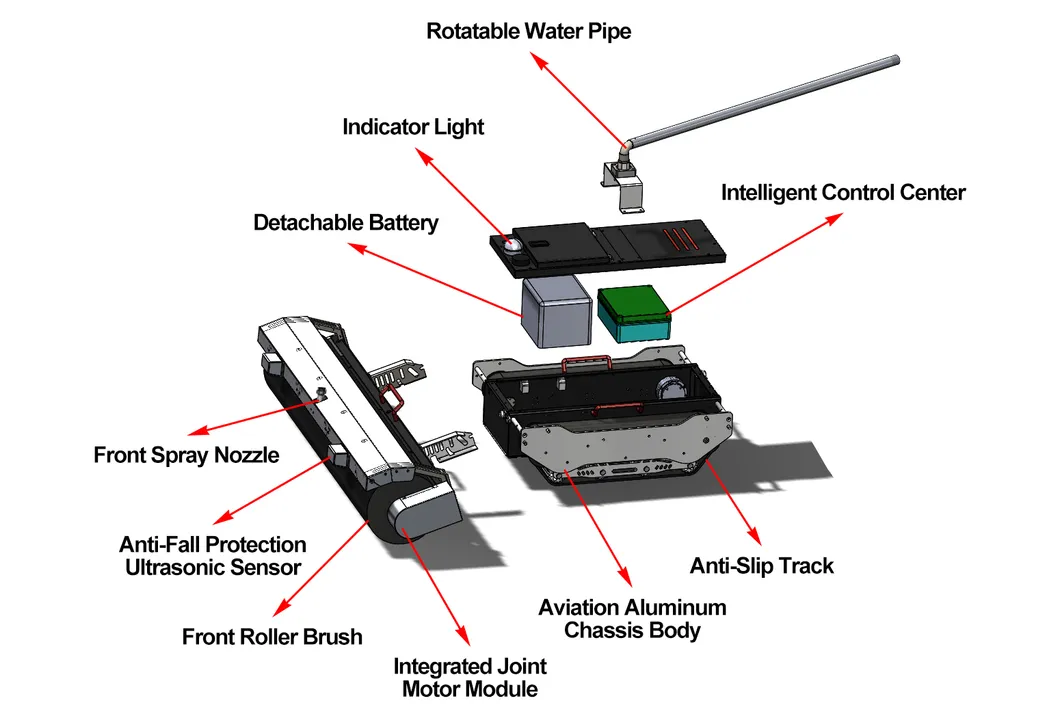

F-D1000 Exploded Diagram

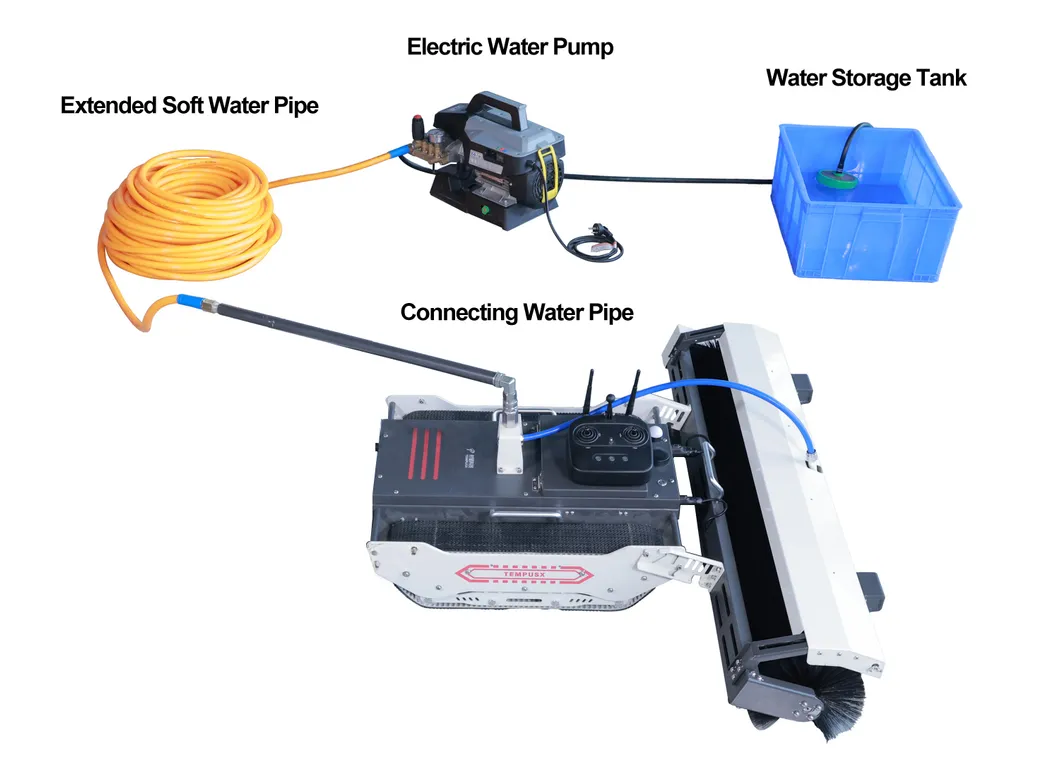

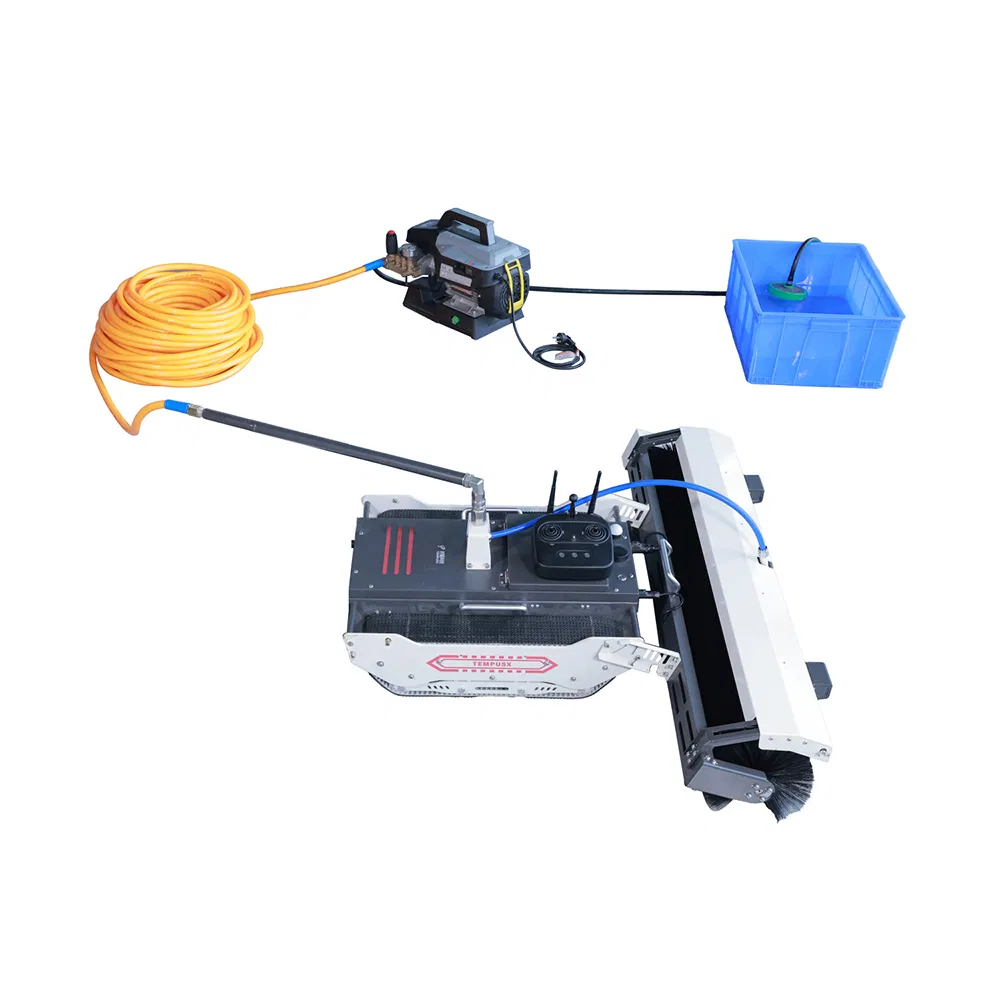

Connecting Water Pipe Diagram
■ Product Parameters
| Model |
F-D1000 |
F-D1000Pro |
F-D1300Pro |
| Machine Body Size | 600×490×220mm | 600×530×220mm | 600×530×220mm |
| Brush Size | 1000mm | 1000mm | 1300mm |
| Total Weight | 30.5kg | 40kg | 42kg |
| Battery Life | 6h | 4h | 6h |
| Protection Class | IP65 | IP65 | IP65 |

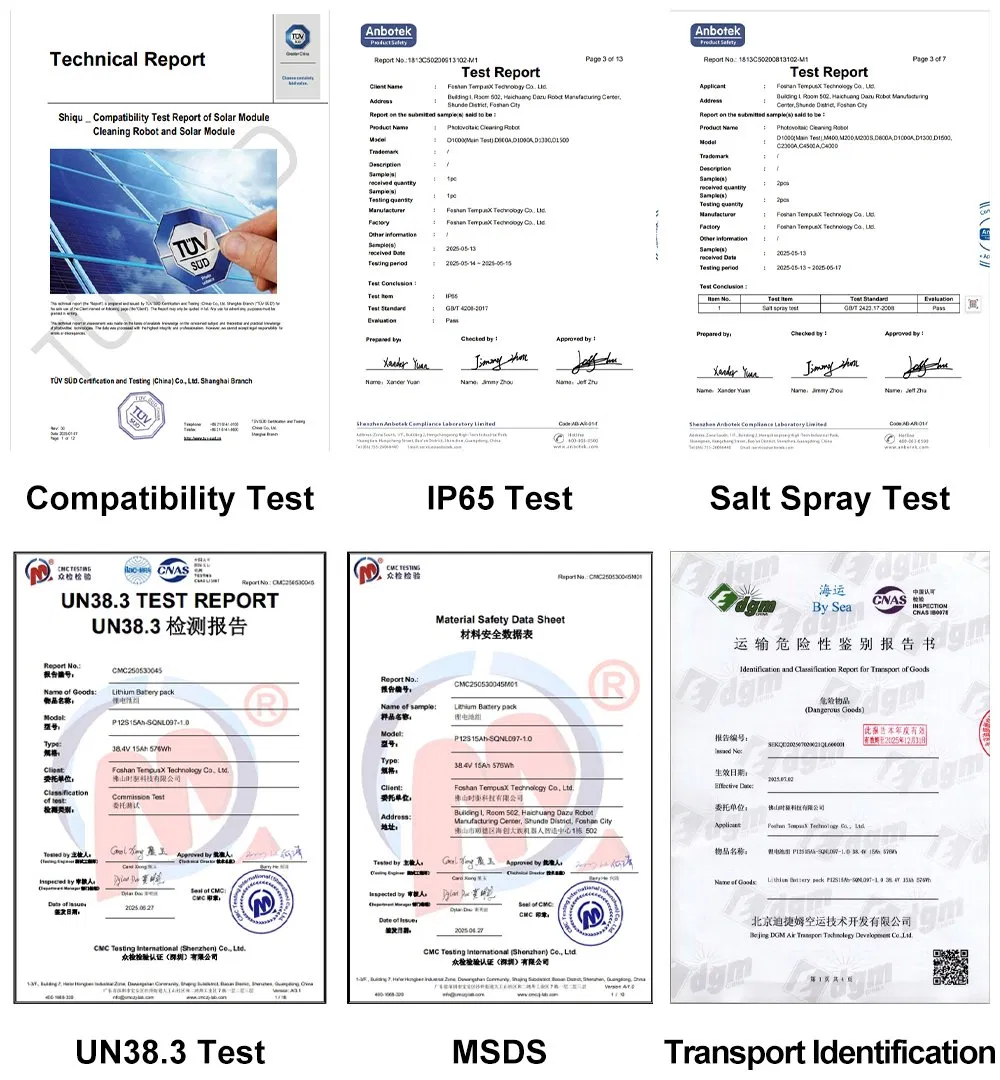

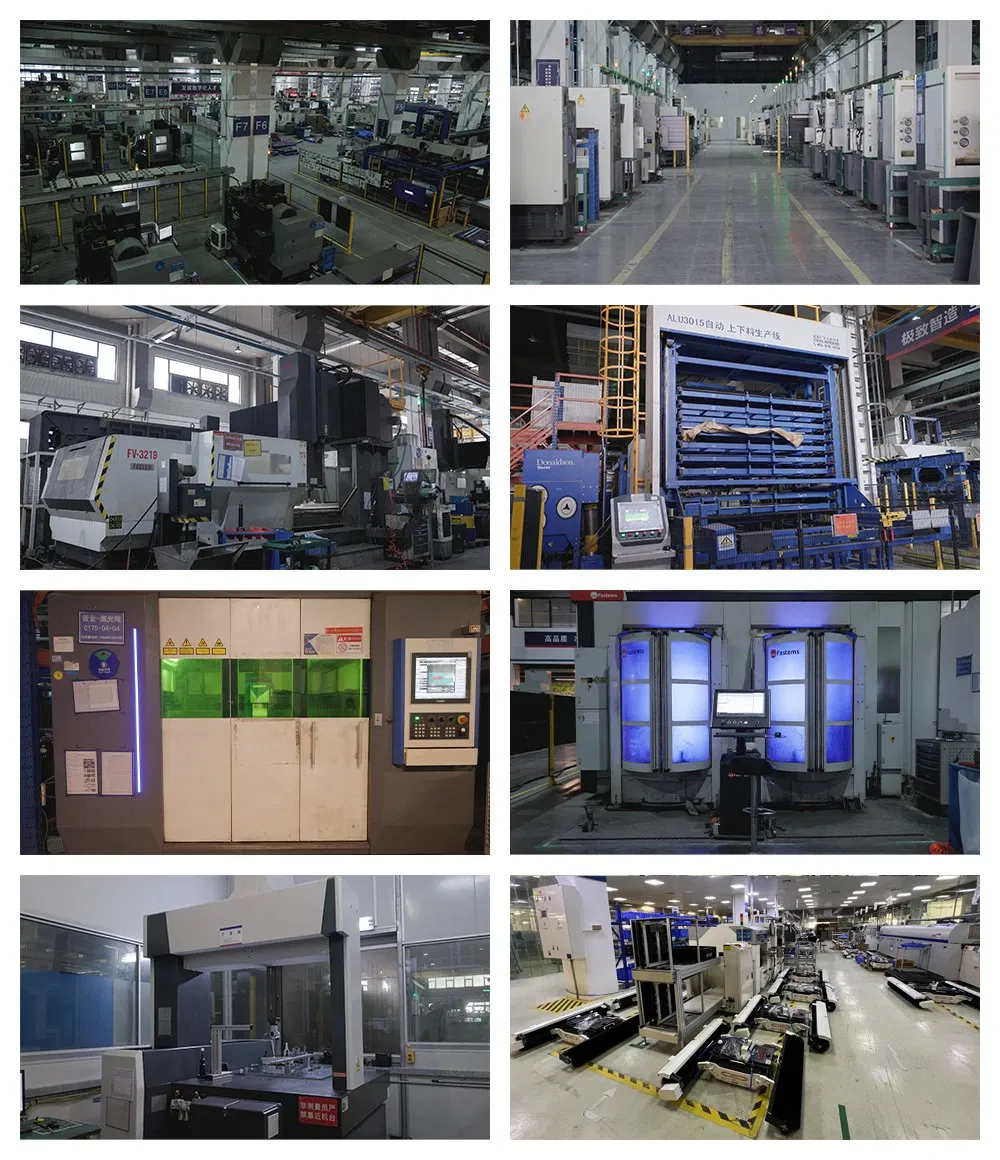

■ Certifications & Factory

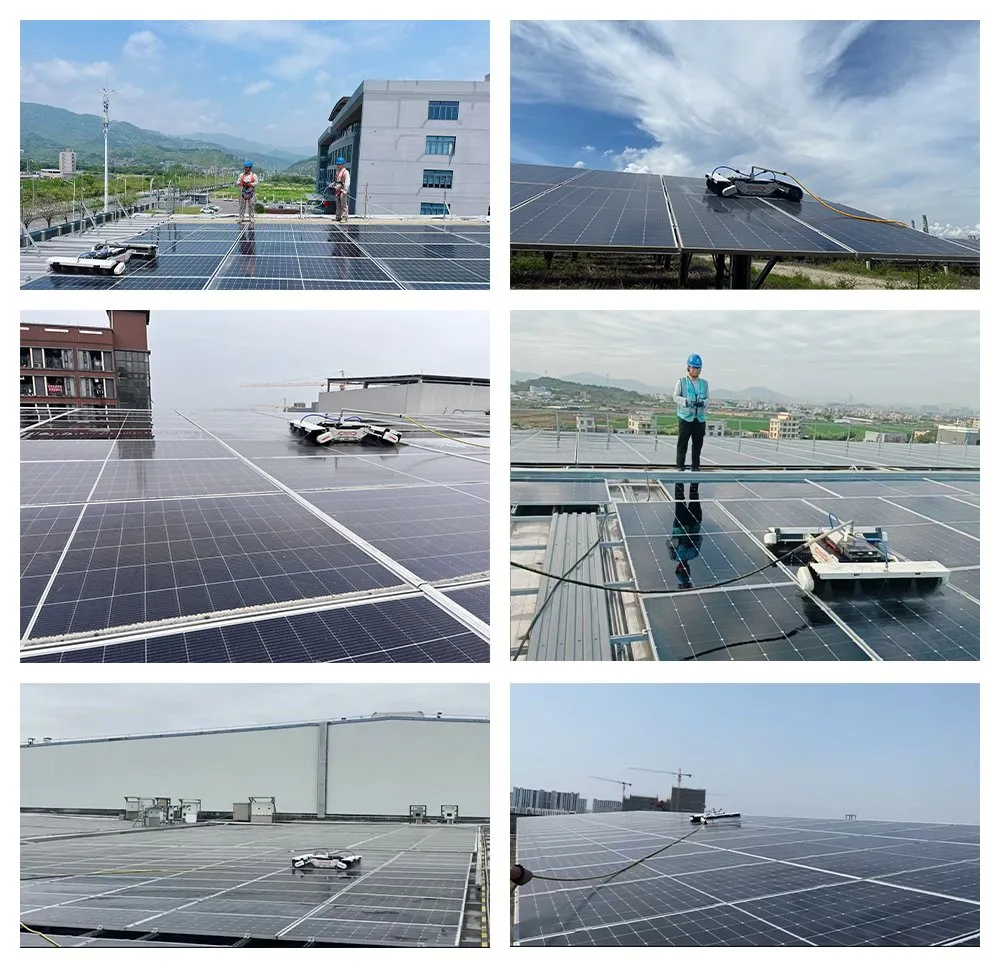

■ Project Cases & Packaging
❓ FAQ
Q1: How long is the warranty period?
A1: The warranty period is 1 year.
Q2: Would you accept using customer's logo?
A2: Yes, we provide full OEM and ODM services.
Q3: What's the minimum order quantity (MOQ)?
A3: The MOQ is 1 set.
Q4: What are the payment terms?
A4: We accept T/T, Western Union, PayPal, and more.
Q5: How long is the lead time?
A5: Generally it is 20-30 days, depending on your order quantity.
Q6: What is the standard packaging?
A6: We use export standard wooden cases or special packaging according to requirements.
