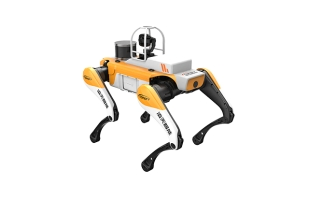

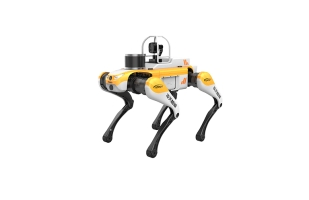

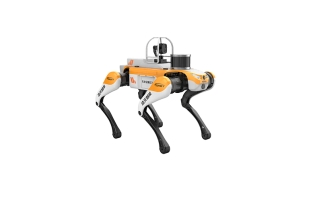

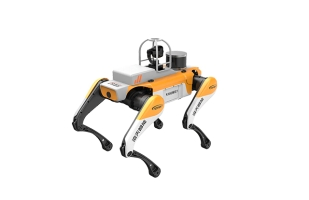

Electricity inspection quadruped robot dog (puppy + self-organizing network + laser navigation + industrial control computer + dual optical pan-tilt)

Customization: Available
Speed: 3.7m/s
Continuous Walking Load: 8kg

Product Description

📊

Basic Specifications

Model NO.RXR-T3Z
Weight23 Kg
Size700mm × 310mm × 400mm ± 50mm
TrademarkTopsky
Production Capacity1000
🤖

Product Overview

The electric power inspection quadruped robot dog is high-tech equipment specially designed for power-related scenarios. It plays a crucial role in enhancing the safety and efficiency of operations by integrating robotic technology, artificial intelligence algorithms, and precise sensor systems.

Equipped with self-organizing networks, laser navigation, and dual optical pan-tilt cameras, it can replace personnel in dangerous environments, ensuring staff safety and helping achieve rapid, accurate, and scientific rescue goals.

Key Features

  • High Adaptability: Performs effectively in various complex environments.
  • Protection Level: IP65 rated with strong load-bearing capacity.
  • Multifunctional: Supports thermal imaging, two-way intercom, and video surveillance.
  • High Speed: Maximum speed of 18 km/h (5 m/s) with omnidirectional movement.
  • Power System: Quick-insert lithium battery structure for easy replacement.
  • Lightweight Design: Compact size allows for single-person portability.
⚙️

Technical Specifications

Overall Performance

  • Max Load: 15 kg (Continuous: 8kg)
  • Battery: 29.6V / 8000mAh Lithium
  • Operating Time: 2-3 hours
  • Max Slope/Obstacle: 40° / 16cm

Sensing Module

  • Thermal Res: 384*288 (-20ºC to +550ºC)
  • Visible Light: 2MP HD (1920*1080)
  • Intelligent Recognition: Faces, vehicles, pedestrians

Lidar & Control

  • Lidar: 40 lines, 360° view, 70m range
  • Accuracy: 1.2cm relative / 3cm absolute
  • Remote Terminal: 6-inch high-brightness display

Frequently Asked Questions

Q1: What is the delivery time for the robot dog? A: Generally 10-15 days for standard products within 50pcs, depending on order specifications.
Q2: Can we customize the robot with our own logo? A: Yes, we provide OEM services and can sign licensing agreements for logo usage.
Q3: What is the protection level of the equipment? A: The robot dog has an IP65 protection grade, making it highly resistant to dust and water.
Q4: Are discounts available for bulk purchases? A: Yes, we offer significant discounts for large quantity orders.
Q5: What are the shipping methods? A: We use express services like TNT, Fedex, DHL, UPS, or specialized logistics as required.
Q6: What is the primary power source? A: It uses an integrated plug-in high-performance lithium battery (29.6V) with a quick-insert structure.
