Product Description

Overview

MetaSense 435 Compact Depth Camera – Small Form Factor RGB-D Sensor for Quadruped & Legged Robots

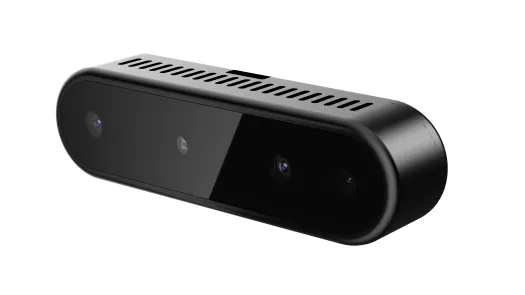

Depth Camera View 1

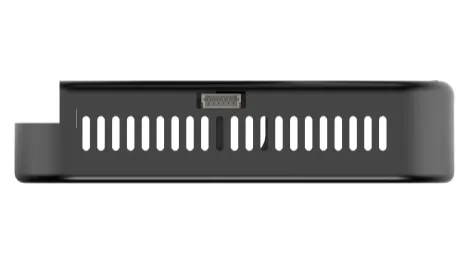

Depth Camera View 2
Basic Info
Model NO.Metasense435
ApplicationRobot
HDMI Format1080P
CertificationCE, FCC, CCC, RoHS, ISO9001
SensorCMOS
Horizontal Resolution2MP
Dimensions & Power

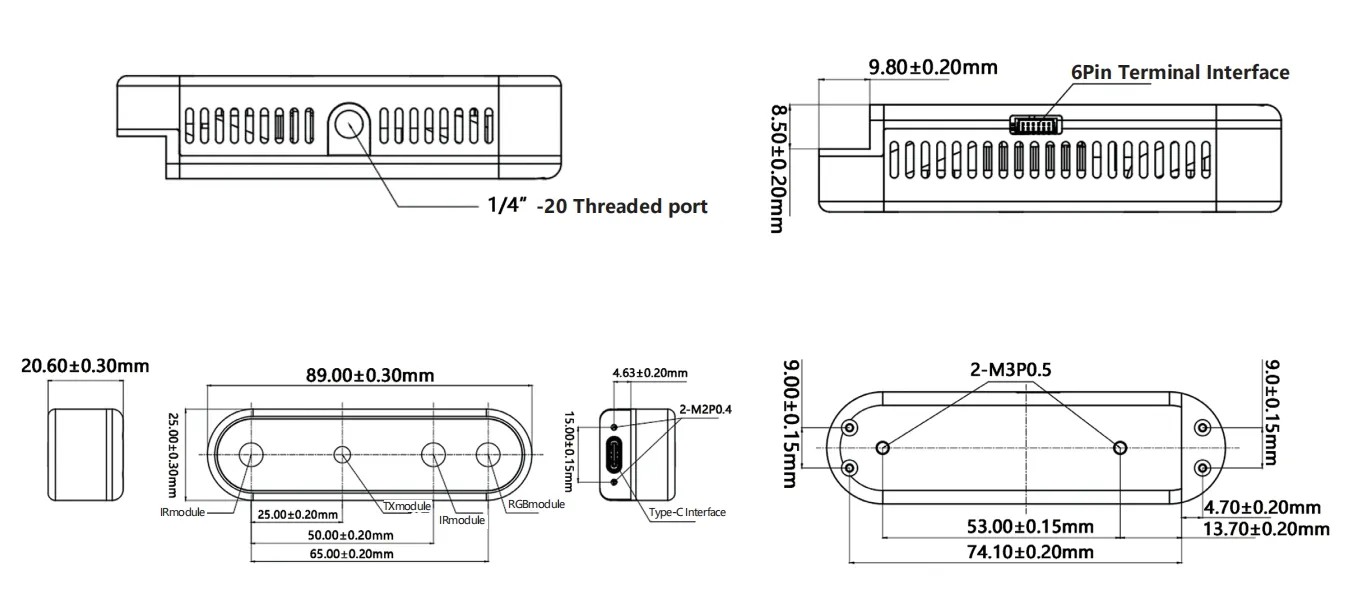

Dimensions89 X 25 X 20.6 mm
Input Voltage5.0VDC
Operating Temp-25°C to 70°C
MaterialLCD / Metal Components
OriginChina
Technical Highlights
✓ Innovative Design

Binocular laser speckle depth camera featuring built-in SOC chip, ISP, HDR, NPU, and VSLAM acceleration engine. Low power design for quick 3D vision processing.

★ Ideal Applications:
  • Robot Security & Drones
  • 3D Scanning & IOT Data
  • Bone Recognition & Gaming

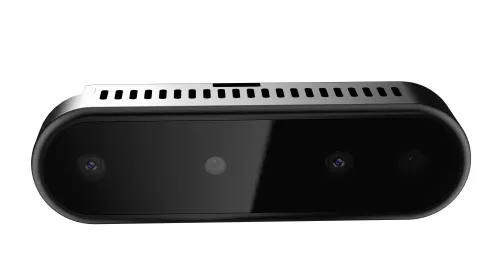

Specification 1

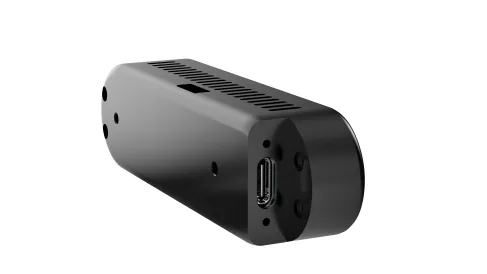

Specification 2
Feature Specification
Laser Camera940nm
DFOVH 80°x V 55°
CFOVH 65°x V 51°
InterfaceUSB 2.0 Type-C
Working Distance0.19—10m
Depth Accuracy≤1%@1m, ≤2%@2m
Power ConsumptionAverage 1W (Peak 5.45W)
Supported OSWindows / Linux / ROS
Packing & Delivery
Packing Info
Standard Pack:
  • 1× Set Camera
  • 1× Waterproof Package
OEM Services:
  • Custom Logo & Private Label
  • Custom EQ Management
Certifications
Cert 1
Cert 2
Cert 3

Compliance: FCC/CE/RoHS, EN 455 Sportswear Safety Standard, Laser Class 1 Certified.

FAQ
Q: What is the effective working distance for the MetaSense 435?
A: The camera supports an indoor operating range of up to 10 meters and an outdoor range of up to 5 meters, with a minimum depth sensing distance of 0.19m.
Q: Which operating systems are compatible with this sensor?
A: It provides full support for Windows, Linux, and ROS (Robot Operating System) environments.
Q: Does the camera support on-board AI processing?
A: Yes, it features a built-in NPU that supports CNN Backbone networks and algorithms with hundreds of millions of parameters.
Q: What are the main application scenarios?
A: It is ideal for autonomous robots, robotic arms for industrial tasks, 3D model measurement, and intelligent AIoT devices.
Q: What is the depth accuracy of the MetaSense 435?
A: The depth accuracy is highly precise, measured at ≤1% at 1 meter and ≤2% at 2 meters.
Q: What kind of warranty is provided?
A: The product comes with an 18-month warranty covering manufacturing defects.
