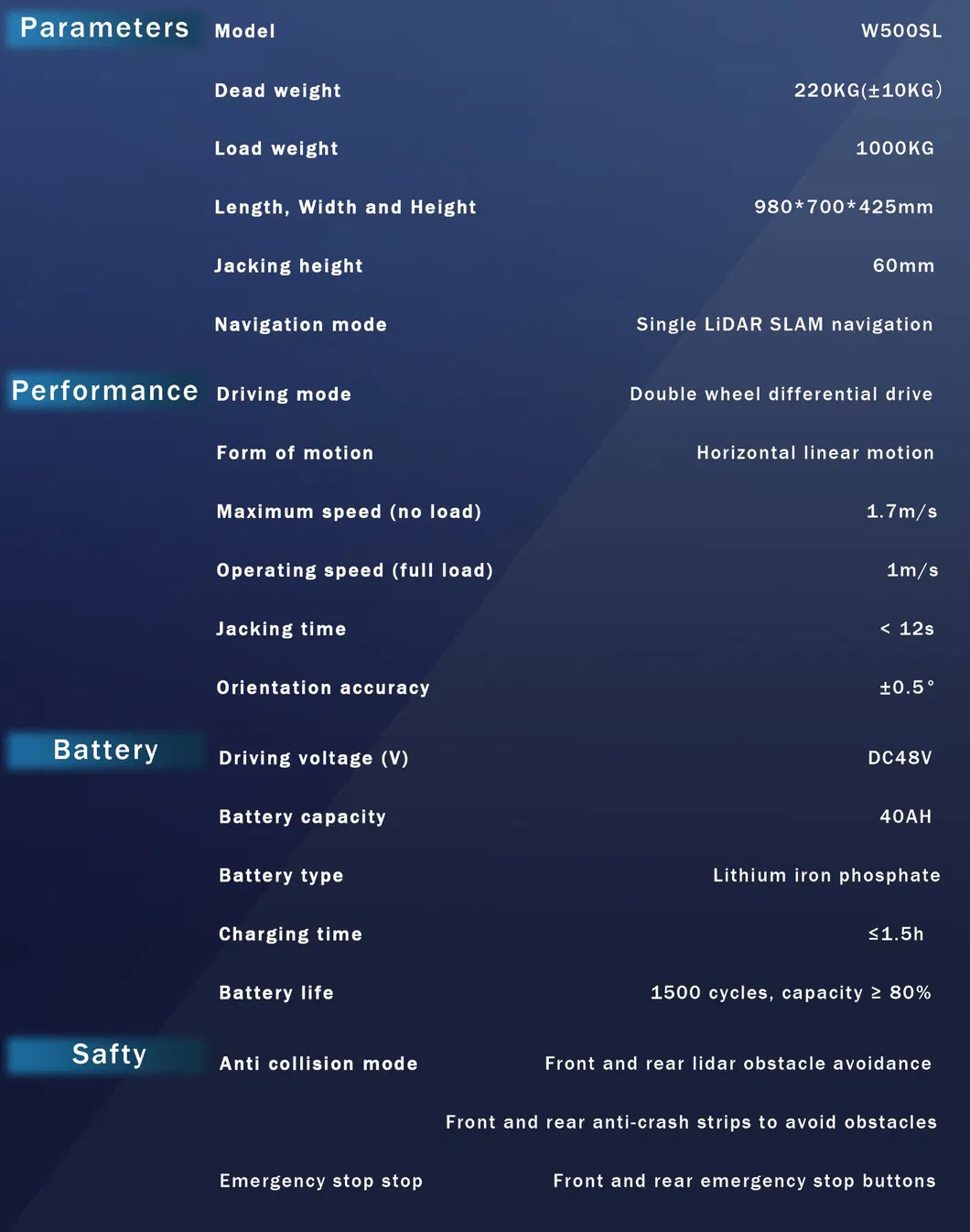

Basic Specifications

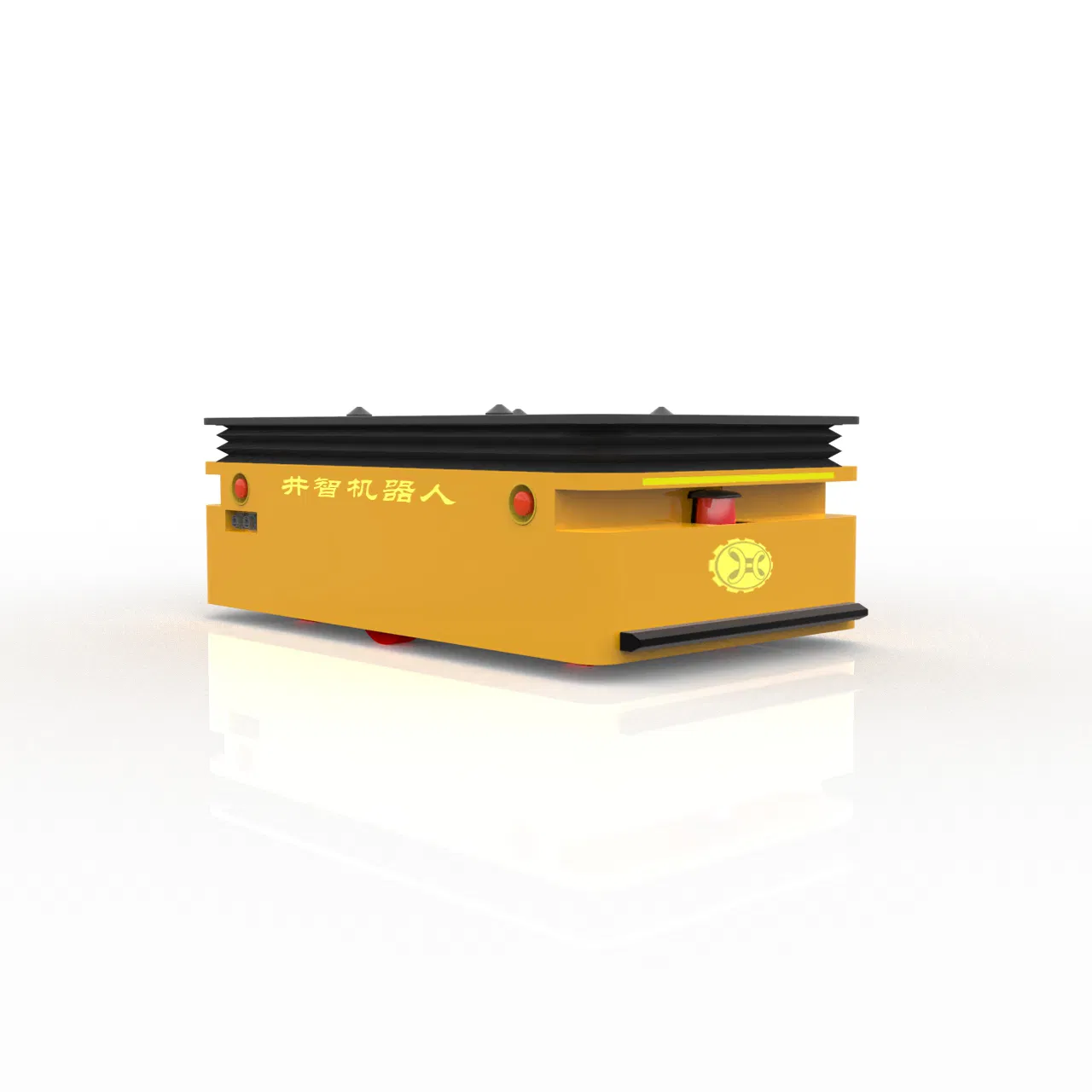

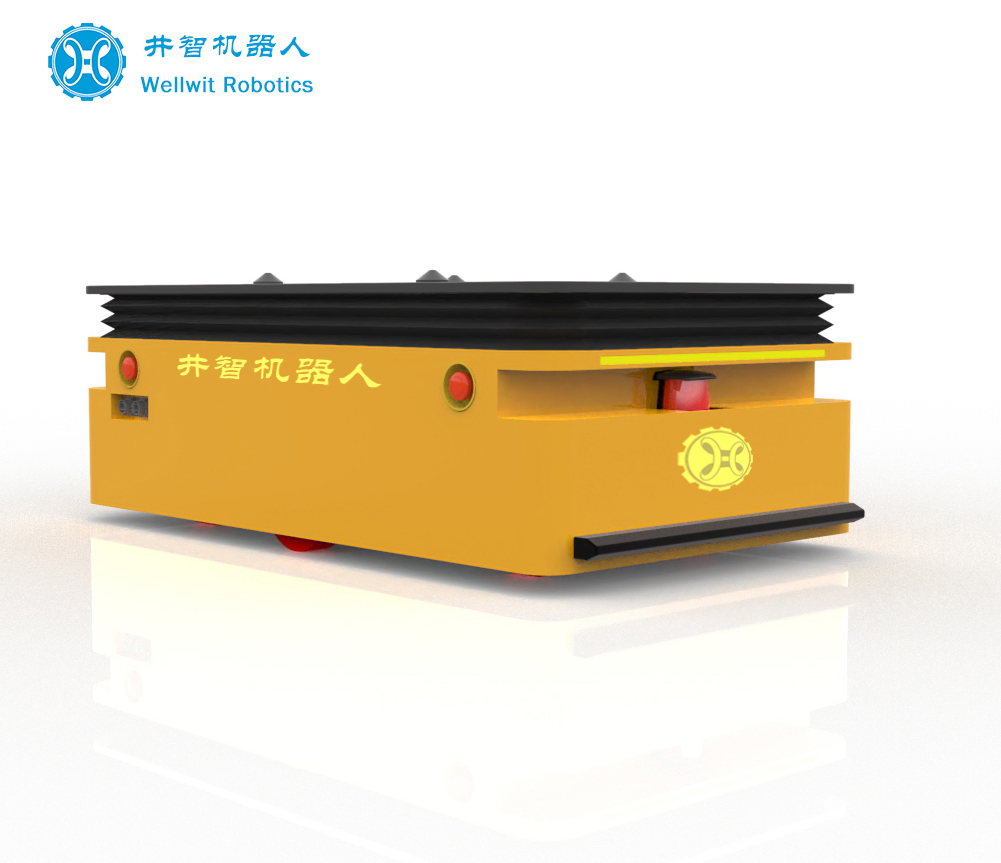

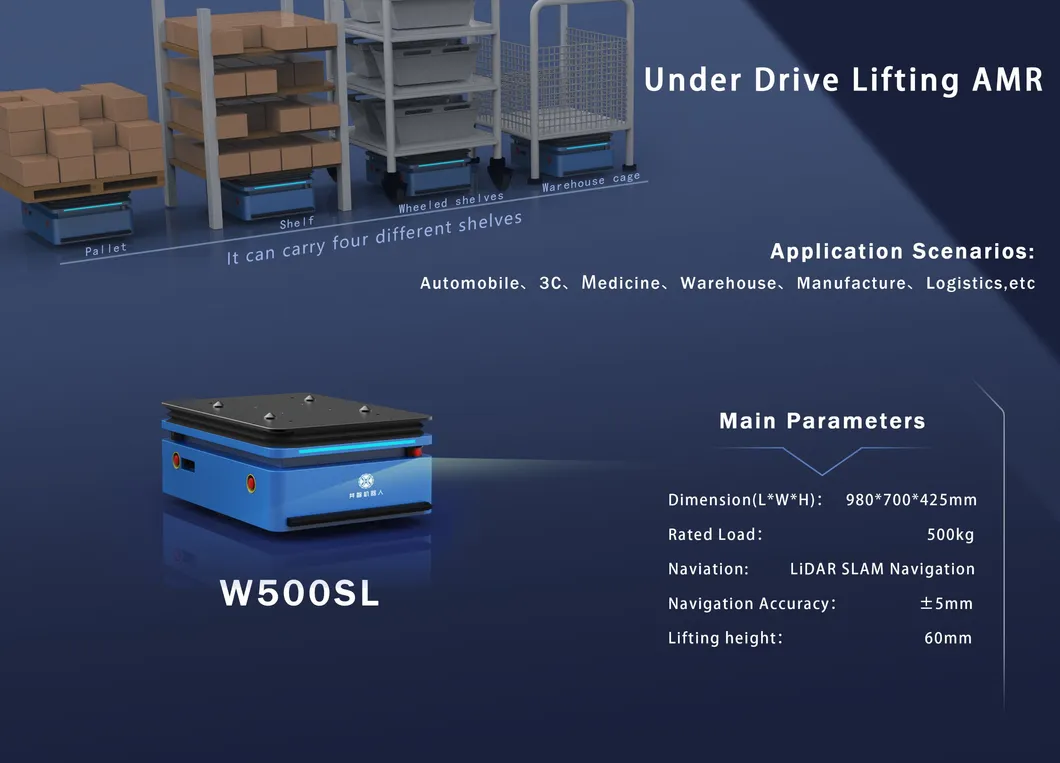

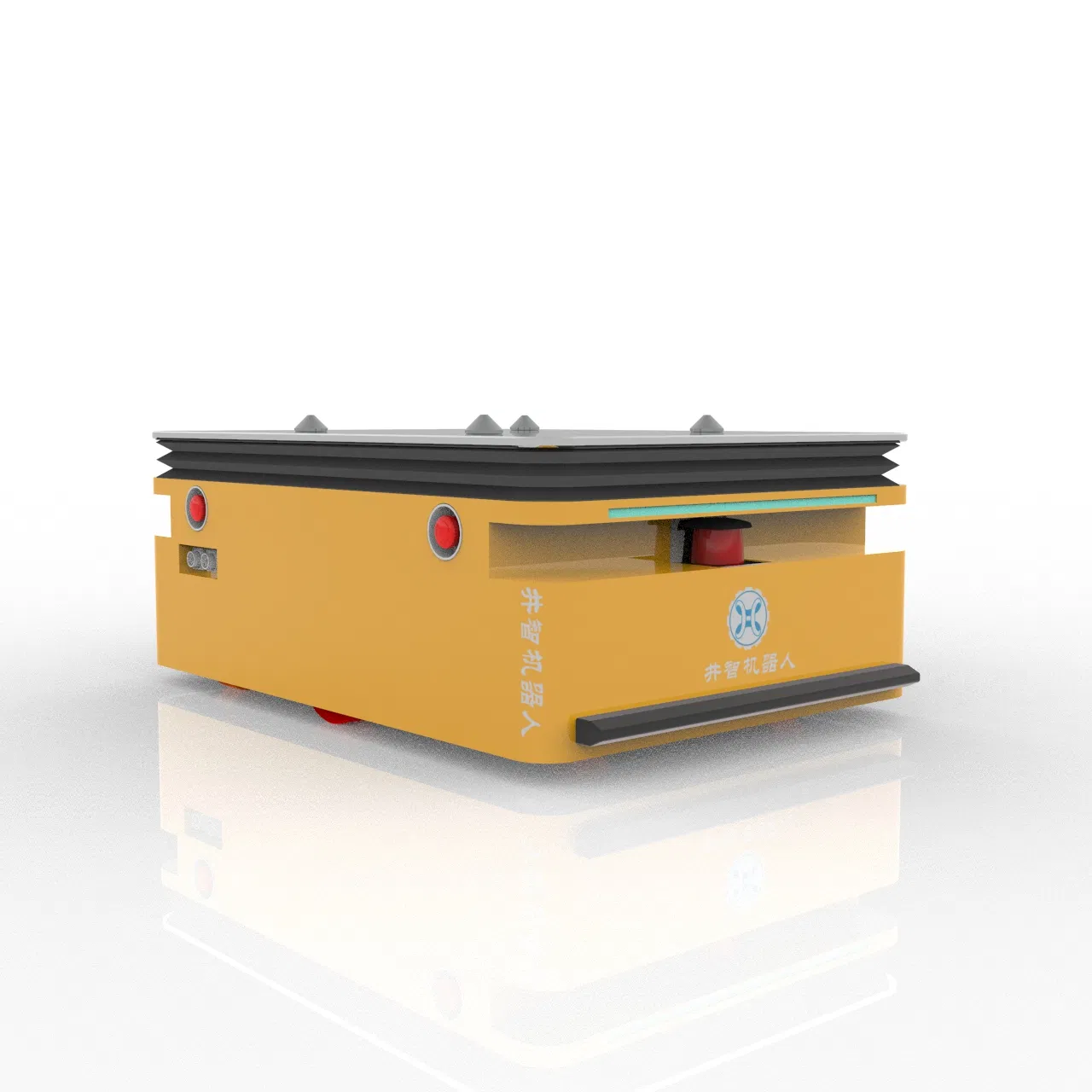

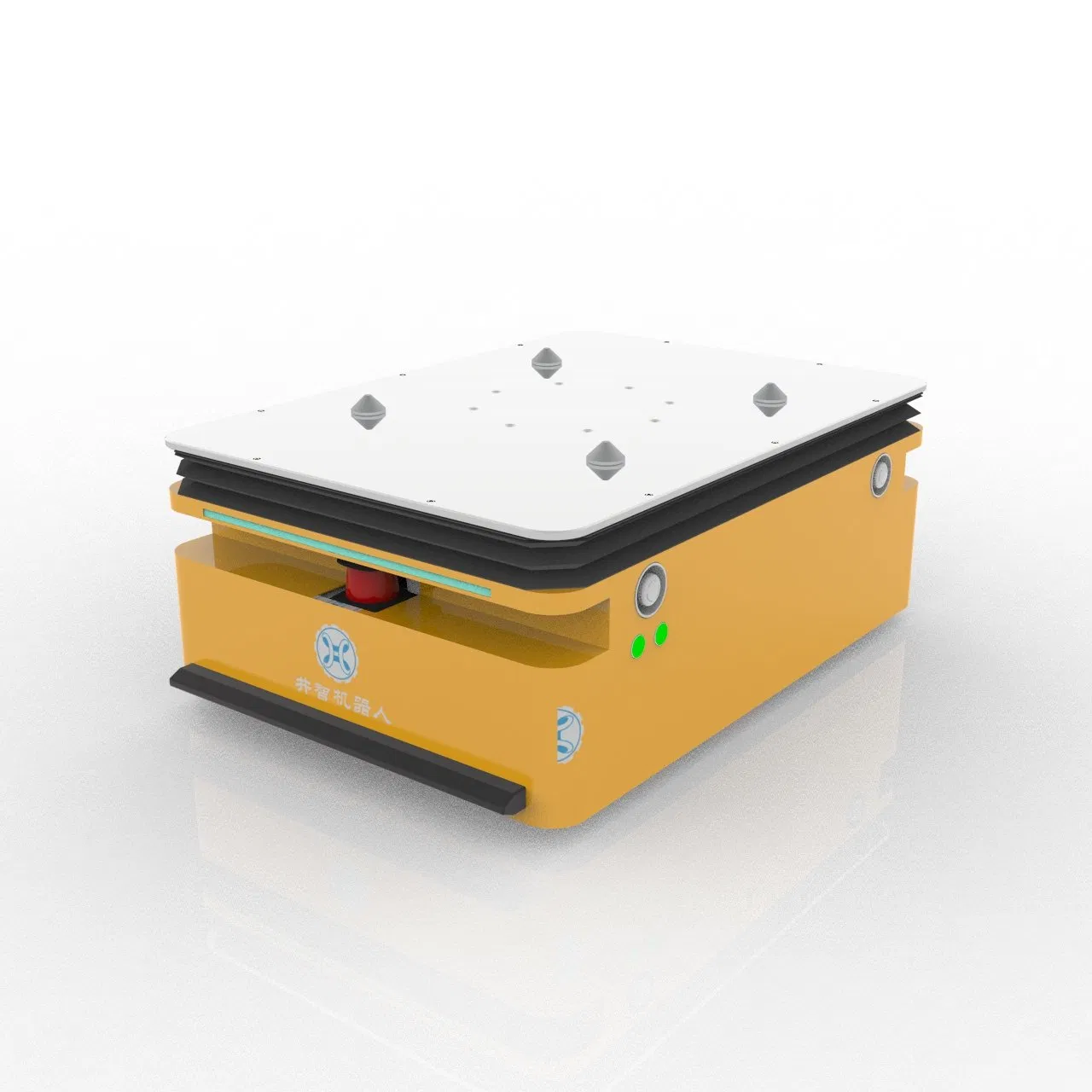

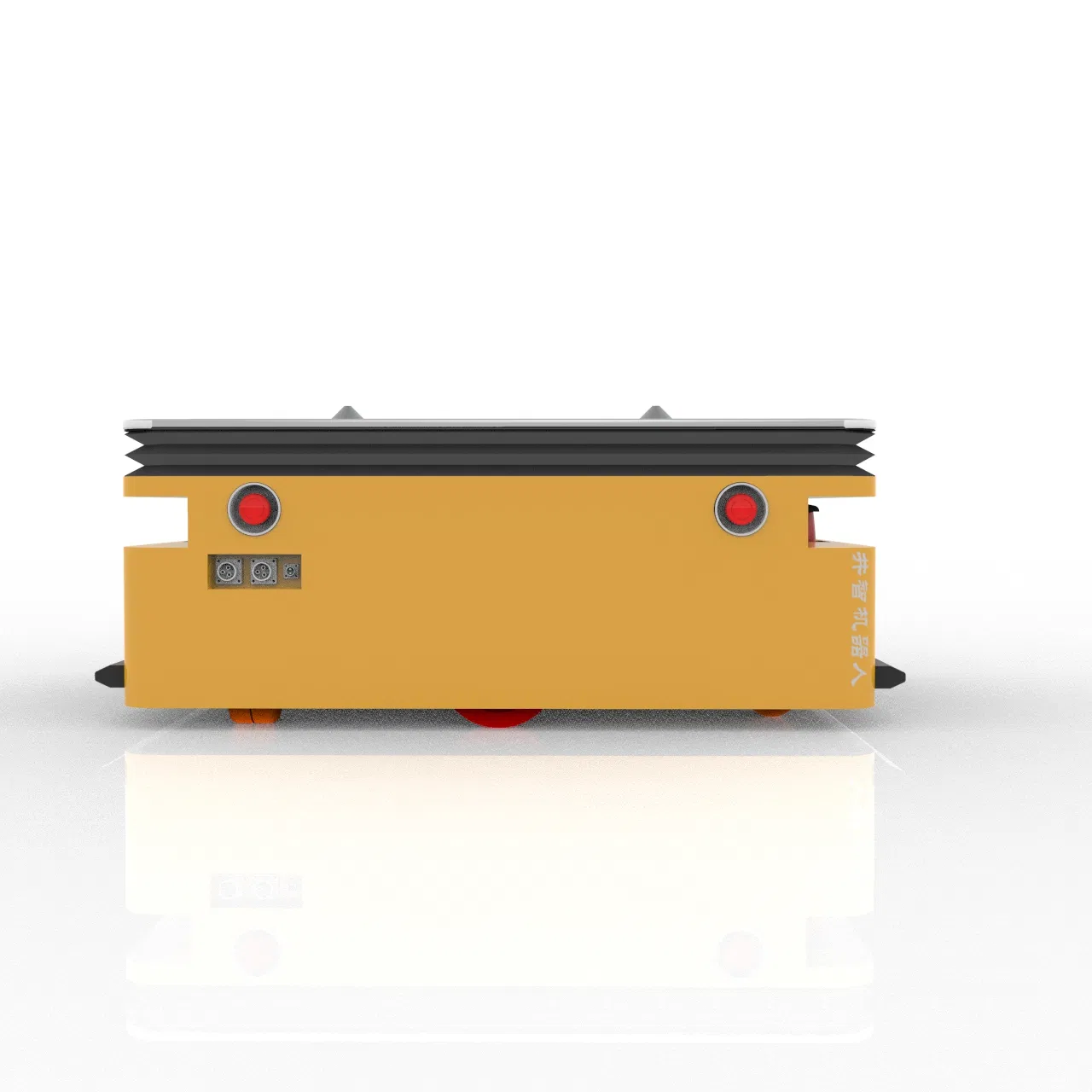

Model NO.:W500SL
Function:Automatic Charging, Obstacle Avoidance
Load Capacity:500kg
Navigation Mode:Lidar SLAM Navigation
Power Source:Battery (Lithium Iron Phosphate)
Positioning:±10mm
Jacking Height:60mm
Endurance:≥8h
Charging Time:≤1.5h
Specification:980*700*425mm
Core Features
★
Advanced Navigation: Utilizes Lidar SLAM combined with inertial navigation for convenient deployment and flexible routes.
★
High Load Capacity: Robust design supports a carrying capacity of up to 500kg.
★
Intelligent Management: Features multi-level power thresholds with autonomous charging capabilities.
★

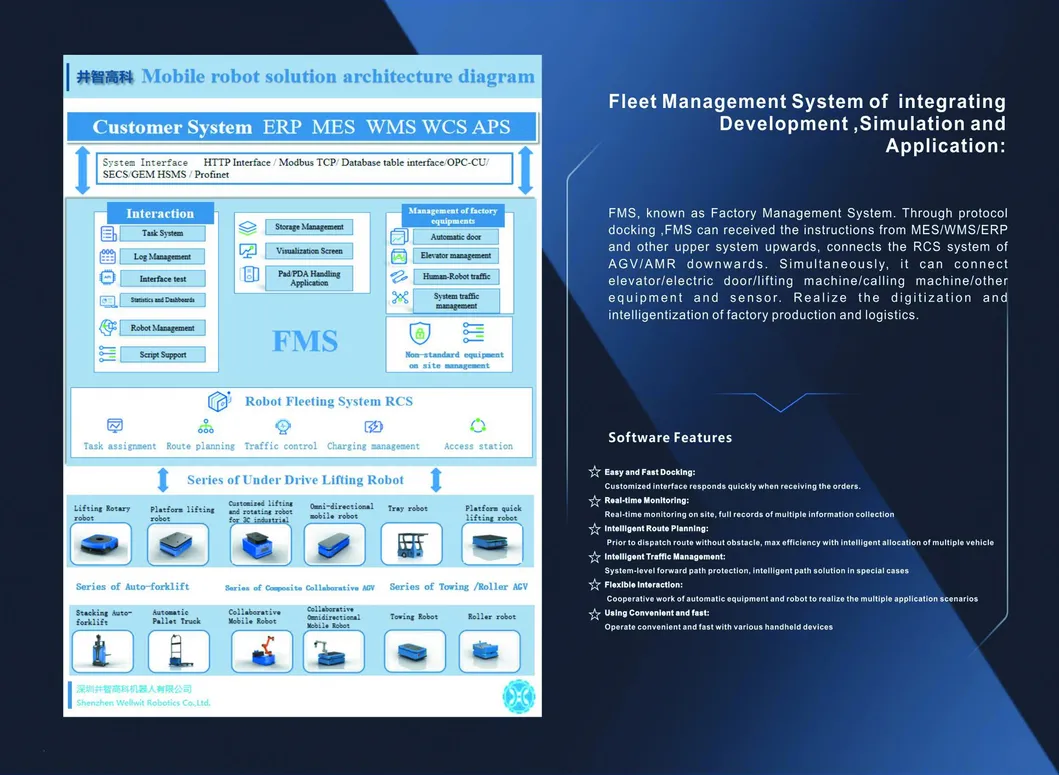

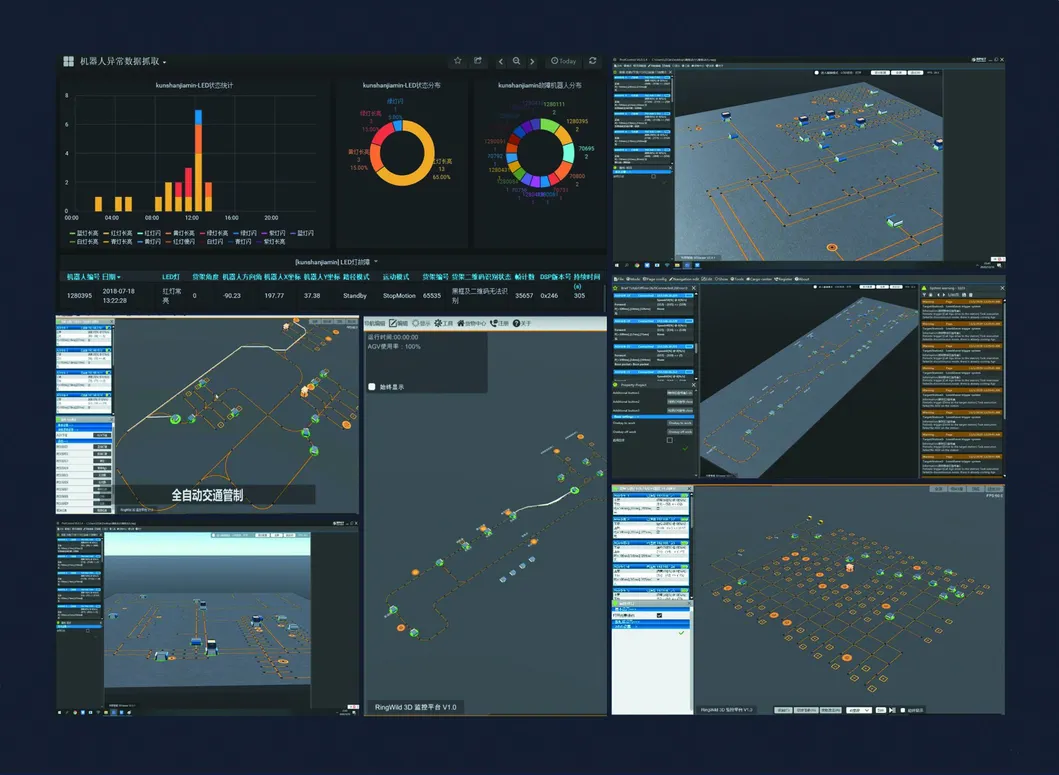

Cluster Scheduling: High-efficiency system to view status, power, and location of all robots simultaneously.
★
Safety Protection: Equipped with lidar obstacle avoidance, anti-collision strips, and emergency stop buttons.
Expertise & Service

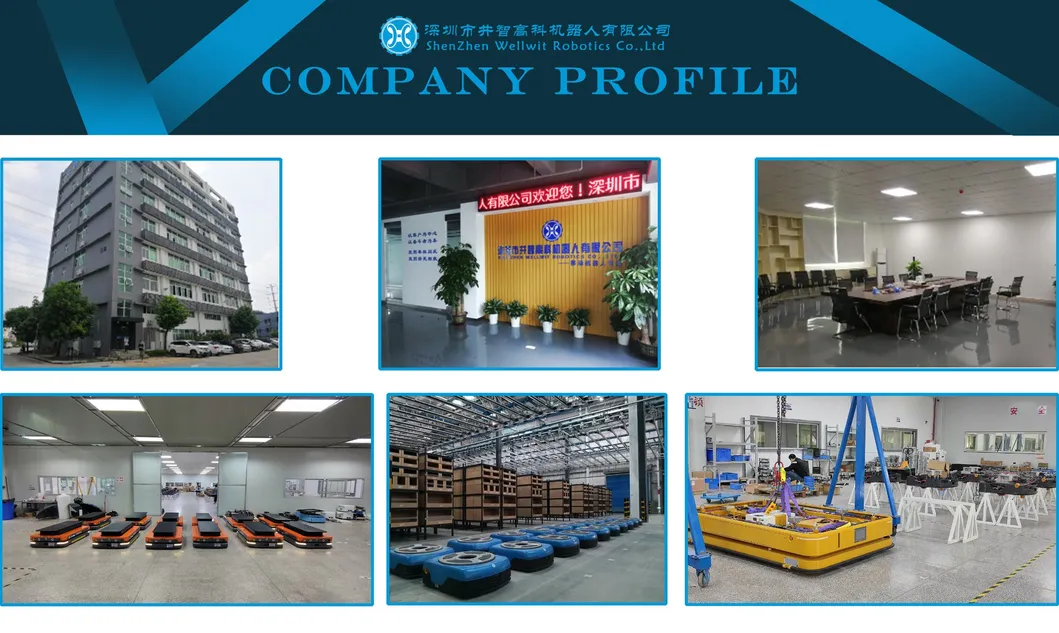

Focusing on research and development of mobile robots, the R&D team consists of experienced members in robotics, hardware, software, and AI algorithms. Current solutions include moving robots, sorting robots, and auto-forklifts using various navigation methods such as QR code, LiDAR SLAM, Visual SLAM, and RTK navigation.
Providing custom logistic robots for integrators focusing on Intelligent Logistics and Intelligent Factories, alongside ODM/OEM services for global clients.
Packaging & Delivery
Package Size:98.00cm * 70.00cm * 42.50cm
Gross Weight:240.000kg
Package Type:Professional Wooden Box
Frequently Asked Questions
Q1: What is the maximum load the W500SL can handle?
The AGV robot has a rated payload capacity of 500kg.
Q2: How accurate is the navigation system?
By using Lidar SLAM assisted by inertial navigation, the robot achieves a positioning accuracy of ±10mm.
Q3: How does the automatic charging system work?
The robot features intelligent power management with preset thresholds; it will autonomously return to the charging station when battery levels drop below the limit.
Q4: What safety features are included?
It is equipped with Lidar for obstacle avoidance, front/rear anti-collision strips, and side-mounted emergency stop buttons.
Q5: What are the main applications for this robot?
It is ideal for Intelligent Factories, Logistics, Warehousing, and other indoor material handling environments.
Q6: What is the charging and working endurance?
The robot offers an endurance of 8 hours or more with a fast charging time of approximately 1.5 hours.
