Affordable RGB-D Camera for Research & Prototyping Metasense 435 with Synchronized Depth & Color

Still deciding? Get samples of $ !
Order Sample

Product Description

● Basic Information
Model NO.Metasense435
HDMI Format1080P
ApplicationRobot
CertificationCE, FCC, CCC, RoHS, ISO9001
Horizontal Resolution2MP
SensorCMOS
ScanningLine by Line Scan
Laser Camera940nm
Working Distance0.19—10m
Depth Map Resolution640X400@30fps
Color Image Resolution1280X720@30fps
Operating Temperature-25°C to 70°C

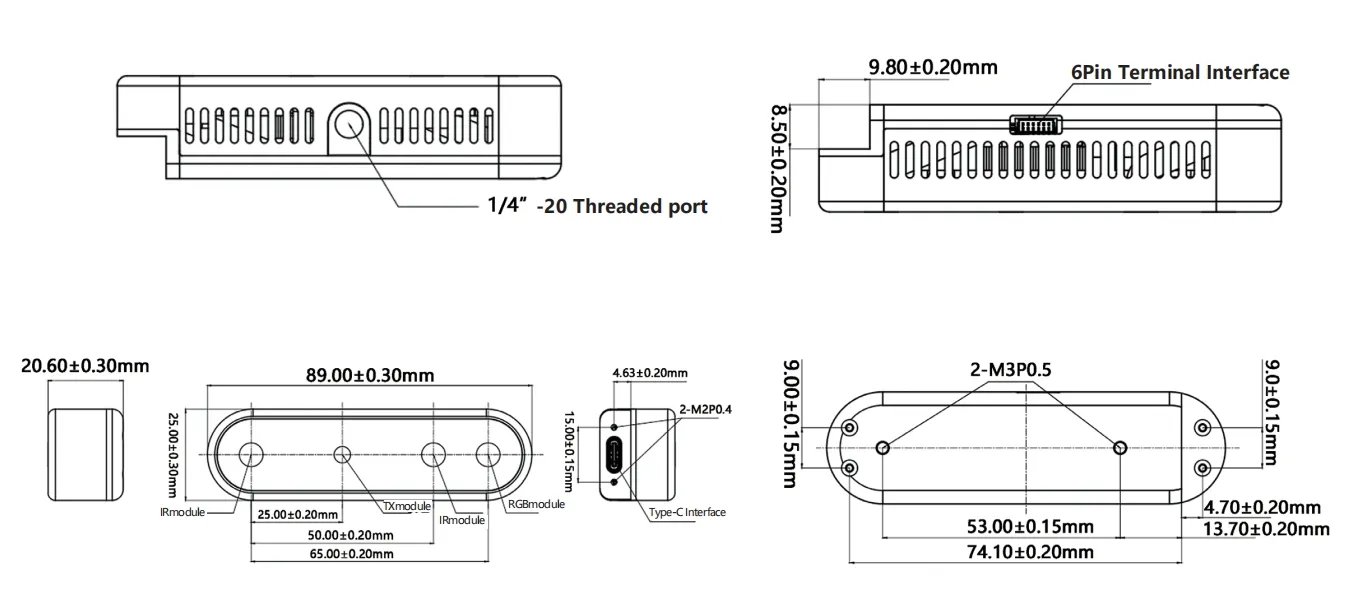

Dimensions89 X 25 X 20.6 mm
Supported OSWindows/Linux/Ros
● Product Description
MetaSense 435 Compact Depth Camera

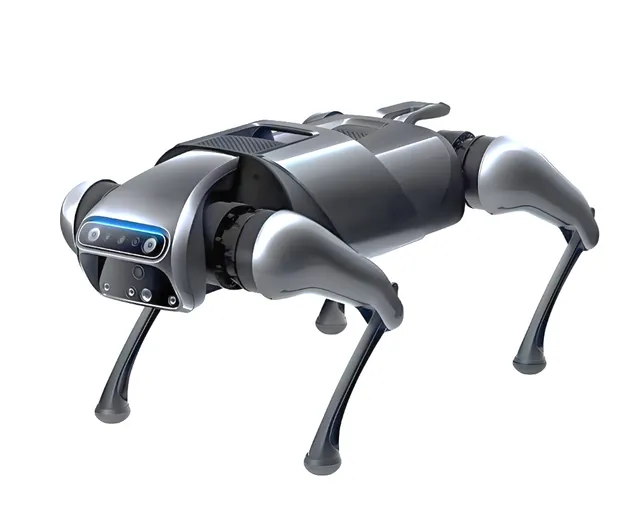

Small Form Factor RGB-D Sensor designed for Quadruped & Legged Robots. Features built-in SOC chip, ISP, HDR, NPU, and VSLAM acceleration engine.

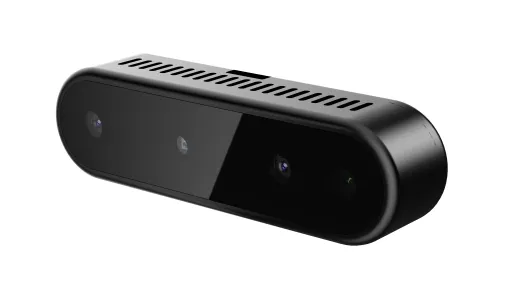

MetaSense 435

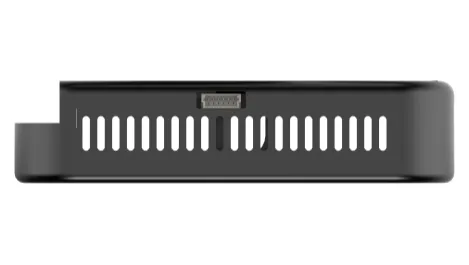

RGB-D Sensor
● Technical Highlights
FeatureSpecification
DFOV / CFOVH 80°x V 55° / H 65°x V 51°
InterfaceUSB 2.0 Type-C (Synchronization support)
Depth Accuracy≤1%@1m, ≤2%@2m
Power ConsumptionAverage 1W (Peak 5.45W)
SafetyLaser Class 1 Certified

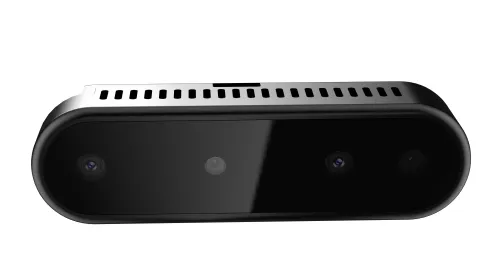

Design 1

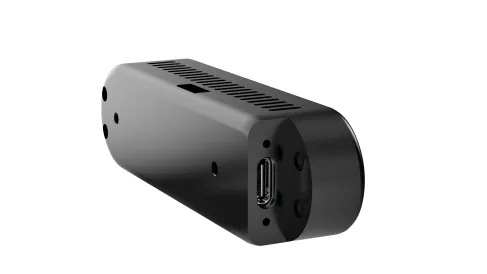

Design 2
● Packing & After Sales
Standard Package:
- 1× Set Camera
- 1× Waterproof Package
Service Warranty:
- 18-month warranty against manufacturing defects
- Professional technical support
Packing
● Certifications
Cert 1
Cert 2
Cert 3
● Frequent Questions & Answers
Q1: What are the primary applications for the MetaSense 435? A1: It is ideal for autonomous robots, drone navigation, 3D scanning, somatosensory recognition, and industrial AIoT scenarios.
Q2: Which operating systems are supported by this camera? A2: The camera supports Windows, Linux, and ROS (Robot Operating System) environments.
Q3: What is the effective working distance of the depth sensor? A3: The indoor operating range is up to 10m, while the outdoor range is approximately 5m, with a minimum distance of 0.19m.
Q4: Does the camera support multi-sensor fusion? A4: Yes, it features a built-in NPU that supports algorithms with hundreds of millions of parameters and supports CNN Backbone networks.
Q5: What is the depth accuracy of the MetaSense 435? A5: The accuracy is rated at ≤1% at a 1-meter distance and ≤2% at a 2-meter distance.
Q6: What level of robot intelligence does this portfolio cover? A6: Our products cover various stages from G1 Basic Intelligence to G5 General Intelligence, adapting to both limited and advanced autonomous tasks.
