Basic Specifications
Production Capacity
60PCS / Month
Product Overview
12 Inch Screen Pan Tilt 120m Cable Pipe Inspection Crawler Robot equipped with a 90mm camera lens and IP68 waterproof rating. This professional system is engineered for precision inspection in challenging environments.
Applications
The S200 robot is widely utilized in 200-1000mm underground pipelines, tunnels, containers, and other confined spaces inaccessible to personnel.
Main Features & Advantages
- German Engineering: High-power drive motor imported from Germany.
- Superior Illumination: Integrated Cree LED lights for high brightness in dark pipes.
- High Definition: 625TVL resolution ensuring premium picture and video quality.
- Climbing Capability: Exceptional mobility with a maximum 30° climbing grade.
- Safety Monitoring: Built-in pressure warning device (8-12PSI) with real-time interface alerts.
- Dual View: Rear camera included for enhanced navigational viewing.

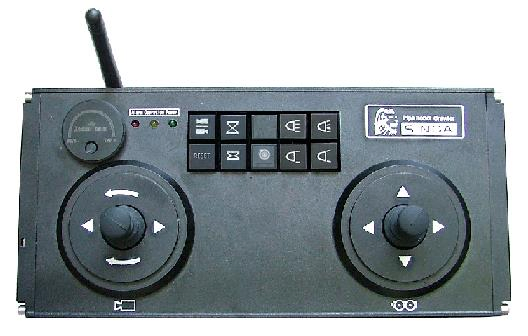

- Remote Operation: Convenient remote control box for precise maneuvering.
Technical Specifications

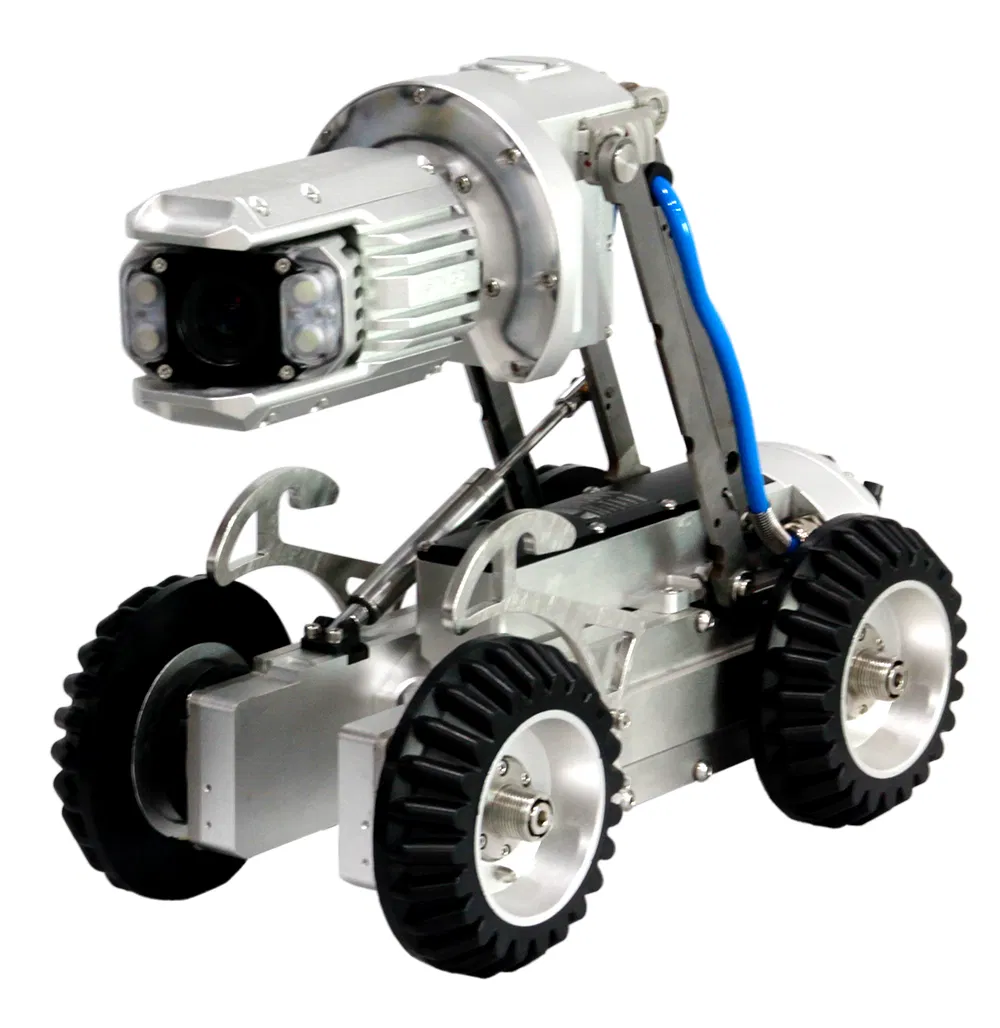

90mm Front PTZ Camera Head
Image Sensor
1/4 Sony CCD (625TVL)
Zoom
100x (10X optical, 12X digital)
Rotation
Axial 360°, Radial 270° with Auto Level
Protection
IP68 Waterproof
Crawler System
Pipe Diameter
200-1000mm (Adaptable wheels)
Drive System
4-wheeled drive, 0-35m/min speed
Steering
Double motors for precision left/right turns

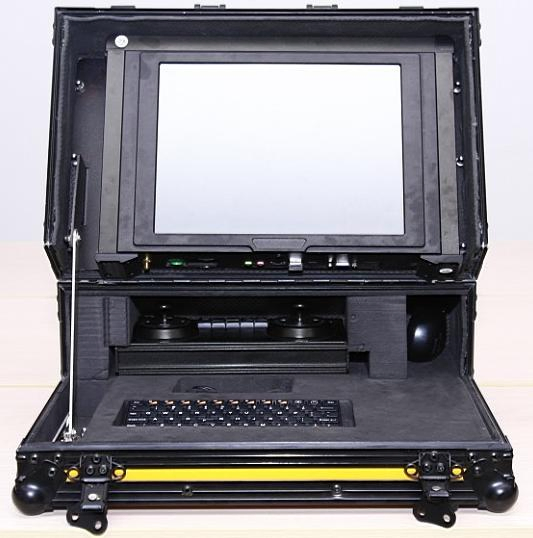

Windows 7 Display Controller
Monitor
12.1 inch High Bright (1024*768)
Storage
64G HDD, JPG/AVI/MPEG4 formats
Interface
Touch screen with English software
Frequently Asked Questions
Q: What pipe sizes can the S200 inspect?
A: It is designed for pipelines ranging from 200mm to 1000mm in diameter when equipped with appropriate wheel sizes.
Q: Is the system fully waterproof?
A: Yes, both the camera head and the crawler system meet IP68 protection standards.
Q: How does the system ensure safety inside the pipe?
A: It features a built-in pressure warning device (8-12PSI) and real-time monitoring to prevent the crawler from turning over.
Q: What is the maximum cable length?
A: The standard cable wheel configuration supports up to 150 meters.
Q: Can the camera capture zoomed-in details?
A: Yes, the PTZ camera head features 100 times auto-focus (10X optical and 12X digital zoom).
Q: Can I generate reports on-site?
A: Yes, the Windows 7 based display controller includes software to generate inspection reports directly.
