Scientific Research and Advanced Clinical Multifocal Visual Electrophysiology

Customization:	Available
Customized:	Customized
Certification:	CE, ISO13485

Send Inquiry

Product Description

📋 Basic Specification

Model NO.

CHE-1000VIC

Scale

Medium

Package

Carton Package

Specification

750*600*650mm 40KG

Trademark

iClear

Origin

China

HS Code

9018500000

Capacity

10000 pieces/Year

🔬 Product Description

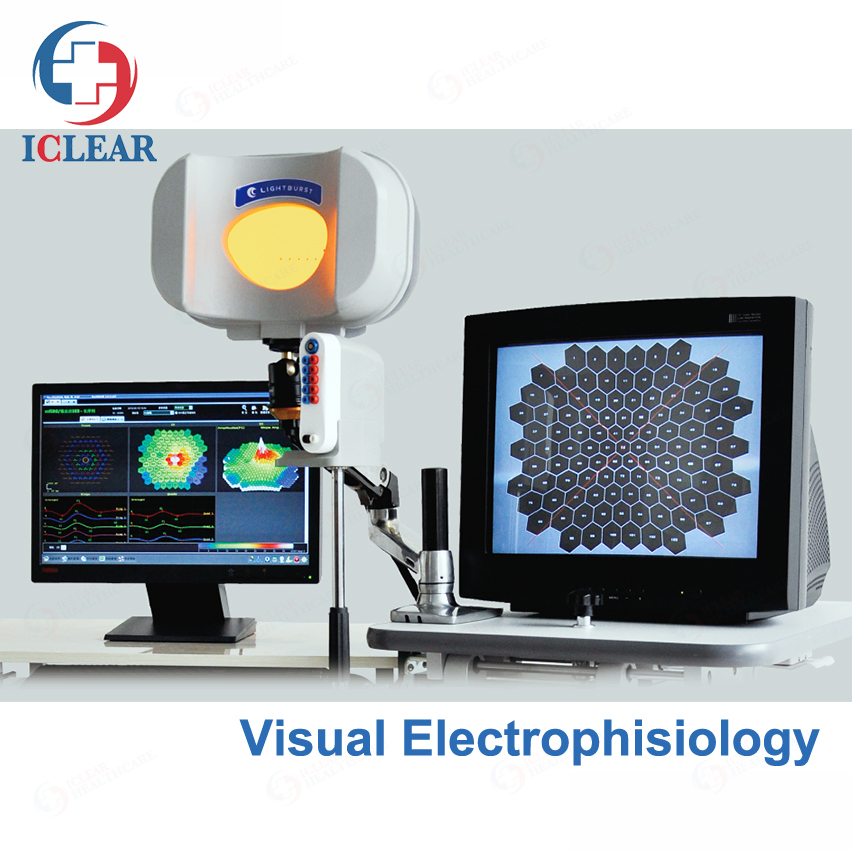

Scientific Research and Advanced Clinical Multifocal Visual Electrophysiology

CHE-1000VIC

📊 Case Examples & Clinical Results

• VEP: Depend on the functional integrity of central vision at any level of the visual pathway including the eye, retina, optic nerve, optic radiations, and occipital cortex.

• ERG/FERG: Mainly reflect the function of rod/cone and connected bipolar cells, rod/cone system can be isolated through dark/light adaptation.

• PERG: Represent a function of ganglion cells when photo-receptor & bipolar cells work fine.

• EOG: Electrophysiological test of the function of the outer retina and retinal pigment epithelium (RPE).

Conclusion: Extinguished rod response, negative rod-cone response, no obvious signal found in OP, flat a wave, a little delay b wave in cone response. Test result highly recommends CSNB.

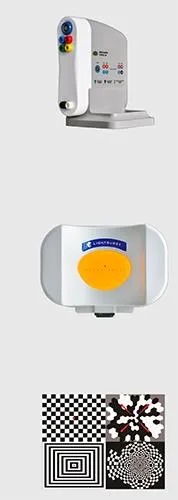

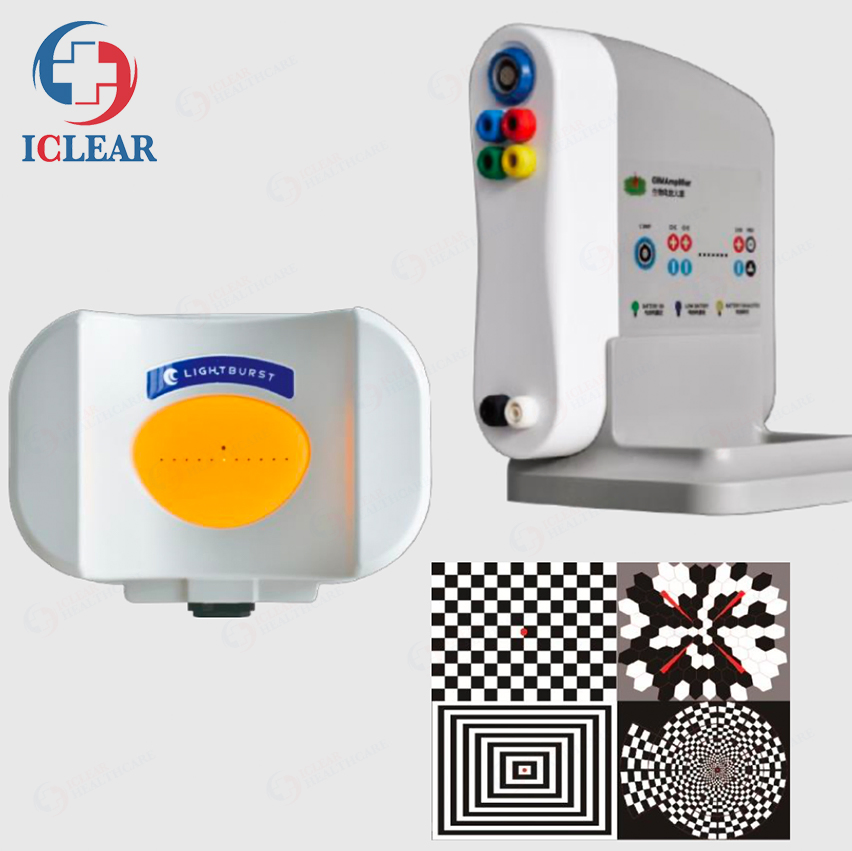

⚡ Key System Components

GIMAmp DC Amplifier: 24bit high-resolution A/D, optical isolated USB connection, li-ion battery powered for anti-interference. 2 channels default (optional 5/8 channels).

LightBurst® Flash Stimulator: Portable (under 3 Kg), supports seated, lying, or infant patients. 18 groups of background light sources (White, Red, Blue, Green, Yellow).

LCD Pattern Stimulator: Checkerboard, horizontal/vertical stripes, and rectangle stimuli options. Adjustable fixation target.

⚙️ Technical Specifications

Amplifier System
Input Impedance	≥ 1000 MΩ
CMRR	≥ 115dB
Input Noise	≤ 4uVpp
A/D Resolution	24 bit
Flash Stimulator
Light Source Color	White, Red, Green, Blue, Yellow combinations
Flash Luminance	0-1000 cd·s/m²
Background Illumination	0-3000 cd/m²
Pattern Stimulator
Contrast	> 98%
Pattern Shape	Checkerboard, Horizontal/vertical stripes, Rectangle

📦 Additional Information

❓ Frequently Asked Questions

What is the return policy if the machine malfunctions?

A secure procedure for product return and repair is in place. Please consult the service policy for detailed steps on handling equipment maintenance.

How is the quality of medical equipment ensured?

We focus on providing high-quality medical equipment at a competitive price, ensuring all clinical and research standards are met for international use.

What are the typical shipping lead times?

By Express: 5-7 working days; By Air: 3-4 days to international airports; By Sea: 25-55 days depending on the destination seaport.

Do you provide support for complete hospital or clinic projects?

Yes, we offer complete solutions for clinic and hospital setups, having successfully supplied medical equipment for various projects across East Asia, Africa, and Saudi Arabia.

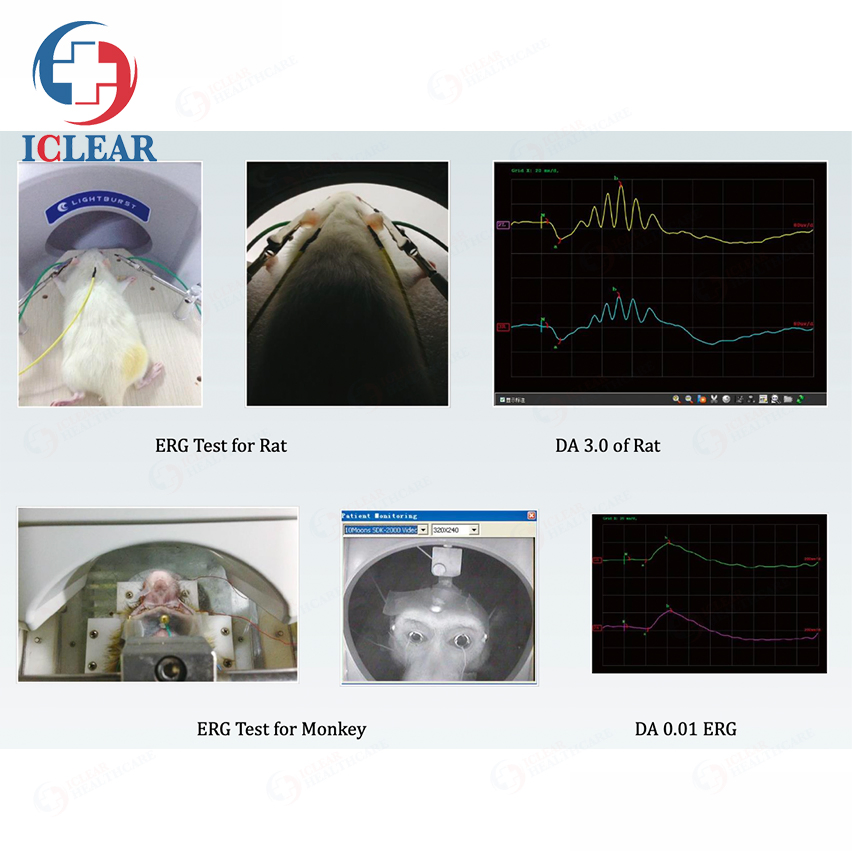

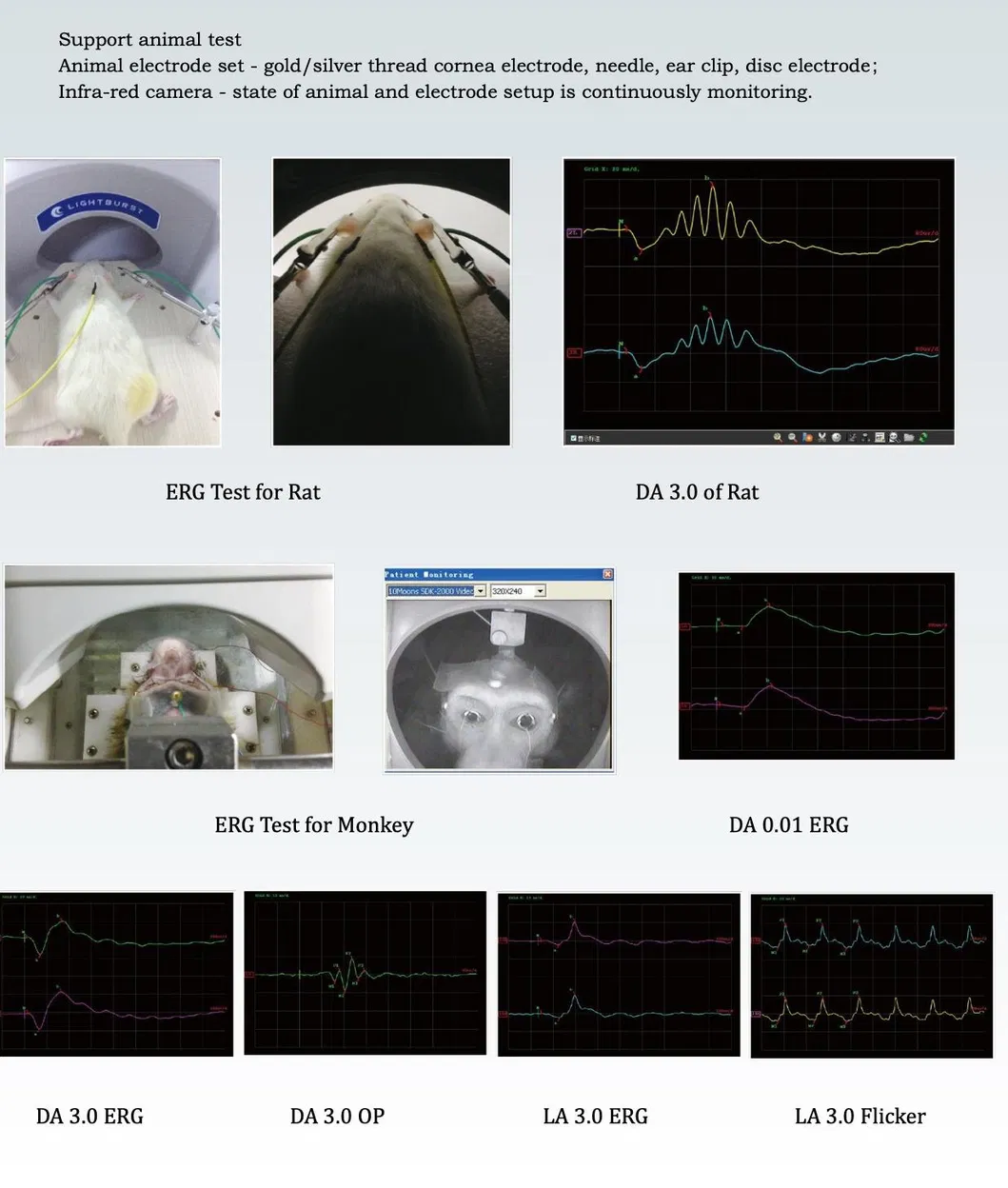

Is the system suitable for pediatric or animal testing?

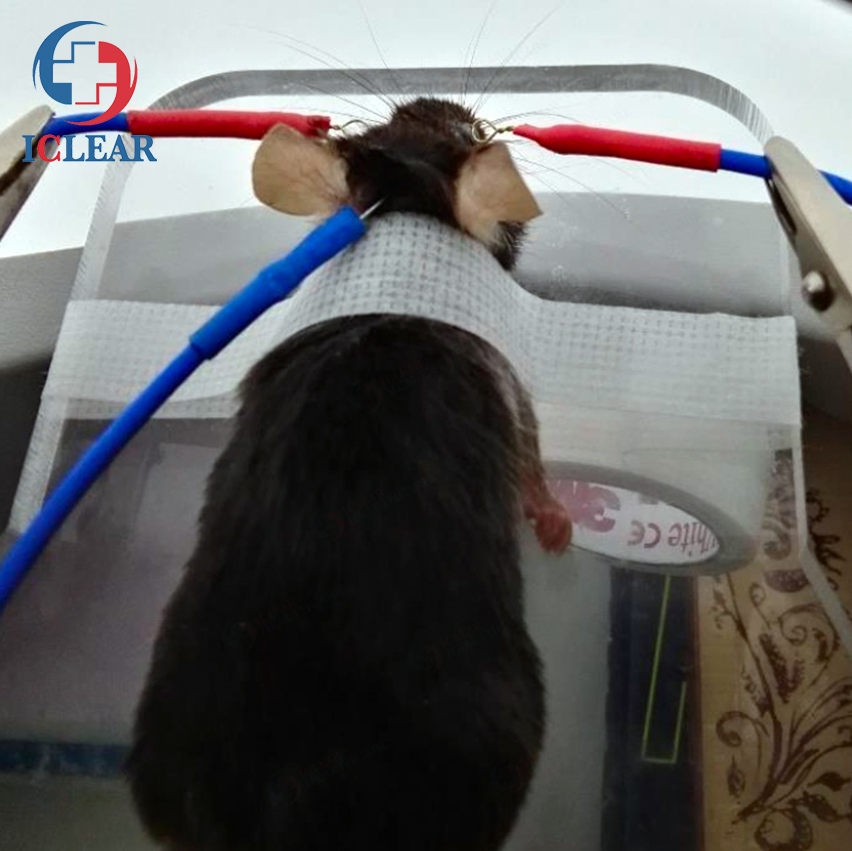

The portable stimulator (under 3kg) is designed to test infants, lying patients, and is also conveniently used for research on animals like rabbits, mice, and monkeys.
