Remote Inspection Robot for Quadruped Hazardous Area Operations

After-sales Service: One Year
Application: Oil and Gas, Chemical Plant
Weight: 23 Kg

Product Description

Basic Specifications

Model NO.
CL801
Operating Depth
350m
Payload Capacity
15kg
Maximum Speed
4.0 Knots (2 M/S)
Thruster Propeller
Hard Anodized Aluminum Alloy
Specification
750 x 660 x 330 mm

Industry Expertise

A pioneering high-tech enterprise dedicated to cutting-edge gas sensing technologies, intelligent perception systems, and industrial monitoring solutions. The core technology revolves around photoacoustic spectroscopy (PAS) for the precision detection of ultra-trace substances, ensuring remarkable sensitivity, rapid response times, and enduring stability within challenging industrial environments.

The progressive focus is on the evolution of bionic perception systems, equipping robots and industrial machinery with sensory intelligence adaptable to water, land, and air environments. By integrating sophisticated sensing hardware and advanced intelligent algorithms, we empower a transition to cognitive-level environmental awareness.

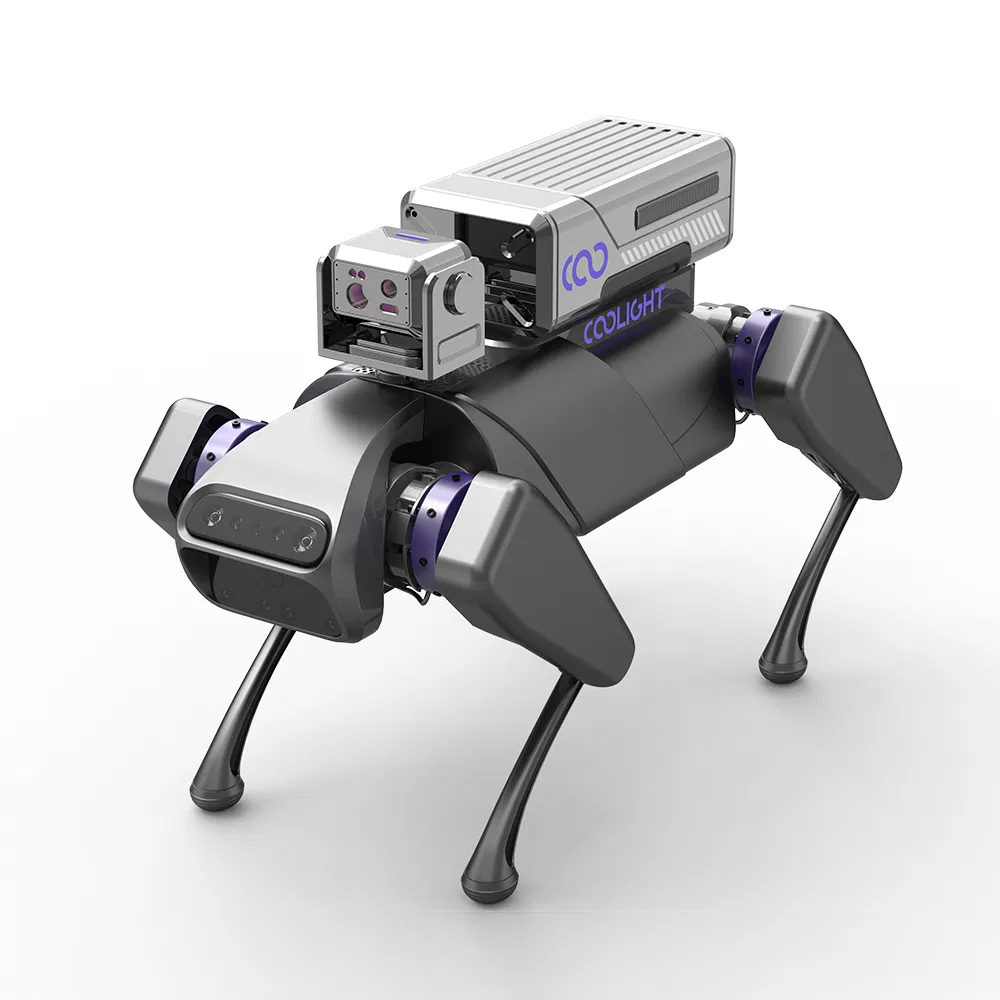

CL801 Quadruped Inspection Robot

The CL801 Quadruped Inspection Robot is an industrial-grade solution engineered for extreme-risk and hazardous industrial settings. This quadruped marvel boasts exceptional mobility and terrain adaptability, allowing it to traverse stairs, slopes, and narrow passages where traditional wheeled robots fail.

Crafted with a composite explosion-proof design (Ex db ib IIB T6 Gb), it is optimized for oil & gas facilities, chemical plants, and power stations. It supports 24/7 unmanned operations, reducing personnel risk and enhancing data precision.

Key Technical Features

  • Electro-hydraulic hybrid drive system for optimized performance.
  • Explosion-proof design compliant with Ex db ib IIB T6 Gb standards.
  • AI-driven perception and multi-sensor industrial monitoring.
  • All-weather industrial use with IP67 protection rating.
  • Maximum Load Capacity: Up to 80 kilograms.
  • Climbing Ability: Scales slopes up to 35° and steps up to 35cm.

Drive Mode: Electro-Hydraulic Hybrid | Max Speed: 3.5 m/s | Endurance: Up to 25 hours (No-load) | Operating Temp: −20°C to +60°C

Monitoring Capabilities & Applications

Capabilities

  • Infrared temperature measurement
  • Flammable and toxic gas detection
  • Intelligent gauge reading
  • Leak and spill identification
  • Personnel behavior recognition

Application Scenarios

  • Oilfield refineries & Offshore platforms
  • Chemical industrial parks
  • Coal mines & Power plants
  • Submarine pipeline inspection

Frequently Asked Questions

Is the CL801 robot explosion-proof?
Yes, it features a composite explosion-proof design compliant with Ex db ib IIB T6 Gb standards, making it safe for flammable gas environments.
What is the maximum load capacity?
The robot can handle a useful load of 30kg and a maximum capacity of up to 80kg.
Can it operate in extreme weather?
The CL801 is IP67 rated and operates reliably in temperatures ranging from -20°C to +60°C.
How long does the battery last?
It offers a remarkable no-load endurance time of up to 25 hours and at least 2.5 hours under useful load.
What kind of terrain can it handle?
The quadruped design allows it to navigate stairs, 35° slopes, and uneven industrial ground effortlessly.
Are the inspection functions customizable?
Yes, the inspection and monitoring modules (like gas detection or thermal imaging) are modular and customizable.
