Quadruped Inspection Robot Designed for Hazardous Chemical Environments

After-sales Service:	One Year
Application:	Oil and Gas, Chemical Plant
Weight:	23 Kg

Basic Specifications

Model NO.:CL801

Operating Depth:350m

Payload Capacity:15kg

Maximum Speed:4.0 Knots (2 M/S)

Thruster Propeller:Hard Anodized Aluminum Alloy

Packaging:Wooden Box Packaging

Specification:750 x 660 x 330 mm

Trademark:COOLIGHT

Core Technology & Innovation

Specializing in cutting-edge gas sensing technologies, intelligent perception systems, and comprehensive industrial monitoring solutions, the core technology is rooted in state-of-the-art photoacoustic spectroscopy (PAS) for ultra-sensitive trace substance detection. This ensures superior sensitivity, rapid response, and enduring stability even in the most challenging industrial settings.

Advancing the integration of automation, artificial intelligence, and bionic sensing technologies enables machines to interpret chemical signals with intuitive precision. This supports enhanced safety, smarter decision-making, and sustainable industrial progress across aquatic, terrestrial, and aerial environments.

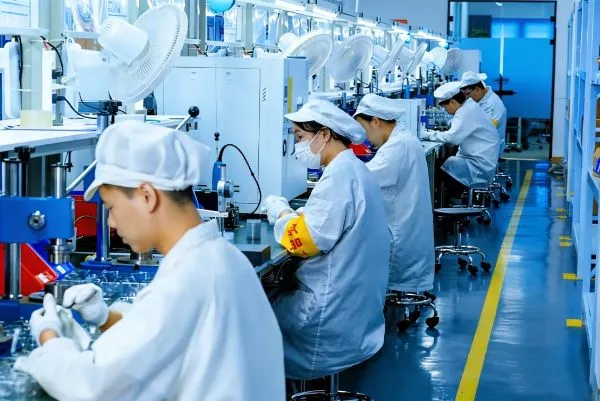

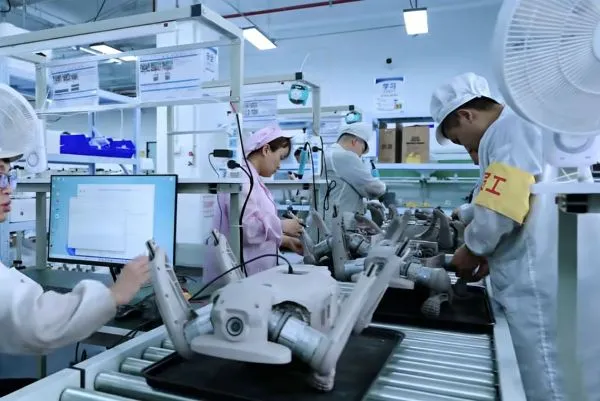

Global R&D Collaboration

Strategically partnered with the Singapore Smart Perception and Automation Control Engineering Laboratory (SPACE), a pioneering joint laboratory dedicated to propelling innovative robotics research and driving breakthroughs in intelligent sensing.

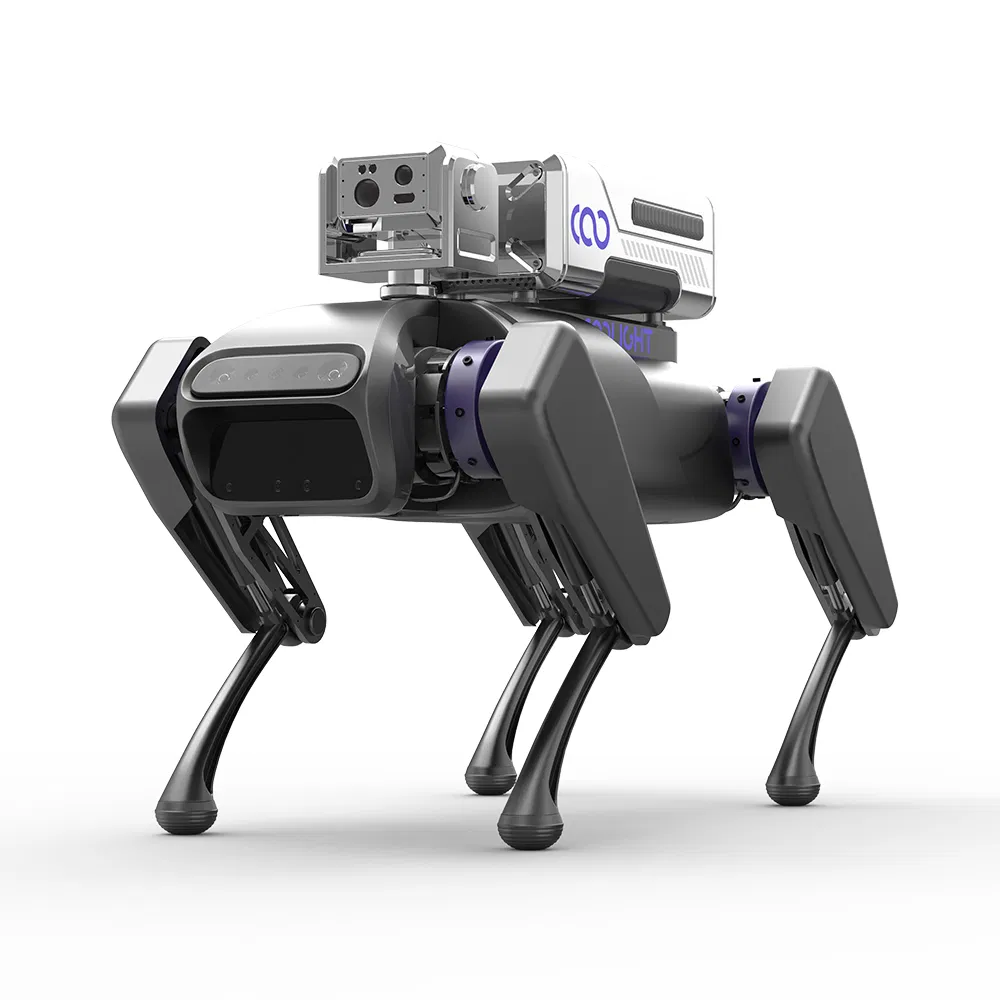

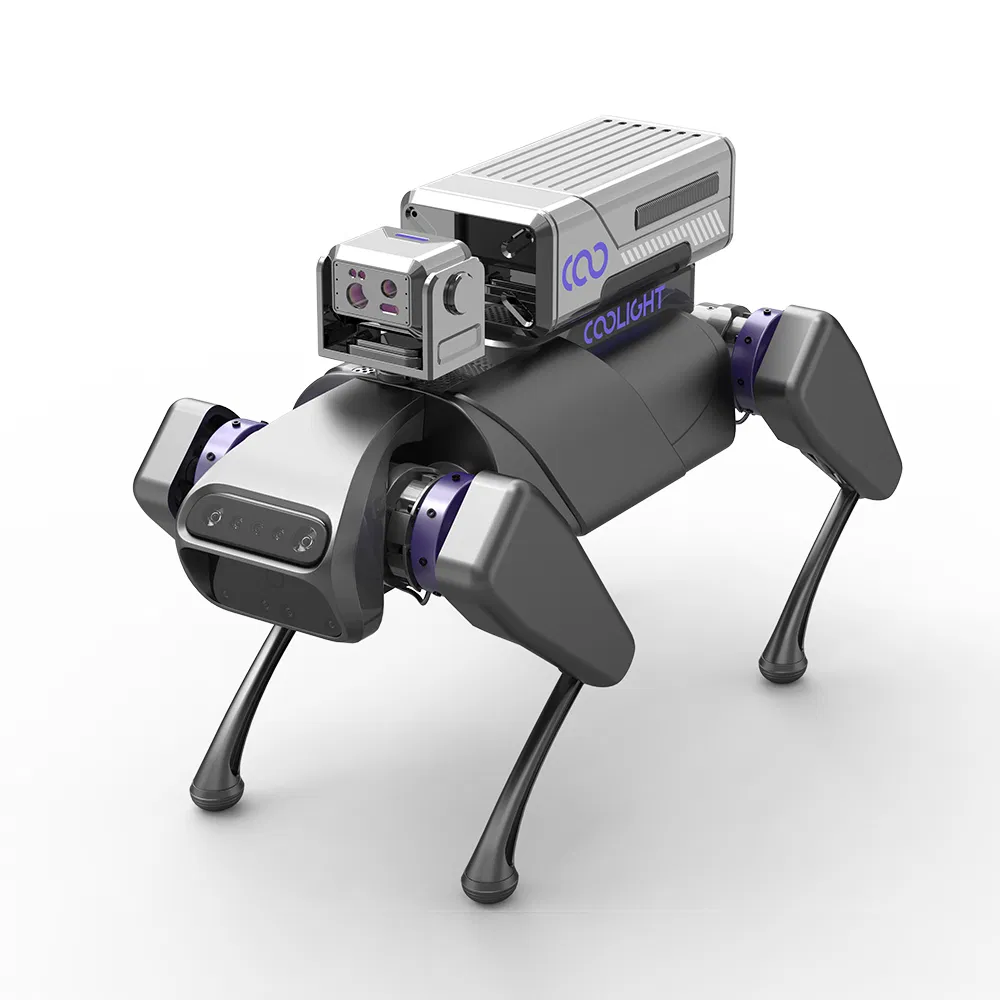

CL801 Quadruped Inspection Robot

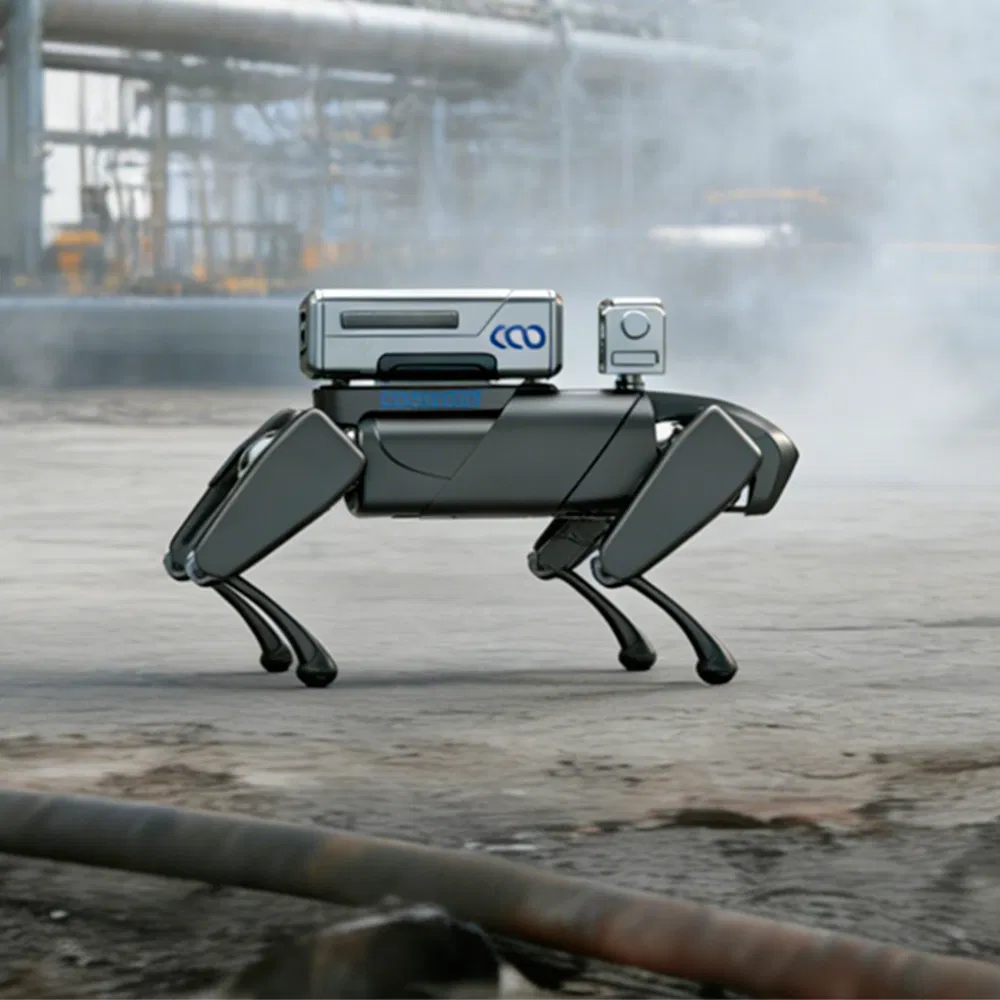

The CL801 Quadruped Inspection Robot is a sophisticated unmanned solution crafted for hazardous industrial environments. It expertly integrates AI, computer vision, and multi-sensor perception systems to replace manual inspection in oil and gas facilities, chemical plants, and refineries.

◈Terrain adaptability: stairs, slopes, and uneven ground.

◈Explosion-proof design: Ex db ib IIB T6 Gb standards.

◈Continuous 24/7 unmanned autonomous patrol.

◈Real-time data transmission for centralized analysis.

Technical Specifications

Drive Mode: Electro-Hydraulic Hybrid

Performance: Max Speed 3.5m/s | Max Climbing 35° | Max Step 35cm

Endurance: Up to 25 hours (No-load) | ≥ 2.5 hours (Useful load)

Capacity: 30kg (Useful) | 80kg (Maximum)

Environment: -20°C to +60°C | IP67 Protection Rating

Configurable Monitoring Capabilities

✓Infrared temperature measurement

✓Toxic gas & Leak detection

✓Partial discharge monitoring

✓Intelligent gauge reading

✓3D concentration cloud mapping

✓Personnel behavior recognition

Frequently Asked Questions

Q1: What environments is the CL801 robot suitable for? It is designed for hazardous, confined, and high-risk environments such as chemical plants, oil refineries, power stations, and offshore platforms.

Q2: Does the robot support explosion-proof standards? Yes, it complies with Ex db ib IIB T6 Gb standards, making it safe for flammable and toxic gas environments.

Q3: How does the robot handle difficult terrain? The quadruped design allows it to navigate stairs, 35-degree slopes, and uneven ground much more effectively than wheeled robots.

Q4: What is the protection rating of the CL801? The robot features an IP67 rating, providing full protection against dust and water ingress in harsh weather.

Q5: Can the inspection modules be customized? Yes, functions like gas detection, thermal imaging, and gauge reading are modular and can be tailored to specific application requirements.

Q6: What is the maximum payload capacity? The CL801 has a useful load capacity of 30kg and a maximum load capacity of 80kg.
