Quadruped Ai Inspection Robot for Oil and Gas Facilities

After-sales Service: One Year
Application: Oil and Gas, Chemical Plant
Weight: 23 Kg

Product Description

Basic Specifications

Model NO.
CL801
Operating Depth
350m
Payload Capacity
15kg
Maximum Speed
4.0 Knots (2 M/S)
Thruster Propeller
Hard Anodized Aluminum Alloy
Transport Package
Wooden Box Packaging
Specification
750 x 660 x 330 mm
Trademark
COOLIGHT

Core Technology & Innovation

We are a pioneering high-tech enterprise specializing in cutting-edge gas sensing, intelligent perception, and industrial monitoring solutions. The technology merges robust academic foundations with exemplary industrial commercialization capabilities.

The core technology is driven by state-of-the-art photoacoustic spectroscopy (PAS), an innovation in ultra-trace substance detection that allows for exceptional sensitivity, rapid responsiveness, and enduring stability even in challenging industrial environments. Across intelligent sensing, chemical analysis, signal processing, and automated control, we offer dependable solutions across oil & gas, environmental monitoring, industrial safety, and smart robotics applications.

Quadruped Ai Inspection Robot

Research & Development

Strategically partnered with international laboratories to initiate a global collaborative venture, pioneering the development of multi-functional industrial-grade robots. A substantial investment of approximately 10 million RMB has been allocated to establish a state-of-the-art joint laboratory devoted to propelling leading-edge robotics research and catalyzing technological breakthroughs in intelligent sensing.

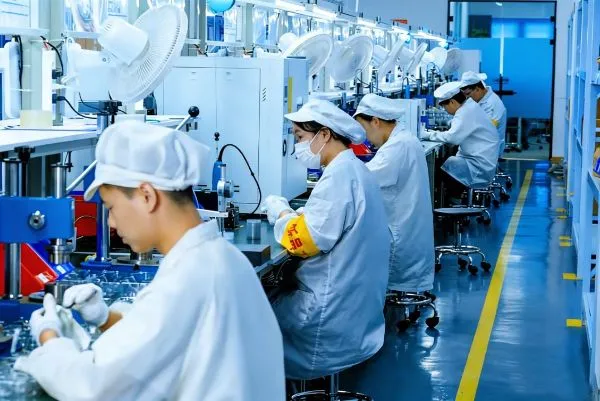

Industrial Robot Lab

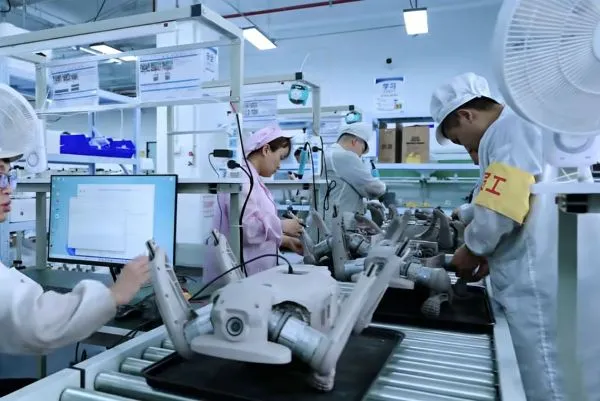

Robot Testing

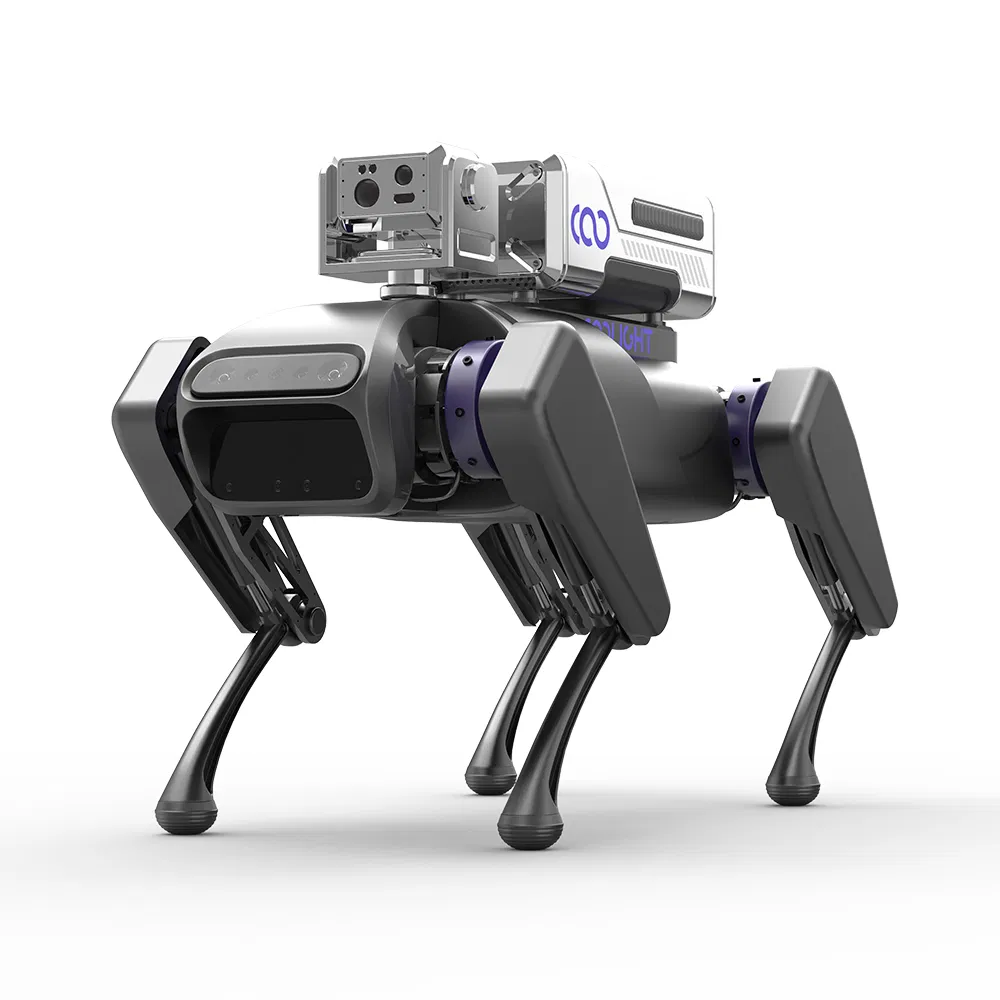

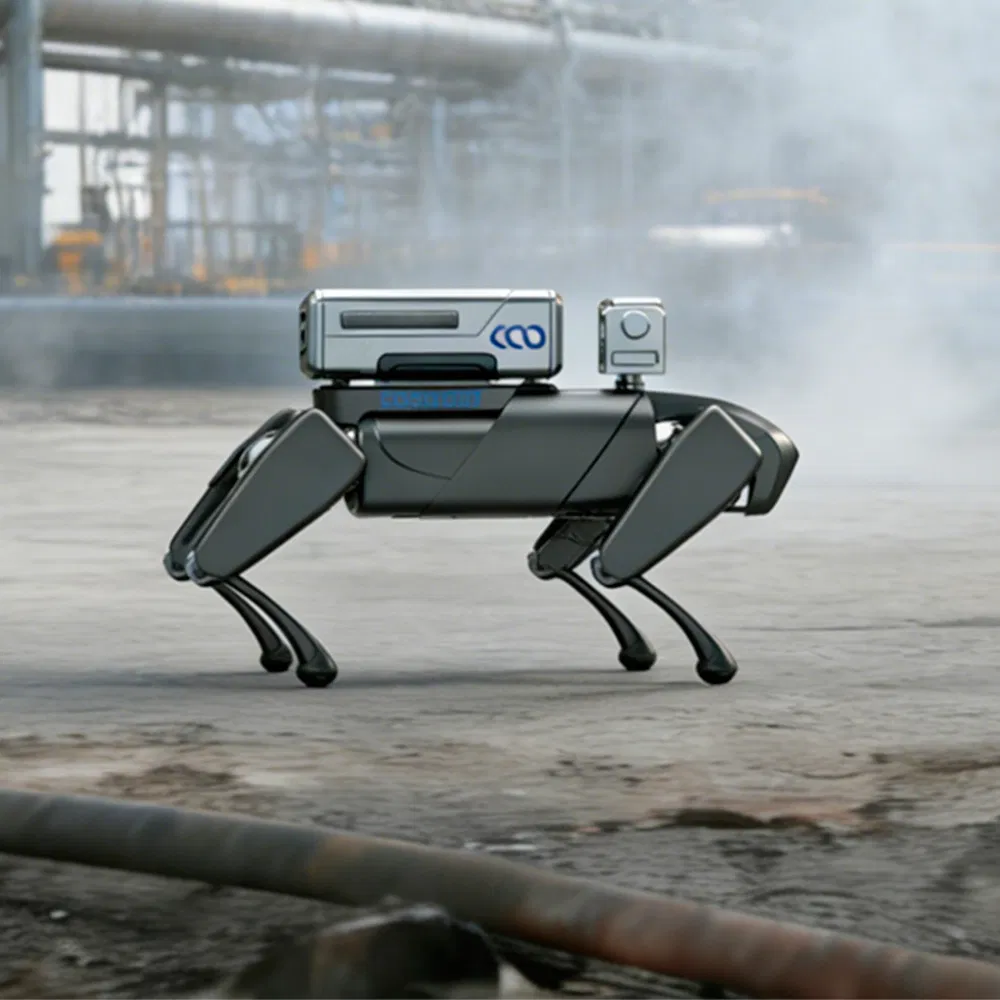

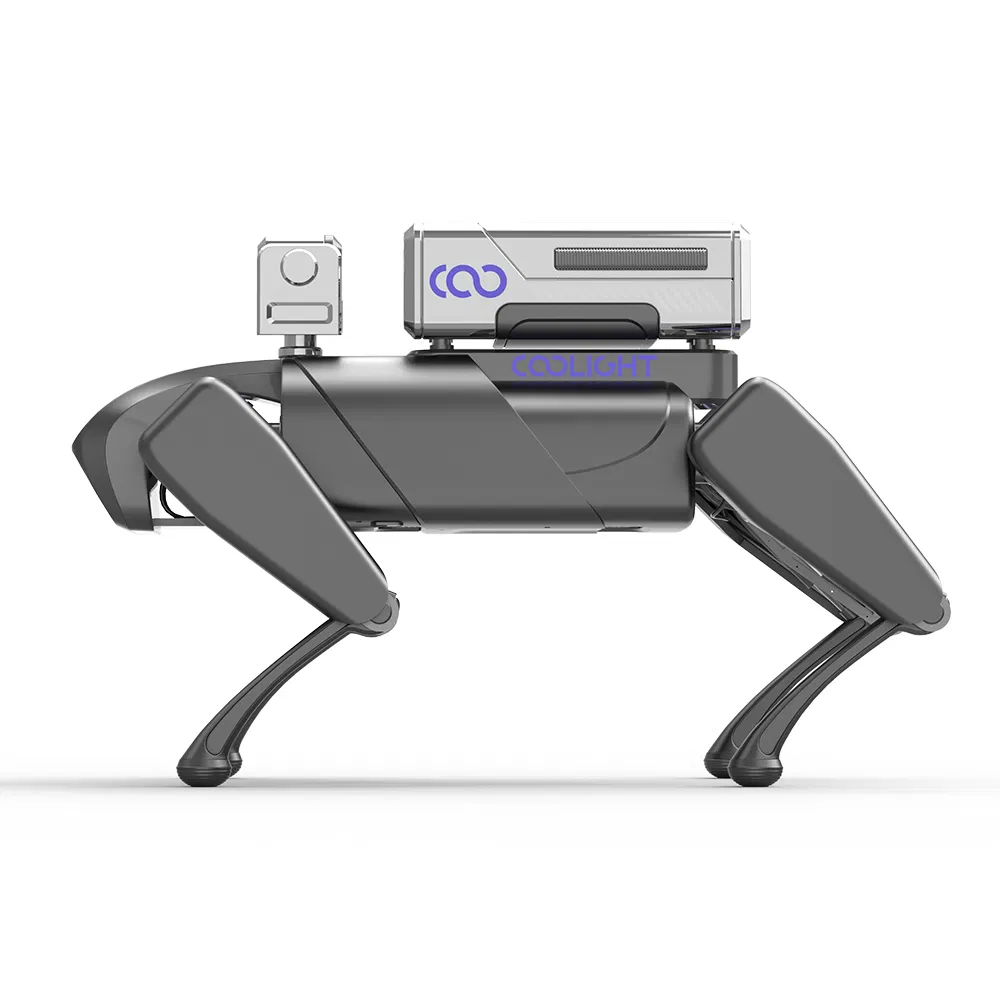

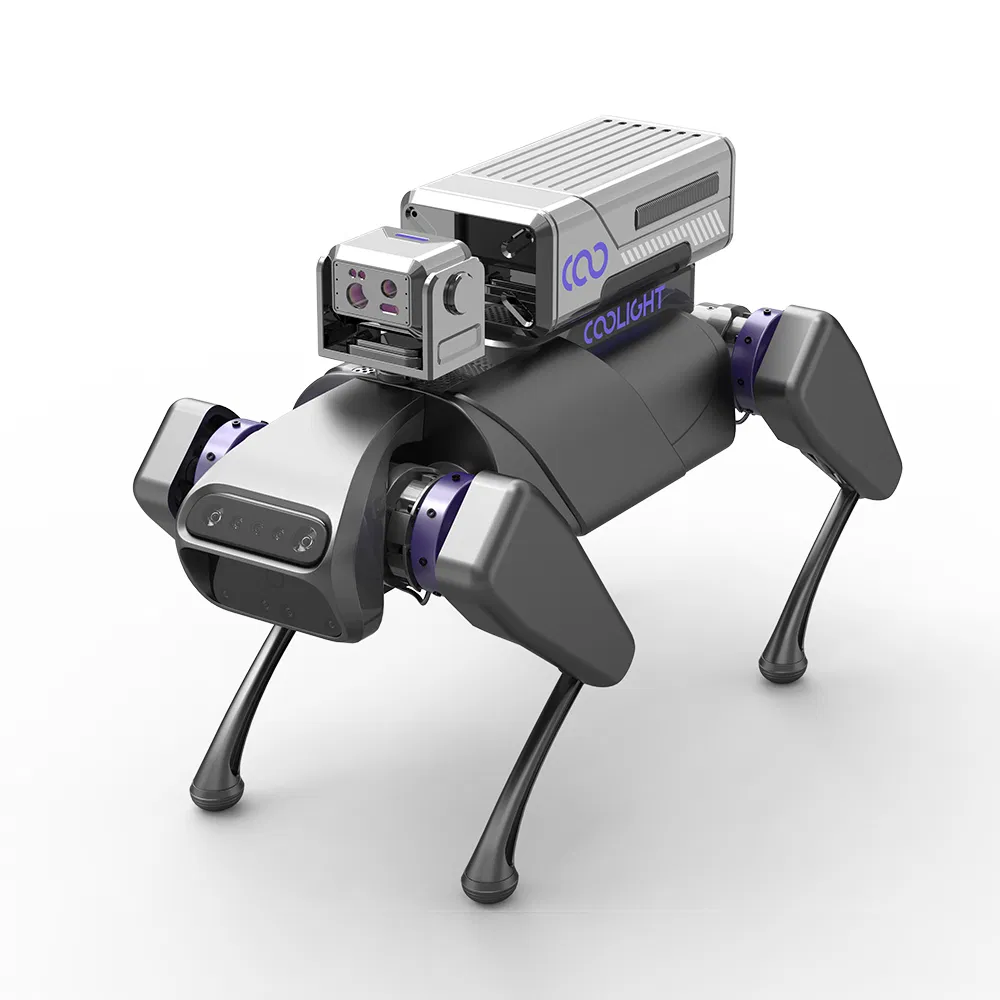

CL801 Quadruped Inspection Robot

The remarkable CL801 Quadruped Inspection Robot is an advanced, unmanned inspection solution meticulously crafted for high-risk, intricate, and hazardous industrial environments. By integrating robot locomotion control, artificial intelligence, computer vision, and multi-sensor perception, it replaces manual inspection in oil and gas facilities, chemical plants, power stations, coal mines, and refineries.

Its innovative quadruped structure offers unparalleled mobility and exceptional adaptability to varied terrains, enabling navigation through stairs, inclines, narrow passages, and uneven terrains. The robot features a robust composite explosion-proof design (Ex db ib IIB T6 Gb standards) for safe deployment in environments with flammable and toxic gases.

Key Features

  • Revolutionary quadruped "dog robot" design
  • Electro-hydraulic hybrid drive system
  • Explosion-proof: Ex db ib IIB T6 Gb
  • AI-based intelligent perception
  • Multi-sensor monitoring integration
  • Resilience in hazardous/confined spaces
  • Autonomous and remote operation
  • All-weather industrial durability

Technical Specifications

Drive Mode: Advanced Electro-Hydraulic Hybrid system
Maximum Speed: 3.5 m/s (Travel speed 1.5 m/s)
Mobility: 35° Climbing Slope | 35 cm Step Height
Endurance: 25 hours (No-load) | 2.5 hours (Under load)
Load Capacity: 30 kg Useful Load | 80 kg Maximum Capacity
Environment: −20°C to +60°C Operating Temperature
Protection: IP67 Waterproof and Dustproof
Safety: Ex db ib IIB T6 Gb Explosion-Proof Standard

Monitoring Capabilities

  • Partial discharge & insulation monitoring
  • Infrared thermal temperature measurement
  • Flammable and toxic gas detection
  • 3D gas concentration cloud mapping
  • Intelligent gauge reading & leak identification
  • Personnel behavior & safety recognition
  • Corrosion & dust concentration monitoring
  • Conveyor belt status monitoring

Application Scenarios

Primary Industries: Oilfield combined stations, refineries, offshore oil & gas platforms, LNG terminals, chemical industrial parks, power plants, coal mines, data centers, and submarine pipeline inspections.

Frequently Asked Questions

What is the explosion-proof rating of the CL801?
The CL801 is engineered to meet the Ex db ib IIB T6 Gb standard, making it safe for use in environments with flammable and toxic gases typical of the oil and gas industries.
Can the robot navigate stairs and uneven terrain?
Yes, its quadruped structure allows it to handle stairs up to 35 cm in height and climb slopes up to 35°, providing superior mobility compared to wheeled or tracked robots.
What is the battery life and endurance of the robot?
Under no-load conditions, the robot has a remarkable endurance of up to 25 hours. When operating with a useful load, it provides over 2.5 hours of continuous operation.
What kind of sensors can be integrated into the CL801?
The robot supports modular integration of infrared cameras, gas detectors, partial discharge monitors, dust sensors, and intelligent gauge readers, all customizable to specific needs.
Is the robot suitable for outdoor and harsh weather conditions?
Absolutely. With an IP67 protection rating and an operating temperature range of −20°C to +60°C, it is designed for all-weather use in demanding industrial settings.
What is the maximum payload the CL801 can carry?
The robot supports a substantial useful load capacity of 30 kg, with a maximum load capacity of up to 80 kg for heavy-duty industrial tasks.
