| Model NO. | TFD-RD3 SERIES, TFD-RD4 SERIES, TFD-RD2 SERIES |
| Operation Mode | Automatic |
| Material | 304# Stainless Steel |
| Pick up Speed | 80-100 times |
| Axis | 3+1 |
| Rotation Angle | ±360° |
| Repeat Angle Accuracy | ±0.2° |
| Installation | Hoisting |
| Ingress Protection | IP54 |
| After Sales Service | 1 Year Warranty and Lifelong Service |

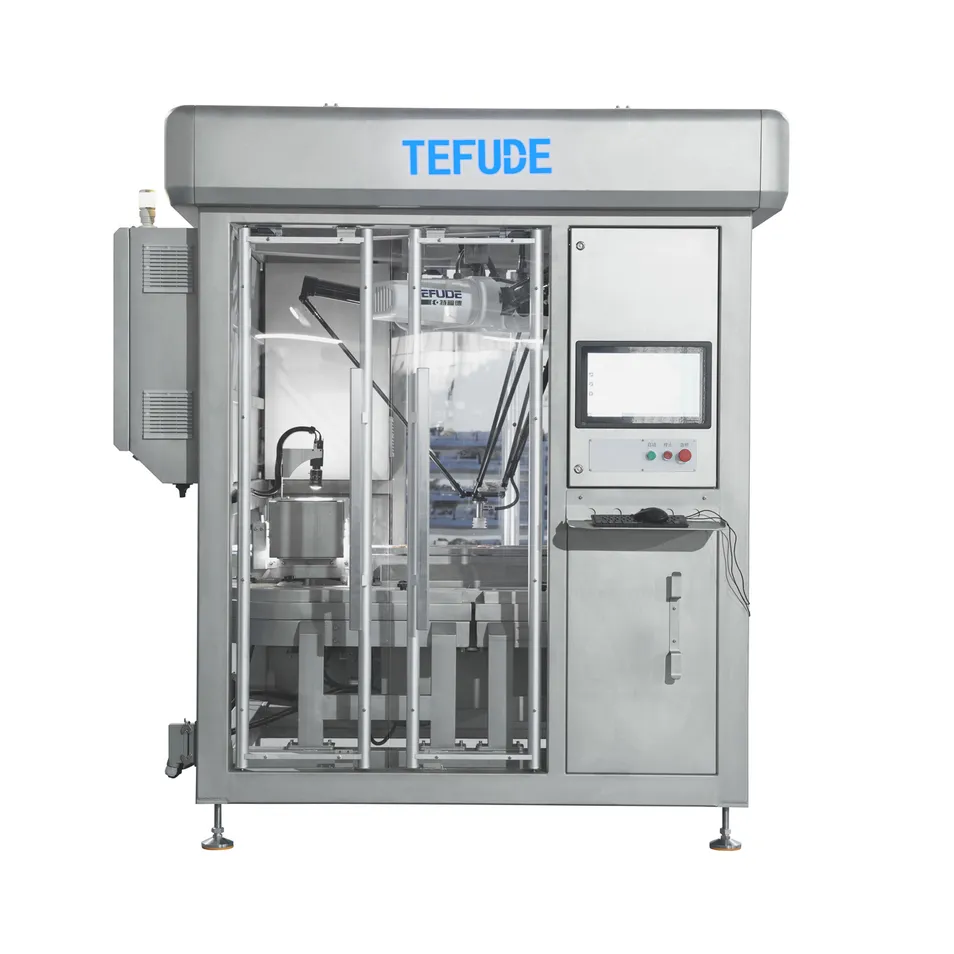

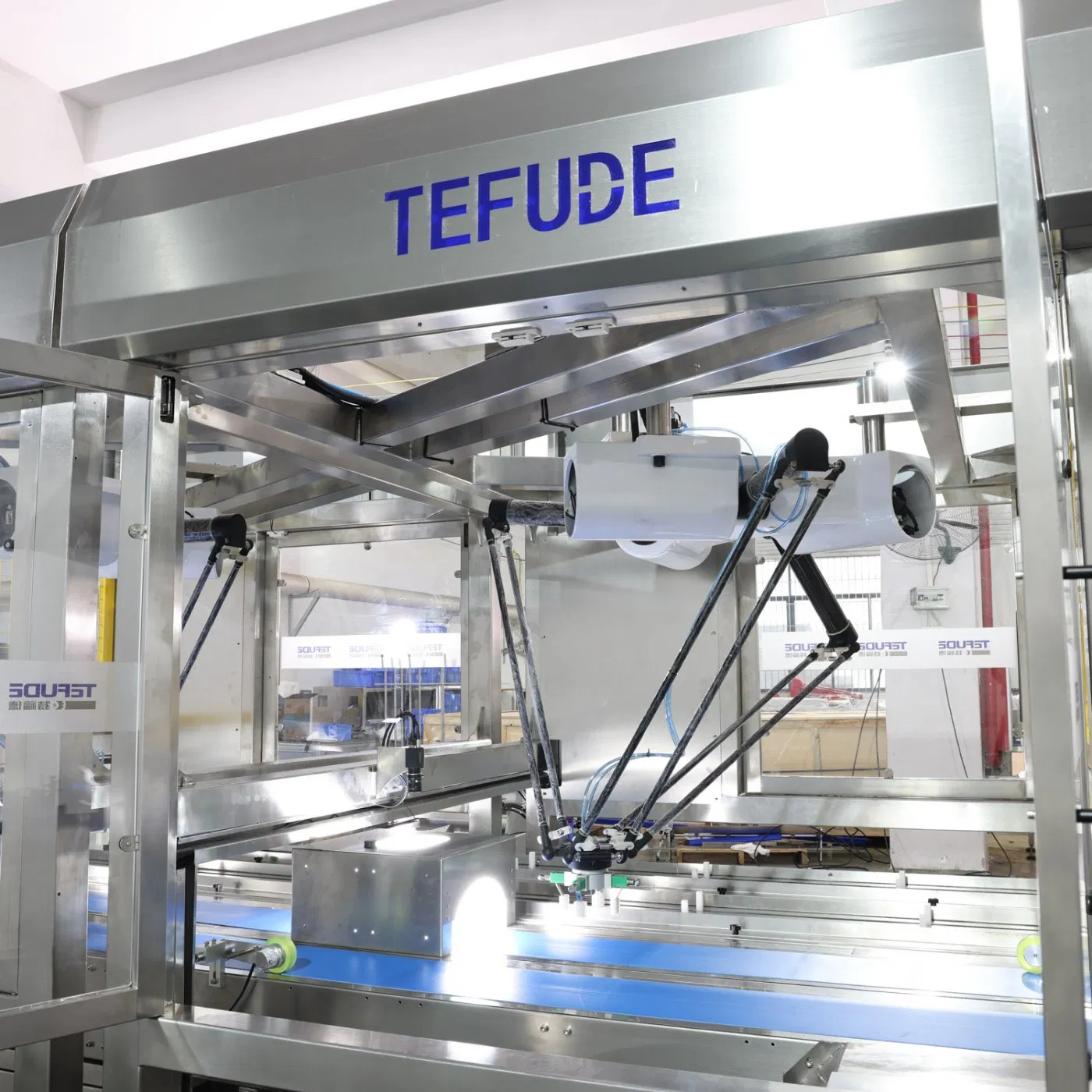

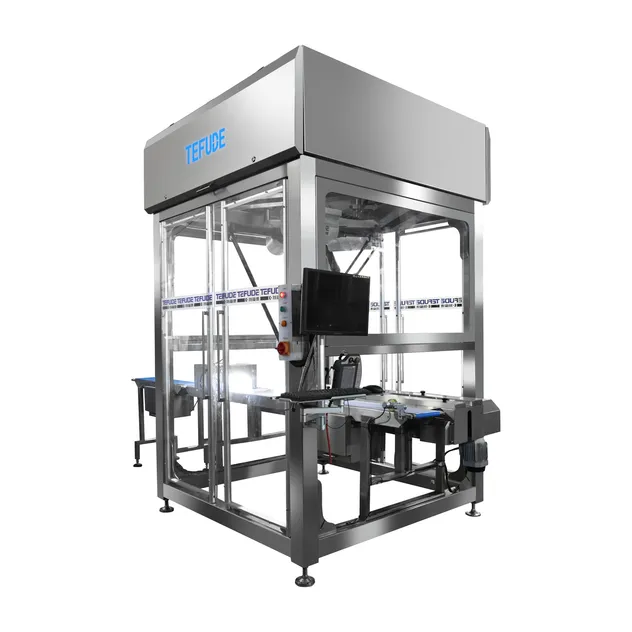

Intelligent 4 Axis Parallel Robot

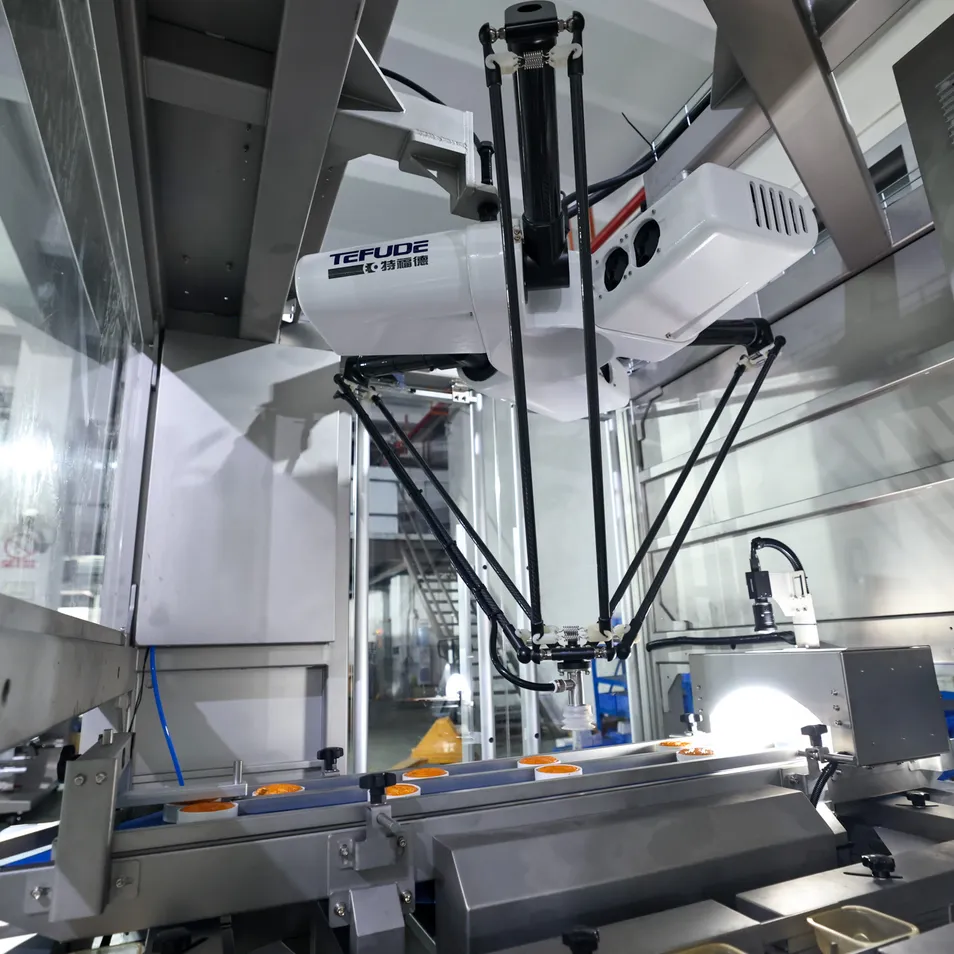

The intelligent 4 axis parallel robot is a small industrial robot arm designed for picking up and placing various objects within confined spaces with multiple degrees of freedom. By adding a rotational axis (R-axis) to the traditional X, Y, and Z planes, it maintains linear freedom while enabling controlled material movement through flexible rotation and tilting.
| Model | TFD-RD4-600A | TFD-RD4-800A | TFD-RD4-1200A | TFD-RD4-1600A |
|---|---|---|---|---|
| Effective Pick Height | 150mm | 200mm | 230mm | 250mm |
| Working Diameter | Ø600mm | Ø800mm | Ø1200mm | Ø1600mm |
| Max Payload | 2kg | 2.5kg | 3kg | 4.5kg |
| Cycle Rate (min) | 120 | 200 | 200 | 160 |
| Accuracy (X,Y,Z) | ±0.1mm | ±0.1mm | ±0.1mm | ±0.15mm |
| Rated Power | 1.6KW | 4.9KW | 4.9KW | 4.9KW |
💎 Robust Design
Built with full stainless steel and high-precision components (motors/reducers). Carbon fiber tubes ensure lightweight yet durable performance.
🧠 AI Integration

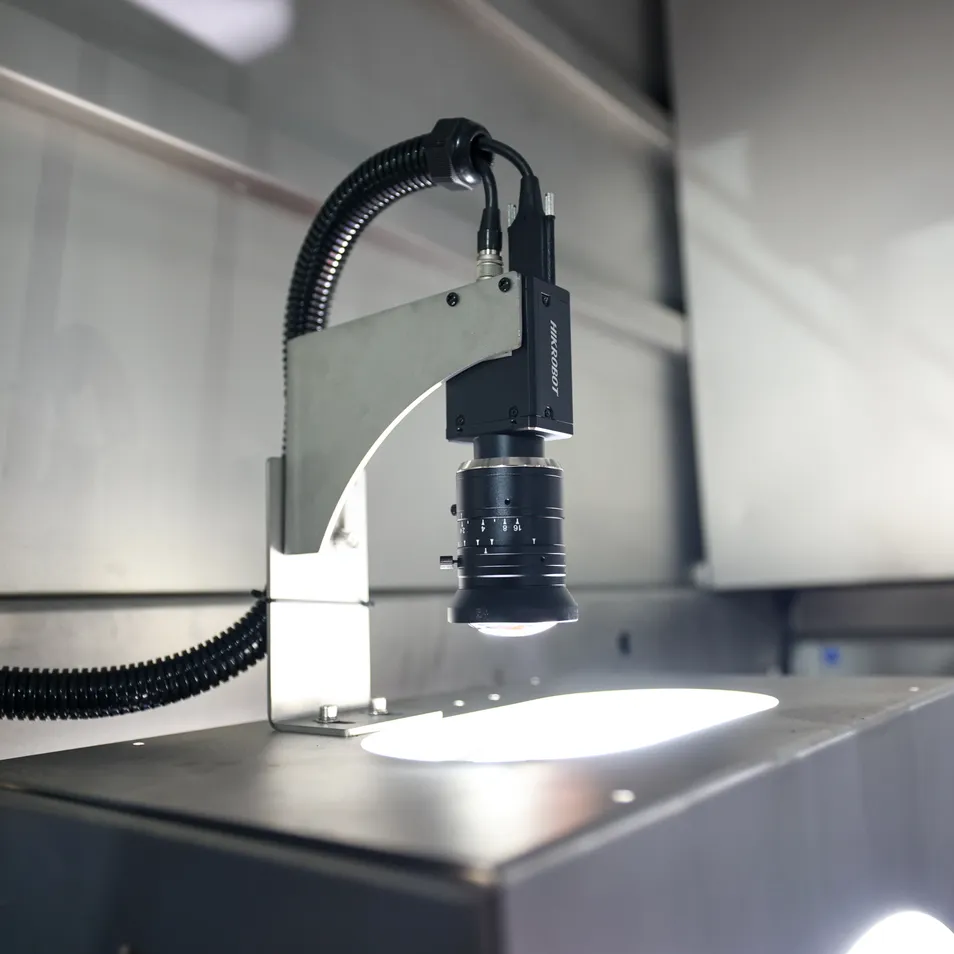

Compatible with 2D/3D vision systems and barcode scanning. AI learning capabilities enhance precision in pick-and-place and sorting tasks.
🛠️ Versatile Application

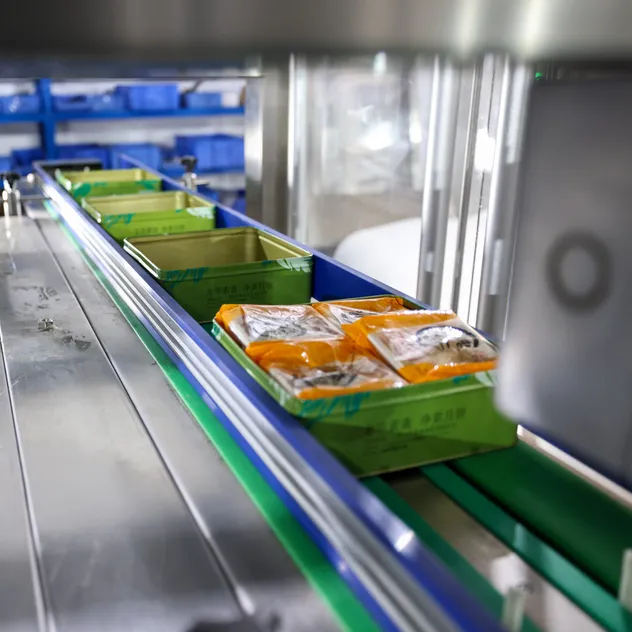

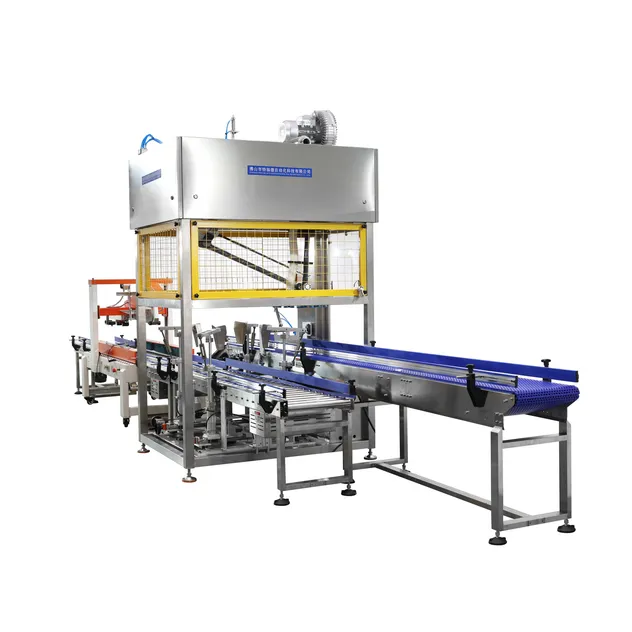

Suitable for food (biscuits, baking), beverage, daily chemical, and hardware industries for boxing, cartoning, and sorting.
1. Machinery is packaged using plastic film combined with composite wood cases for maximum protection.
2. Extensive global experience with shipping to over 50 countries.
3. Flexible logistics supporting LCL and FCL via sea, air, or land.
