📋 Basic Information
| Model NO. | TFD-RD3 SERIES, TFD-RD4 SERIES, TFD-RD2 SERIES |
| Operation Mode | Automatic |
| Material | 304# Stainless Steel |
| Pick up Speed | 80-100times |
| Axis | 3+1 |
| Rotation Angle | ±360° |
| Repeat Angle Accuracy | ±0.2° |
| I/O Interface (Expandable) | 8in/8out |
| Installation | Hoisting |
| Ingress Protection | IP54 |
| Noise Level | <75db |
| Relative Humidity | Rh:20-80% |
| Operating Temperature Range | 0℃~45℃ |
| After Sales Service | 1 Year Warranty and Lifelong Service |
| Shipping | LCL or FCL |
| Transport Package | Normal Export Packaging |
| Trademark | TEFUDE |
| Origin | Foshan, China |
🤖 Product Description

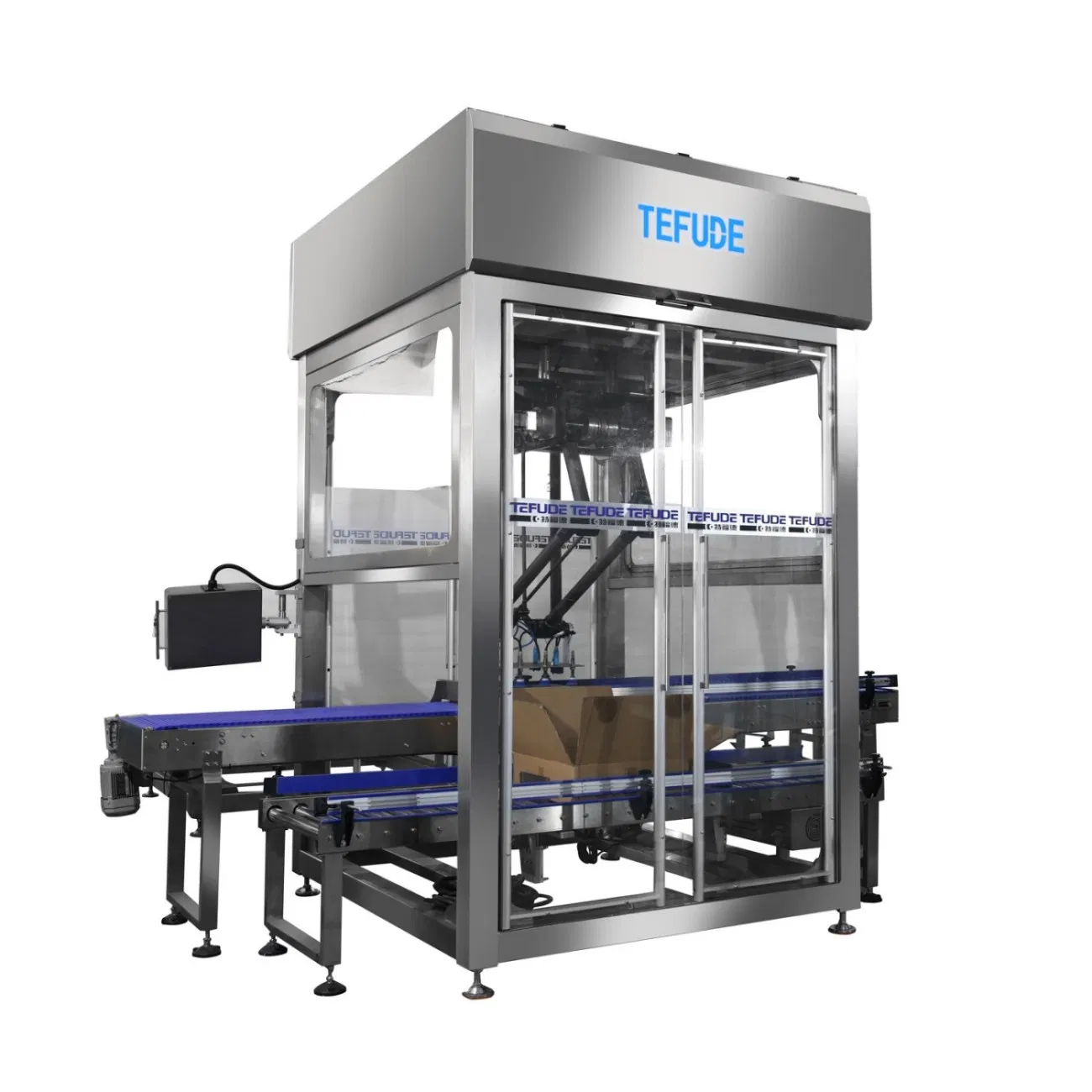

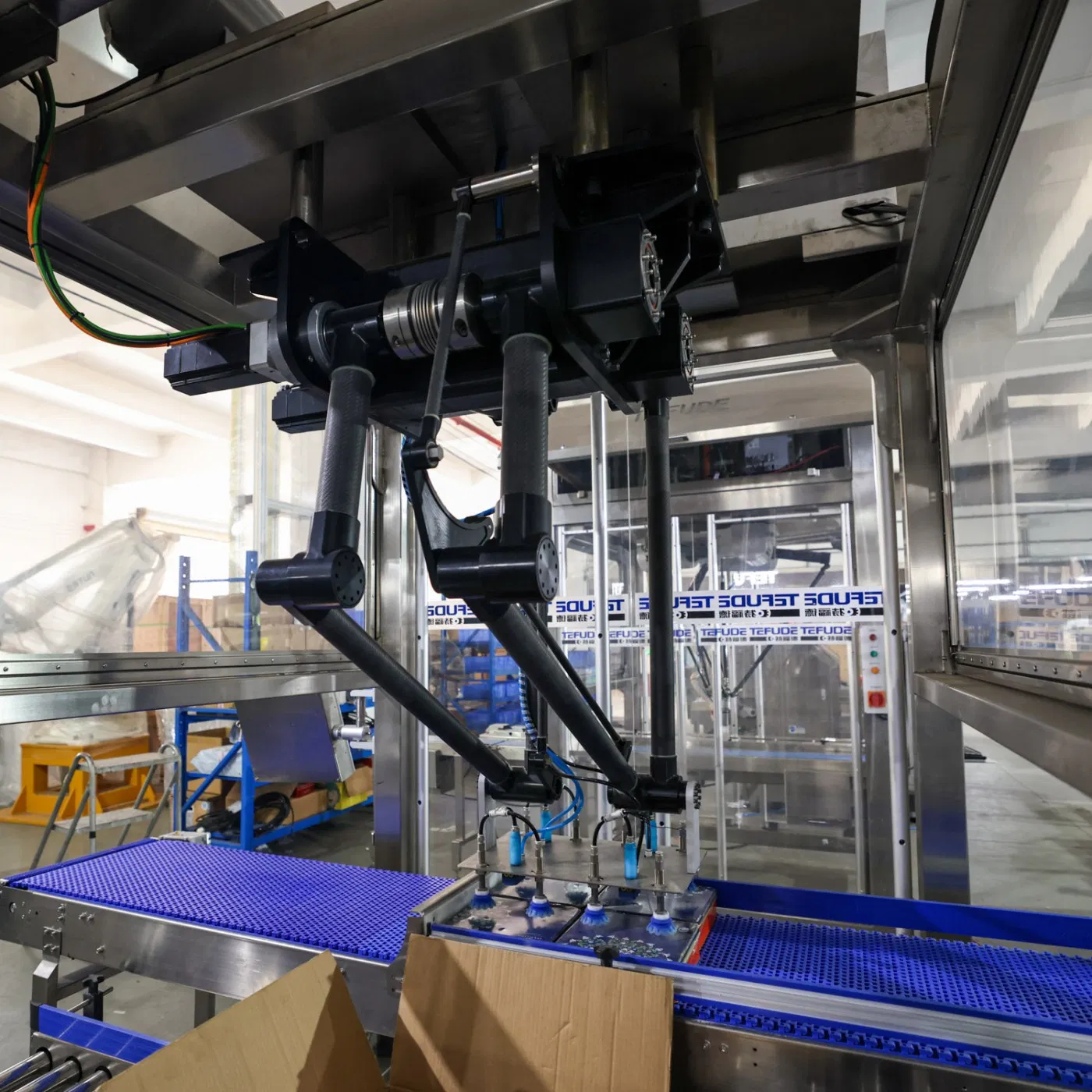

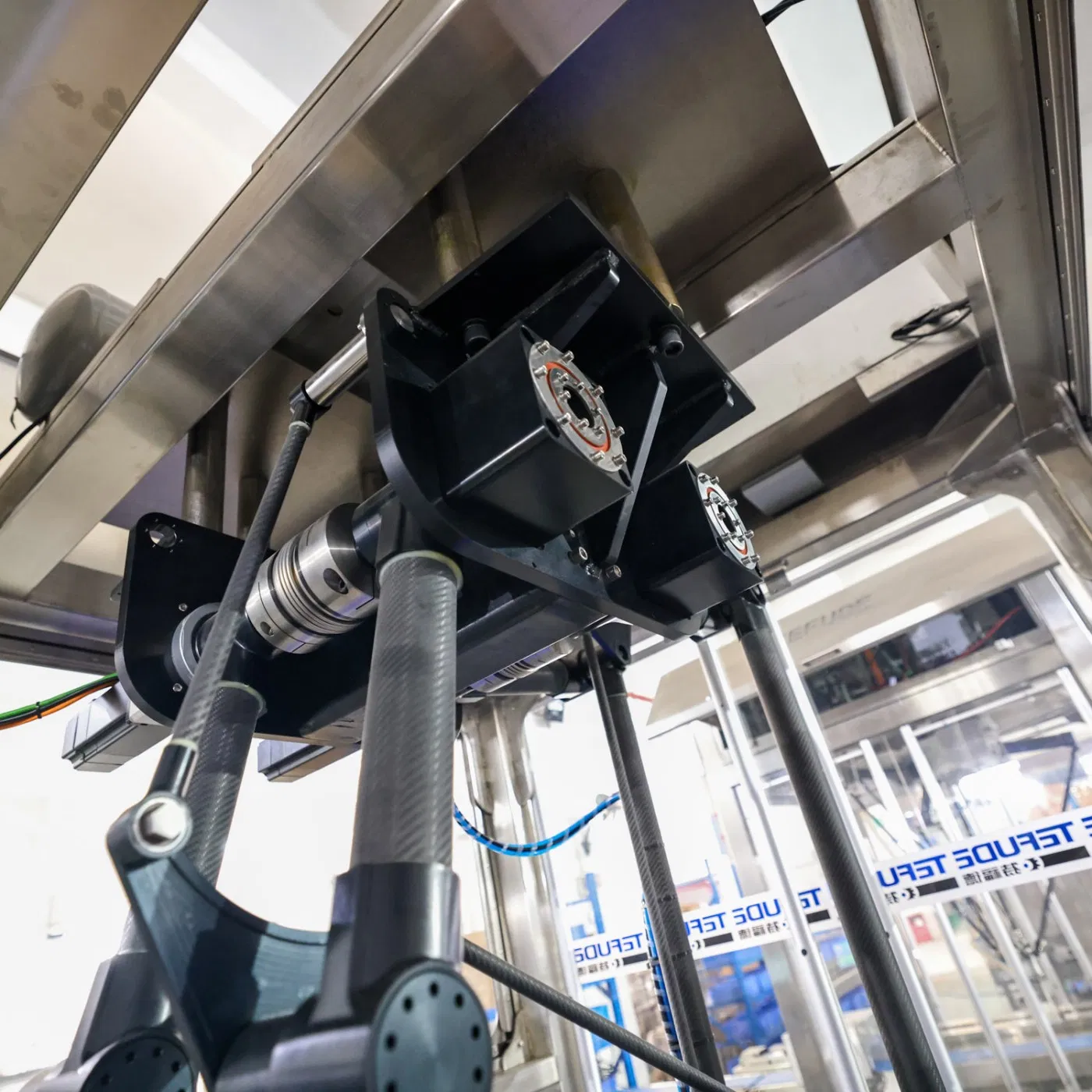

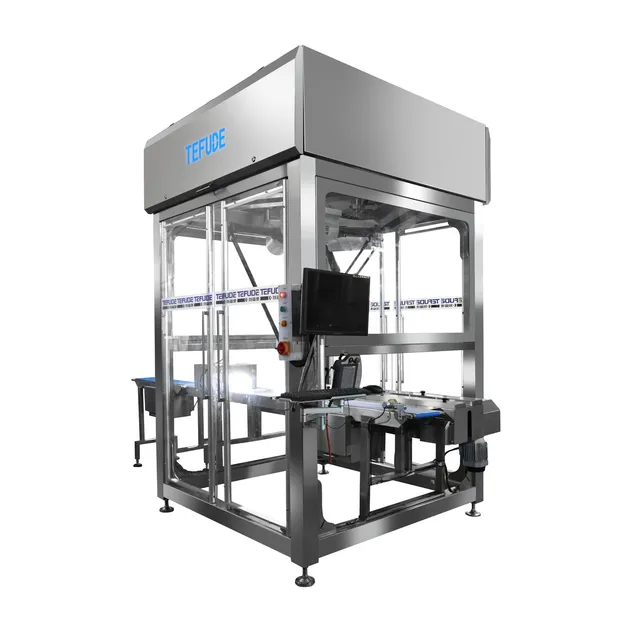

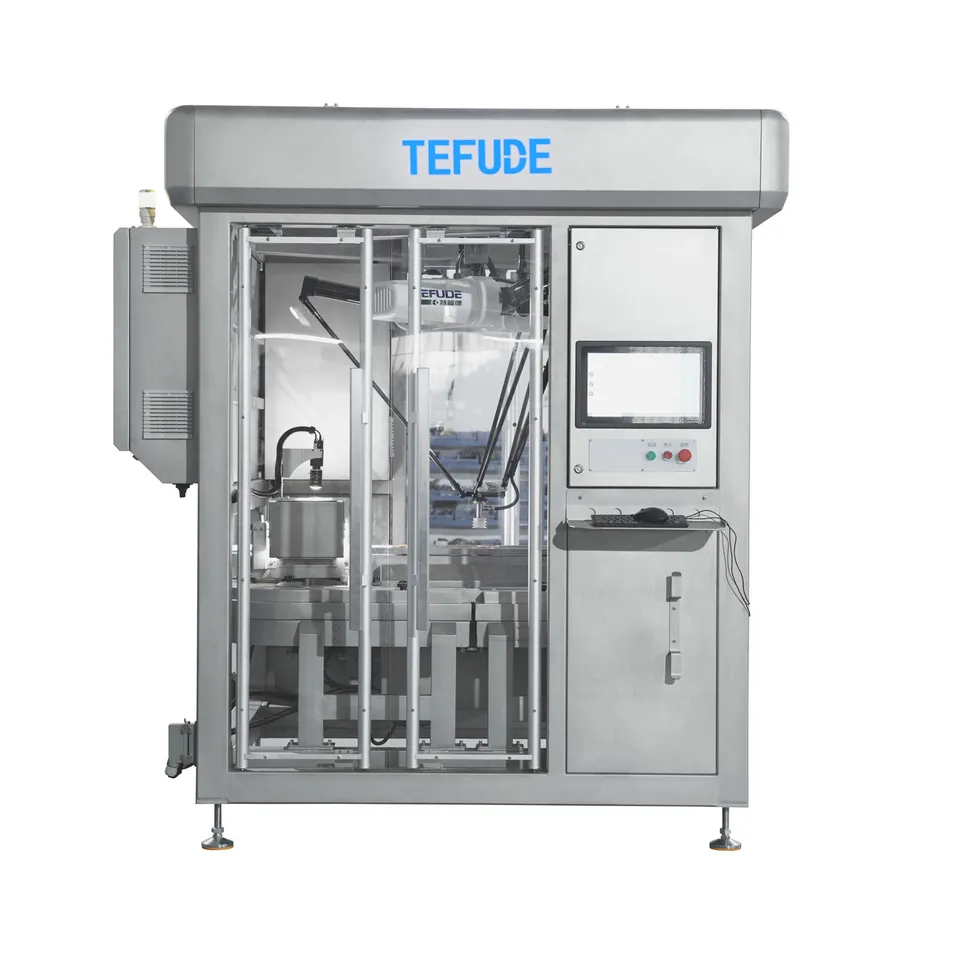

Intelligent 4 Axis Parallel Robot
The intelligent 4 axis parallel robot, also known as a small industrial robot arm or pack robot, is a robotic arm of picking up and placing various objects within confined spaces with multiple degrees of freedom. This small robotic arm adds a rotational axis (R-axis) to the traditional three-axis (X, Y, and Z). The 4 axis parallel robot not only maintains freedom in the three linear axes (X, Y, and Z), but also adds a rotational degree of freedom. It can flexibly rotate (or tilt) while simultaneously moving up and down, left and right, and forward and backward, enabling controlled material movement.
📊 Models and Specifications
| Model |
TFD-RD4-600A |
TFD-RD4-800A |
TFD-RD4-1200A |
TFD-RD4-1600A |
| Axis | 3+1 | 3+1 | 3+1 | 3+1 |
| Effective Pick Height | 150mm | 200mm | 230mm | 250mm |
| Working Diameter | Ø600mm | Ø800mm | Ø1200mm | Ø1600mm |
| Payload (Max) | 2kg | 2.5kg | 3kg | 4.5kg |
| Cycle Rate | 120c/min | 200c/min | 200c/min | 160c/min |
| Accuracy X,Y,Z | ±0.1mm | ±0.1mm | ±0.1mm | ±0.15mm |
| Rated Power | 1.6KW | 4.9KW | 4.9KW | 4.9KW |

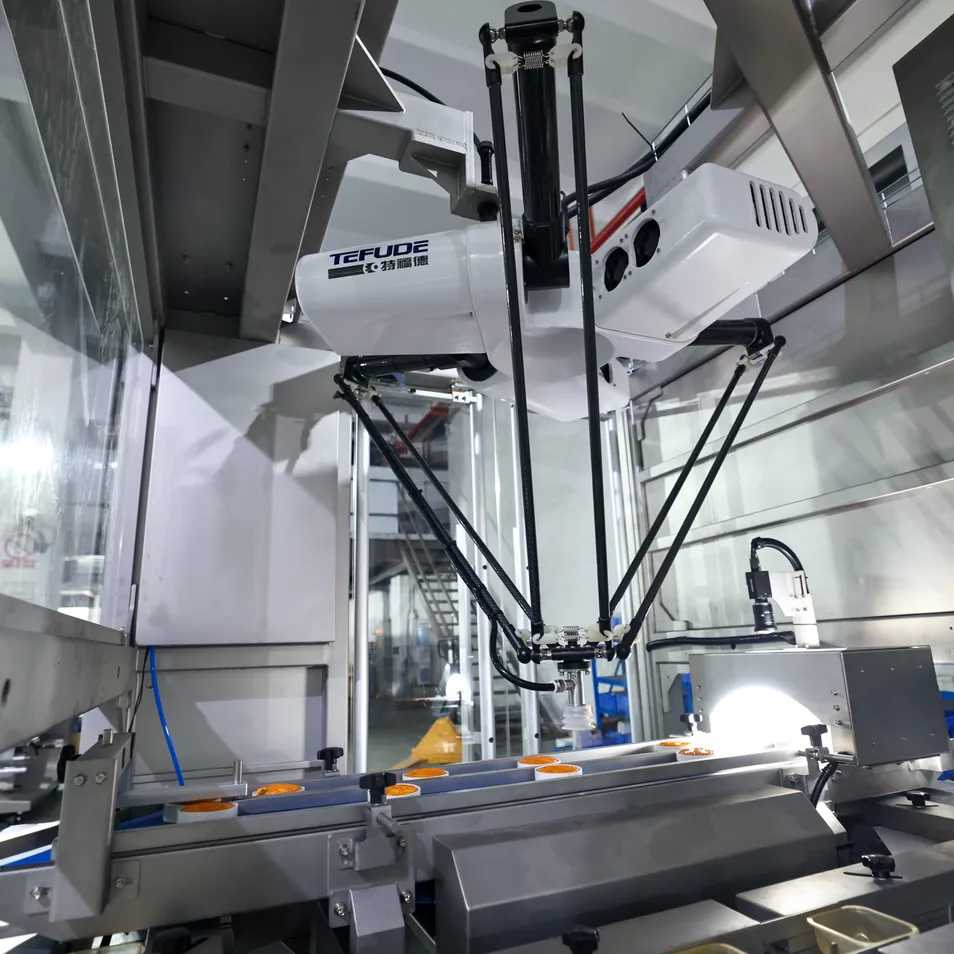

💡 Features and Advantages
Built with a robust design, featuring high strength standards, strong versatility, and an optimized structure. It adapts well to various environments even after prolonged use, requires minimal maintenance, and helps users significantly reduce operational costs.

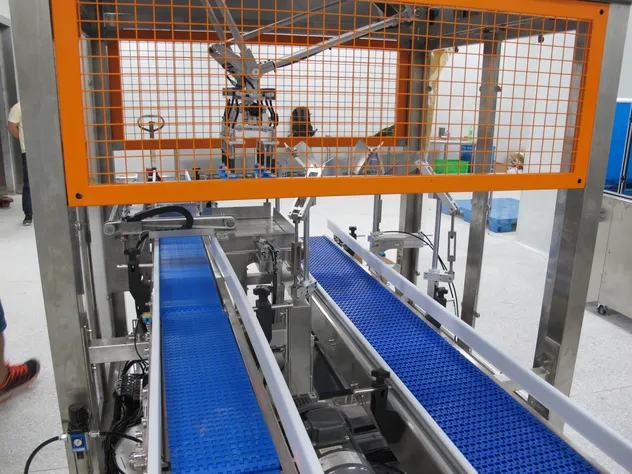

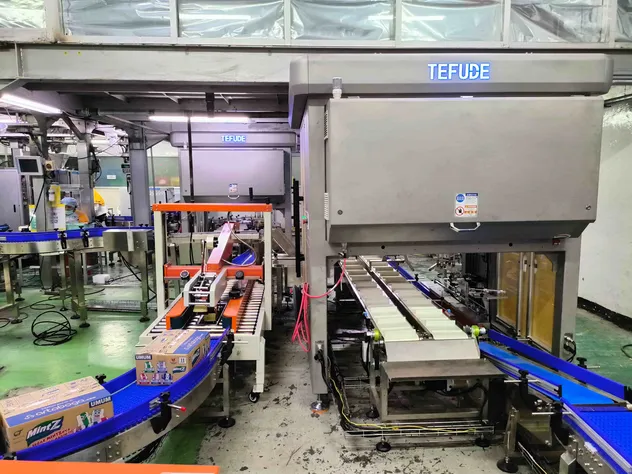

⚙️ Applications
Widely used in industries such as biscuit, Chinese pastry, baking, beverage, daily chemical, hardware, frozen food, snack food, PCB, and waste sorting. It excels in post-packaging tasks like sorting, boxing, and cartoning.

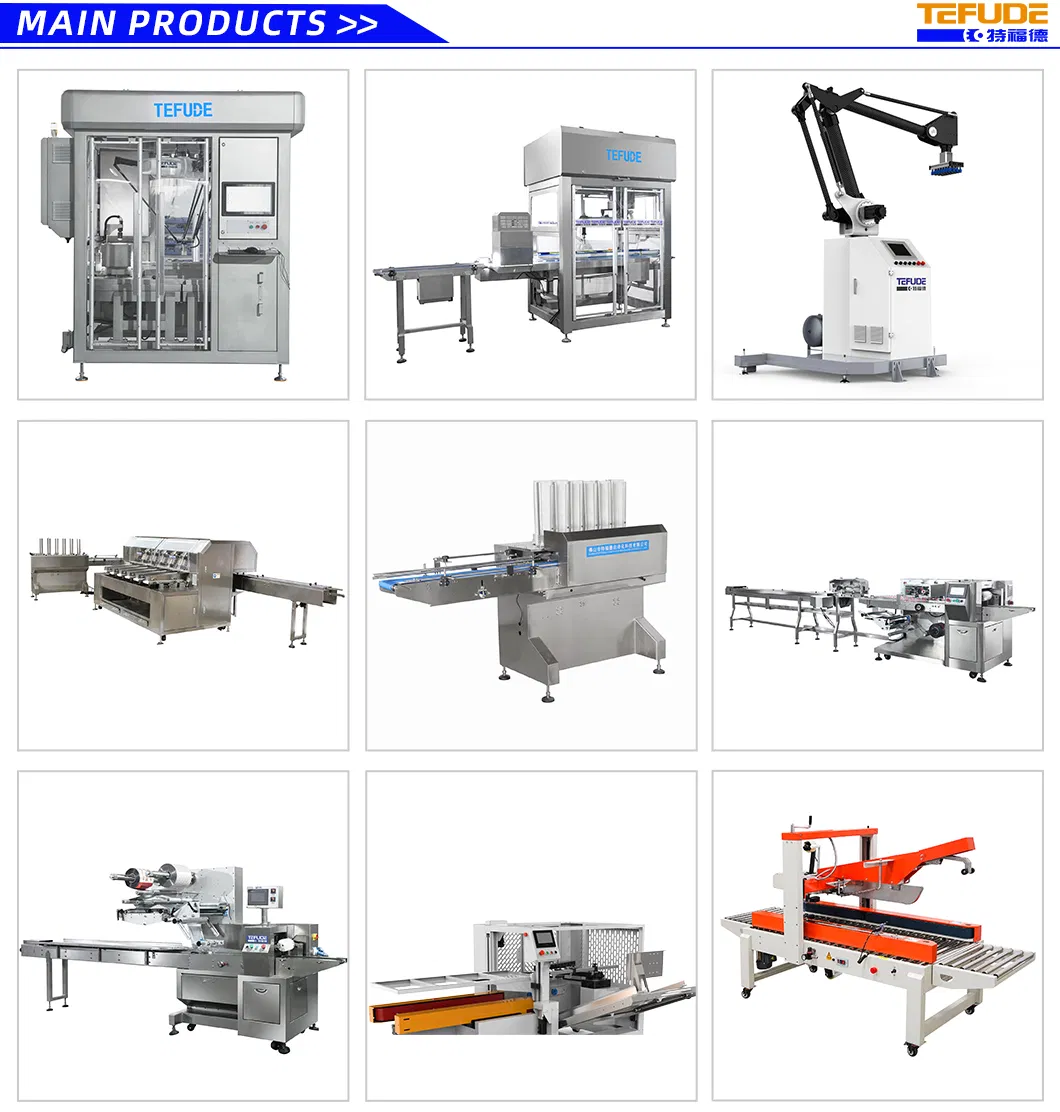

⭐ Main Products
📦 Packaging & Shipping
1. Machinery is packaged using plastic film combined with composite wood cases for damage-free transportation.
2. Products shipped to over 50 countries worldwide with an excellent reputation.
3. Supports LCL, FCL, and transportation by sea, air, or land.
❓ FAQ
1. What types of mechanical arms do you provide?
We have different types of robotic arms, including Cartesian robots, Delta (parallel) robots, Fast pick-and-place robots, Cobots, Robotic case packers, and Palletizing robots.
2. What is the range of applications?
Mechanical arms are used in automotive manufacturing, food and beverage processing, packaging, healthcare, and aerospace.
3. How does a mechanical arm work?
It uses actuators like electric motors to move joints. It can rotate, bend, and extend to perform high-precision tasks.
4. What are the advantages of using these robots?
Key advantages include faster production speeds, increased accuracy, and significantly reduced labor costs.
5. What is the accuracy of the mechanical arm?
General mechanical arms have high levels of accuracy, typically controlled at about ±0.2mm.
6. What is the warranty period?
We provide a one-year warranty and lifelong after-sale service support.
