📊 Overview - Basic Info
| Model NO. | SREX-SGLS-02 |
Protection Level | IP66 |
| Walking Speed | 0-1m/S, Speed Adjustable |
Pay Load | 30kg |
| Grade Ability | 20° |
Wading Depth | 200mm |
| Obstacle Height | 120mm |
Charging Time | 3 H |
| Battery Endurance | ≥6h (1m/S), ≥24h Standby |
Navigation | Lidar + Depth Camera + IMU |
| Positioning Accuracy | ≤±3cm |
Origin | China |
🤖 Product Description

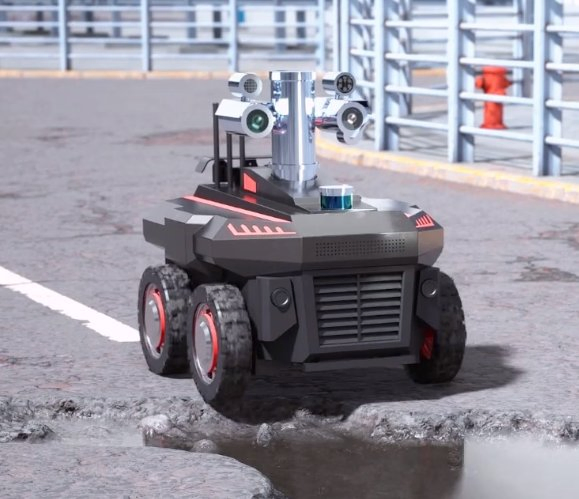

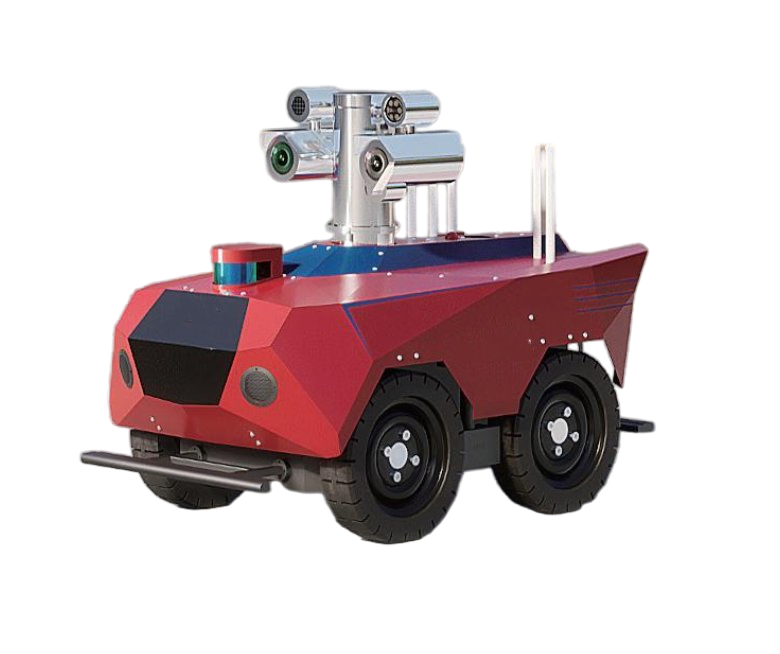

Explosion-proof Wheeled Inspection Robot, carrying navigation device and sensing device, can replace or assist manual inspection in an autonomous or semi-autonomous way, suitable for all kinds of intelligent inspection scenarios like oil, gas, fields, pipes, tanks and other flammable, toxic and harmful collection stations, transportation lines, chemical plants or storage areas. It can process real-time acquisition and intelligent analysis of the ambient data.
✔ Meter Recognition & Read
✔ Infrared Thermometry
✔ Leakage Detection
✔ Ambient Gases Monitoring
✔ Video Storage Monitoring
✔ Two-way Voice Intercom
✔ Unmanned Autonomous Inspection
✔ Intelligent Charging
⚙️ Detailed Parameters
| Explosion-proof Grade |
Ex d IIB T4 Gb |
Dimension |
1420x820x1040mm |
| Navigation Method |
SLAM Laser Navigation + Positioning |
Weight |
≤400kg |

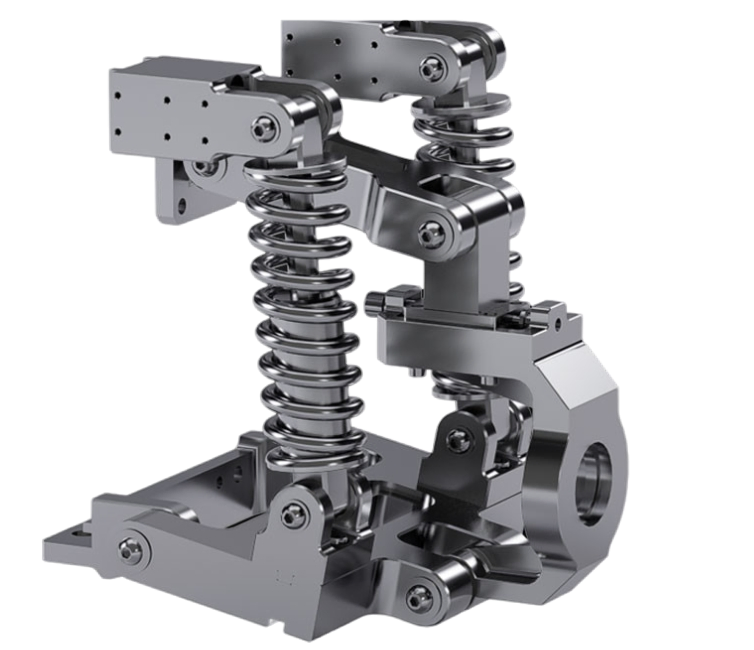

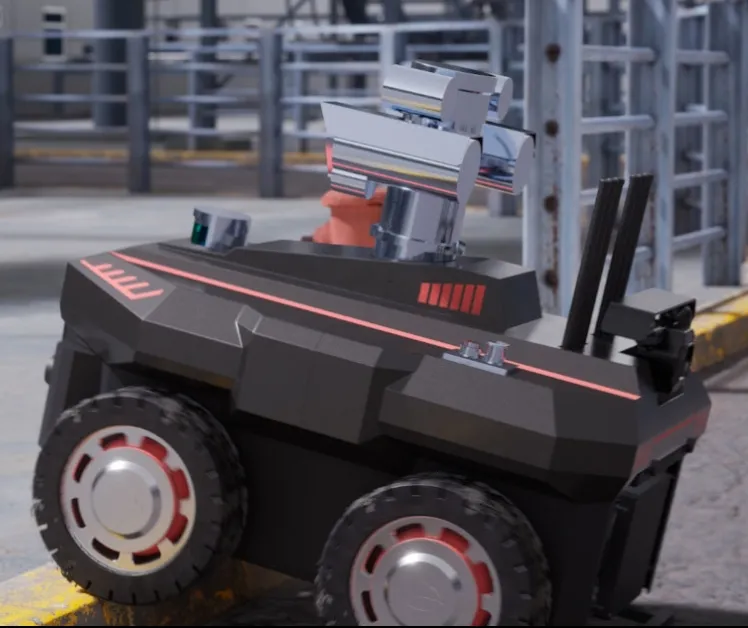

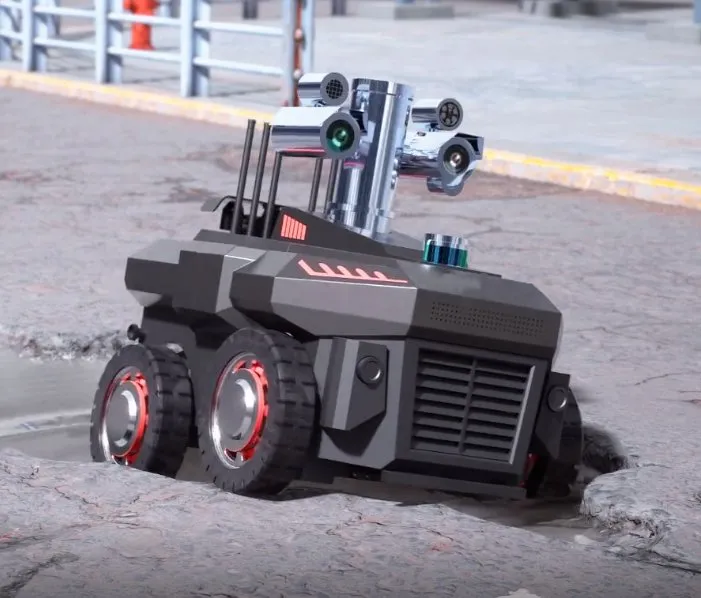

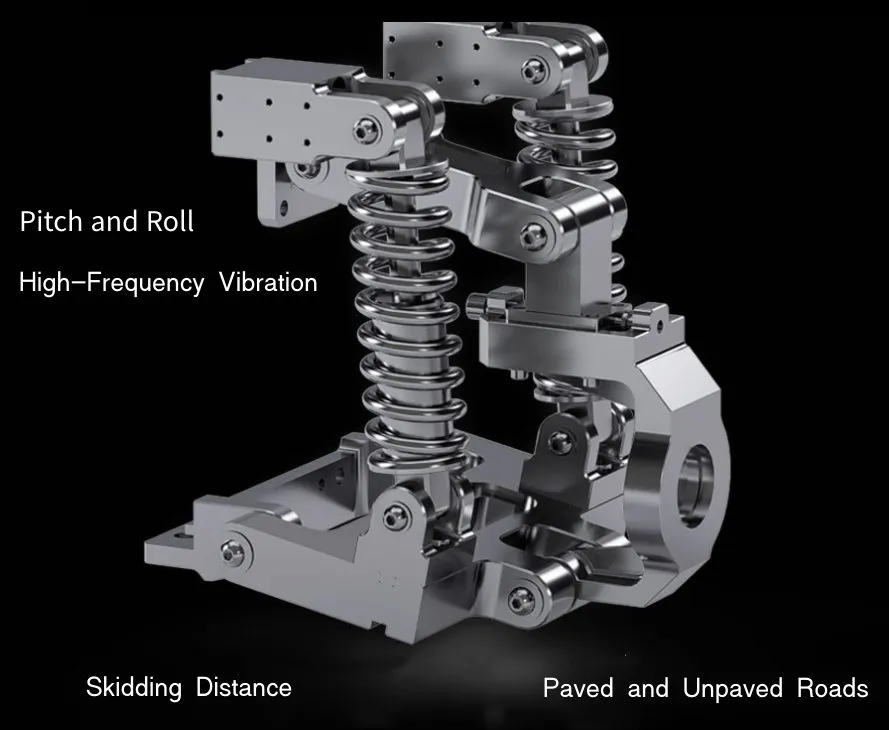

📸 Detailed Photos
🏭 Capacity & Exhibition
📜 Certifications & Shipping
❓ Frequently Asked Questions
What is the explosion-proof grade of this robot?
The robot is rated Ex d IIB T4 Gb, making it suitable for hazardous environments like chemical plants and oil fields.
How long does the battery last on a single charge?
It offers ≥6 hours of continuous operation at 1m/s and ≥24 hours in standby mode, with a fast charging time of 3 hours.
Can the robot navigate autonomously?
Yes, it uses SLAM laser navigation and positioning with lidar and depth cameras for repeatable accuracy of ≤±3cm.
What kind of obstacles can it handle?
The robot can surmount obstacles up to 120mm in height and has a grade ability of 20°.
Is the robot waterproof for outdoor use?
Yes, it features an IP66 protection level and can handle wading depths of up to 200mm.
Are customized monitoring services available?
Yes, we provide customization for noise decibel monitoring, methane laser telemetry, and safety behavior monitoring.
