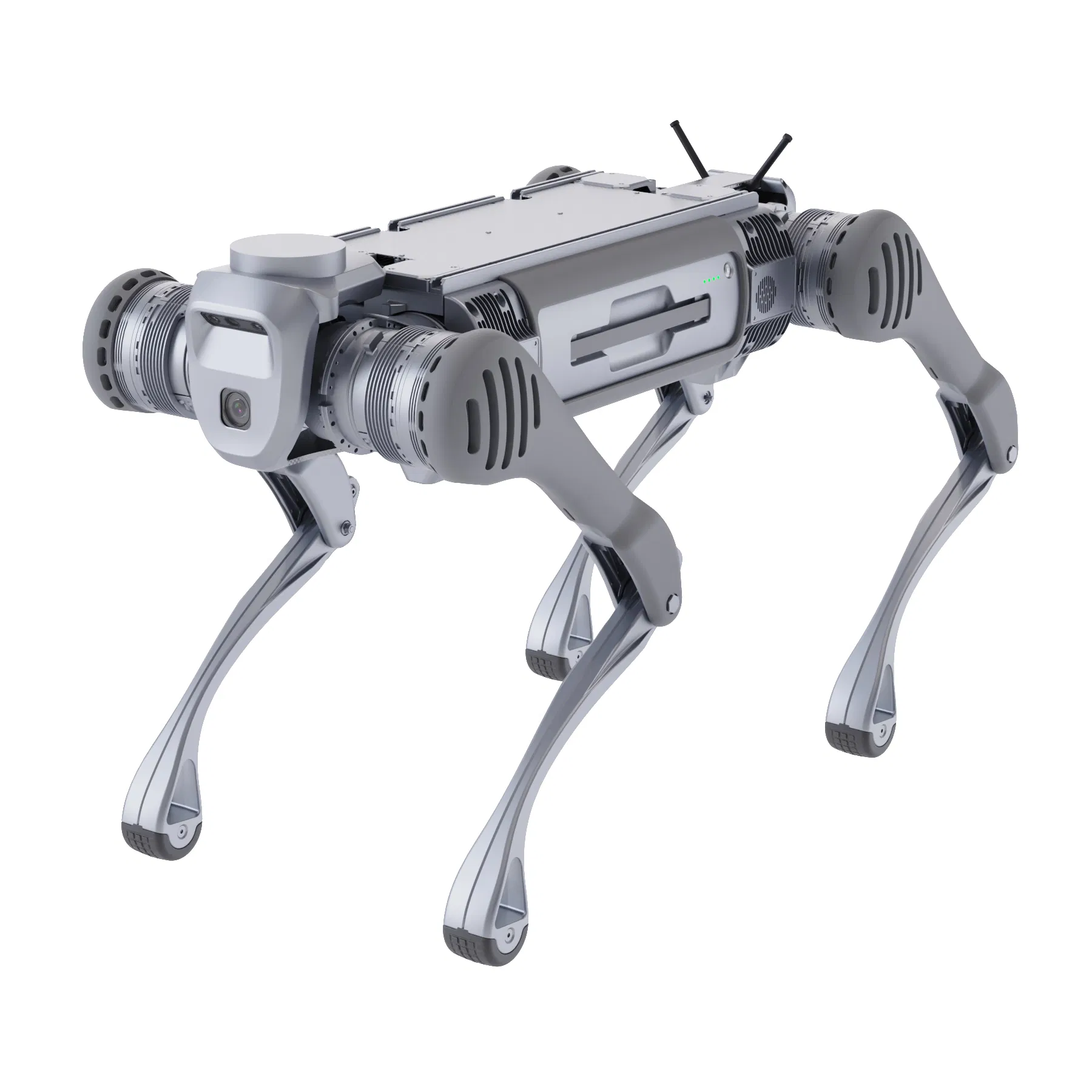

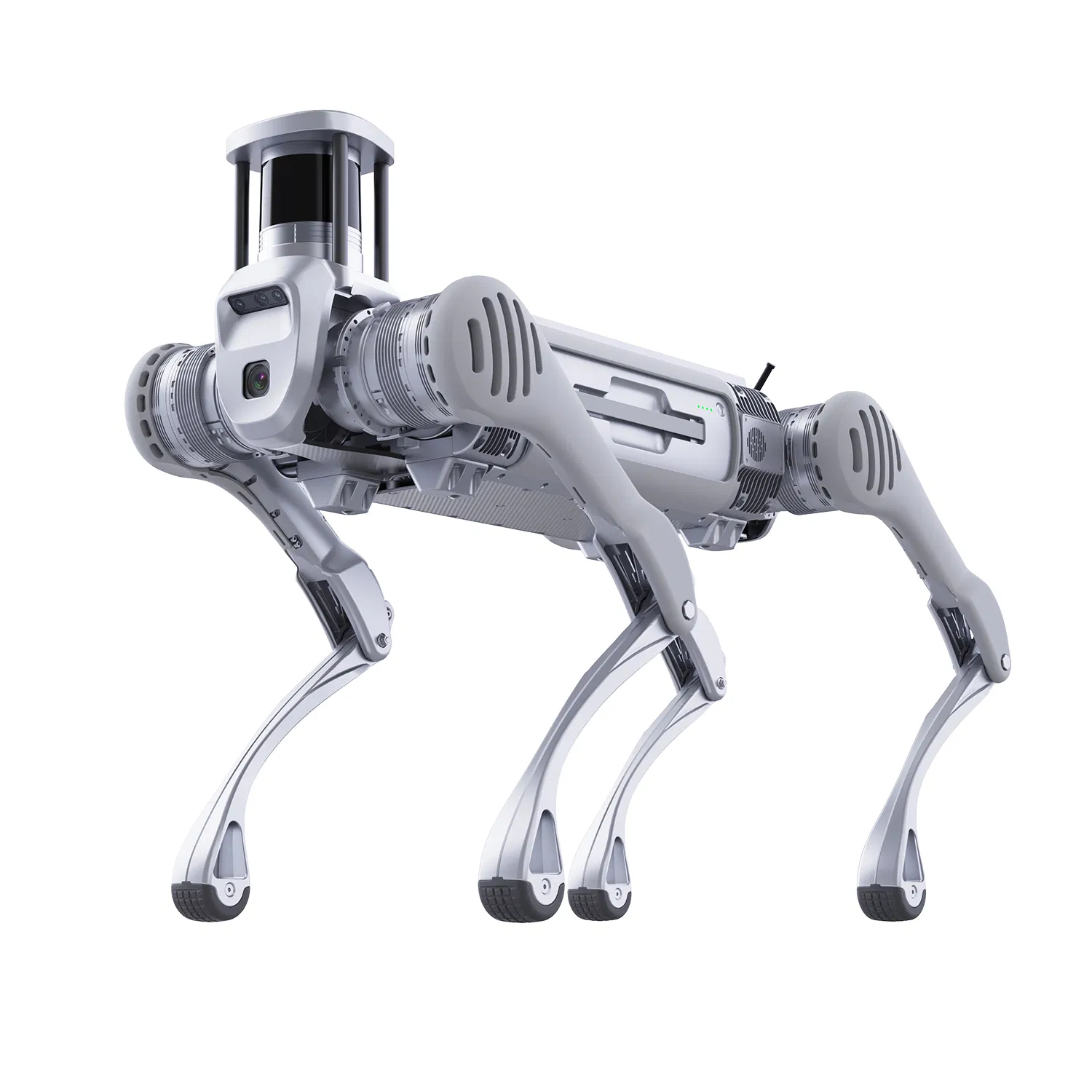

Industrial Level Heavy Loader Unitree B2 Robot Dog 2

Customization:	Available
Application:	Assembly, Machine Tending
Control Mode:	Continuous Path Control

Send Inquiry

Product Description

Basic Information

Model NO.

Unitree B2

Degrees of Freedom

Multi-axis

Drive Mode

Electric

Max Running Speed

6m/S

Max Joint Torque

About 360n.M

Max Walking Capacity

Obstacle crossing: Max 40cm

Weight About

60kg

Trademark

Unitree

Origin

China

HS Code

8543709990

Product Description

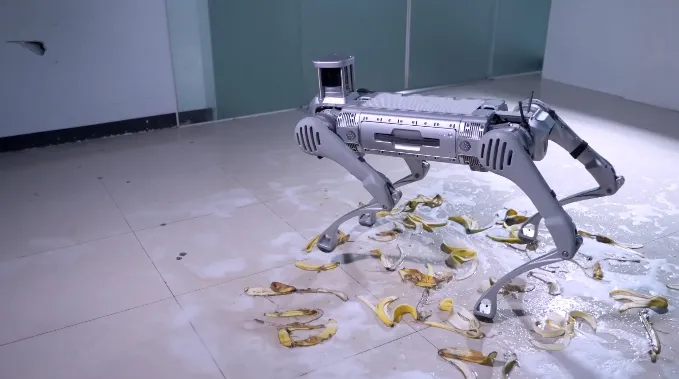

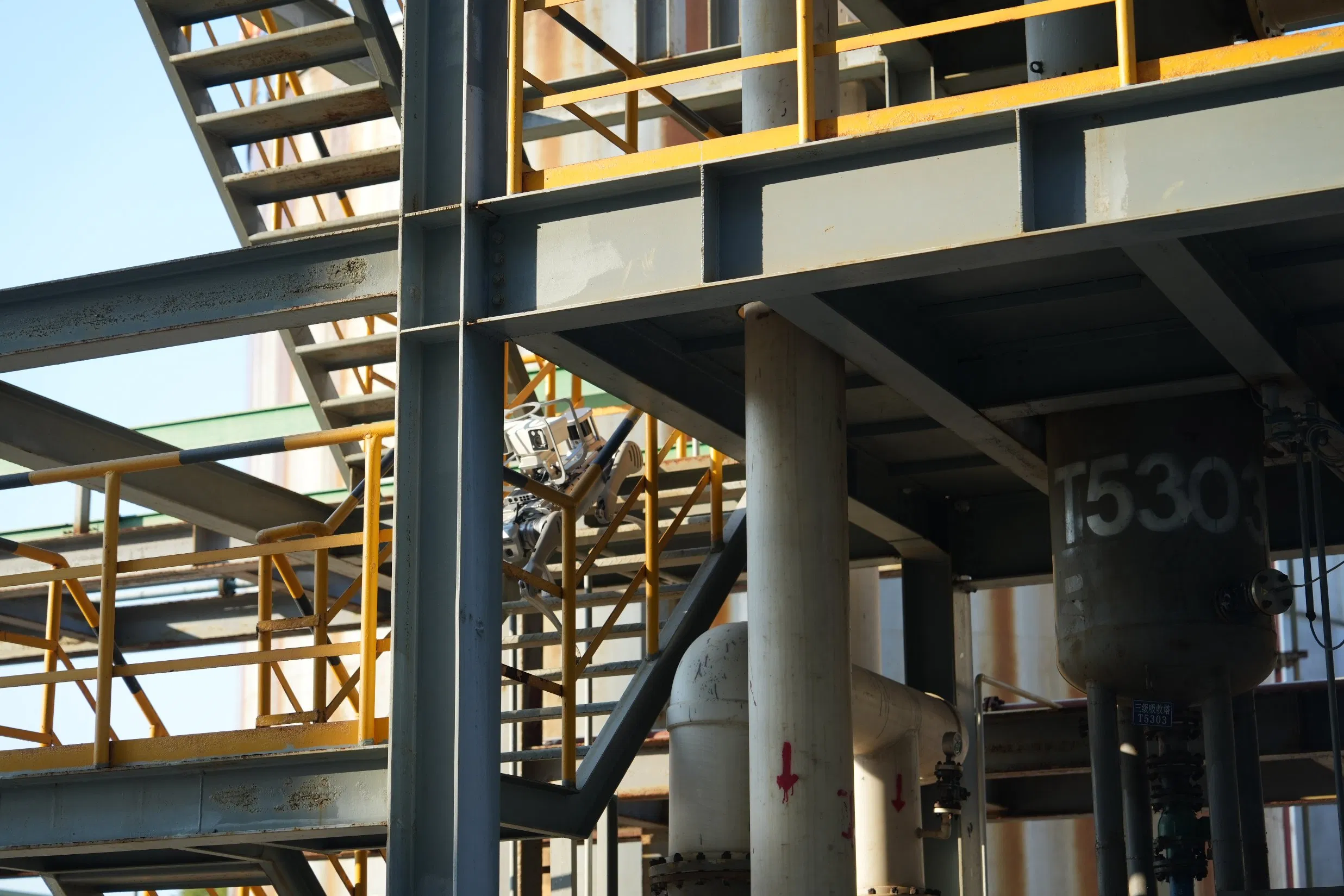

◈ All-rounded to cope with a variety of environments

Excellent terrain adaptability to ensure stable travel on slippery or uneven surfaces.

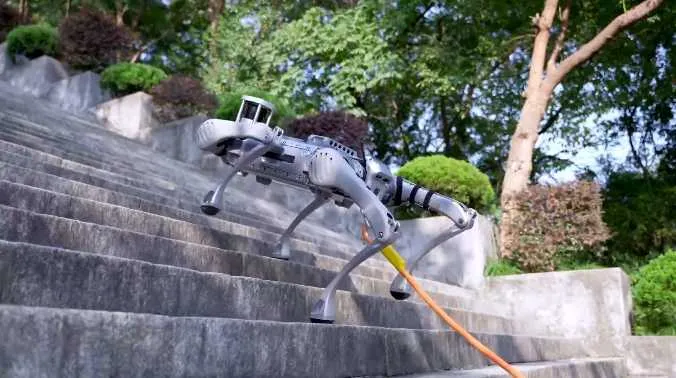

◈ Climbing stairs as if they were flat

Excellent sustained stair climbing, effortlessly tackling steps. Remains extremely stable and balanced when climbing.

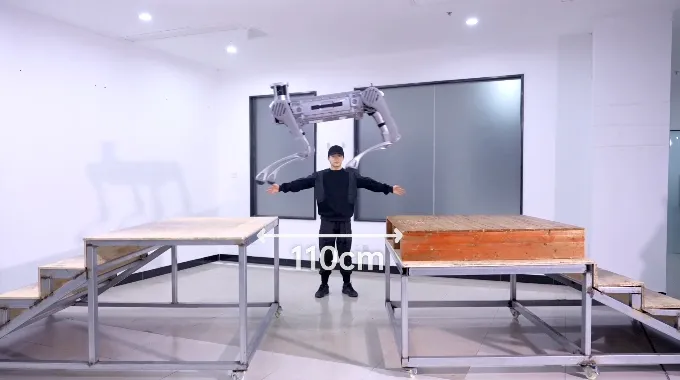

◈ 170% increase in joint performance

With 360 N.m of torque, extreme performance provides greater flexibility and stability for industrial operations.

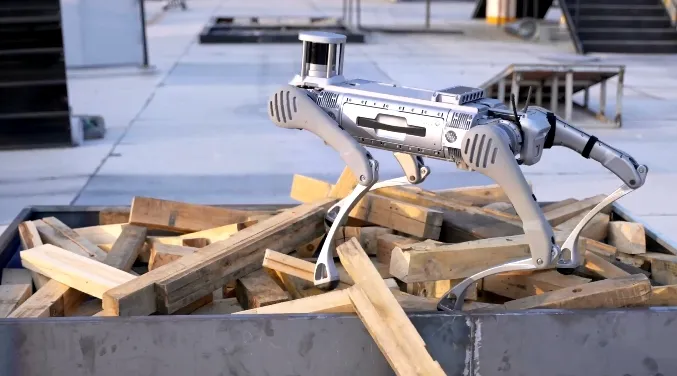

◈ Overcoming obstacles. Stable and tough

Superior obstacle-crossing ability, easy to cross the mess of wood piles, 40cm high platforms and other obstacles.

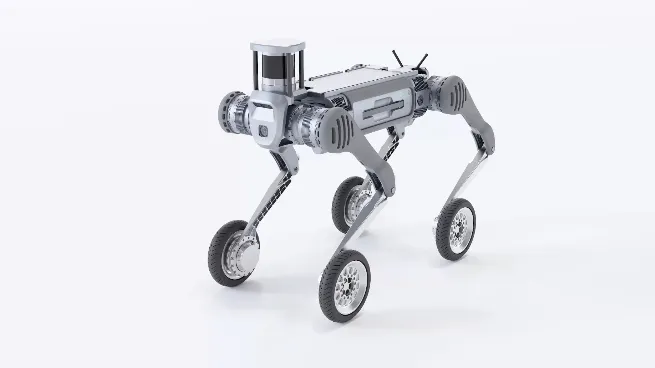

◈ Wheeled and Legged Forms

Breaking Through Endurance Limitations. Innovative structural design of the B2 realizes switching between legged and wheeled forms (optional).

Secondary Development Service Specifications

Item Name	Price	Simplified Remarks
Robot Dog Body (Standard Version Only)	Not included (quoted separately)	Complies with original specifications: Size ~1098×450×645mm, Weight 60kg, Load 20kg, Endurance 15km (4hrs), Stair climbing 20cm

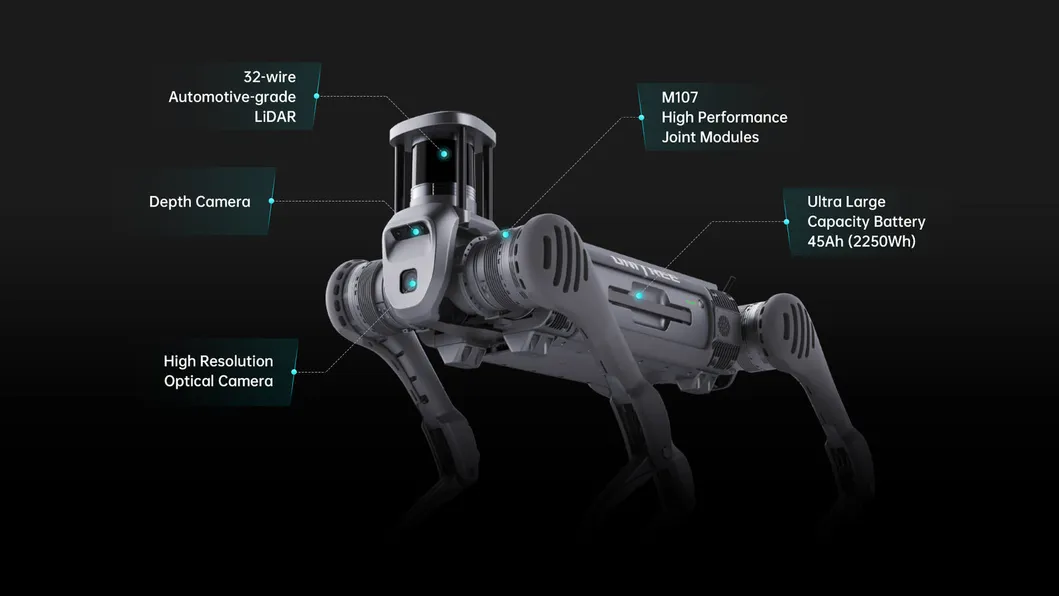

Mounted Sensing & Recognition Kit	-	Includes autonomous navigation, unmanned patrol, teleoperation, environmental perception, obstacle avoidance; hardware with 4G/5G/WIFI module, LiDAR, surround camera, searchlight
Embodied Intelligence System	To be calculated	With autonomous navigation (mapping, positioning, path planning); recommended for night patrol to avoid crowd interference
On-site Implementation & Deployment	Optional	6000USD/time (5-day limited scene debugging), over-time charged at 400USD/person-day, travel costs extra
Backend Function Customization	Optional	Customized functions and upper-layer business system development require additional separate charges
Additional Mounted Equipment	Optional	Dual-light PTZ 9000USD + 32-line navigation LiDAR 8000USD
Large Model Voice Interaction	Optional	Requires internet access (WIFI/4G/5G), supports complex voice interaction for task assignment
Industrial Scene Special Adaptation	Optional	First-time scene adaptation fee, price based on debugging difficulty

Frequently Asked Questions (FAQ)

● What is the maximum speed of the Unitree B2?

The Unitree B2 can reach a maximum running speed of 6m/s, making it one of the fastest industrial-grade quadruped robots.

● Can the B2 operate in difficult terrains?

Yes, it features excellent terrain adaptability, allowing it to navigate slippery surfaces, uneven ground, and climb stairs or obstacles up to 40cm high.

● What is the payload capacity and weight of the robot?

The robot itself weighs approximately 60kg and has a payload capacity of up to 20kg for industrial equipment and sensors.

● Does it support autonomous navigation?

Yes, through the Embodied Intelligence System and Mounted Sensing Kit, it supports mapping, positioning, path planning, and obstacle avoidance.

● What is the difference between the legged and wheeled forms?

The B2 features an innovative structural design that allows switching to a wheeled form (optional) to increase movement efficiency and endurance on flat surfaces.

● What kind of secondary development services are available?

We offer kits for sensing and recognition, customized backend functions, voice interaction via large models, and on-site implementation services.
