Basic Specifications
Maximum Speed
4.0 Knots (2 M/S)
Thruster Propeller
Hard Anodized Aluminum Alloy
Transport Package
Wooden Box
Specification
750 x 660 x 330 mm
Technology & Innovation
A pioneering high-tech enterprise that excels in delivering advanced gas sensing, intelligent perception, and industrial monitoring solutions. The innovation lies in the sophisticated photoacoustic spectroscopy (PAS) technology, engineered for ultra-trace substance detection, ensuring exceptional sensitivity and rapid responsiveness.
The firm is spearheading the development of innovative bionic perception systems that endow robots with enhanced sensory intelligence across water, land, and air domains. Guided by the motto "Smelling the Future," we harmonize automation and AI to ensure safer industrial operations.
Global Collaboration
Strategic alliances with international laboratories have been established to develop multi-functional, industrial-grade robots. Recent initiatives include the inauguration of joint laboratories dedicated to propelling cutting-edge robotics research and technological advancements in intelligent sensing.

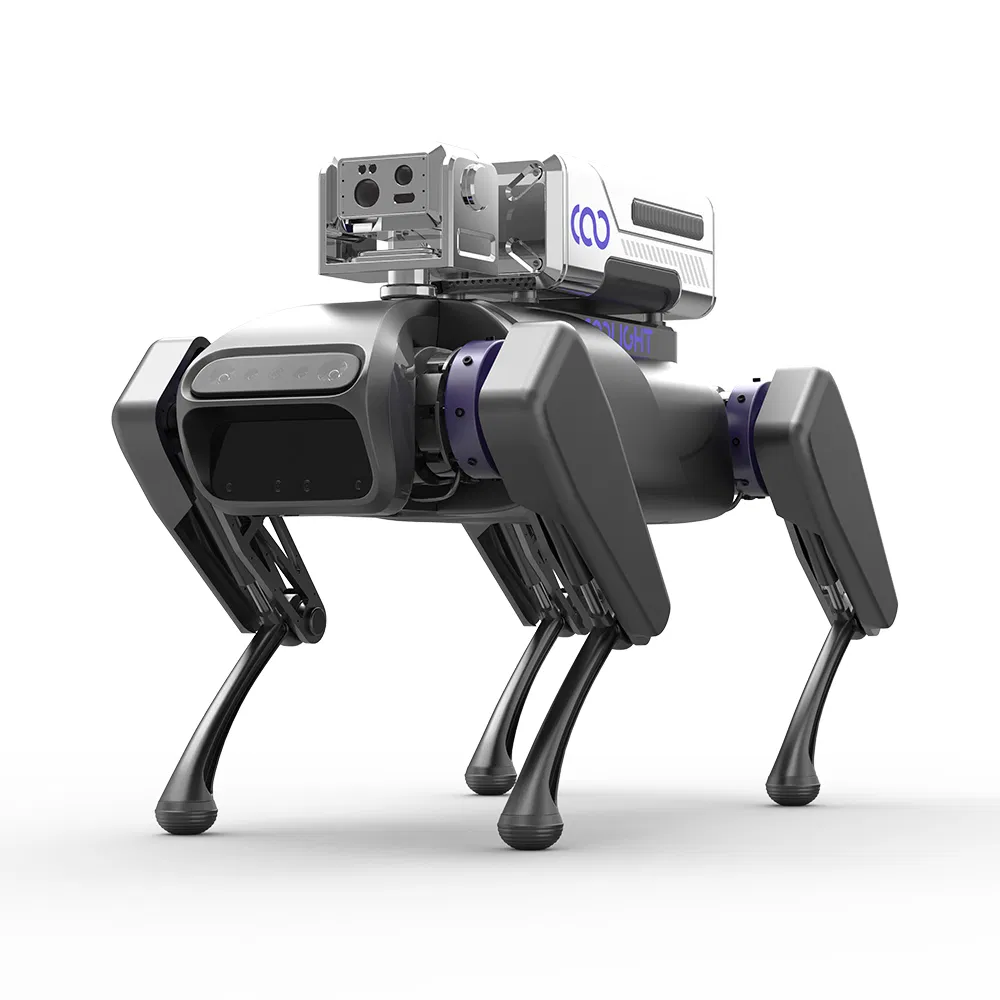

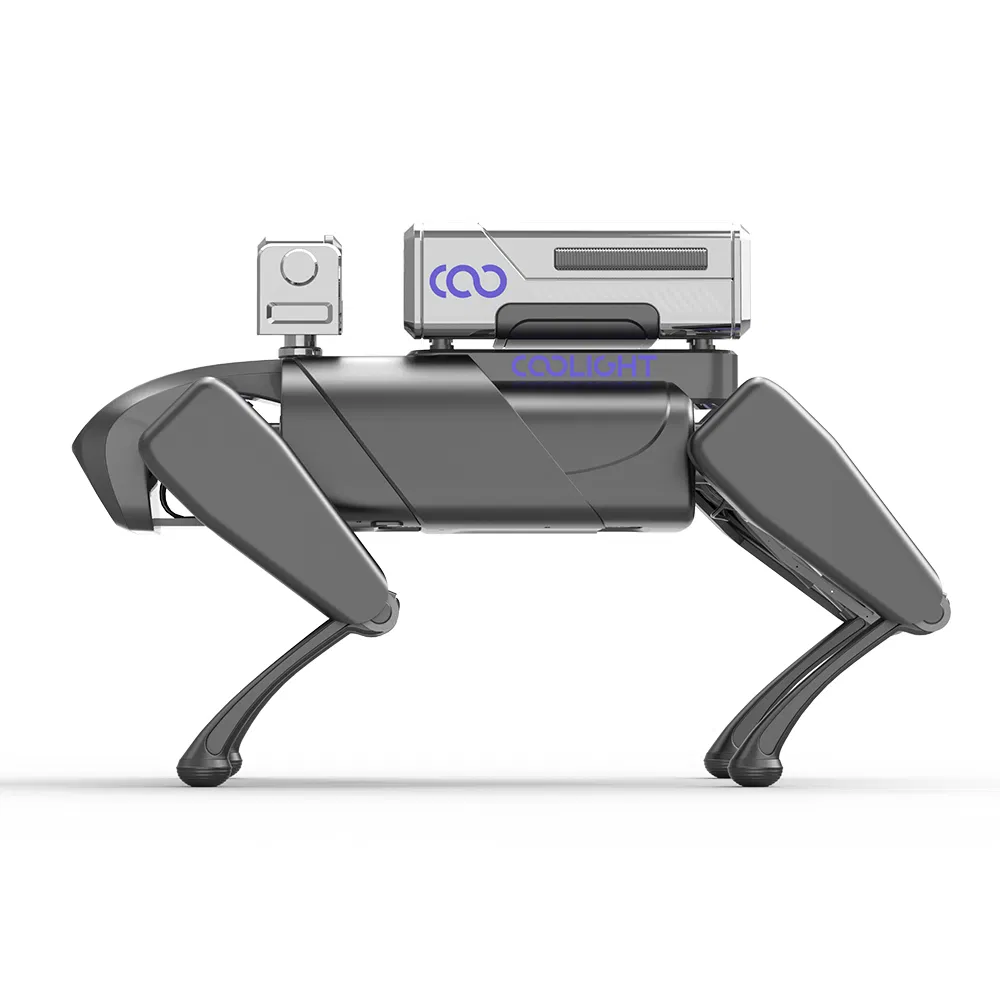

CL801 Quadruped Inspection Robot
The CL801, also known as an industrial dog robot, is a cutting-edge unmanned inspection solution designed for high-risk and hazardous environments. It features advanced locomotion control, AI vision, and multi-sensor perception, replacing manual inspection in oil & gas facilities, power stations, and mines.
Unlike wheeled designs, this quadruped structure offers exceptional mobility, navigating stairs, slopes, and uneven ground with precision. It adheres to Ex db ib IIB T6 Gb standards, making it safe for volatile environments.
Key Features
- Electro-hydraulic hybrid drive system for unmatched mobility.
- Robust explosion-proof design (Ex db ib IIB T6 Gb standards).
- AI-driven perception and 24/7 autonomous inspection.
- Protection Rating: IP67 (dust and water resistant).
- Operating Temperature: -20°C to +60°C.
Max Speed: 3.5 m/s (Agile Movement)
Max Climbing Slope: 35°
Max Step Height: 35 cm
Max Load Capacity: 80 kg
No-Load Endurance: 25 hours
Inspection Capabilities
- Infrared temperature measurement and thermal analysis.
- Flammable and toxic gas detection.
- Partial discharge monitoring for electrical safety.
- 3D concentration cloud mapping and leak identification.
- Personnel behavior recognition and corrosion monitoring.
Application Scenarios
Targeted for Oilfield refineries, offshore platforms, LNG terminals, chemical industrial parks, power plants, coal mines, data centers, and submarine pipeline inspection.
Frequently Asked Questions
What is the explosion-proof rating of the CL801 robot?
The CL801 adheres to the Ex db ib IIB T6 Gb standard, ensuring safe operation in environments with flammable and toxic gases.
Can the robot climb stairs and slopes?
Yes, its quadruped design allows it to climb slopes up to 35° and overcome obstacles or steps up to 35 cm in height.
How long can the robot operate on a single charge?
The robot features a no-load endurance time of 25 hours. When carrying a payload, the endurance is ≥ 2.5 hours depending on the task.
Is the robot weather-resistant?
Yes, it has an IP67 protection rating and can operate in temperatures ranging from -20°C to +60°C.
What sensors can be integrated into the robot?
The robot supports modular integration of gas detectors, infrared cameras, acoustic sensors, 3D mapping tools, and leak detection modules.
What is the maximum payload the CL801 can carry?
The robot has a useful load capacity of 30 kg and a maximum load capacity of 80 kg for heavy-duty industrial equipment.
