Basic Specifications
Maximum Speed
4.0 Knots (2 M/S)
Thruster Propeller
Hard Anodized Aluminum Alloy
Transport Package
Wooden Box Packaging
Specification
750 x 660 x 330 mm
Industry Leadership
💡 Smart Perception Solutions
Specializing in cutting-edge gas sensing, intelligent perception, and comprehensive industrial monitoring solutions. The technological core leverages photoacoustic spectroscopy (PAS) for precise detection of ultra-trace substances, ensuring extraordinary sensitivity, rapid response, and enduring stability in demanding settings.
By synergizing sensing hardware, embedded systems, and intelligent algorithms, the transition from conventional mechanical monitoring to cognitive-level environmental perception is achieved, enabling machines to intuitively perceive chemical signals akin to living organisms.
Global Research & Innovation
Strategically partnered with the Singapore Smart Perception and Automation Control Engineering Laboratory (SPACE). In 2024, a significant investment established a state-of-the-art joint laboratory devoted to advancing robotics research and propelling technological innovation in intelligent sensing.

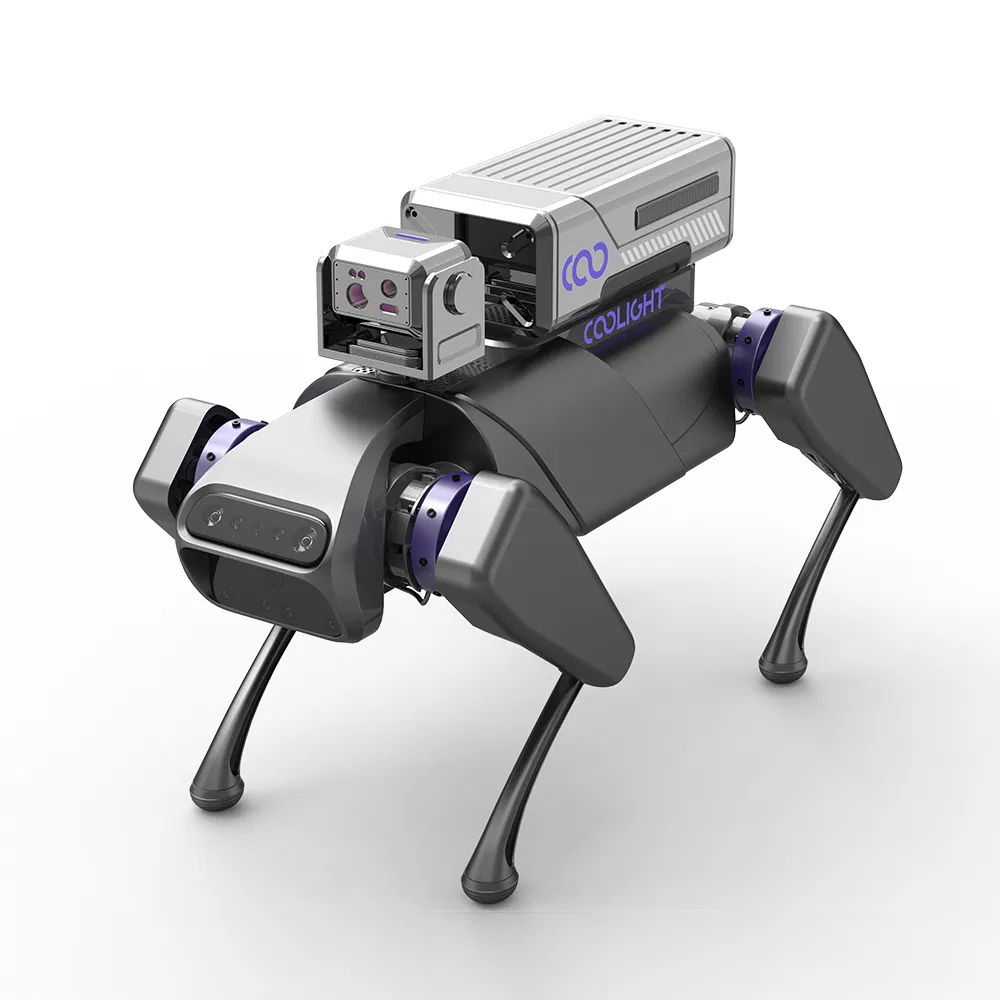

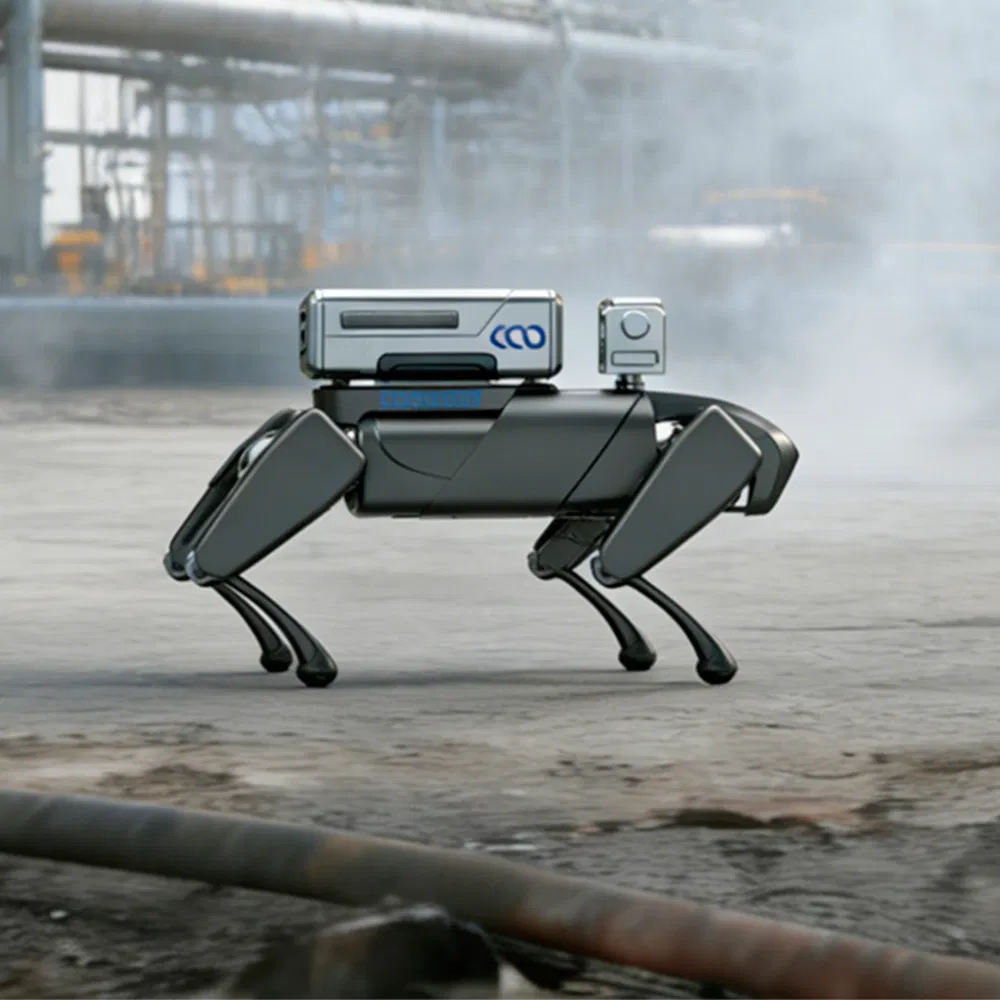

CL801 Quadruped Inspection Robot
The CL801 Quadruped Inspection Robot (Industrial Dog Robot) is an avant-garde unmanned solution crafted for challenging, intricate, and hazardous industrial environments. It revolutionizes manual inspection tasks in oil and gas facilities, chemical plants, power stations, and coal mines.
⚠ Explosion-Proof Certified
Engineered with a composite explosion-proof design (Ex db ib IIB T6 Gb), guaranteeing safe deployment in environments with flammable and toxic gases.
Key Features
- Quadruped design for unmatched mobility across complex terrains (stairs, slopes, uneven surfaces).
- Innovative Electro-hydraulic hybrid drive system.
- AI-driven perception and 24/7 autonomous inspection capabilities.
- Integrated multi-sensor system for comprehensive industrial monitoring.
- Protection Rating: IP67 for all-weather industrial applications.
Technical Performance
Drive Mode
Electro-Hydraulic Hybrid
Max Climbing
35° Slope / 35cm Step
No-Load Endurance
25 Hours
Useful Load
30kg (Standard) / 80kg (Max)
Operating Temp
−20°C to +60°C
Application Scenarios
Monitoring Capabilities
- Infrared temperature measurement
- Flammable and toxic gas detection
- Partial discharge & corrosion monitoring
- 3D concentration cloud mapping
- Personnel behavior recognition
Deployment Venues
- Offshore oil & gas platforms
- LNG receiving terminals
- Chemical industrial parks
- Coal mines & underground roadways
- Submarine pipeline inspection
Frequently Asked Questions
Q1: What environments is the CL801 robot best suited for?
The CL801 is specifically designed for high-risk, hazardous, and confined spaces such as oil refineries, chemical plants, and coal mines where human entry is dangerous.
Q2: How does the robot handle obstacles like stairs or uneven ground?
Unlike wheeled robots, its quadruped structure and electro-hydraulic hybrid drive allow it to climb steps up to 35cm and navigate slopes up to 35° with ease.
Q3: Is the robot safe to use in explosive atmospheres?
Yes, it features a composite explosion-proof design compliant with Ex db ib IIB T6 Gb standards, including flameproof joints and intrinsic safety circuits.
Q4: What is the maximum payload capacity of the CL801?
The robot has a standard useful load capacity of 30kg and can support a maximum load of up to 80kg for various monitoring modules.
Q5: Can the robot perform inspections autonomously?
Yes, it supports both remote manual operation and fully autonomous 24/7 inspections using AI-driven perception and multi-sensor data acquisition.
Q6: What sensors can be integrated into the robot?
It supports modular configurations including infrared cameras, gas detectors, partial discharge monitors, and 3D mapping tools tailored to specific industrial needs.
