ShanQuan AM-140E is a one-component polyurethane adhesive with medium to high viscosity and strength. It features excellent thixotropy for easy application. Once cured, it provides high bonding strength and flexible sealing properties.
| Items | Properties |
|---|---|
| Appearance | Black, homogeneous paste |
| Density (uncured) | 1.20±0.10g/cm³ |
| Tack free time(min) | Approx. 20 min |
| Curing speed(mm/d) | ≥3.0mm/24h |
| Shore A-hardness | 50 |
| Tensile strength | ≥3.0MPa | ≥400% |
| Operating temperature | -40 ~ 90ºC |
1. Surface Preparation: Surfaces must be clean, dry, and free of grease. Use a metal brush for rust removal if necessary.

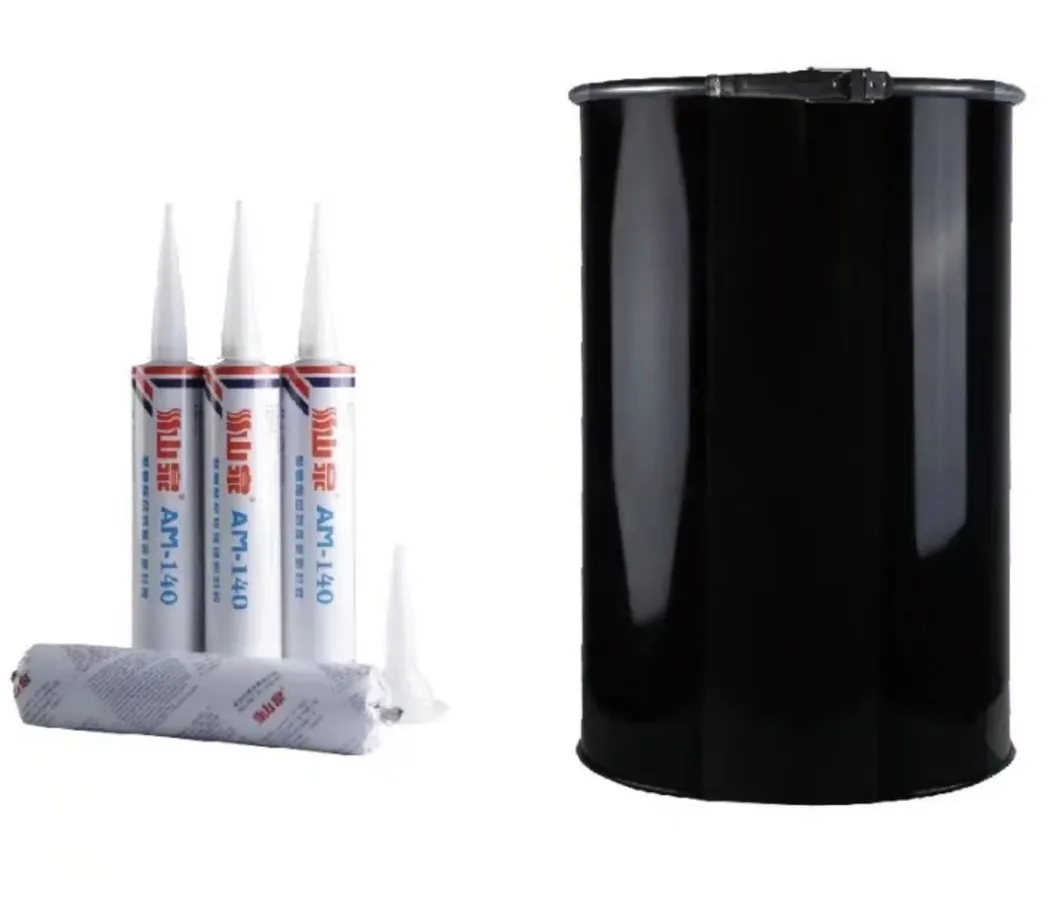

2. Cartridge Usage: Open the back cover, pierce the mouth membrane, screw on the nozzle, and use with a standard caulking gun.
3. Sausage Usage: Place into a soft packaging gun, cut the seal, and tighten the nozzle.
4. Installation: Cut the nozzle to the desired shape (triangle or circle). Apply in spots or strips and position within the tack-free time.
