Dog Inspection Robot (Quadruped) for Hazardous Industrial Inspection Explosion-Proof, Ai Vision, Oil & Gas

After-sales Service: One Year
Application: Oil and Gas, Chemical Plant
Weight: 23 Kg

Product Description

Basic Specifications

Model NO.:CL801
Operating Depth:350m
Payload Capacity:15kg
Maximum Speed:4.0 Knots (2 M/S)
Thruster Propeller:Hard Anodized Aluminum Alloy
Dimensions:750 x 660 x 330 mm

Technology & Innovation

Our core technology is based on photoacoustic spectroscopy (PAS) for ultra-trace substance detection, enabling high sensitivity, fast response, and long-term stability in harsh industrial environments. With cross-disciplinary expertise in intelligent sensing and chemical analysis, we deliver reliable solutions for oil & gas, environmental monitoring, and smart robotics.

Inspection Robot

Research & Development

Strategic partnerships with leading international labs drive our robotics research and technological innovation in intelligent sensing, reinforcing the position at the forefront of industrial automation.

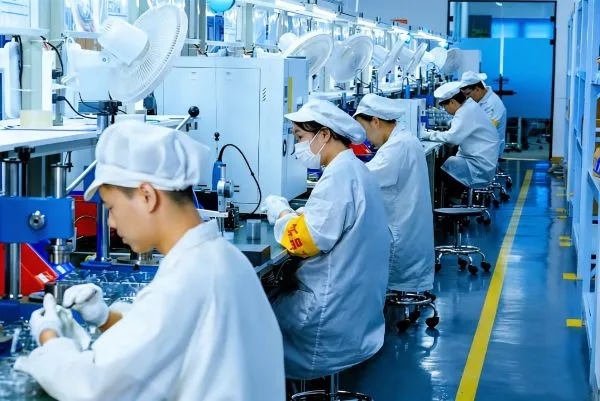

R&D Lab 1

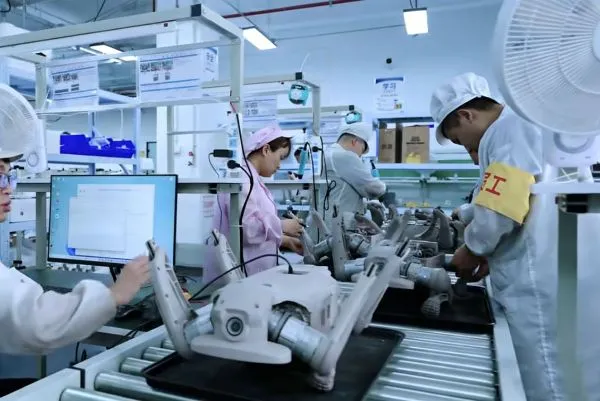

R&D Lab 2

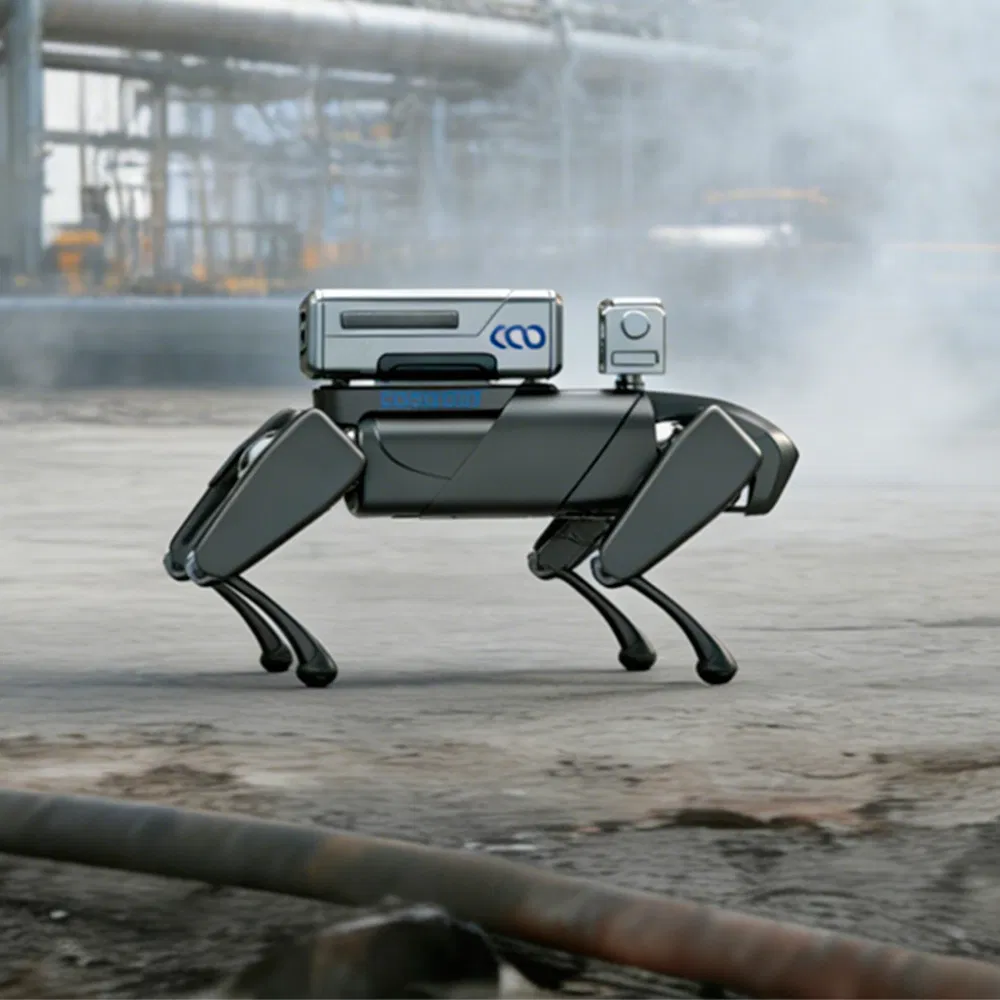

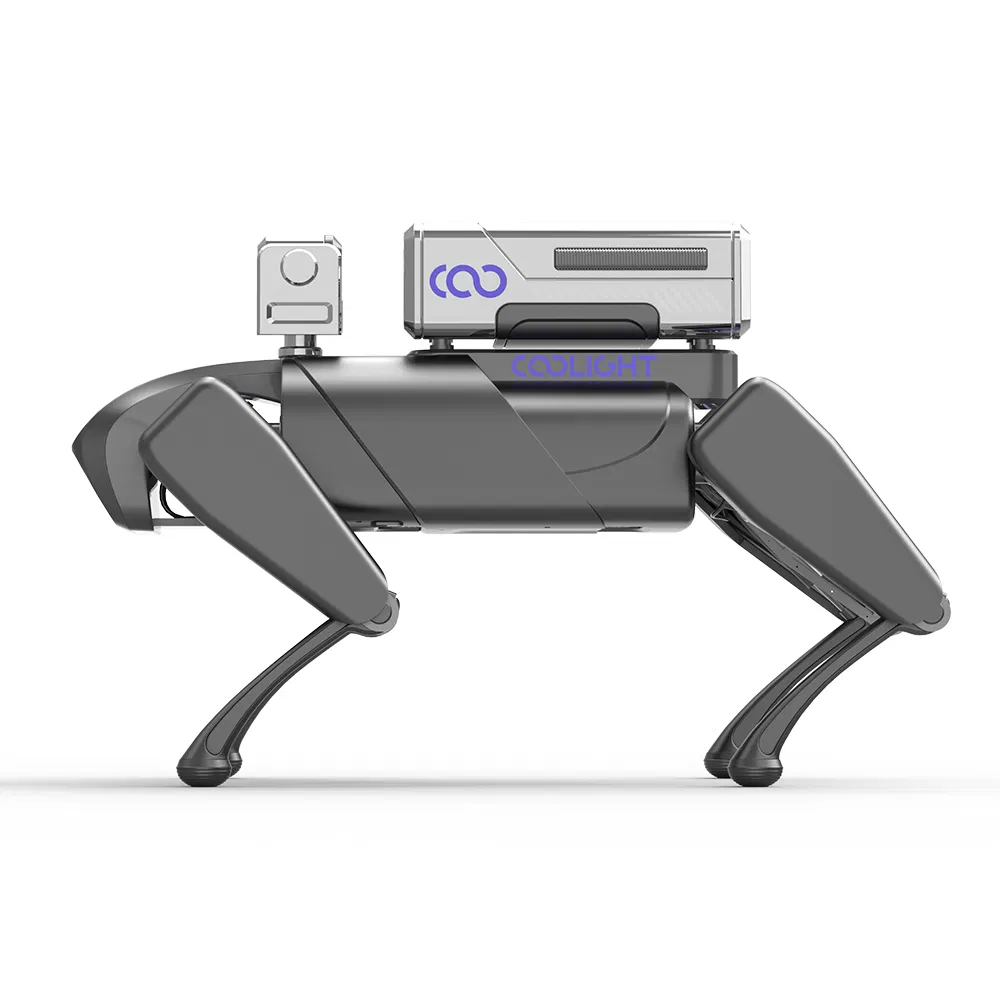

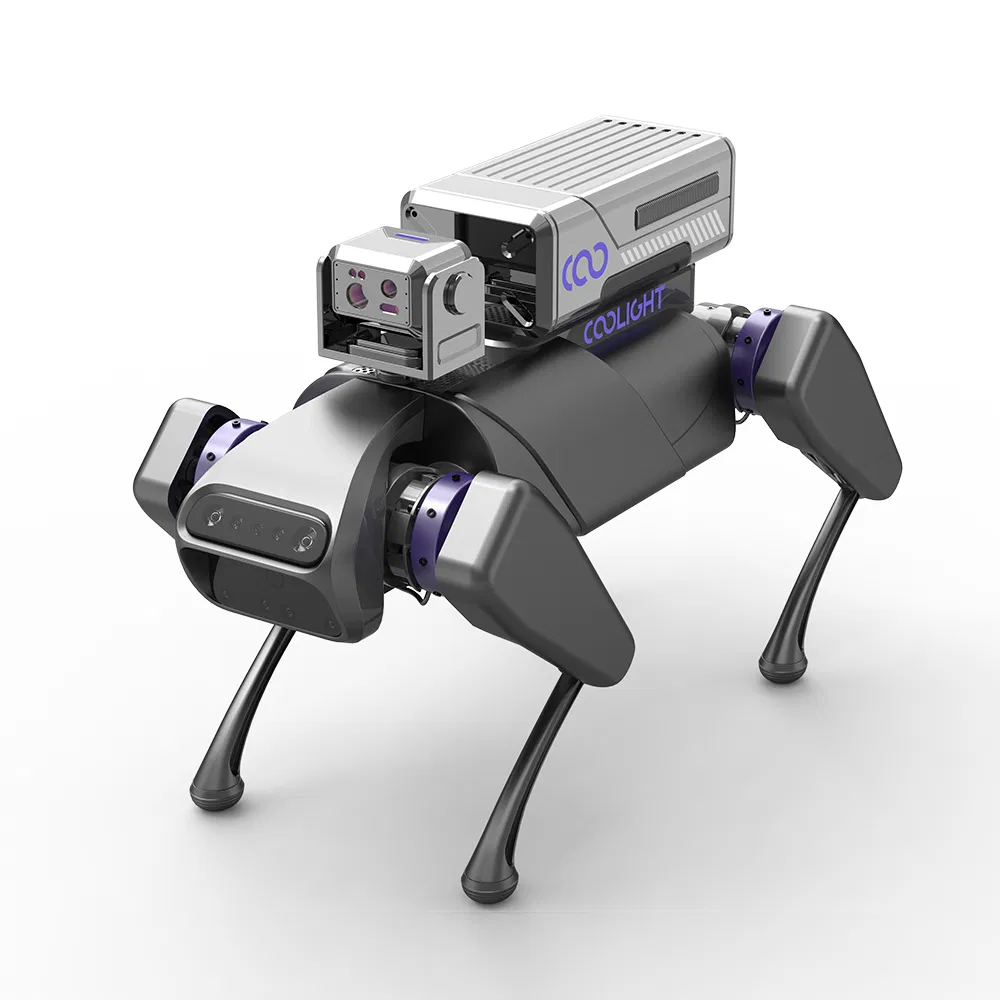

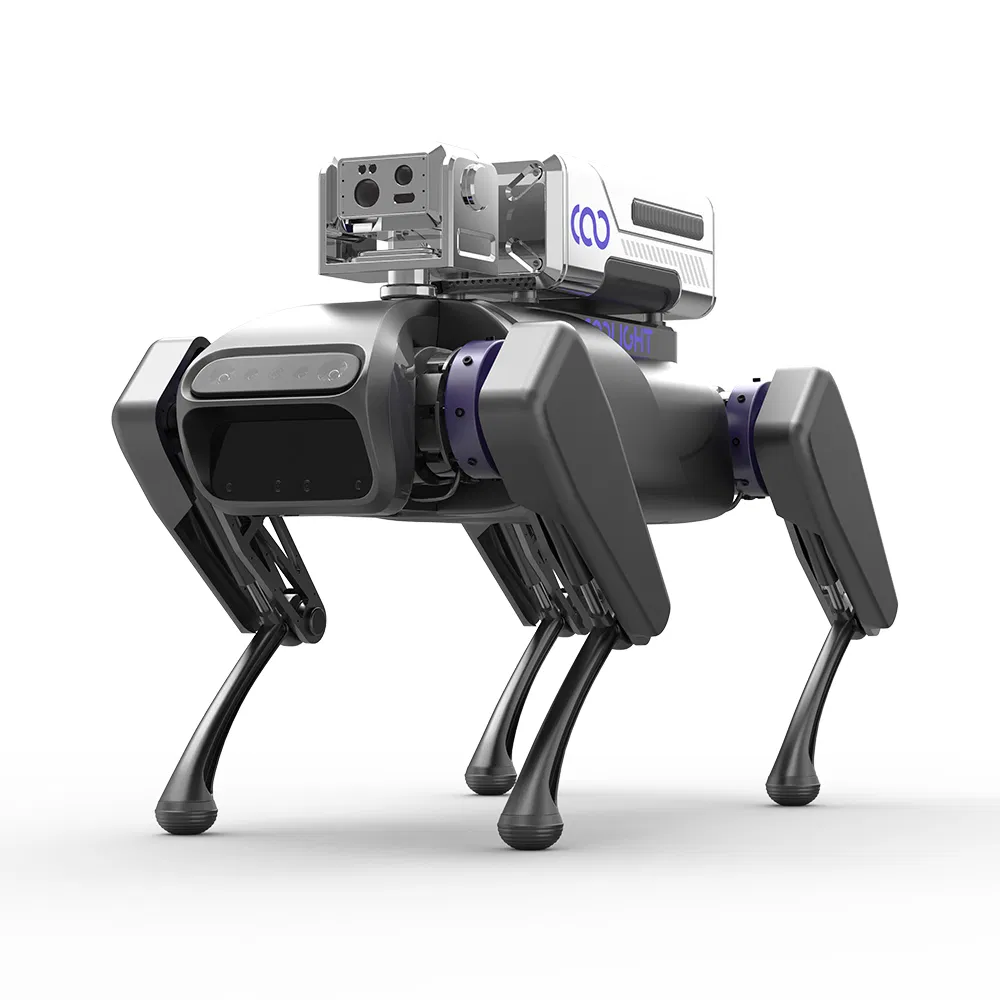

CL801 Quadruped Inspection Robot

The CL801 is an advanced unmanned inspection solution designed for high-risk and hazardous industrial environments. By integrating AI, computer vision, and multi-sensor perception, it replaces manual inspection in oil and gas facilities, chemical plants, and power stations.

The quadruped structure provides extreme terrain adaptability, allowing the robot to navigate stairs, slopes, and narrow passages with an explosion-proof design compliant with Ex db ib IIB T6 Gb standards.

Key Features

  • Superior mobility in complex terrain
  • Electro-hydraulic hybrid drive system
  • Explosion-proof (Ex db ib IIB T6 Gb)
  • AI-based intelligent perception
  • Multi-sensor industrial monitoring
  • 24/7 all-weather autonomous use

Technical Specifications

Drive Mode:Electro-Hydraulic Hybrid
Max Speed:3.5 m/s
Climbing Slope:35°
Step Height:35 cm
Protection Rating:IP67
Max Load:80 kg

Monitoring Capabilities

  • Infrared temperature measurement
  • Toxic gas detection
  • Intelligent gauge reading
  • 3D concentration mapping
  • Leak and spill identification
  • Personnel behavior recognition

Application Scenarios

  • Oilfield refineries & Platforms
  • LNG receiving terminals
  • Chemical industrial parks
  • Power plants & Data centers
  • Coal mines & Underground roads
  • Submarine pipeline inspection

Frequently Asked Questions

Q1: Can the CL801 work in explosive environments? Yes, it features a composite explosion-proof design compliant with Ex db ib IIB T6 Gb standards, ideal for oil, gas, and chemical industries.
Q2: What is the maximum payload capacity? The robot has a useful load capacity of 30kg and a maximum load capacity of up to 80kg.
Q3: How long can the robot operate on a single charge? It offers a no-load endurance of up to 25 hours. With a full useful load, the endurance time is ≥ 2.5 hours.
Q4: What kind of terrains can it handle? Its quadruped design allows it to navigate stairs, 35° slopes, uneven ground, and obstacles up to 35cm high.
Q5: Is the robot waterproof? Yes, the CL801 has an IP67 protection rating, making it suitable for all-weather outdoor use and harsh environments.
Q6: Are the monitoring functions customizable? Absolutely. The inspection modules (gas detection, thermal imaging, etc.) are modular and can be configured based on specific requirements.
