Autonomous Quadruped Robot for Remote Chemical Plant Inspections

After-sales Service: One Year
Application: Oil and Gas, Chemical Plant
Weight: 23 Kg

Product Description

Basic Specifications

Model NO.:CL801
Operating Depth:350m
Payload Capacity:15kg
Maximum Speed:4.0 Knots (2 M/S)
Thruster Propeller:Hard Anodized Aluminum Alloy
Specification:750 x 660 x 330 mm

Technology Overview

Our focus lies in developing bionic perception systems to endow robots and industrial equipment with unparalleled sensory intelligence across water, land, and air domains. By harmoniously integrating sensing hardware, embedded systems, and cutting-edge algorithms, we aid customers in evolving from traditional mechanical oversight to cognitive-level environmental perception.

At the core of the technology is the revolutionary photoacoustic spectroscopy (PAS), which excels in ultra-trace substance detection, providing unmatched sensitivity, rapid response, and exceptional long-term stability even in the most challenging industrial settings.

Industrial Bionic Sensing

R&D Collaboration

Strategically partnered with international smart perception and automation control engineering laboratories to create multi-functional industrial-grade robots. We have committed significant investment to establish a cutting-edge joint laboratory dedicated to propelling robotics research and spearheading innovative breakthroughs in intelligent sensing.

Robotics Research Lab

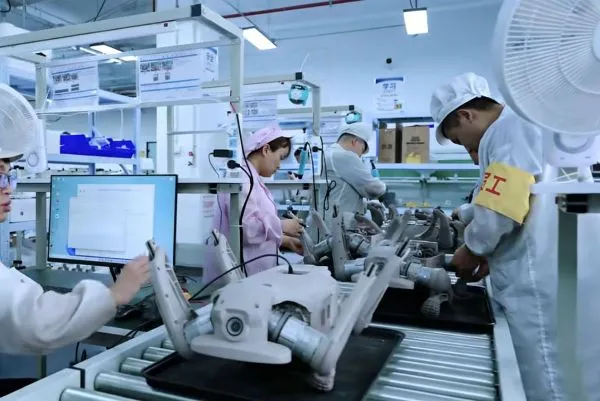

Intelligent Sensing Breakthrough

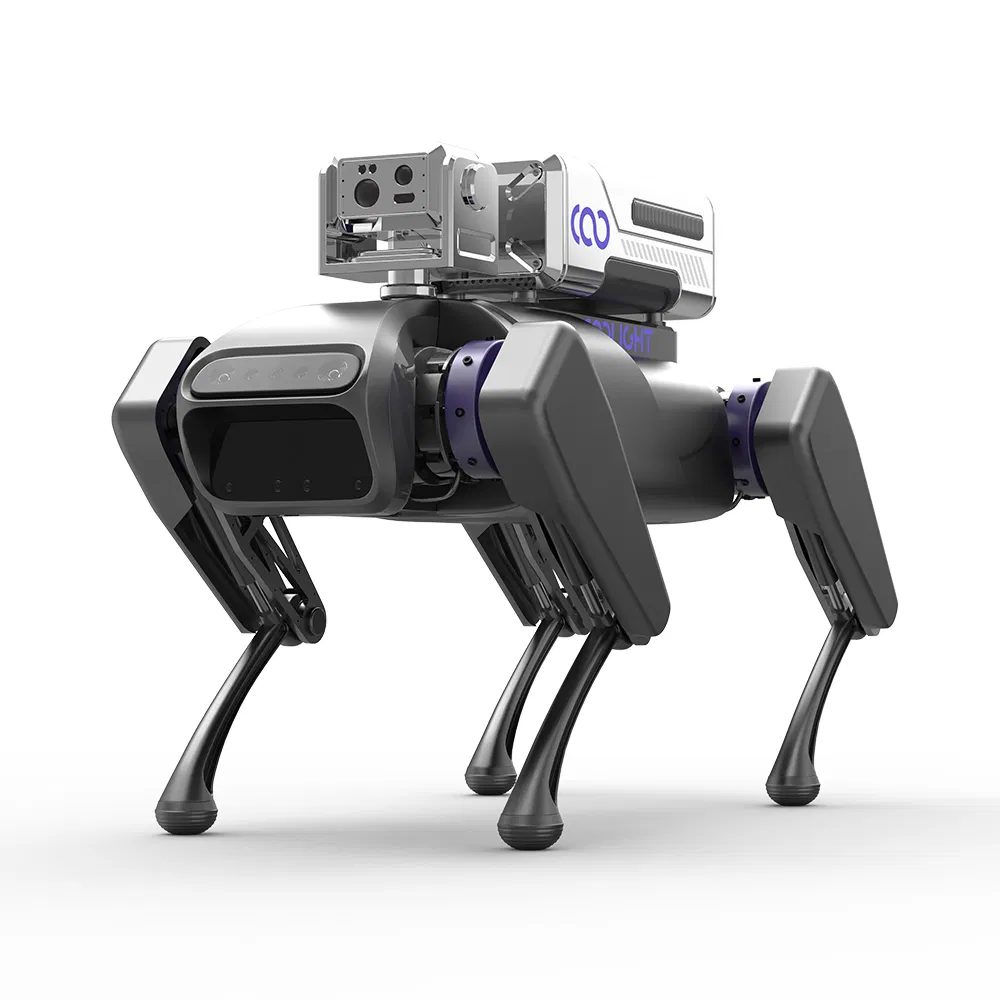

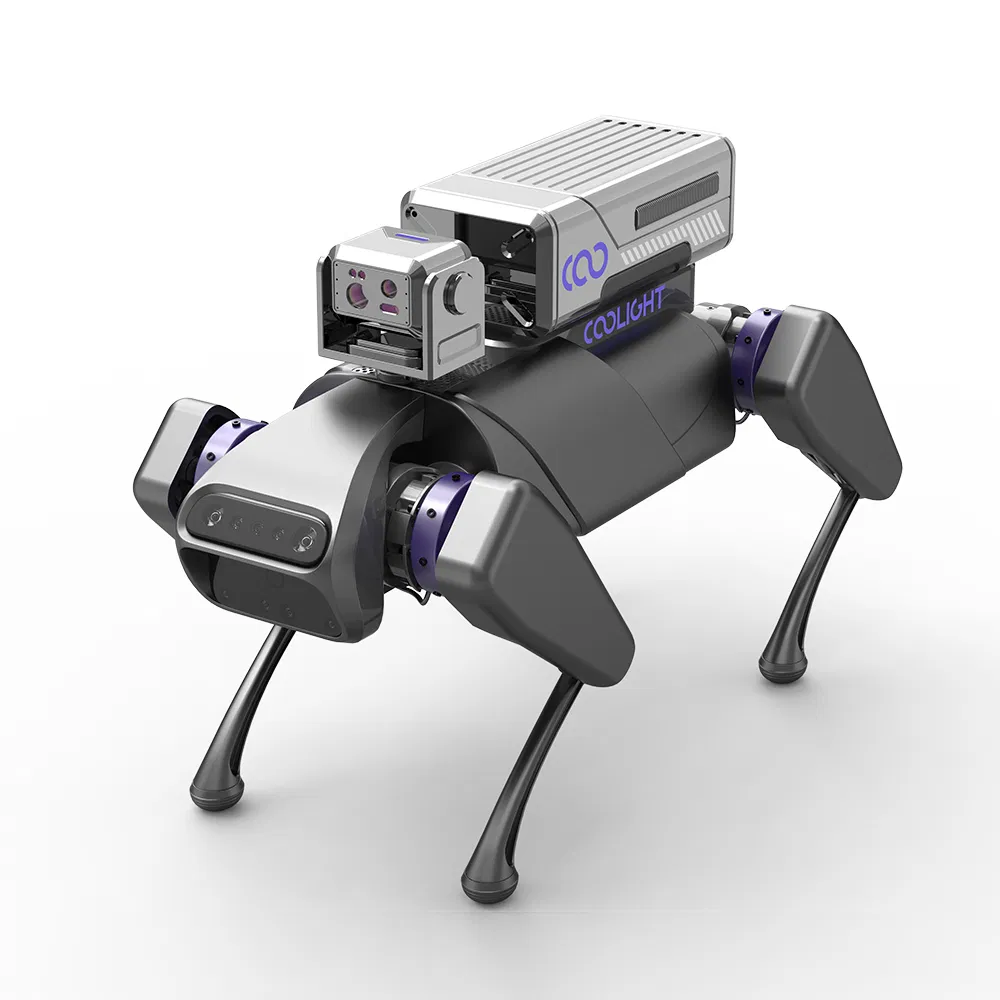

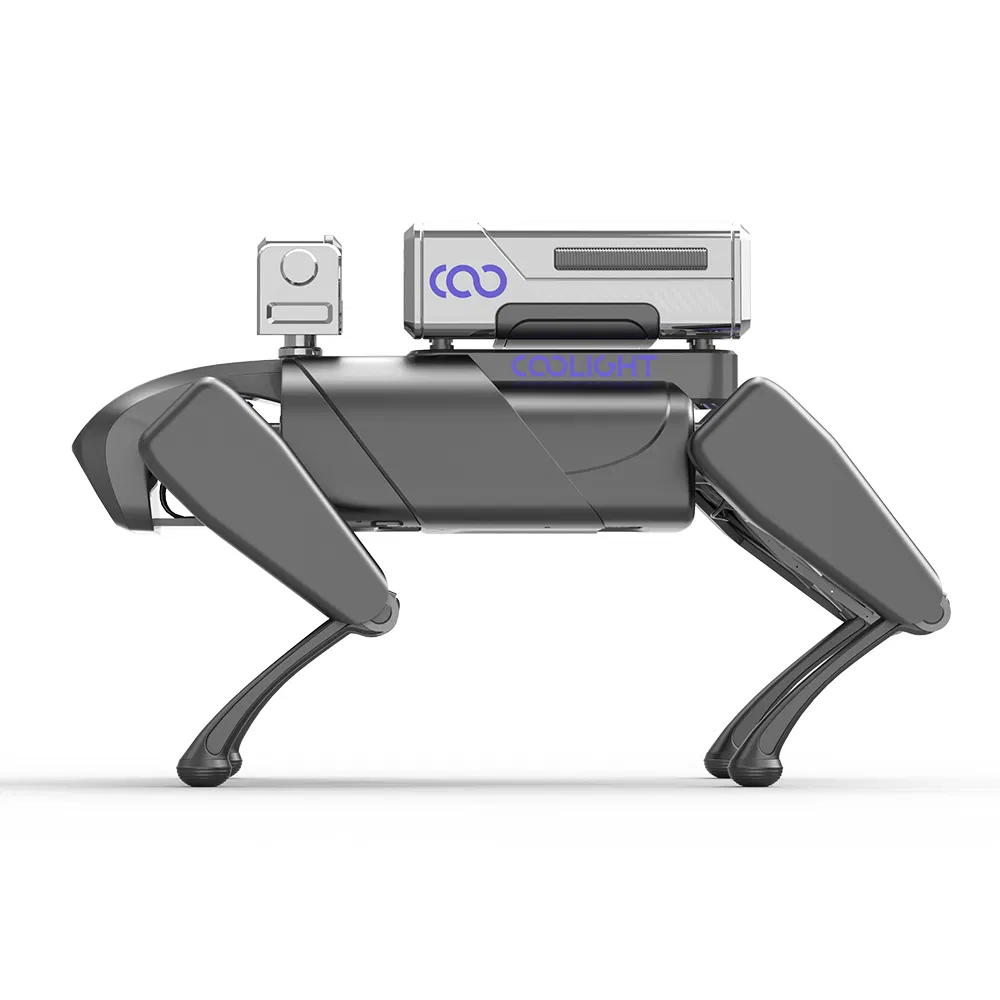

CL801 Quadruped Inspection Robot

The CL801 Quadruped Inspection Robot is a state-of-the-art unmanned inspection marvel crafted for high-risk, intricate, and perilous industrial environments. Masterfully engineered with advanced robot locomotion control, computer vision, and robust multi-sensor perception, it excels in oil and gas facilities, chemical plants, and power stations.

In contrast to conventional wheeled robots, this quadruped structure offers exceptional mobility through stairs, steep slopes, and uneven ground. It strictly adheres to Ex db ib IIB T6 Gb explosion-proof standards.

Key Features & Capabilities

  • Innovative Quadruped 'dog robot' configuration for unmatched mobility across complex terrains.
  • Robust explosion-proof design adhering to Ex db ib IIB T6 Gb standards.
  • AI-driven perception and intelligent inspection capabilities.
  • Comprehensive multi-sensor integration: Infrared, Gas Detection, and Partial Discharge.
  • IP67 Protection Rating: Dust-proof and water immersion resistant.
Technical Data:
Drive Mode: Electro-Hydraulic Hybrid | Max Speed: 3.5 m/s | Climbing Slope: 35° | Max Load: 80 kg | Operating Temp: -20°C to +60°C

Application Scenarios

Versatile deployment across: Oilfield Refineries, Offshore Platforms, LNG Terminals, Chemical Industrial Parks, Power Plants, Coal Mines, and Data Centers.

Frequently Asked Questions

What makes the CL801 suitable for hazardous environments?
The CL801 features a composite explosion-proof configuration (Ex db ib IIB T6 Gb) and an IP67 rating, making it safe for use in areas with flammable gases and harsh weather.
Can the robot climb stairs or steep slopes?
Yes, its quadruped design allows it to navigate stairs, uneven ground, and slopes up to 35° which are typically inaccessible to wheeled robots.
What is the endurance of the CL801 robot?
The robot offers a no-load endurance of up to 25 hours, and a useful load endurance of at least 2.5 hours depending on the configuration.
Is the monitoring system customizable?
Absolutely. The inspection modules are modular and can be configured for gas detection, infrared thermal imaging, leak identification, and more based on specific needs.
How does the robot handle data transmission?
All gathered data is transmitted in real-time to a centralized platform for analysis, enabling immediate alarms and remote decision-making.
