Autonomous Inspection Robot for Hazardous Chemical Plant Operations

After-sales Service:	One Year
Application:	Oil and Gas, Chemical Plant
Weight:	23 Kg

Basic Specifications

Model NO.

CL801

Operating Depth

350m

Payload Capacity

15kg

Maximum Speed

4.0 Knots (2 M/S)

Thruster Propeller

Aluminum Alloy

Specification

750 x 660 x 330 mm

Trademark

COOLIGHT

Origin

Yantai

Technology & Innovation

A pioneering high-tech enterprise at the forefront of innovation, dedicated to delivering state-of-the-art advanced gas sensing, intelligent perception, and industrial monitoring solutions. Merging robust academic prowess with unparalleled industrial commercialization capabilities.

Cutting-edge technology is firmly rooted in innovative photoacoustic spectroscopy (PAS) for the precise detection of ultra-trace substances, delivering exceptional sensitivity, rapid response times, and enduring stability in demanding industrial settings.

R&D Collaboration

Strategically aligned through partnerships with international laboratories, focusing on propelling robotics research and catalyzing technological breakthroughs in intelligent sensing.

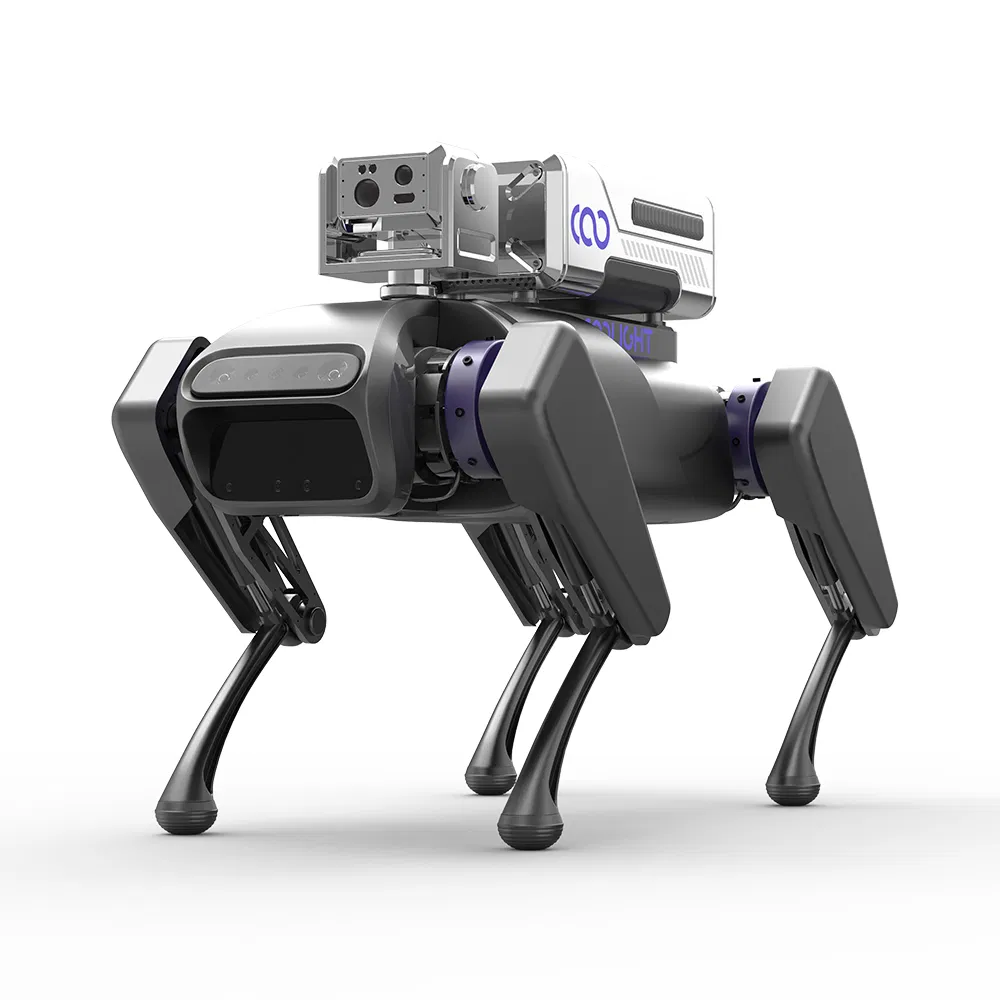

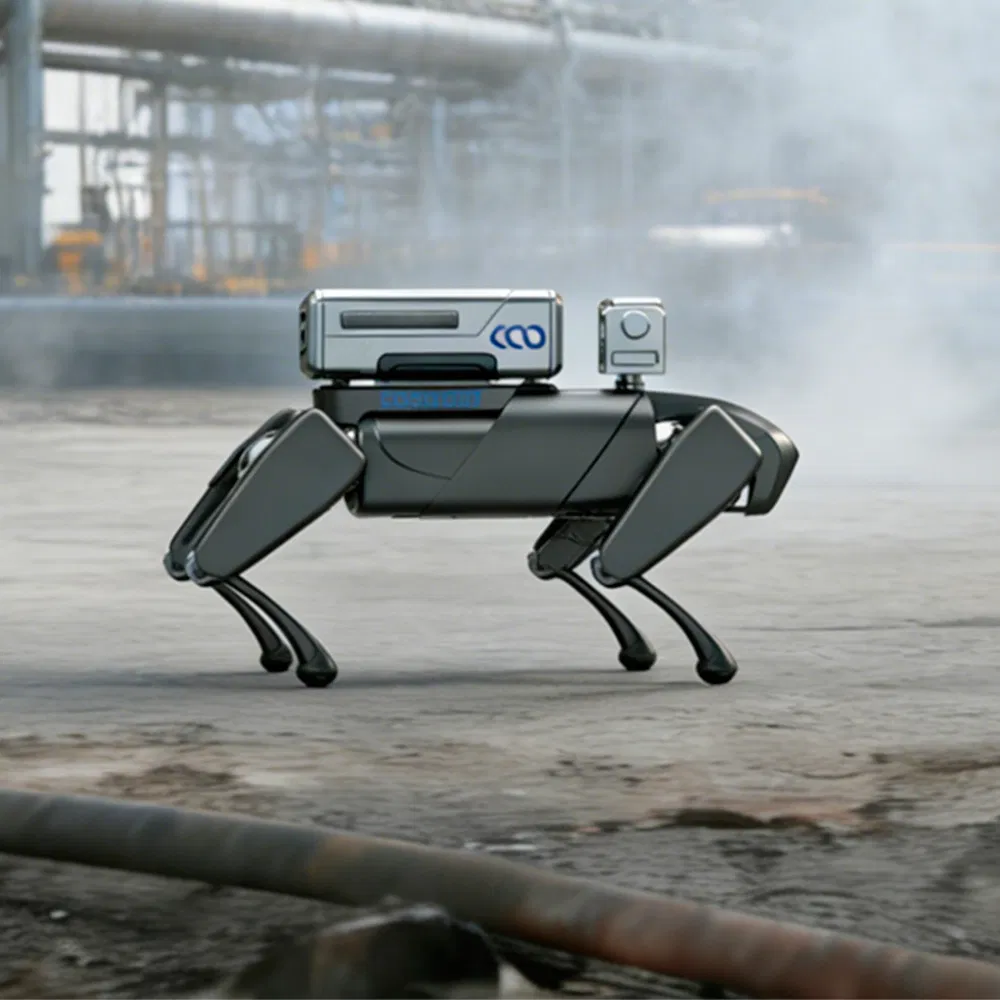

CL801 Quadruped Inspection Robot

The CL801 Quadruped Inspection Robot (industrial dog robot) is an elite, cutting-edge unmanned inspection solution engineered for navigating high-risk, intricate, and hazardous industrial settings.

Distinguished from conventional wheeled robots, the quadruped structure offers exceptional mobility and terrain adaptability for stairs, slopes, and uneven ground. It adheres to Ex db ib IIB T6 Gb standards for safe deployment in volatile environments.

Key Features

Quadruped design for superior mobility in complex terrain.
Electro-hydraulic hybrid drive system.
Explosion-proof compliant (Ex db ib IIB T6 Gb).
AI-powered perception and intelligent inspection.
Integral multi-sensor system for monitoring.
Robust IP67 protection for all-weather use.

Technical Specifications

Drive Mode: Electro-Hydraulic Hybrid

Maximum Speed: 3.5 m/s

Climbing Ability: 35° Slope / 35cm Step Height

Endurance: Up to 25 hours (No-load) / ≥ 2.5 hours (Useful load)

Payload Capacity: 30 kg (Rated) / 80 kg (Maximum)

Environment: −20°C to +60°C | IP67 Rating

Monitoring Capabilities

✓ Infrared Temperature

✓ Gas Leak Detection

✓ 3D Concentration Mapping

✓ Personnel Recognition

✓ Gauge Reading

✓ Corrosion Monitoring

Frequently Asked Questions

What terrains can the CL801 handle?

The CL801 quadruped robot can seamlessly navigate stairs, slopes up to 35°, narrow passages, and uneven ground that are difficult for wheeled robots.

Is the robot safe for explosive environments?

Yes, it features a composite explosion-proof design compliant with Ex db ib IIB T6 Gb standards, making it suitable for oil, gas, and chemical facilities.

What is the maximum payload capacity?

The robot has a rated useful load capacity of 30 kg and can handle a maximum payload of up to 80 kg for heavy-duty tasks.

What sensors can be integrated?

It supports modular integration of infrared cameras, gas detectors, partial discharge monitors, 3D mapping tools, and intelligent gauge readers.

Can it operate in extreme weather?

With an IP67 protection rating and an operating temperature range of −20°C to +60°C, it is designed for all-weather industrial use.

How long does the battery last?

The robot offers an impressive no-load endurance of up to 25 hours and a minimum of 2.5 hours under operational load.
