Ai Vision Industrial Dog Robot for Remote Hazardous Inspections

After-sales Service:	One Year
Application:	Oil and Gas, Chemical Plant
Weight:	23 Kg

Basic Specifications

Model NO.

CL801

Operating Depth

350m

Payload Capacity

15kg

Maximum Speed

4.0 Knots (2 M/S)

Thruster Propeller

Hard Anodized Aluminum Alloy

Specification

750 x 660 x 330 mm

Trademark

COOLIGHT

Origin

Yantai

Advanced Perception Technology

★

A trailblazing high-tech enterprise committed to mastering the art of advanced gas sensing, intelligent perception, and cutting-edge industrial monitoring solutions. We seamlessly blend robust academic prowess with industrial commercialization expertise.

At the heart of innovation is the groundbreaking photoacoustic spectroscopy (PAS) technology for detecting ultra-trace substances. This enables exceptional sensitivity, lightning-fast response, and enduring stability even in the most challenging industrial settings.

Robotics Research & Collaboration

In 2024, approximately 10 million RMB was allocated to establish an innovative joint laboratory devoted to pioneering robotics research and propelling technological breakthroughs in intelligent sensing, solidifying leadership in industrial automation and bionic perception.

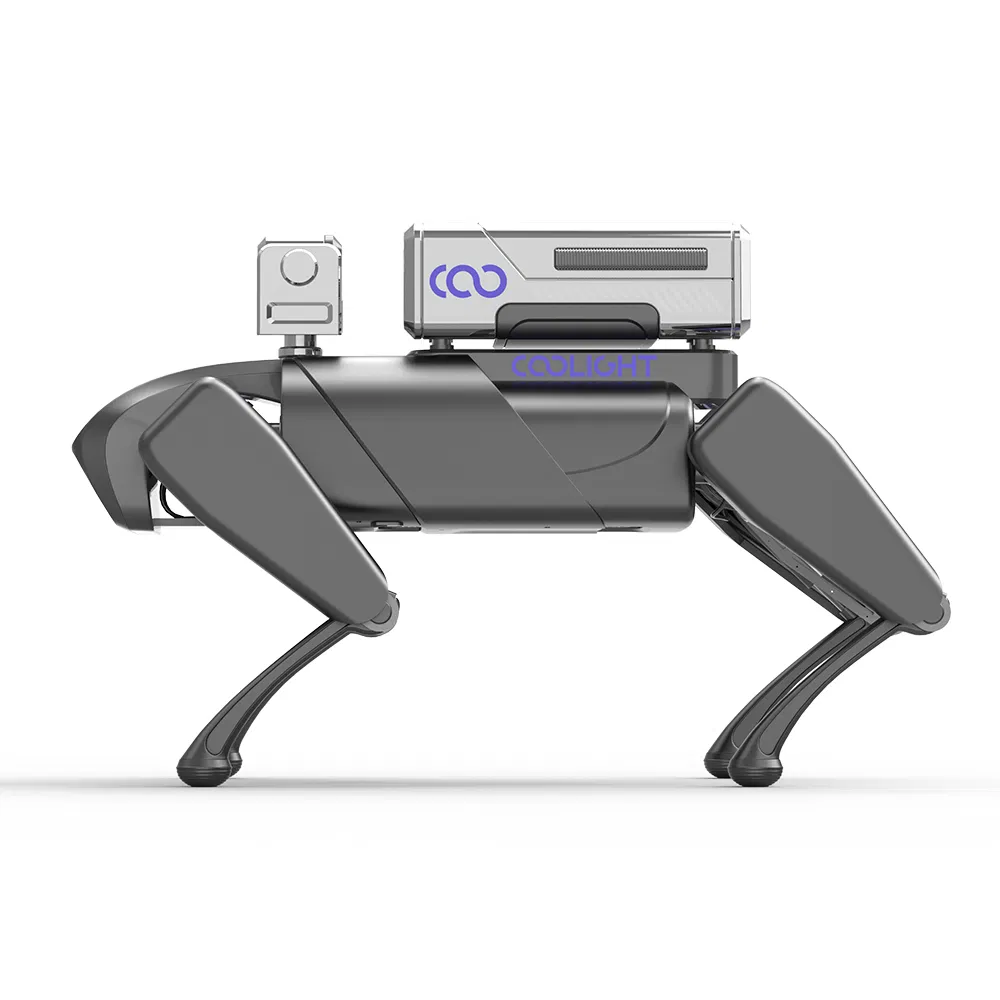

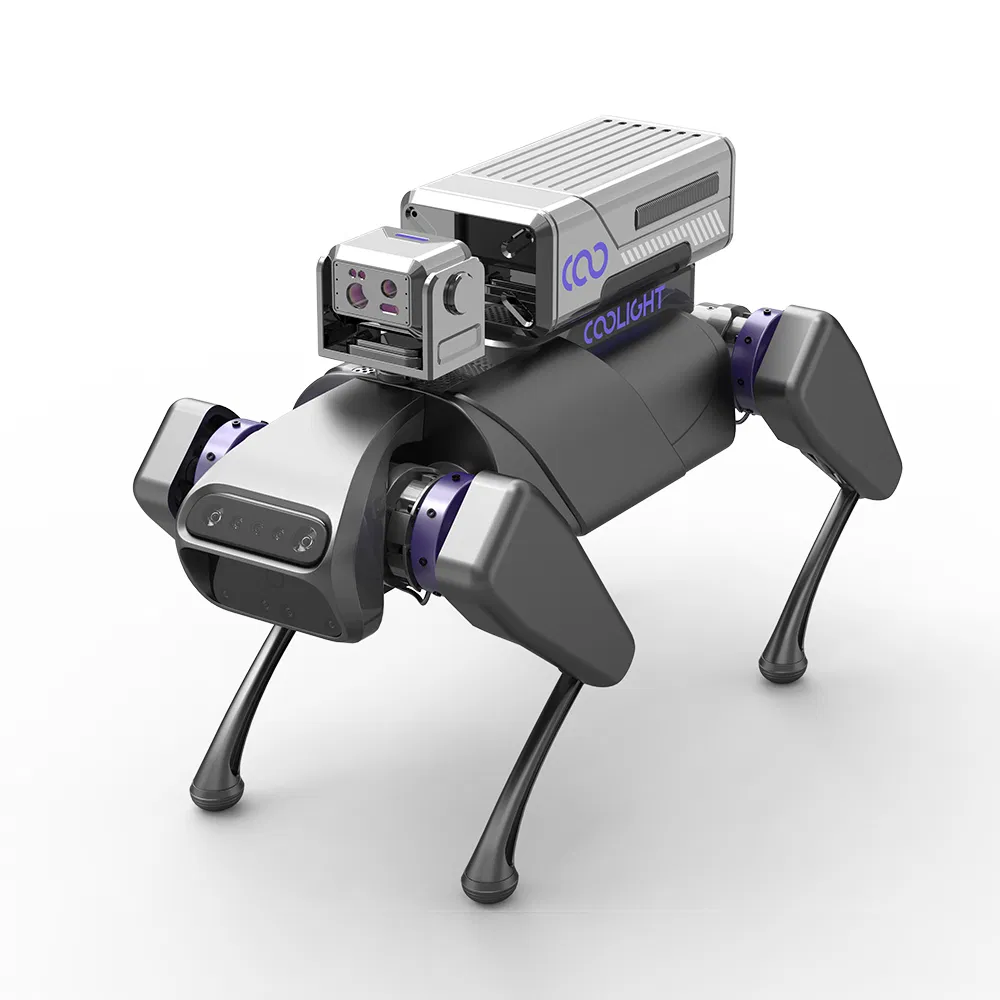

CL801 Quadruped Inspection Robot

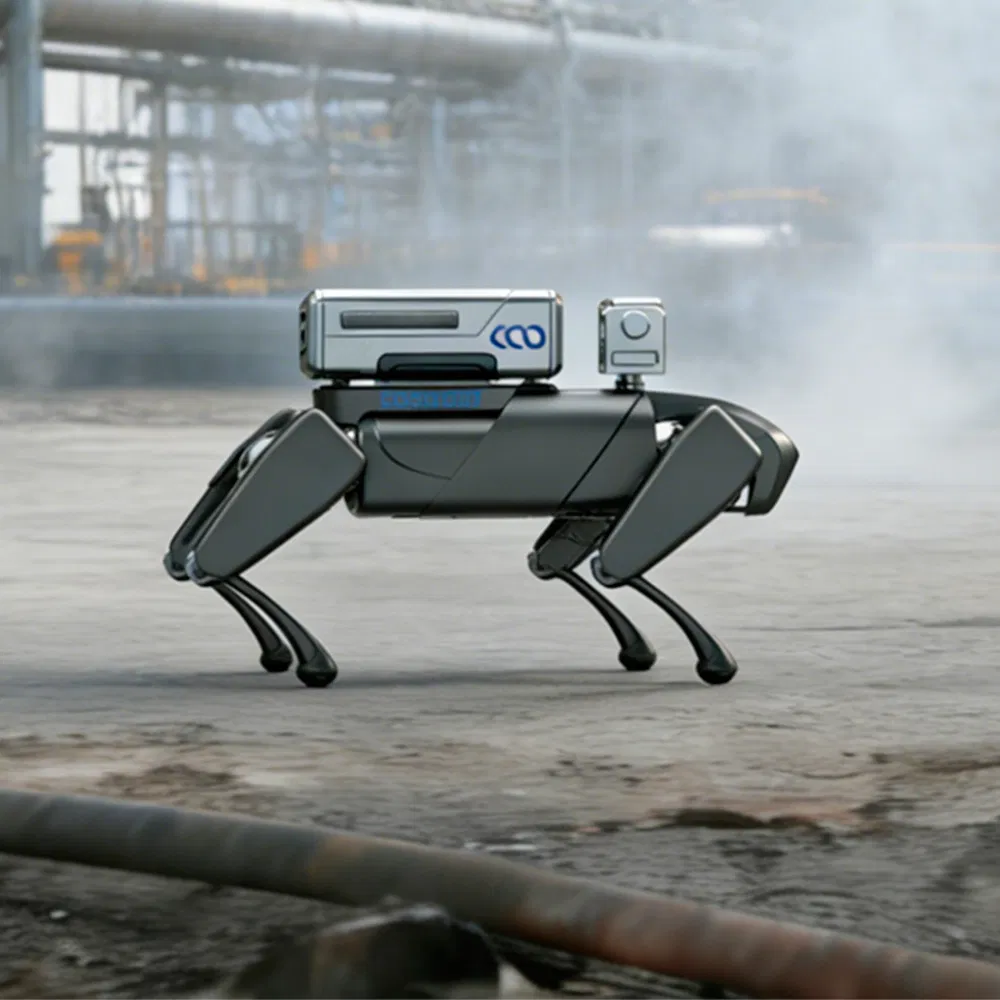

The CL801 Quadruped Inspection Robot, known as the industrial dog robot, is crafted for navigating high-risk, intricate, and hazardous industrial landscapes where human presence is fraught with peril.

Exceptional mobility and unparalleled terrain adaptability for stairs and irregular ground.
Composite explosion-proof design compliant with Ex db ib IIB T6 Gb standards.
Integrated AI computer vision and multi-sensor perception.
Round-the-clock unmanned inspection to minimize personnel exposure.

Technical Specifications

Drive Mode

Electro-Hydraulic Hybrid

Max Speed

3.5 m/s

Climbing Slope

Up to 35°

Max Step Height

35 cm

No-Load Endurance

25 hours

Max Load

80 kg

Protection Rating

IP67

Temp Range

−20°C to +60°C

Monitoring Capabilities

Precision infrared temperature measurement
Flammable and toxic gas detection
Partial discharge monitoring for preemptive fault detection
Intelligent gauge reading with adaptive technology
Personnel behavior recognition for workplace safety
Advanced corrosion monitoring for asset longevity

Application Scenarios

Oilfield combined stations, Refineries, Offshore platforms, LNG terminals, Chemical industrial parks, Power plants, Coal mines, Ports, Data centers, and Submarine pipeline inspection.

Frequently Asked Questions

Q1: Can the CL801 robot work in explosive environments?

Yes, it features a composite explosion-proof design compliant with Ex db ib IIB T6 Gb standards, making it safe for oil, gas, and chemical facilities.

Q2: What is the maximum load capacity of the robot?

The CL801 has a useful load capacity of 30kg and can handle an impressive maximum load of up to 80kg.

Q3: How does it handle difficult terrain like stairs?

Unlike wheeled robots, its quadruped structure allows it to navigate stairs, inclines up to 35°, and steps up to 35cm in height effortlessly.

Q4: Is the robot waterproof?

Yes, the robot has an IP67 protection rating, ensuring robust resilience against dust and water immersion.

Q5: What is the battery life?

The robot offers an extensive no-load endurance of 25 hours, and remains operational for ≥ 2.5 hours under useful load conditions.

Q6: What sensors can be integrated?

The robot supports modular integration of infrared cameras, gas detectors, acoustic sensors for discharge, and AI vision for personnel behavior recognition.
