Ai Vision Dog Robot for Remote Hazardous Area Inspections

After-sales Service:	One Year
Application:	Oil and Gas, Chemical Plant
Weight:	23 Kg

Basic Specifications

Model NO.

CL801

Operating Depth

350m

Payload Capacity

15kg

Maximum Speed

4.0 Knots (2 M/S)

Thruster Propeller

Aluminum Alloy

Specification

750 x 660 x 330 mm

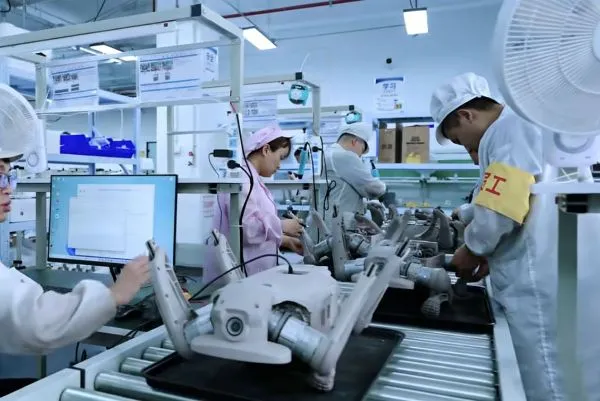

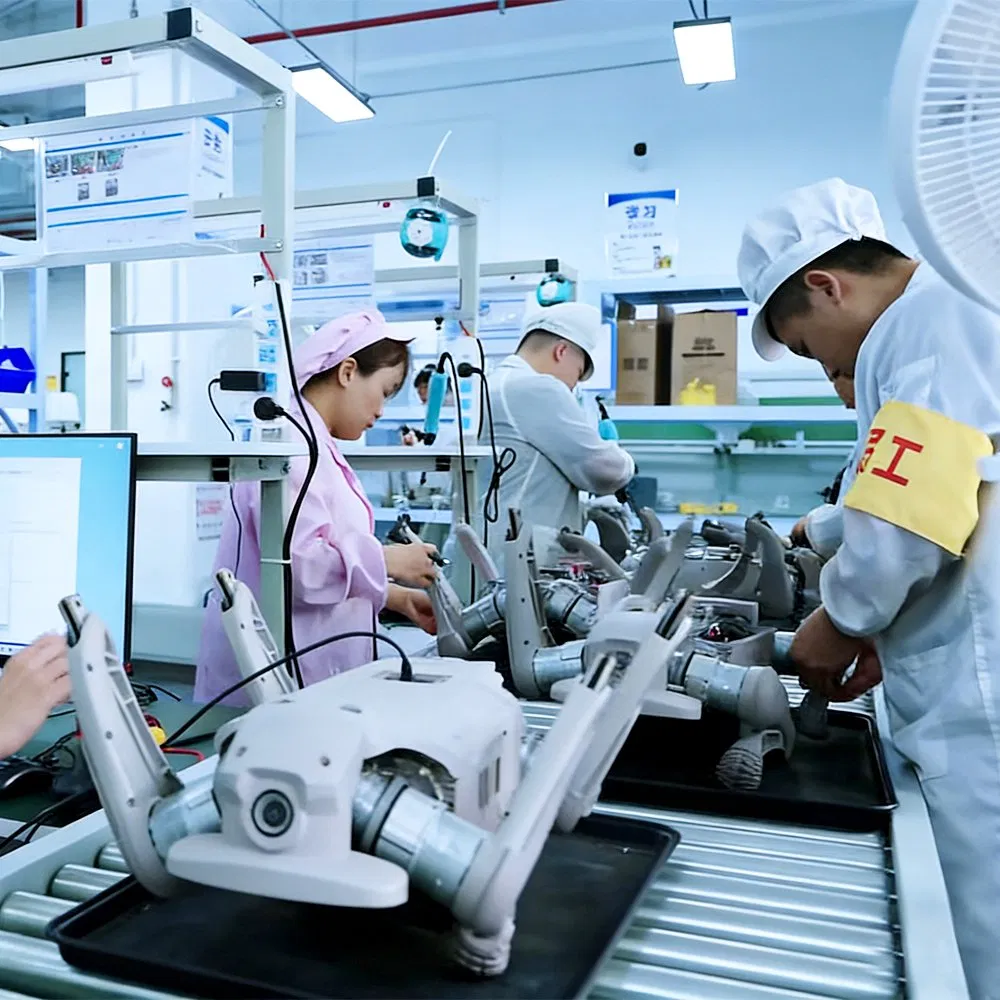

Innovative Research & Development

Our technology excels in providing cutting-edge gas sensing, intelligent perception, and comprehensive industrial monitoring solutions. Rooted in photoacoustic spectroscopy (PAS), we offer unmatched sensitivity and quick responsiveness in the toughest industrial settings.

Global Lab Collaboration

Strategically partnered with the Singapore Smart Perception and Automation Control Engineering Laboratory (SPACE). In 2024, a joint laboratory was established to propel the frontiers of robotics research and stimulate innovation in intelligent sensing technology.

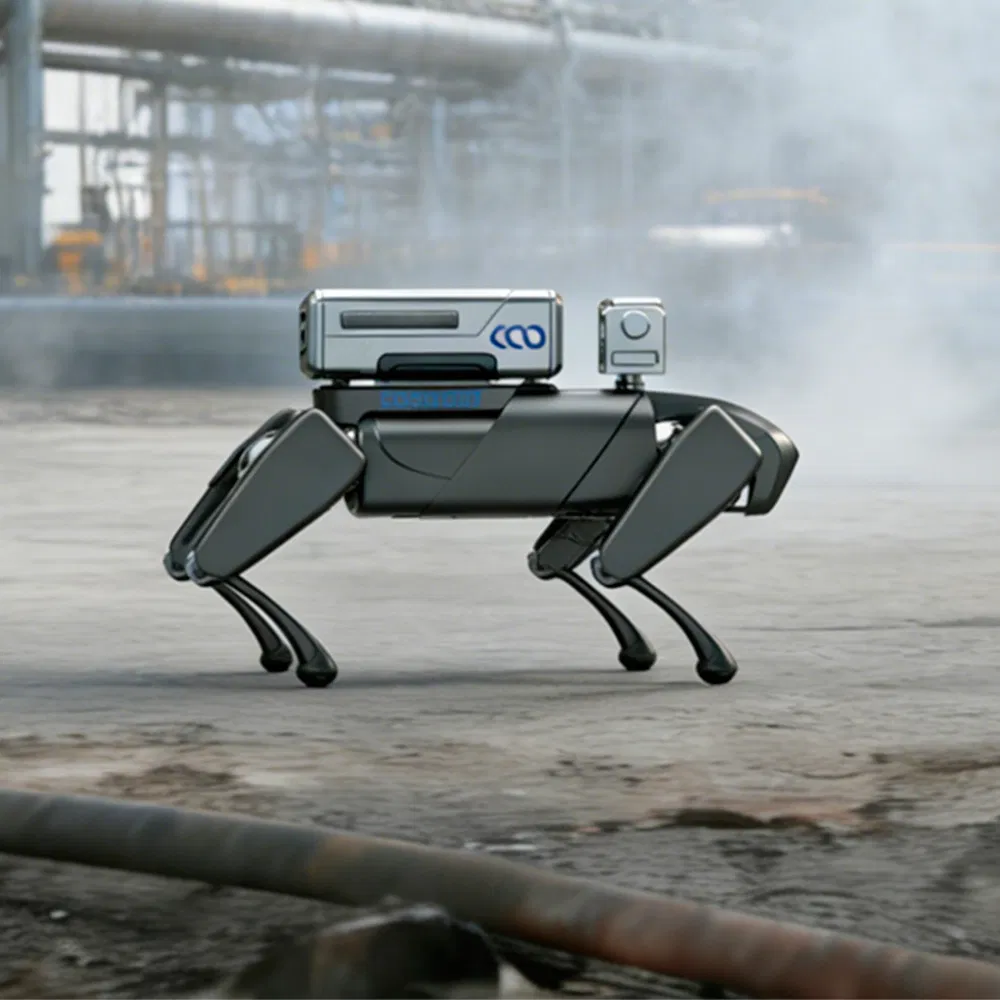

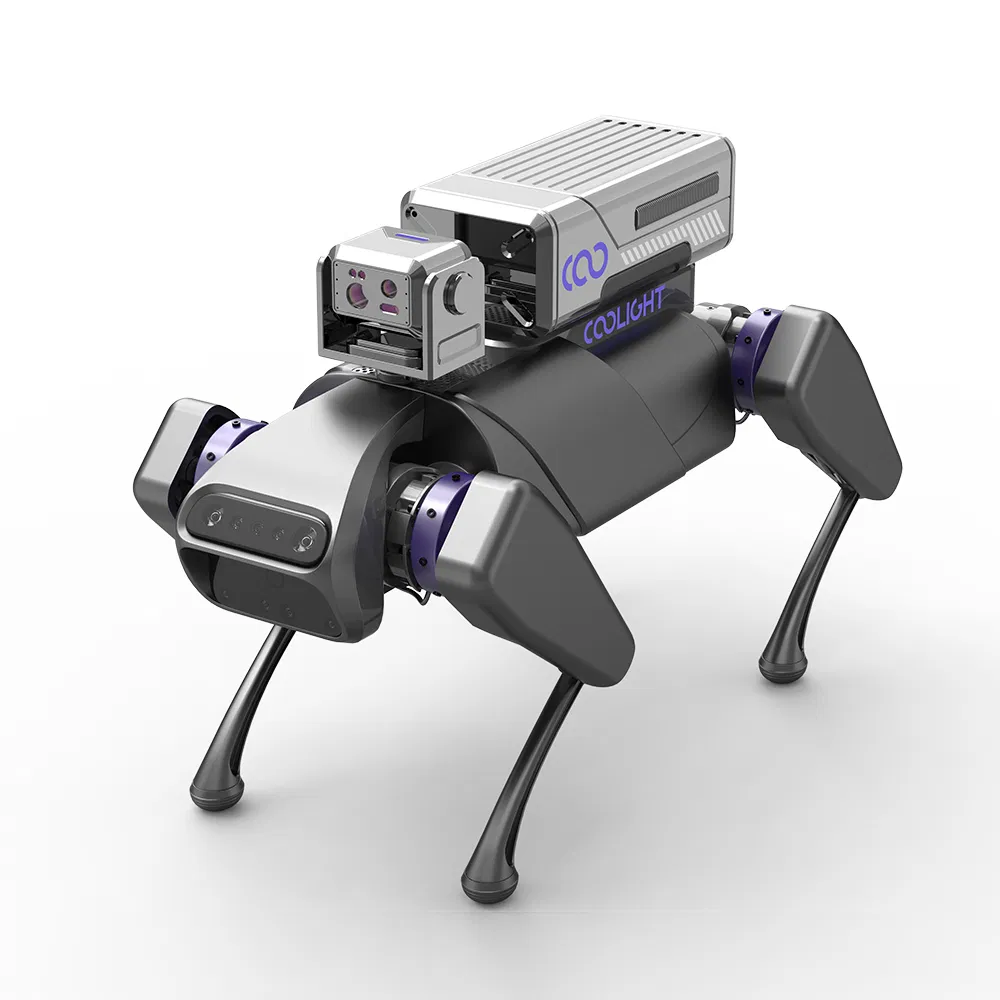

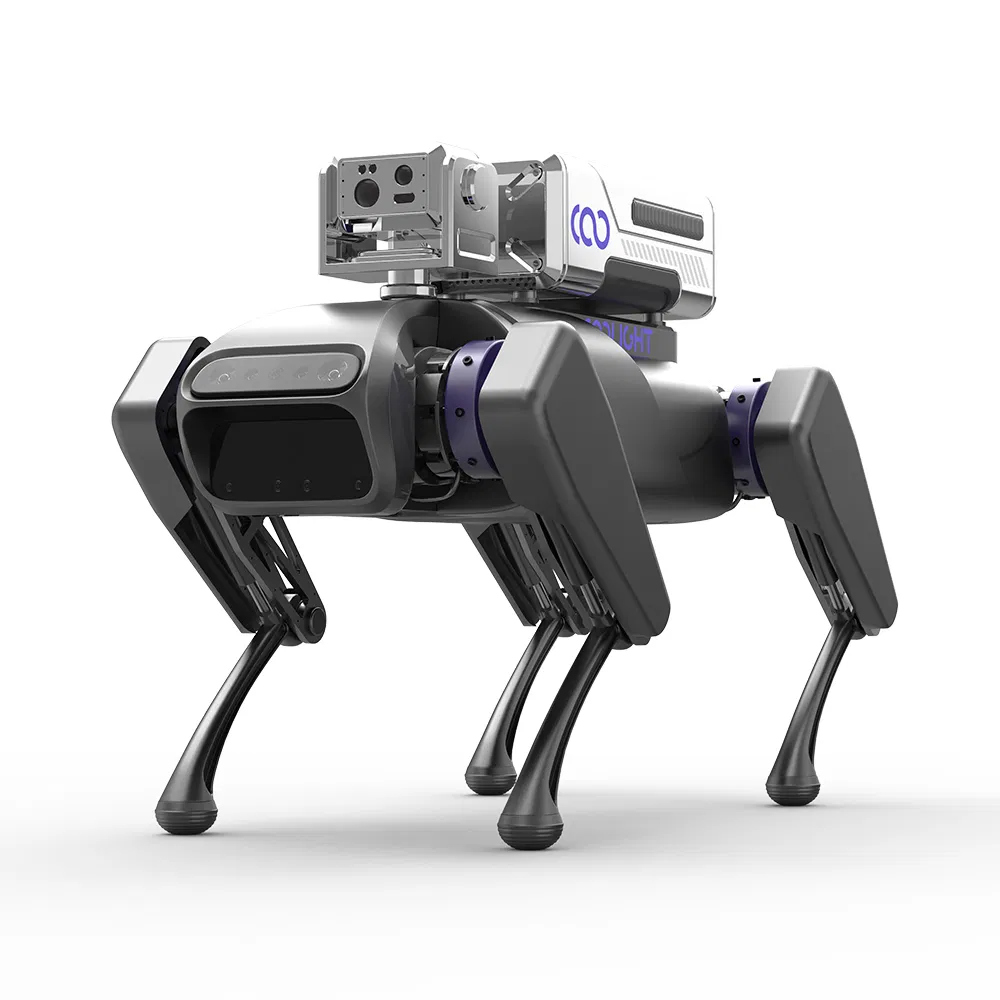

CL801 Quadruped Inspection Robot

The CL801 Quadruped Inspection Robot (Industrial Dog Robot) is an unmanned solution engineered for navigating high-risk, intricate, and hazardous industrial environments. It integrates robotic locomotion, AI, computer vision, and multi-sensor perception.

Key Performance Features

Advanced electro-hydraulic hybrid drive system for superior mobility.
Explosion-proof design compliant with Ex db ib IIB T6 Gb standards.
AI-driven perception for autonomous patrol and remote inspection.
IP67 Protection Rating ensures robust resistance against dust and water.
Unmatched terrain adaptability: navigates stairs, slopes, and uneven ground.

Technical Specifications

Movement & Load
Maximum Speed	3.5 m/s
Climbing Slope / Step Height	35° / 35 cm
Useful / Max Load	30 kg / 80 kg
Power & Environment
No-Load Endurance	25 hours
Operating Temperature	−20°C to +60°C
Protection / Safety	IP67 / Ex db ib IIB T6 Gb

Monitoring Capabilities

Electrical

Partial discharge monitoring

Thermal

Infrared temperature measurement

Gas Safety

Toxic gas & Leak identification

AI Vision

Intelligent gauge reading & Personnel recognition

Application Scenarios

Ideal for Oilfield refineries, Offshore platforms, LNG terminals, Chemical parks, Power plants, Coal mines, and Data centers. This robot supports the digital transformation of industrial safety management by providing 24/7 unmanned inspection.

Frequently Asked Questions

Q1: Can the CL801 work in explosive environments? A: Yes, it is certified to Ex db ib IIB T6 Gb standards, making it safe for use in flammable and toxic gas environments typical of oil, gas, and chemical industries.

Q2: What kind of terrain can this robot handle? A: Its quadruped design allows it to navigate stairs, slopes up to 35°, narrow passages, and uneven industrial ground much better than wheeled or tracked robots.

Q3: How long can the robot operate on a single charge? A: The CL801 offers a no-load endurance of up to 25 hours, and a useful load endurance of 2.5 hours or more depending on the mission profile.

Q4: Is the robot waterproof? A: Yes, it has an IP67 protection rating, which ensures robust protection against high-pressure water jets and dust, suitable for all-weather outdoor use.

Q5: Can the inspection modules be customized? A: Yes, the functions are modular. You can configure it with infrared cameras, gas detectors, corrosion monitors, or lidar based on your specific industrial needs.

Q6: How does the robot assist in safety management? A: By facilitating 24/7 unmanned inspection, it reduces human exposure to hazardous areas, improves data accuracy through AI, and provides real-time alerts for abnormal conditions.
